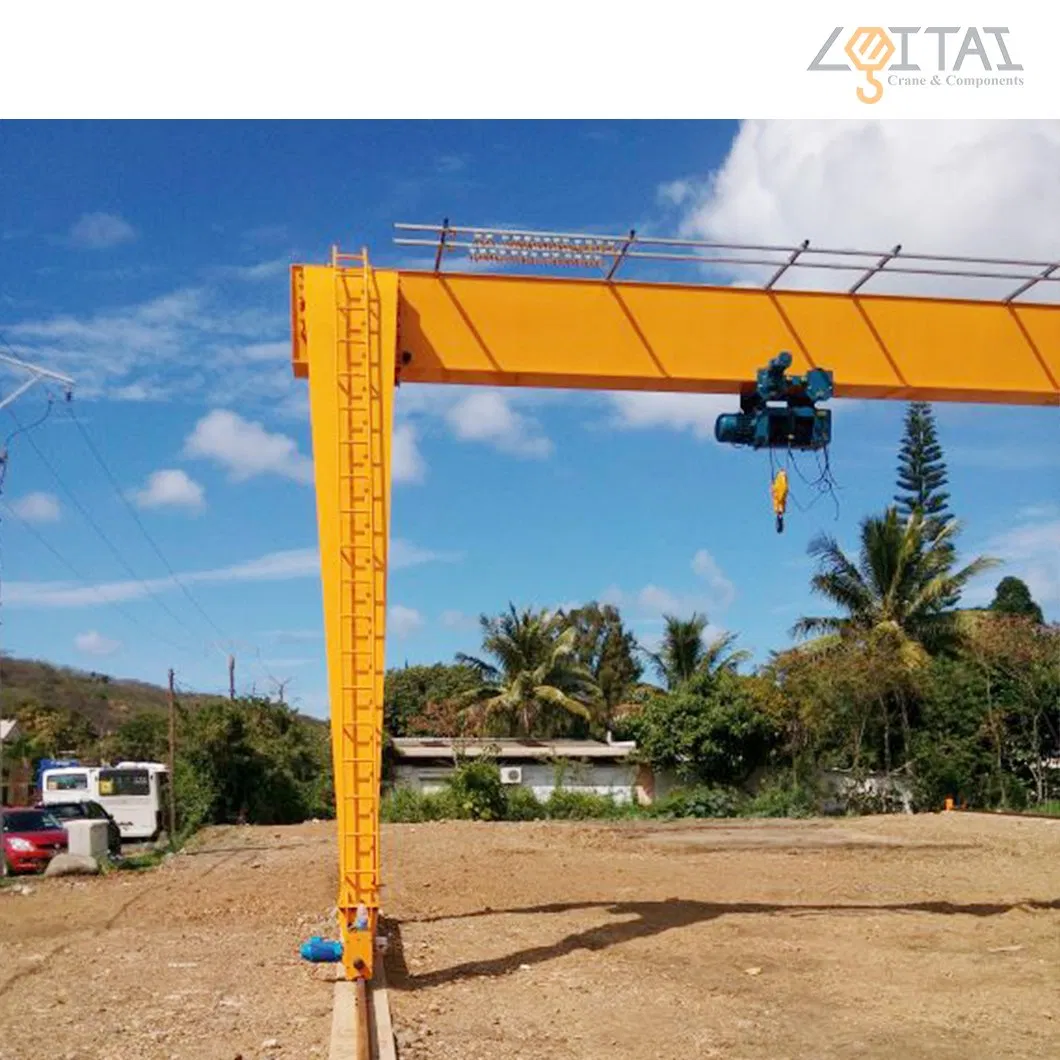

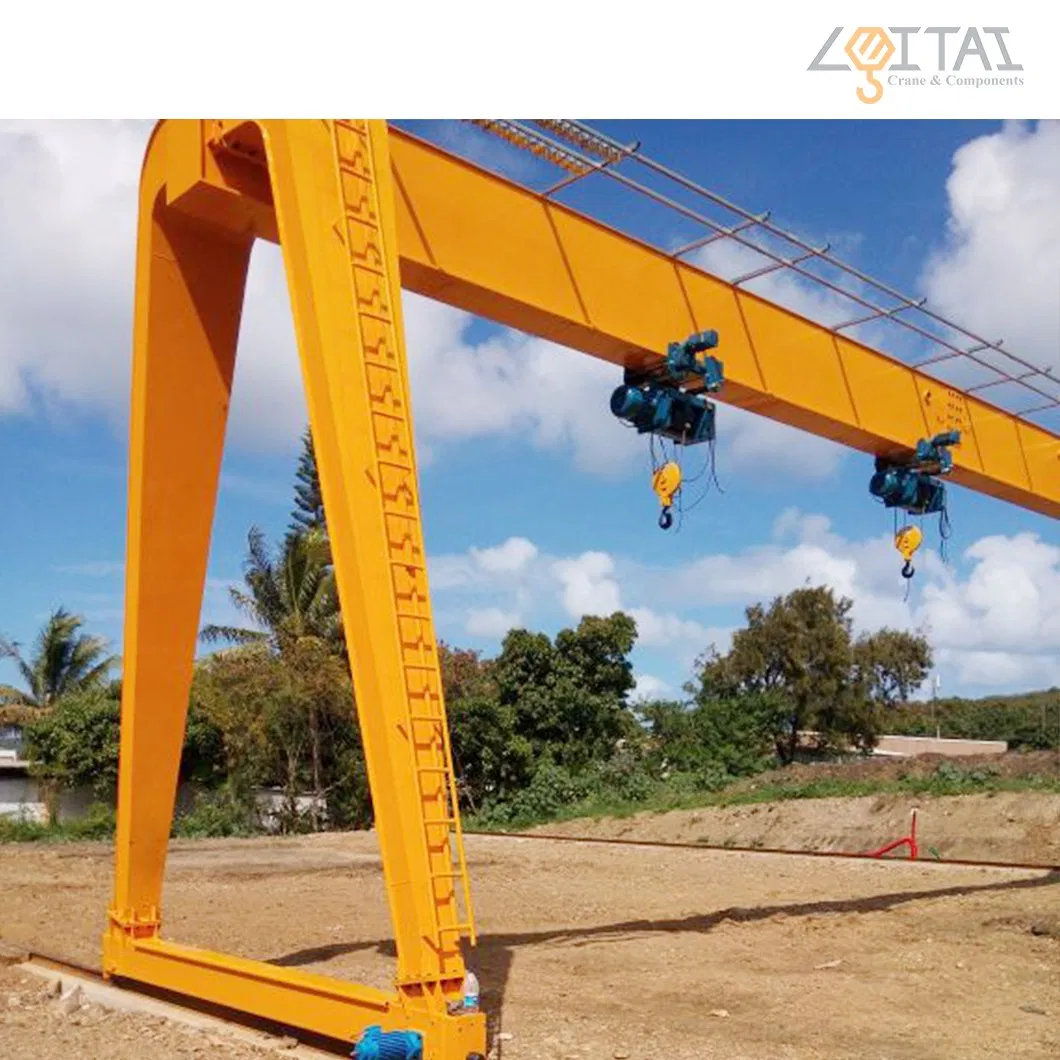

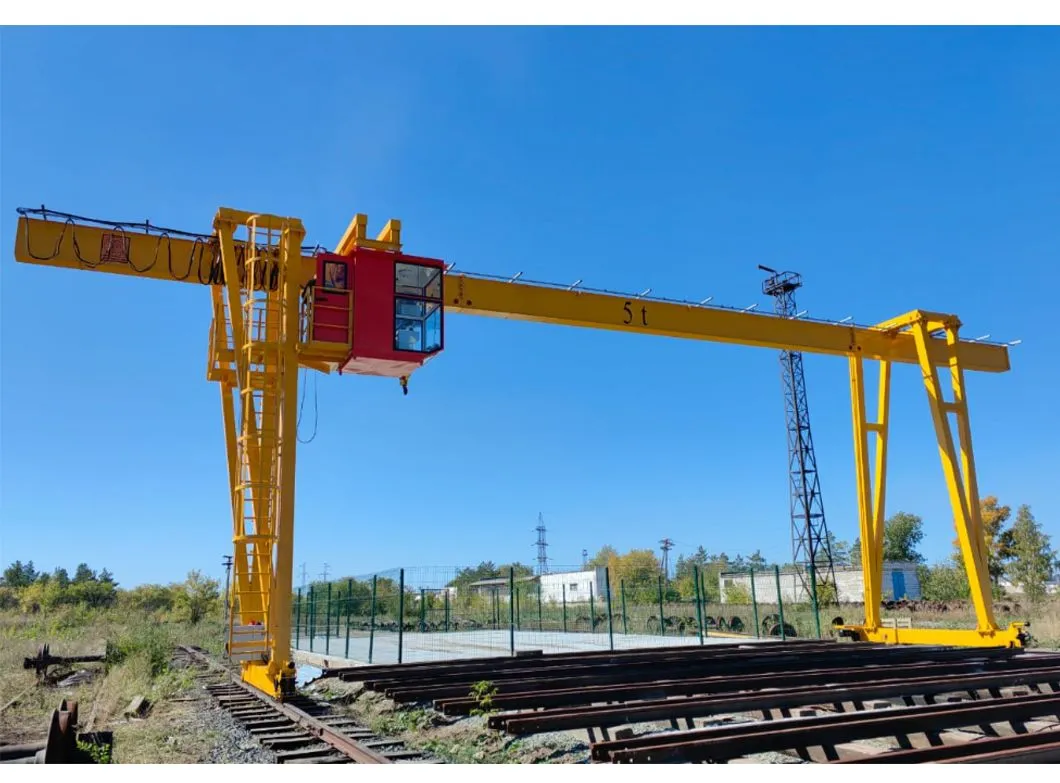

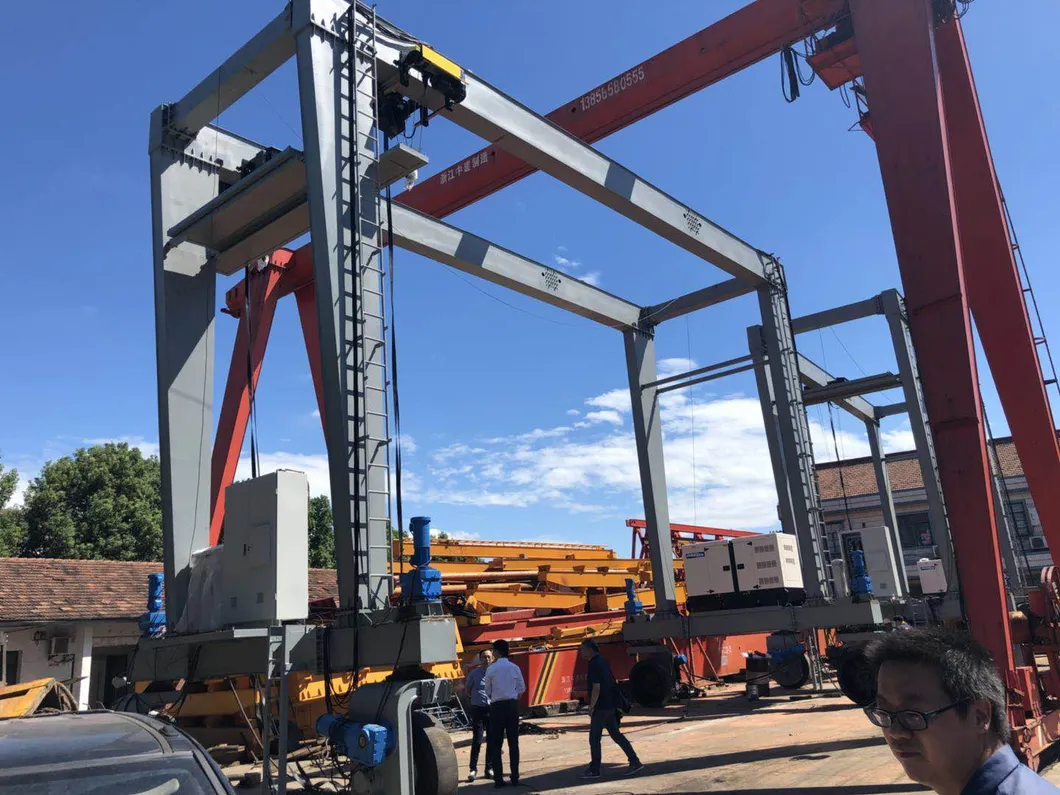

Our single beam gantry crane is a versatile and cost-effective lifting solution designed for various indoor and outdoor applications. It features a single main beam supported by two legs, creating a clear span for material handling. This configuration allows for efficient movement of loads across a wide area, making it ideal for tasks requiring both horizontal and vertical movement.
We manufacture and supply custom single girder gantry cranes with capacity up to 20 tons and span up to 31.5 meters to meet your specific demands.
Design Code: Follows FEM, CMAA, ISO EN, BS, and GB standards.
Hoist: Compact structure, smooth operation, accurate positioning, and maintenance-friendly.

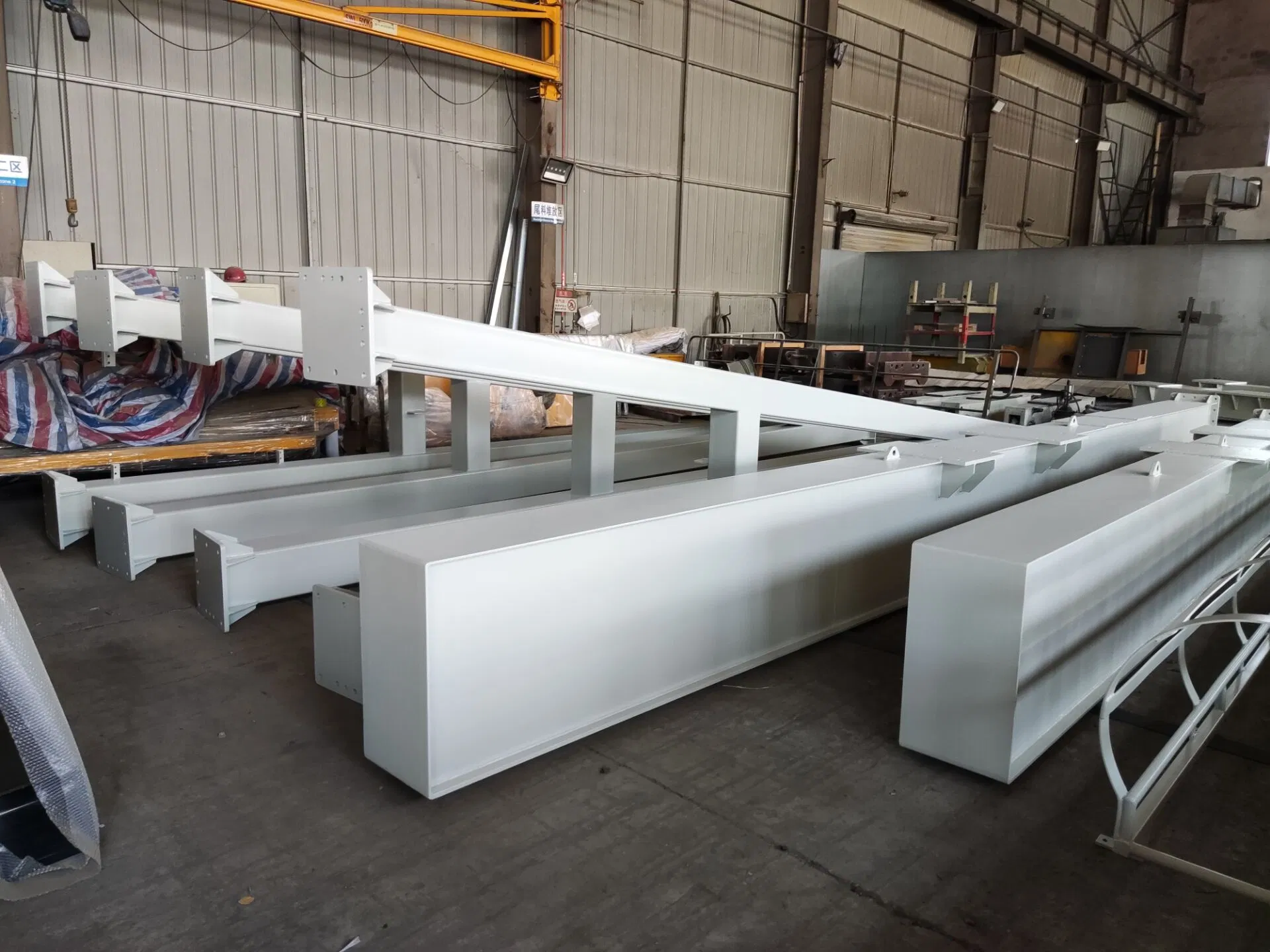

Girder: Compact Design and low weight, using Q355B steel material (ISO EN S355, DIN ST52). Welding follows ISO 15614 and AWS D14.1.
End Carriage: Direct Driving design with high transmission efficiency. Wheel material is alloy steel with heat treatment for durability.
Gear Motor: Worldwide top brand, IP55, F insulation class, overheat protection, and electromagnetic brake.
Control Panel: IEC standard, IP55 powder coating, socket plug-in for easy connection, and international brand inverters/MCBs.
Festoon System: Double line Galvanized C track system with flexible flat cable for power and signal transmission.
Safety Protection: Includes overheat protection, load cell type overload limit switches, up/down and cross travel limit switches.
Controls: Offers both remote control and pendent control options.
Anti-corrosive Treatment: Shoot Blasting follow ISO8501-1 SA2.5 class. Rich zinc epoxy painting and polyurethane topcoat finish.
Outdoor Storage Yards: Efficiently load and unload materials in open-air storage facilities.
Workshops and Factories: Streamline material handling processes and improve workflow efficiency.
Assembly Lines: Support assembly operations by providing precise and controlled lifting capabilities.
Maintenance and Repair: Facilitate the lifting and movement of heavy equipment.
Construction Sites: Move materials and equipment across the site, adapting to changing needs.
| NO | Description | Answer Requirements |
|---|---|---|
| 1 | Type | Box type, Truss type or rubber tired type |
| 2 | Lifting Capacity (t) | Required tonnage |
| 3 | Span (m) | Distance between rails |

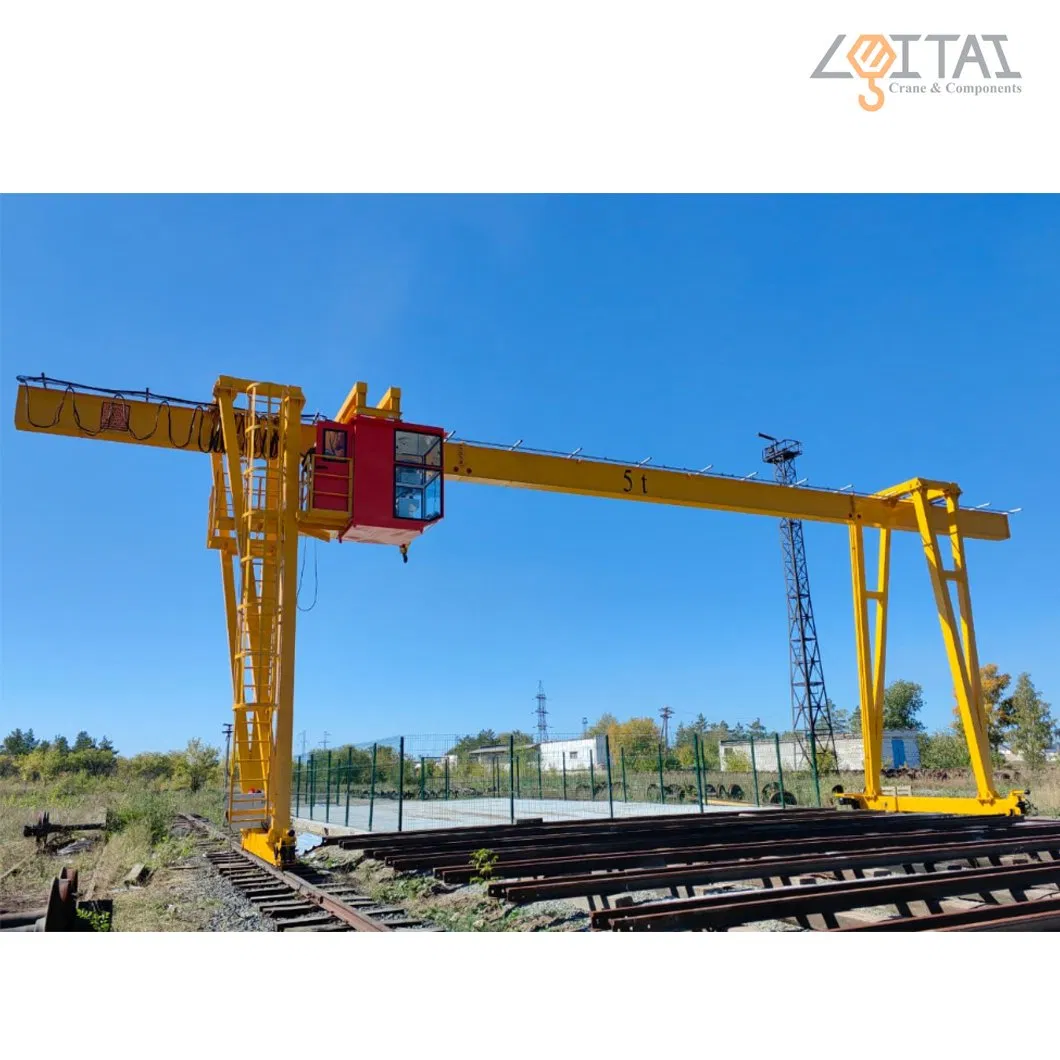

| 4 | Cantilever Length (m) | Left/Right extension length |
| 5 | Lifting Height | Height under hook |
| 6 | Work Duty Grade | FEM/ISO standard |
| 7 | Control Model | Cabin, Pendent or Remote control |
| 8 | Power Supply | V, HZ, P |
