10 Ton 50mm Short Stroke Hydraulic Jack (RSC-101)

1 / 3

10 Ton 50mm Short Stroke Hydraulic Jack (RSC-101)

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

RSC-101

Capacity (Load)

1-10T

Power Source

Hydraulic

Max Height

158mm

Certification

Condition

New

Transport Package

Wooden Box

Specification

Short stroke cylinder

Origin

China

HS Code

84122100

Production Capacity

1000 Sets Per Month

Product Description

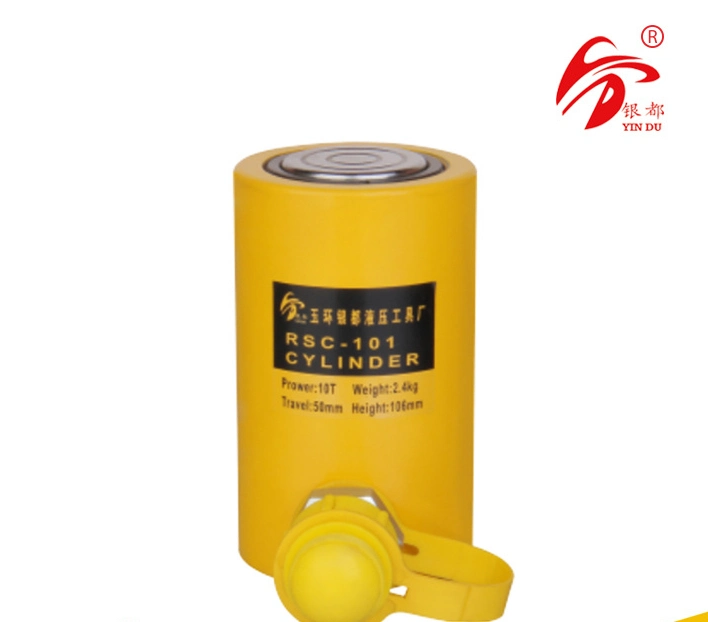

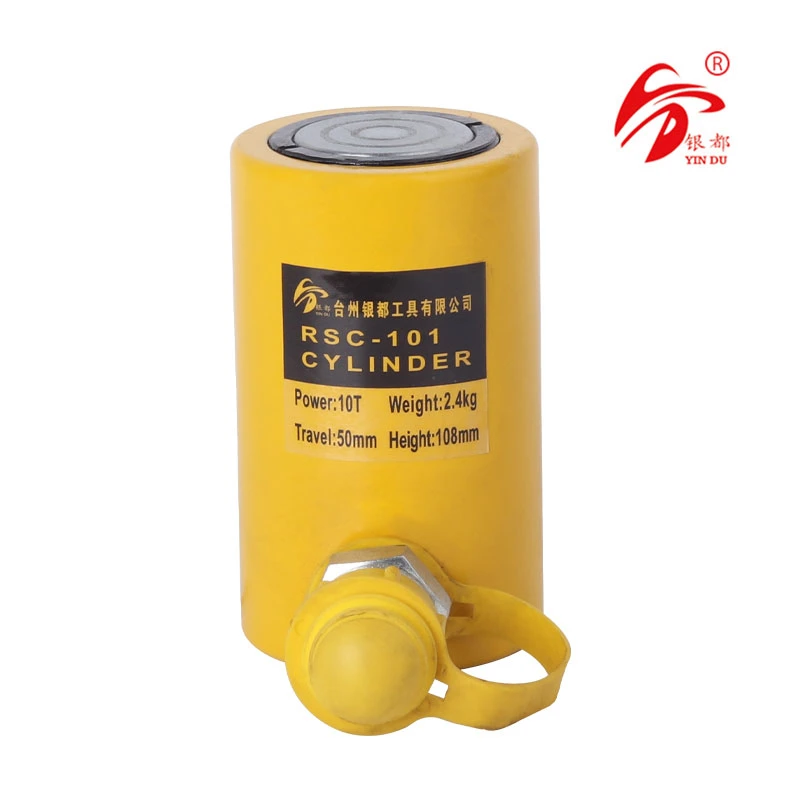

10 Ton Short stroke hydraulic jack RSC-101

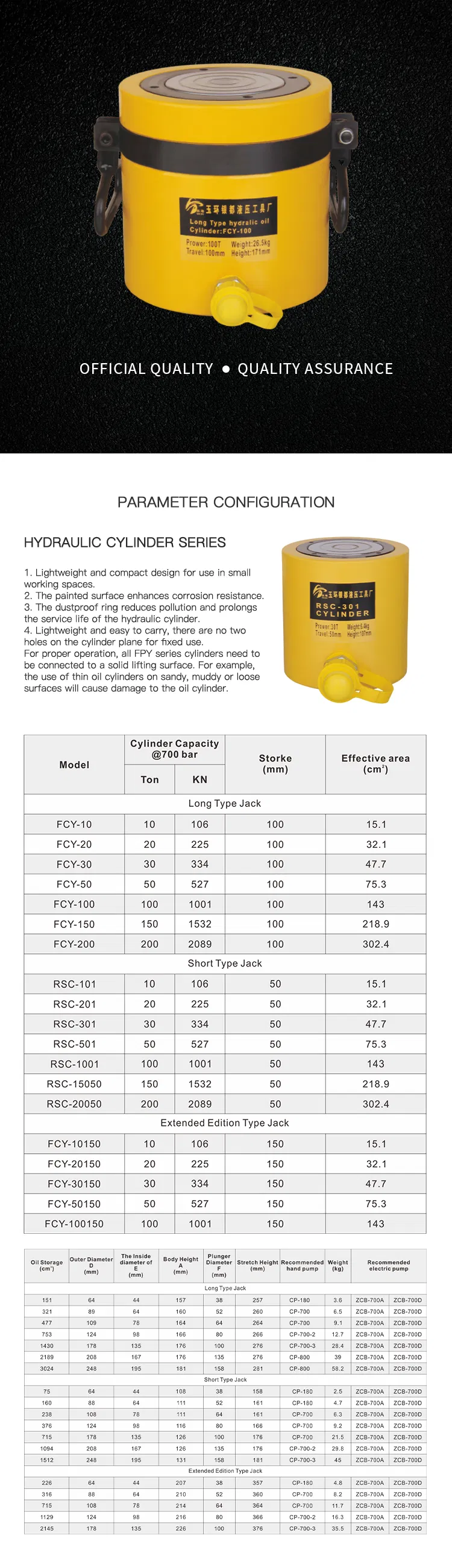

Model NO.	Tons(T)	Cylinder effective area(cm2)	Cylinder inside DIA(MM)	Cylinder Outside dia (mm)	Travel(mm)	Weight(kg)	Collapsed height(mm)	Pump
RSC-101	10	15.89	45	63	50	2.4	108	Cp-180
RSC-201	20	33.16	65	88	50	4.4	111	Cp-180
RSC-301	30	50.24	80	108	50	6.4	111	Cp-700
RSC-501	50	78.5	100	128	50	9.4	116	Cp-700
RSC-1001	100	143.06	135	178	50	20.4	126	Cp-700-2
RSC-2001	200	302.5	196.3	247	50	42	131	ZCB-700A

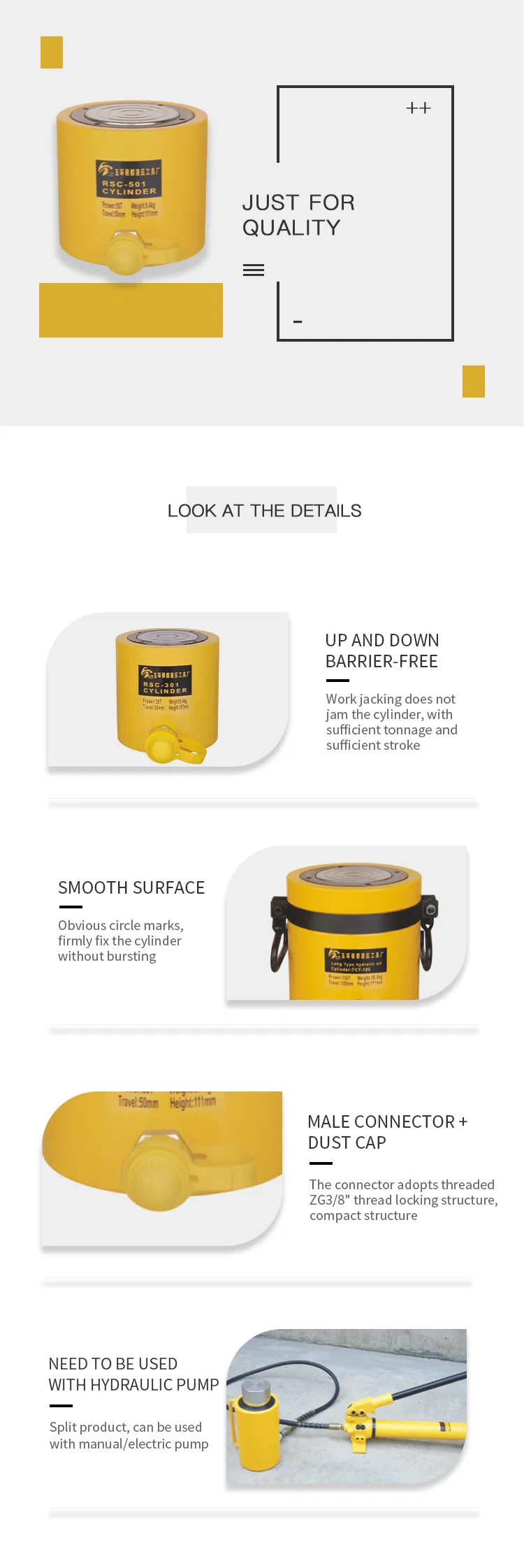

Features & Functions

✓ Light weight, low profile design for use in confined spaces.

✓ Baked enamel finish for increased corrosion resistance.

✓ Plunger ring reduces contamination, extending cylinder life.

✓ Easy to carry with two holes on the surface of the oil vat for stability.

Why Partner With Us?

We believe in a win-win situation for building long-term relationships through:

• Innovation: Providing innovative, stable products and services.

• Quality: Delivering consistently superior performance and pursuing every improvement.

• Agility: Identifying emerging trends and acting quickly on new opportunities.

• Customer Satisfaction: Anticipating and exceeding customer expectations.

Frequently Asked Questions

What is the main advantage of the RSC series hydraulic jack?

The RSC series features a low-profile and lightweight design, specifically engineered for efficient use in confined or restricted spaces.

What capacity range is available for these short stroke jacks?

The series offers a wide capacity range from 10 tons up to 200 tons to suit various industrial lifting requirements.

How does the product resist corrosion?

Each cylinder is finished with baked enamel, which provides a high level of resistance to corrosion and wear in harsh environments.

Is the cylinder protected against contamination?

Yes, it includes a plunger ring design that helps reduce contamination, which significantly extends the overall service life of the cylinder.

What is the standard packaging for international transport?

All units are securely packed in sturdy wooden boxes to ensure safety and protection during transit.

What is the typical production lead time?

Our current production capacity is approximately 1000 sets per month, ensuring a steady supply for large orders.
