Basic Specifications
Certification
GS, CE, ISO 9001
Production Capacity
100000PCS/Month
🛡️Material: 100% Polyester
📏WLL: 6000kg / SF 7:1
📜Standard: EN1492-1
🎨Color: Brown
Product Description

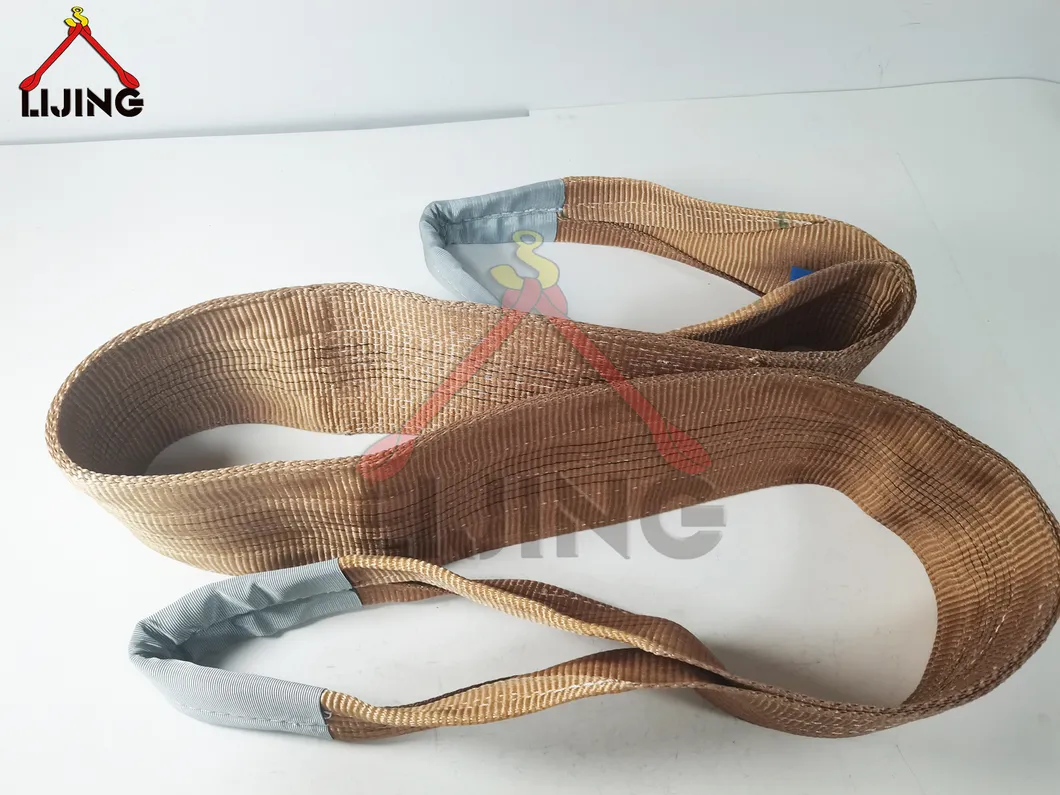

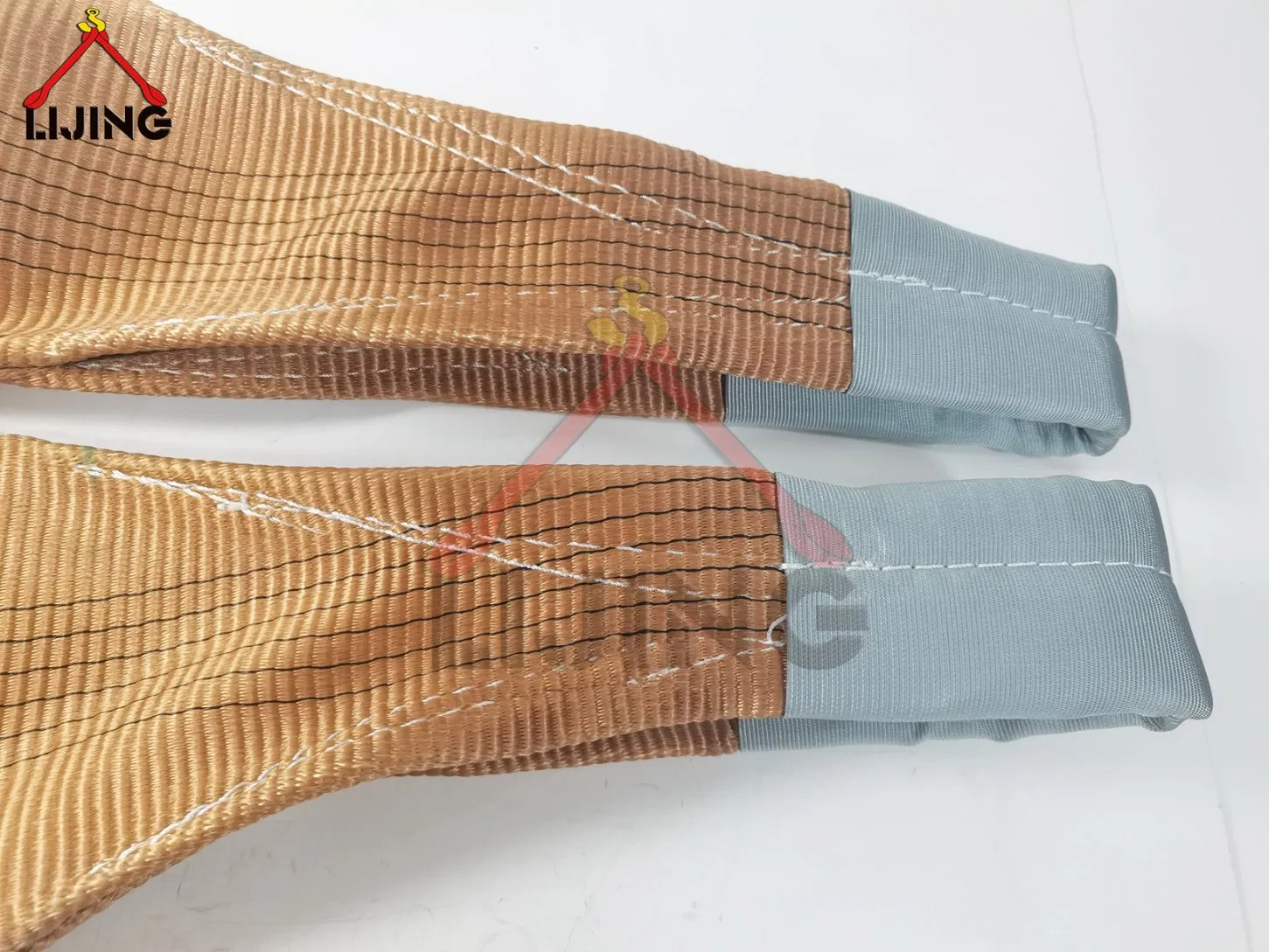

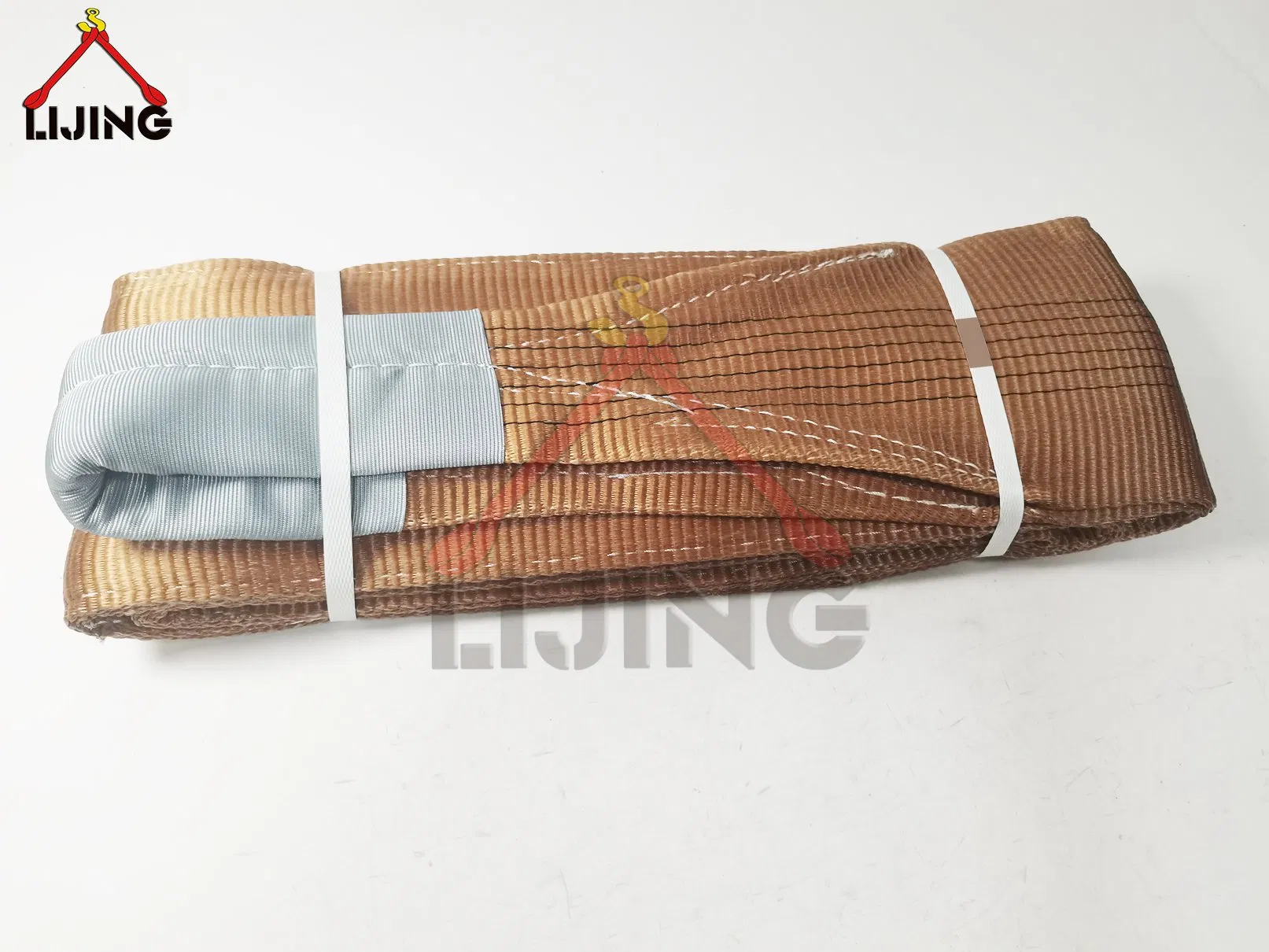

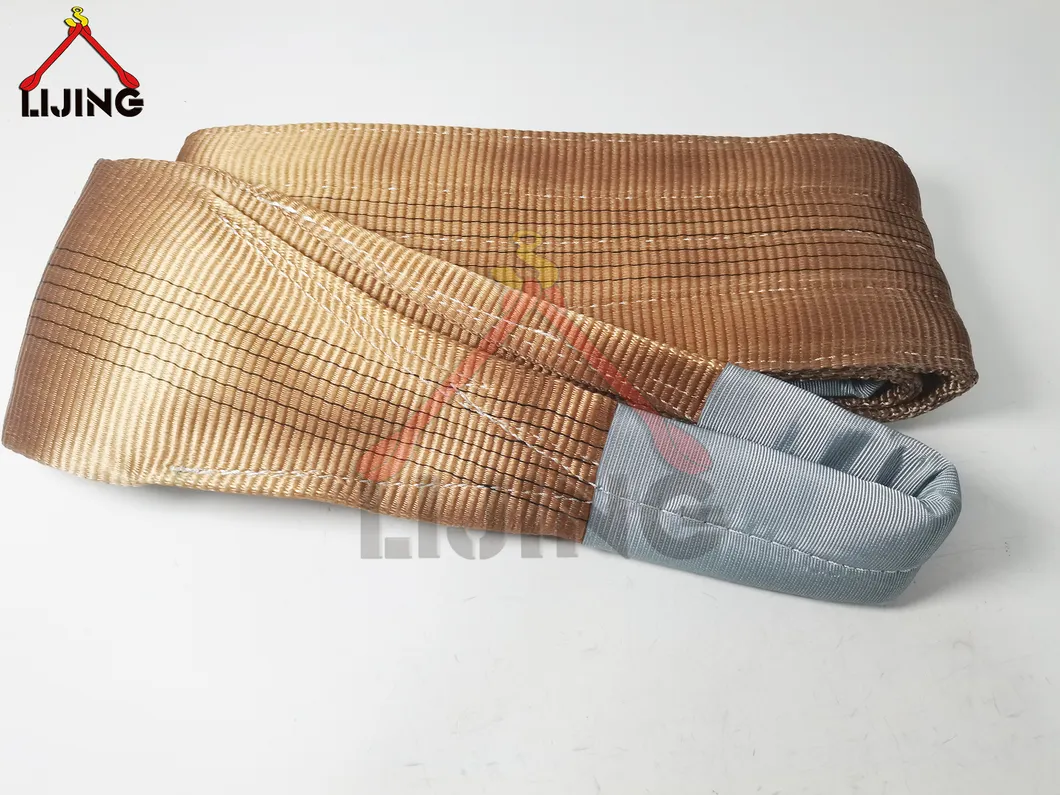

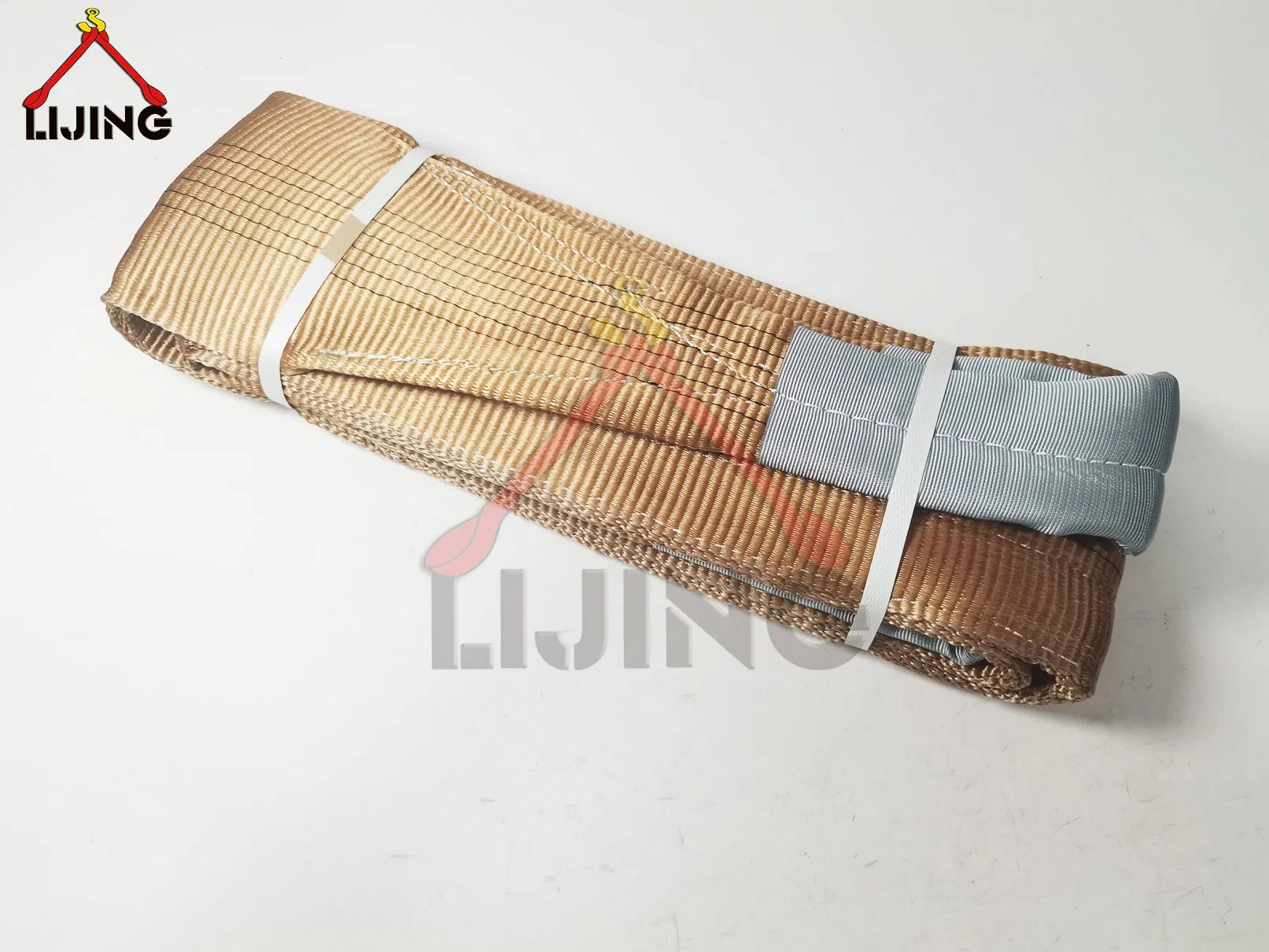

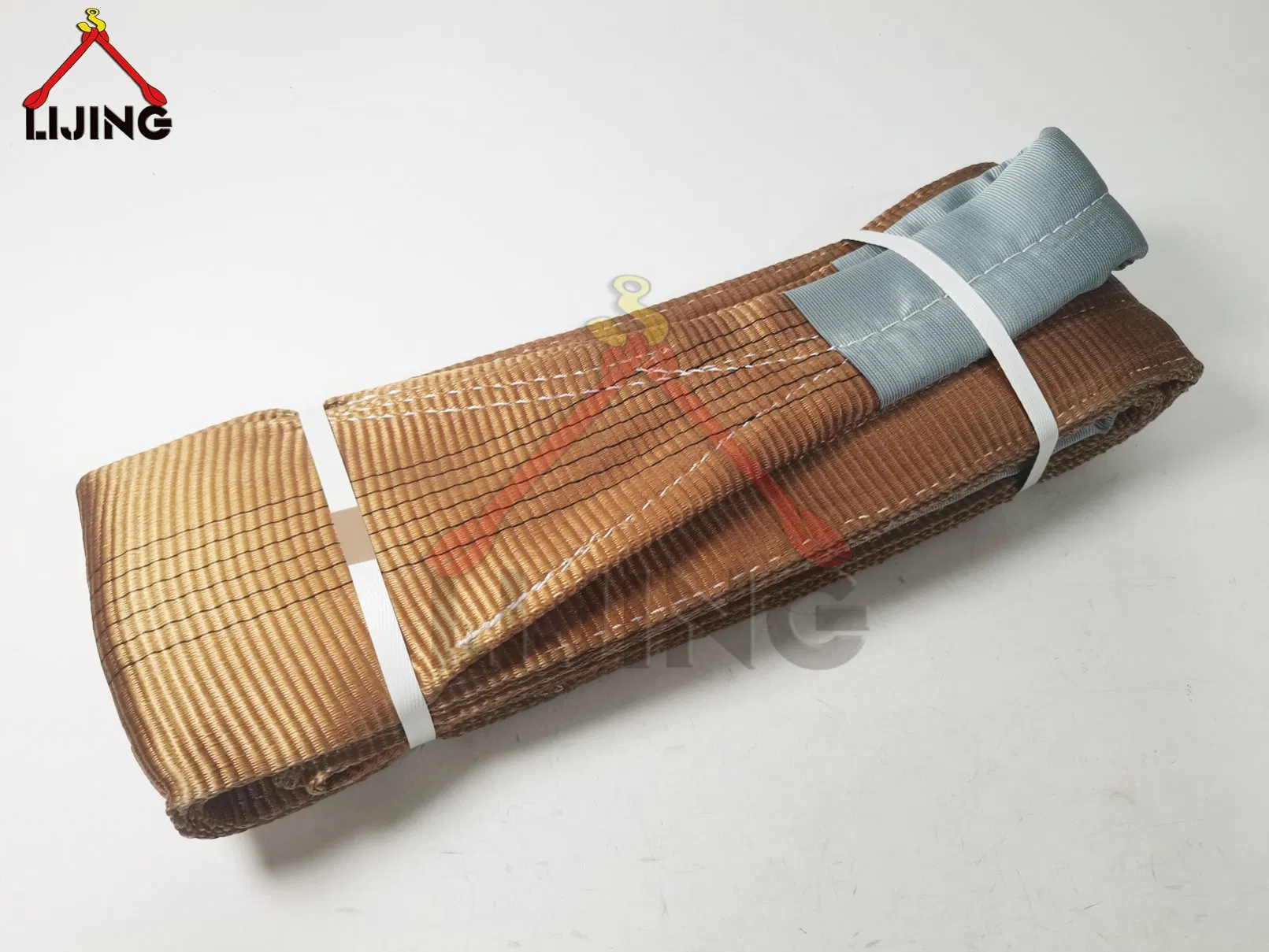

The Flat eye and eye webbing slings are made from flat polyester webbing sewing with two reinforced eye loops at each end. According to its layer, we have simplex, duplex, triplex, and quadruplex webbing slings. Our lifting belt is made according to the international color code for easy load-bearing capacity identification. Products are manufactured with BS EN1492-1: 2000, safety factor 7:1, with certificate of conformity, TUV, GS, CE approved.
Polyester lifting webbing slings are light and easy to use, featuring high capacity, abrasion resistance, corrosion resistance, and mould resistance. They are widely used in engineering, marine, port, dock, steel, installment, and other industrial fields. We offer the flexibility to customize lifting slings based on lifting capacities, lengths, and configurations.

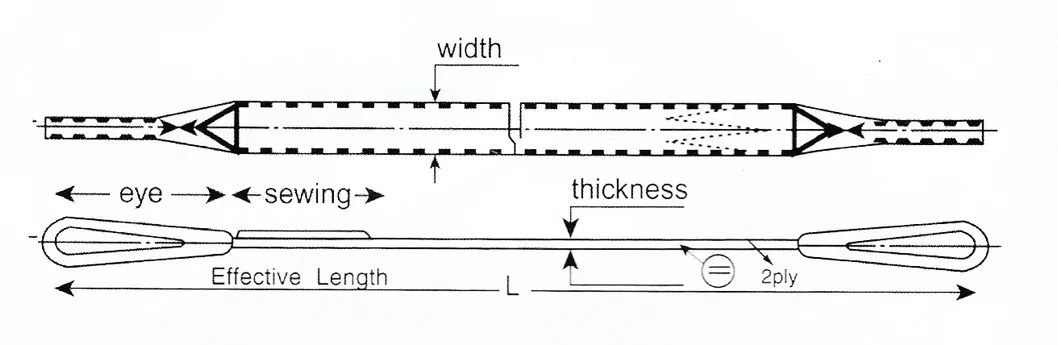

Technical Specifications (DEE)
| Article No. |
Color |
WLL (kg) |
Width (mm) |
| 5:1 |
6:1 |
7:1 |
| WS-DEE010 | Violet | 1000 | 25 | 25 | 30/50 |
| WS-DEE020 | Green | 2000 | 50 | 50 | 60 |
| WS-DEE030 | Yellow | 3000 | 75 | 75 | 90 |
| WS-DEE040 | Grey | 4000 | 100 | 100 | 120 |
| WS-DEE050 | Red | 5000 | 125 | 125 | 150 |
| WS-DEE060 | Brown | 6000 | 150 | 150 | 180 |
| WS-DEE080 | Blue | 8000 | 200 | 200 | 240 |
| WS-DEE100 | Orange | 10000 | 250 | 250 | 300 |

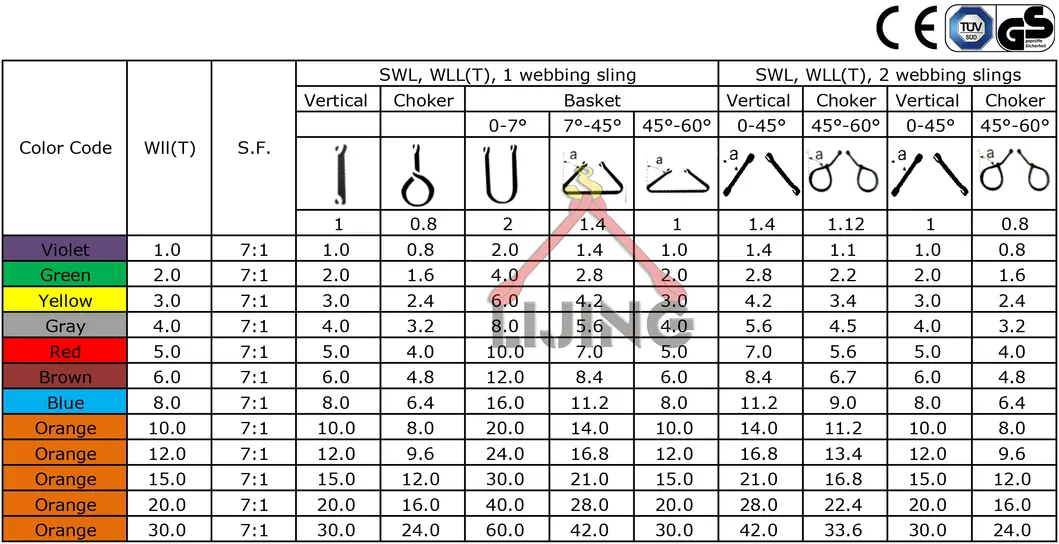

Application Hitches
Eye to eye webbing slings carry loads in three main hitches: vertical, choker, and basket. All products conform to BS EN1492-1:2000 and the 'Machinery Directive 2006/42/EC'.

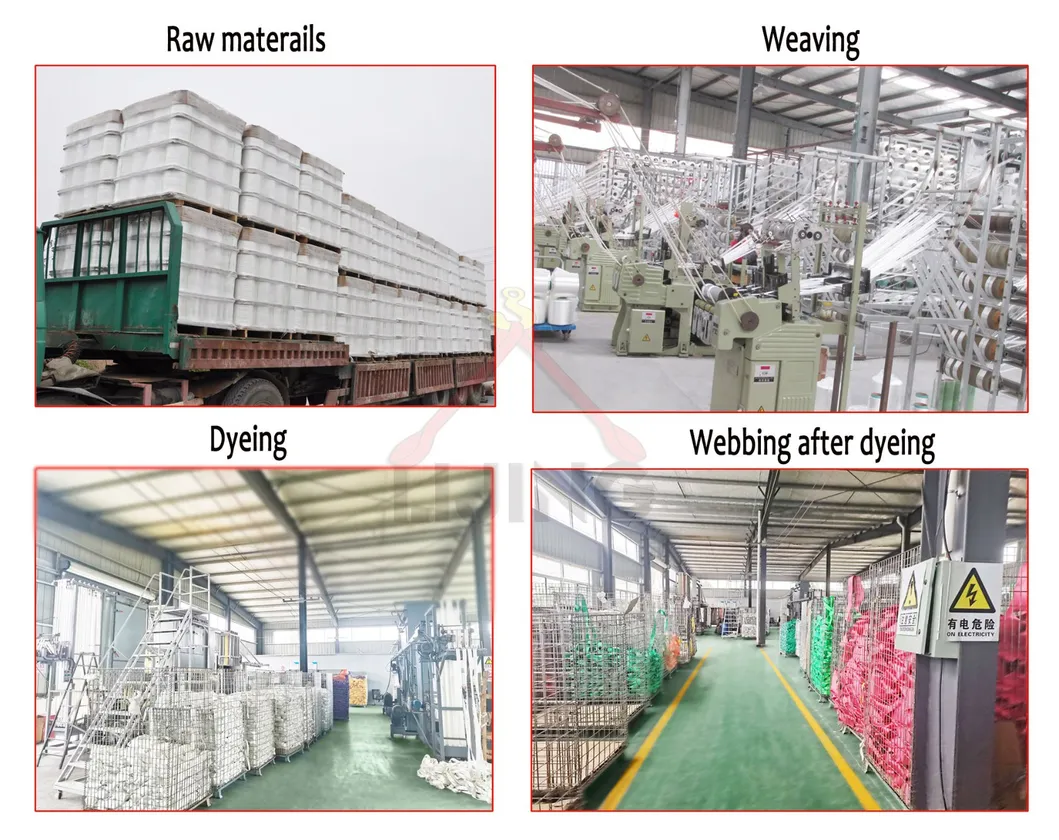

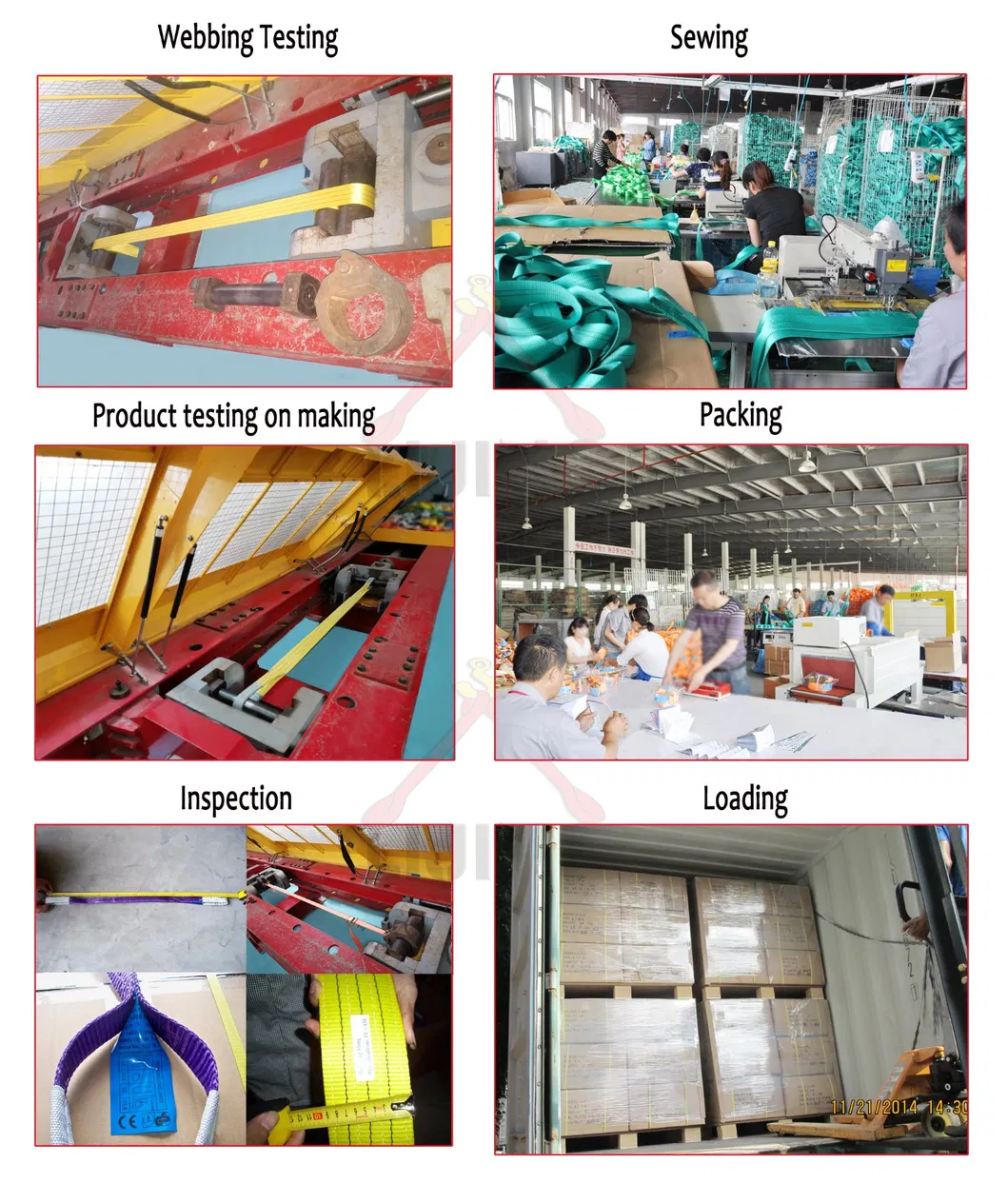

Factory Display
Frequently Asked Questions
What material is used for these lifting slings?
All our eye-to-eye webbing slings are manufactured from 100% high-tenacity polyester.
What is the safety factor of the Brown webbing sling?
The model LJ-WS-DEE060 (Brown) features a safety factor of 7:1 with a Working Load Limit (WLL) of 6000kg.
Are these slings compliant with international standards?
Yes, they are manufactured in accordance with BS EN1492-1:2000 and are CE, GS, and TUV approved.
Can the length and capacity be customized?
Yes, we offer flexible customization for lifting capacities, lengths, and configurations based on your specific requirements.
How do I identify the load capacity quickly?
The slings follow an international color code system (e.g., Violet for 1t, Green for 2t, Brown for 6t) for easy identification.
What are the main advantages of polyester slings?
They are lightweight, easy to handle, and offer high resistance to abrasion, corrosion, and mould.
