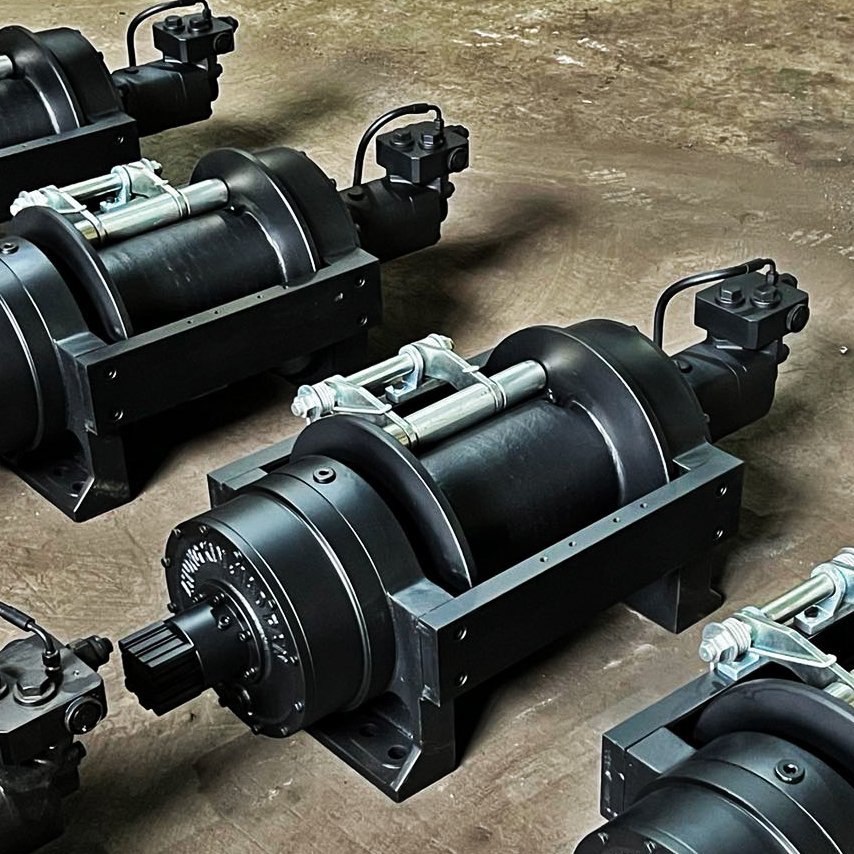

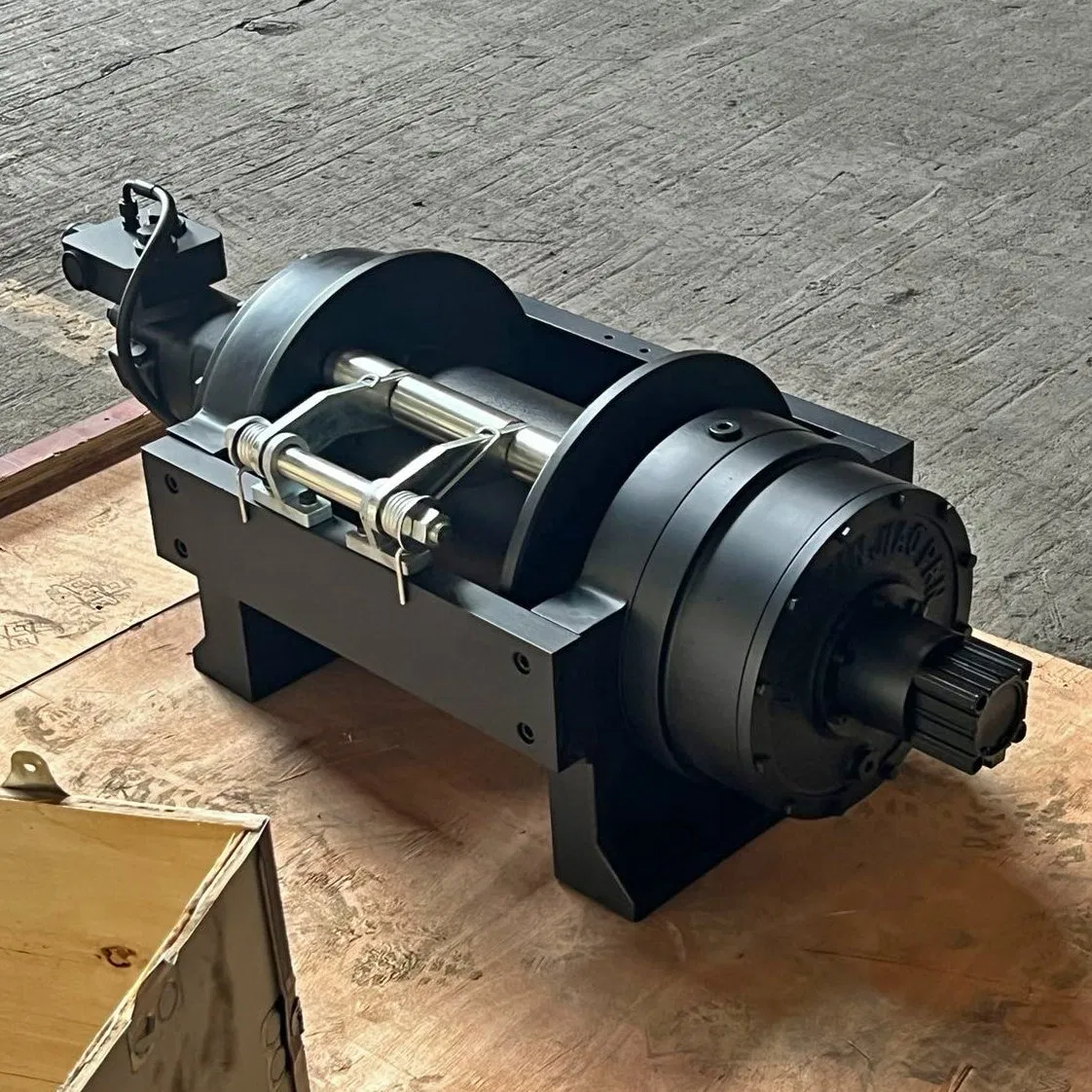

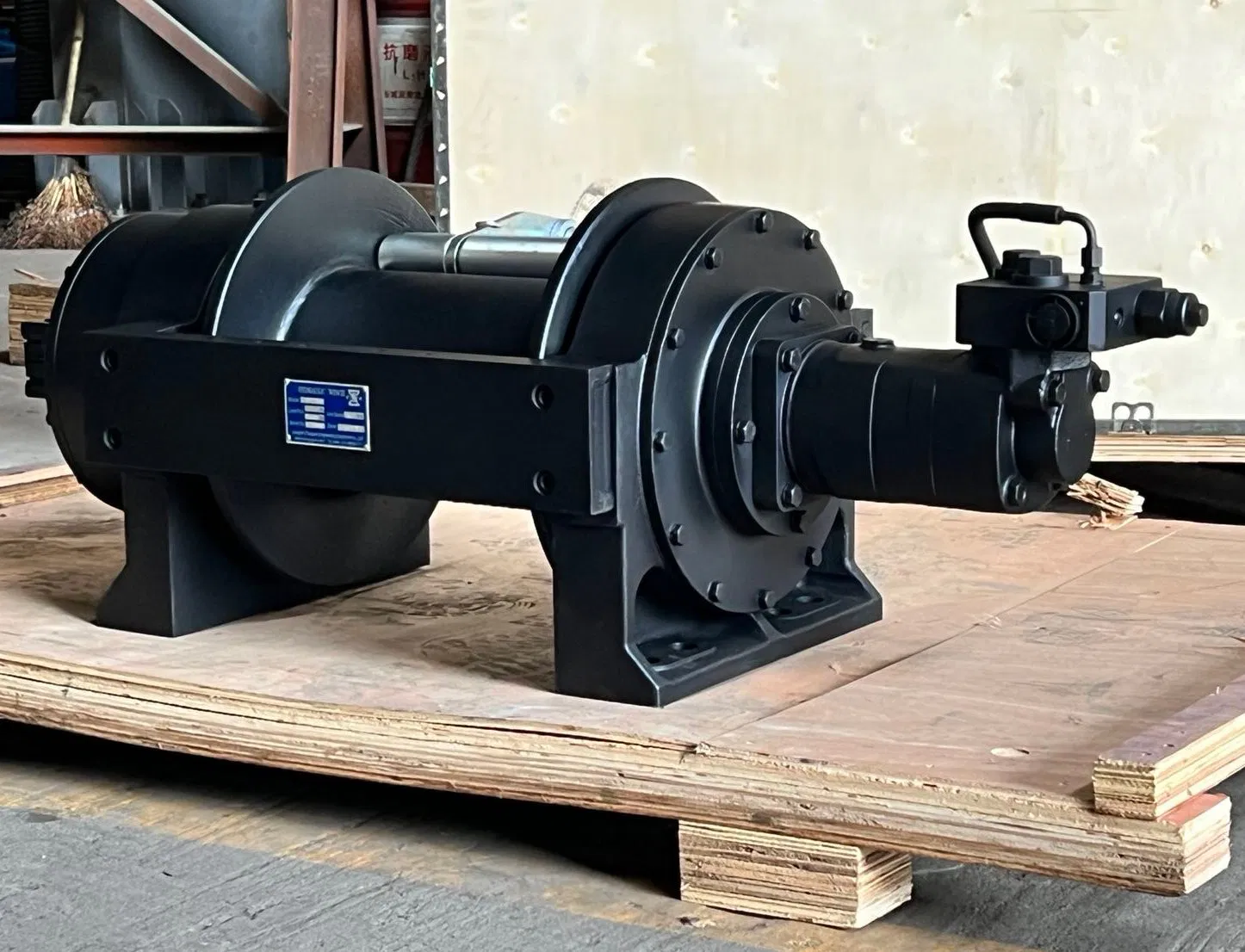

20 Ton Winch with Roller Fairlead Pneumatic Clutch Hydraulic Winch

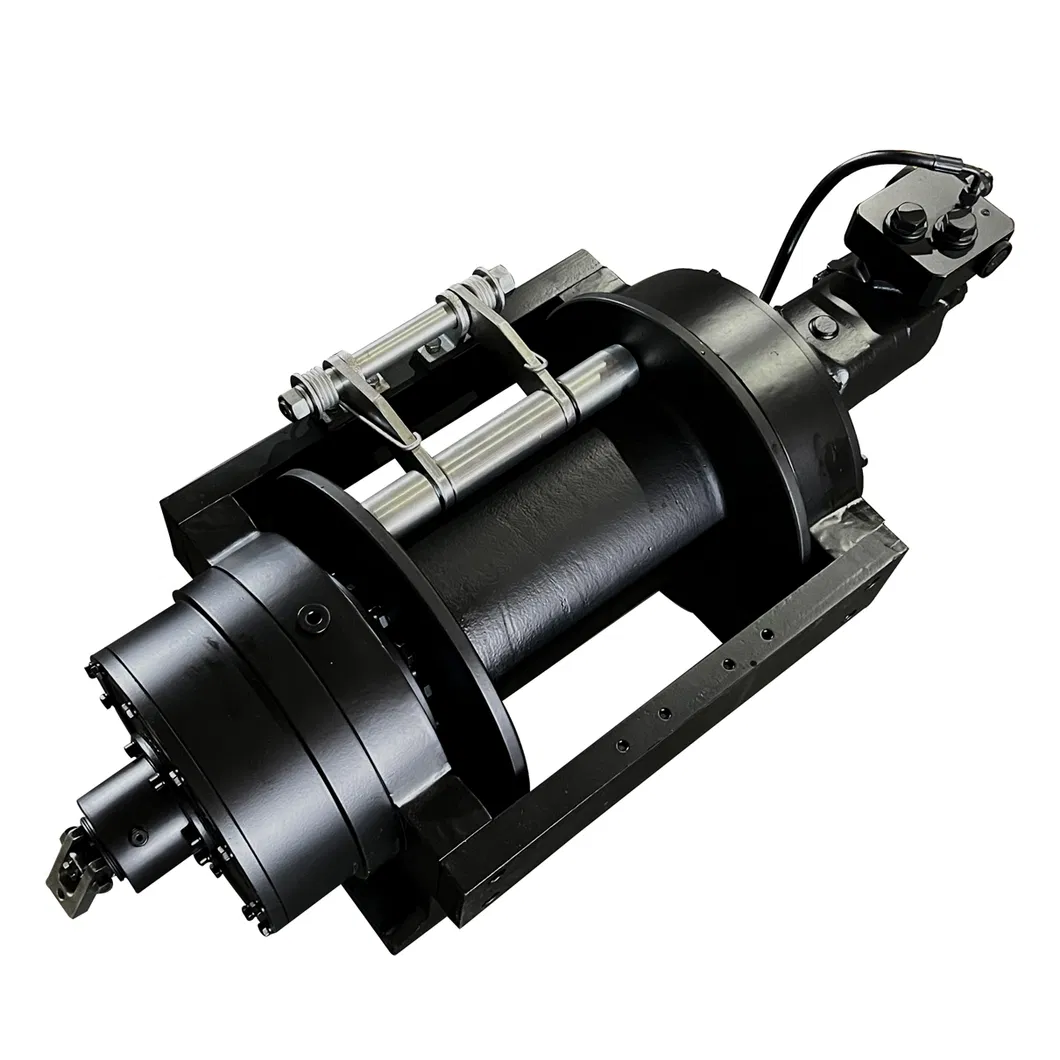

The YJP200 is a versatile hydraulic lifting winch that revolutionizes efficiency and performance with its condensed size and high transmission efficiency. It consists of a hydraulic motor, 2-stage planetary gear reducer, arrester, drum, and other essential components.

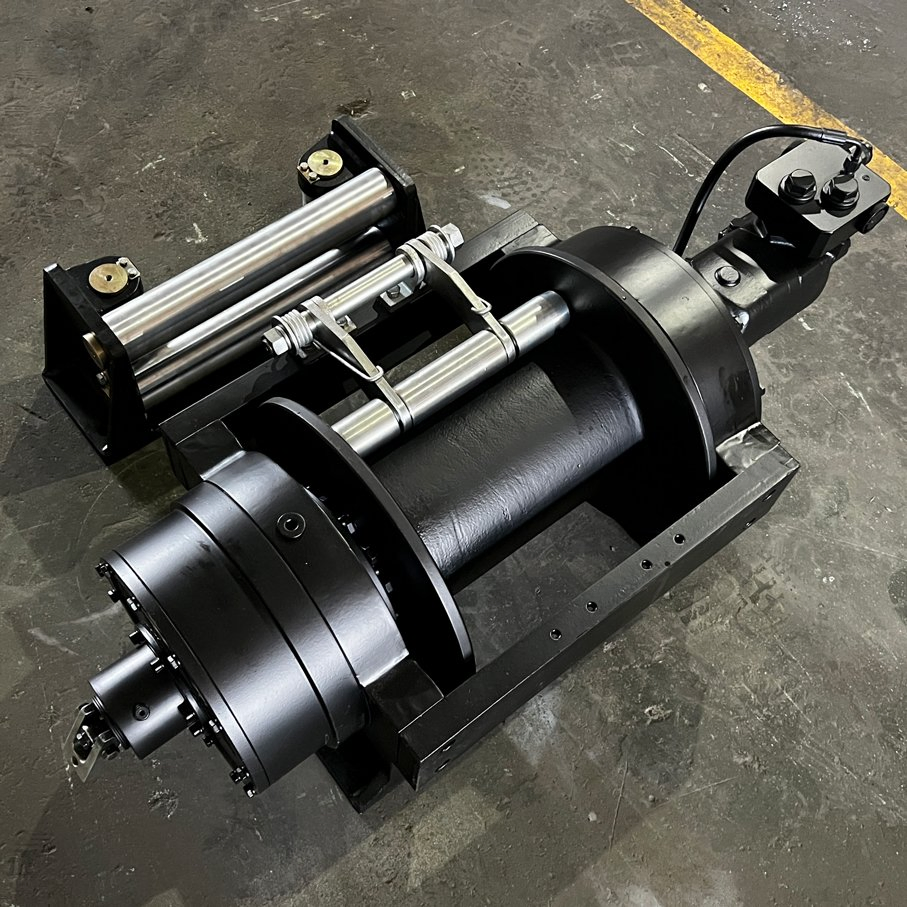

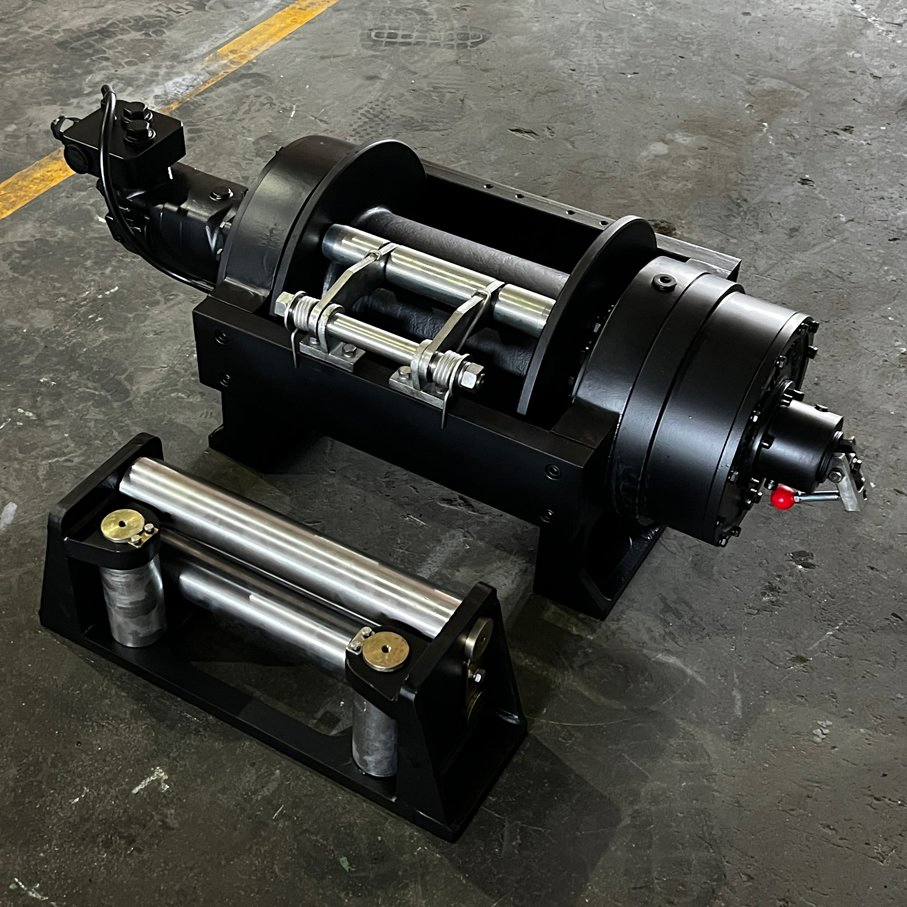

Optional components: Cable + hook, manual clutch, or roller fairlead.

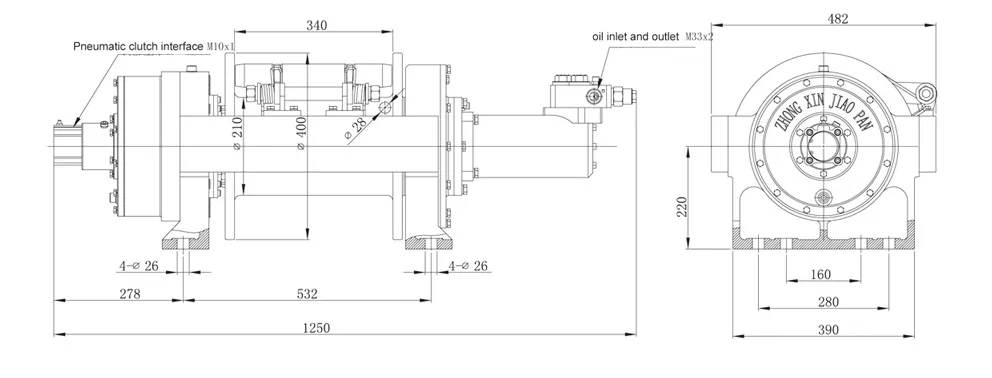

Product Structural Drawing
| Parameter | Unit | Value |
|---|---|---|
| Rated line pull (1st layer) | KN / Kgs / lbs | 196 / 20000 / 45000 |
| Line speed (1st layer) | m/min | 6 |
| Response pressure of brake | MPa / Bar | 2.5 / 25 |
| Oil pressure | MPa / Bar | 17 / 170 |
| Oil flow | L/min | 120 |
| Drum Dimensions (DxBxL) | mm | 400 * 210 * 340 |
| Drum capacity | m | 45 |
| Suggested wire rope diameter | mm | Φ26 |
| Net weight | Kg | 295 |

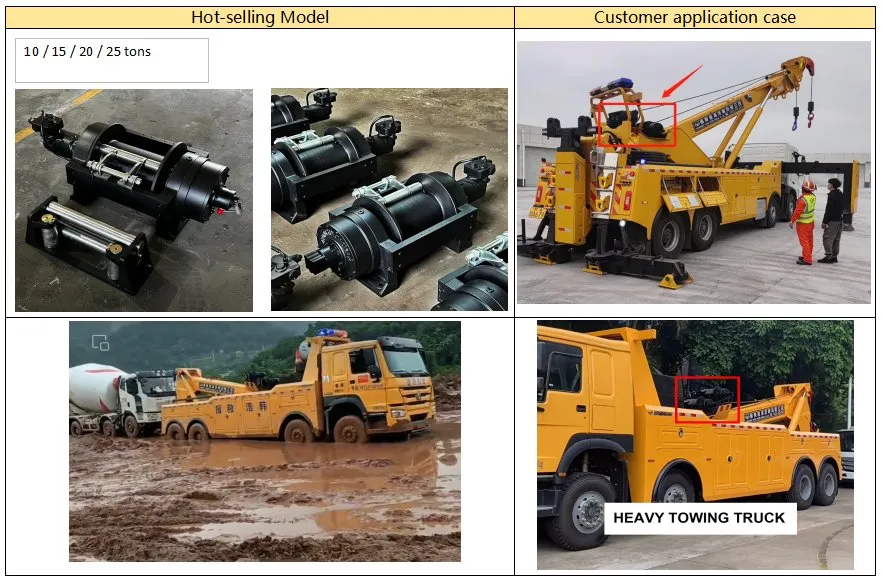

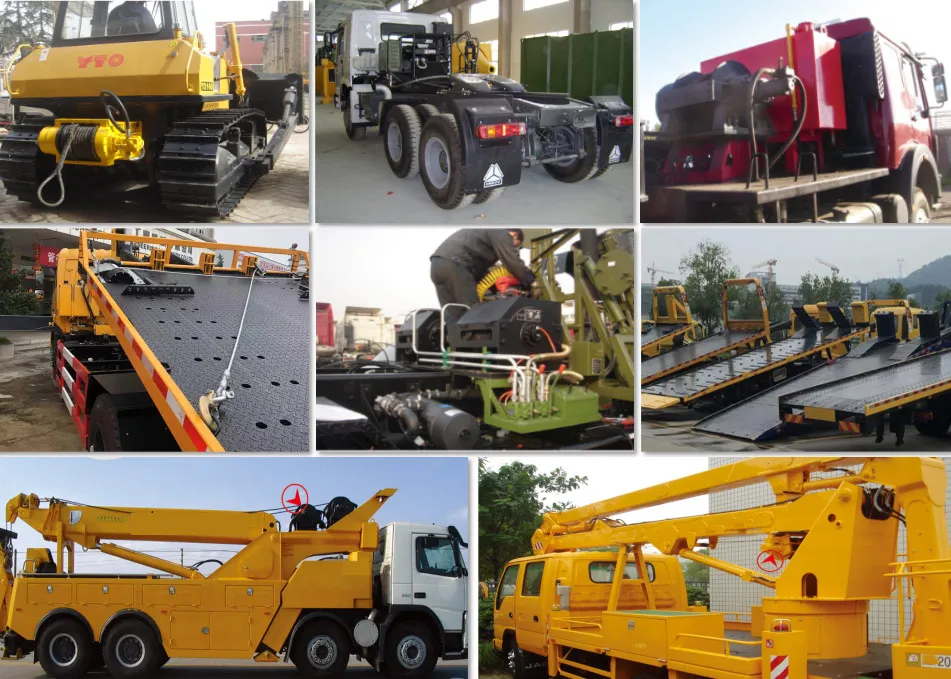

Our winches can be customized to various specifications. They are ideal for use in a variety of engineering and shipboard equipment, including:

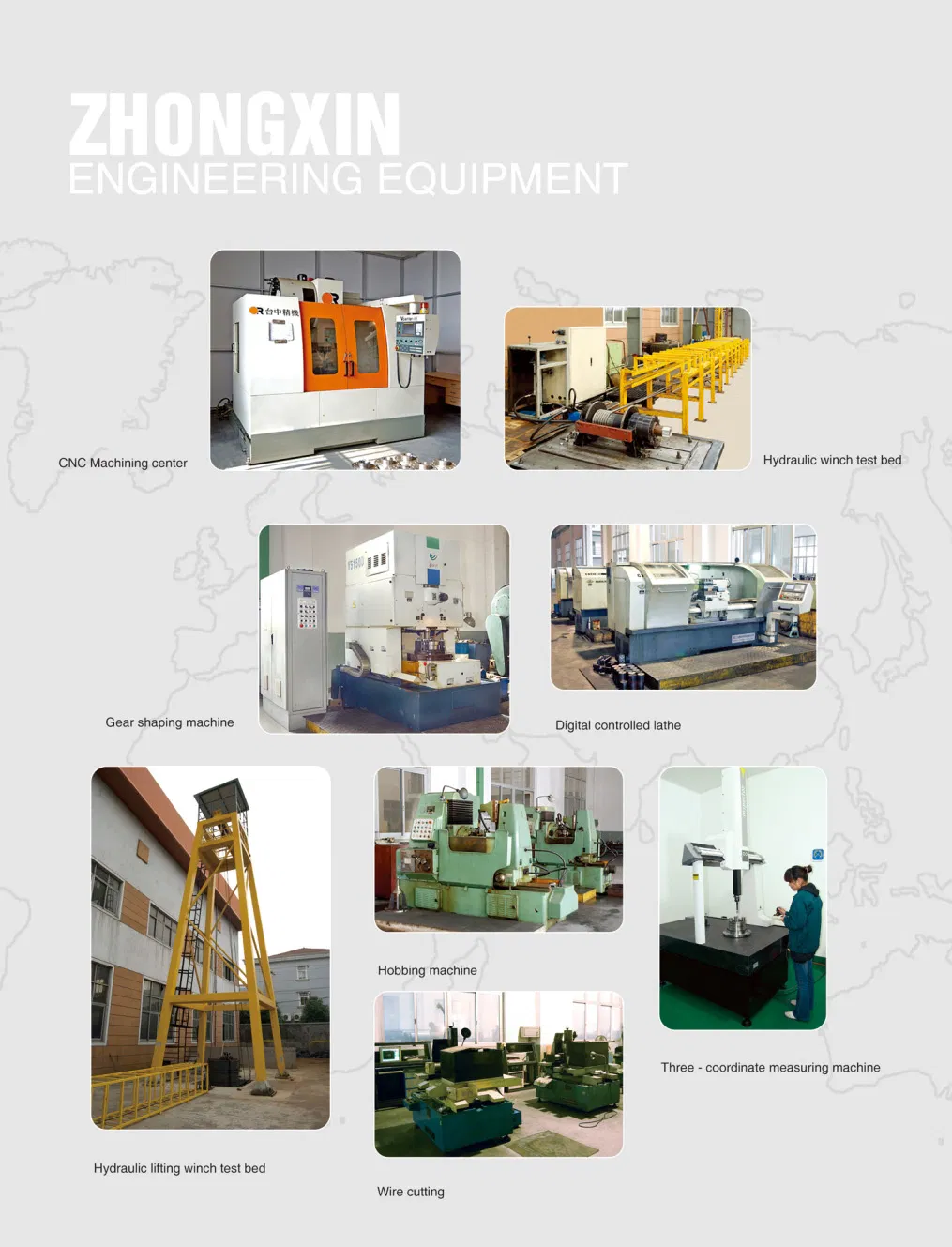

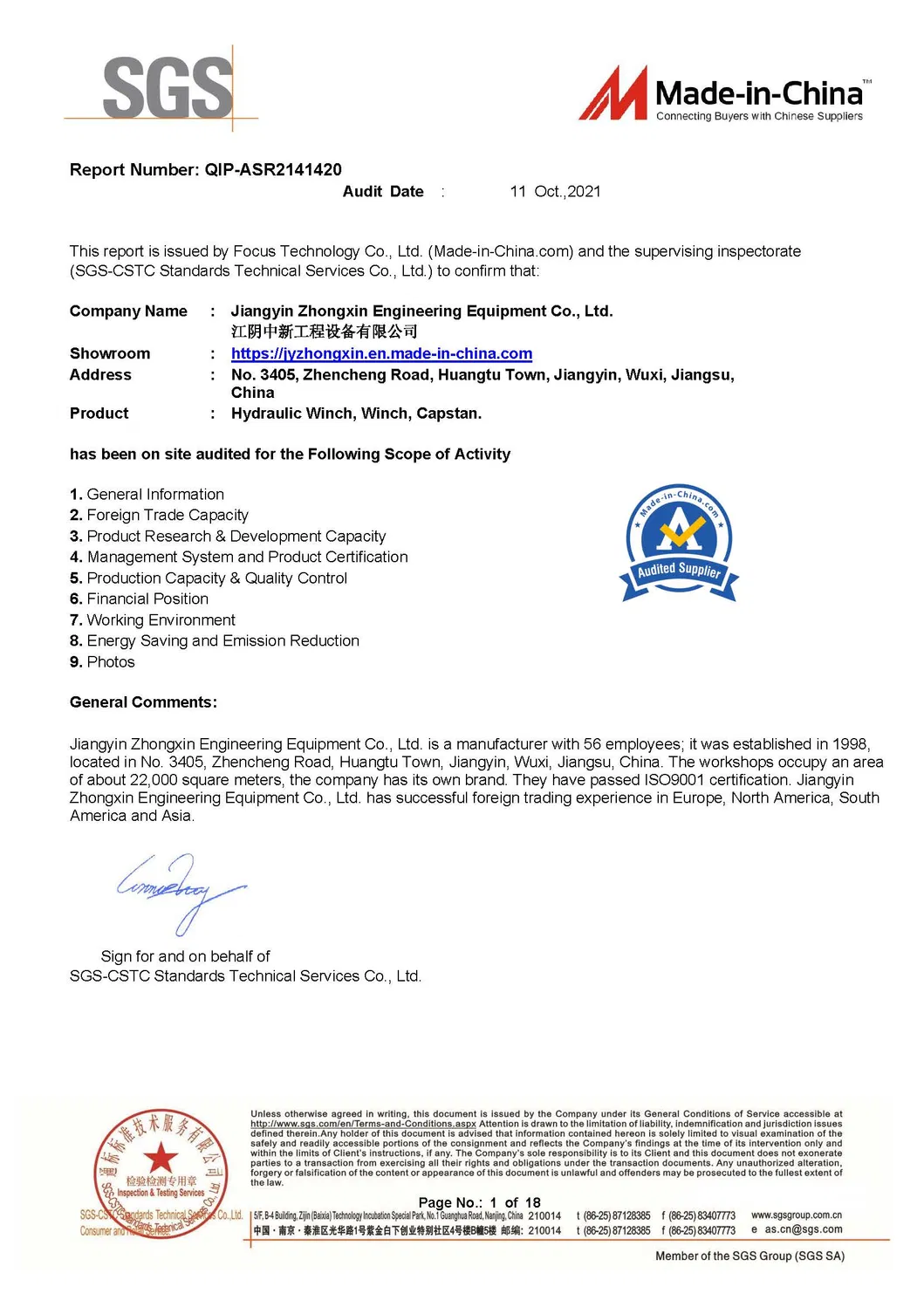

We are a specialized company dedicated to the research, development, production, and service of hydraulic winches for engineering and maritime applications. Strictly implementing ISO9001 standards and classification society regulations, we maintain a powerful team of technical engineers and quality control experts.
Our products have gained a high reputation among international customers for their credit, quality, and advanced technology. We offer complete series of hydraulic mechanisms and provide customized R&D based on specific technical requirements.
