📊 Basic Information
Carrying Capacity
Middle-Level
Feature
Antiseptic, Insulating, Explosion-Proof
Standard
National Standards

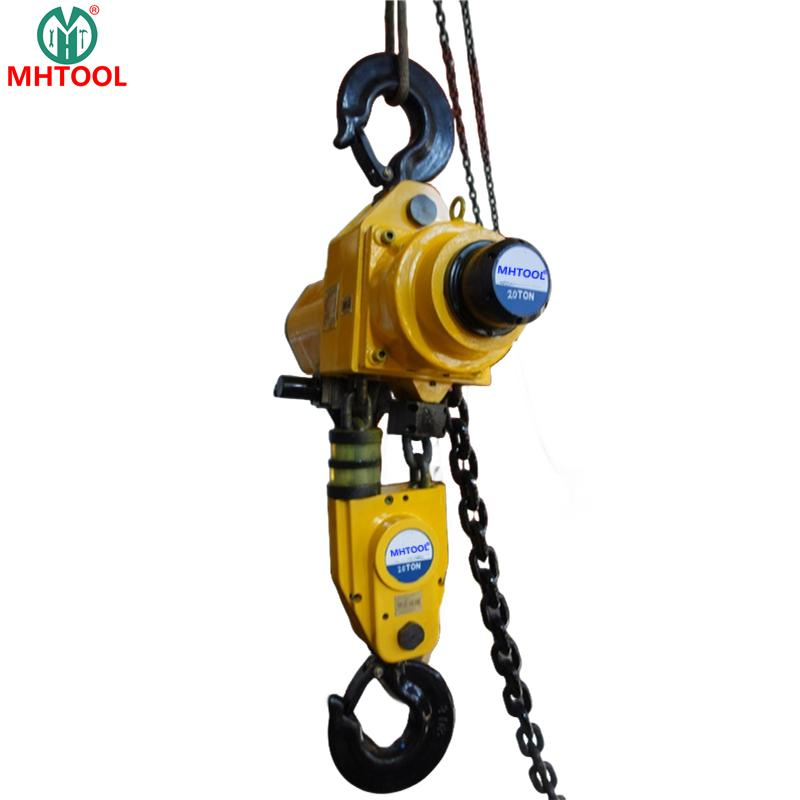

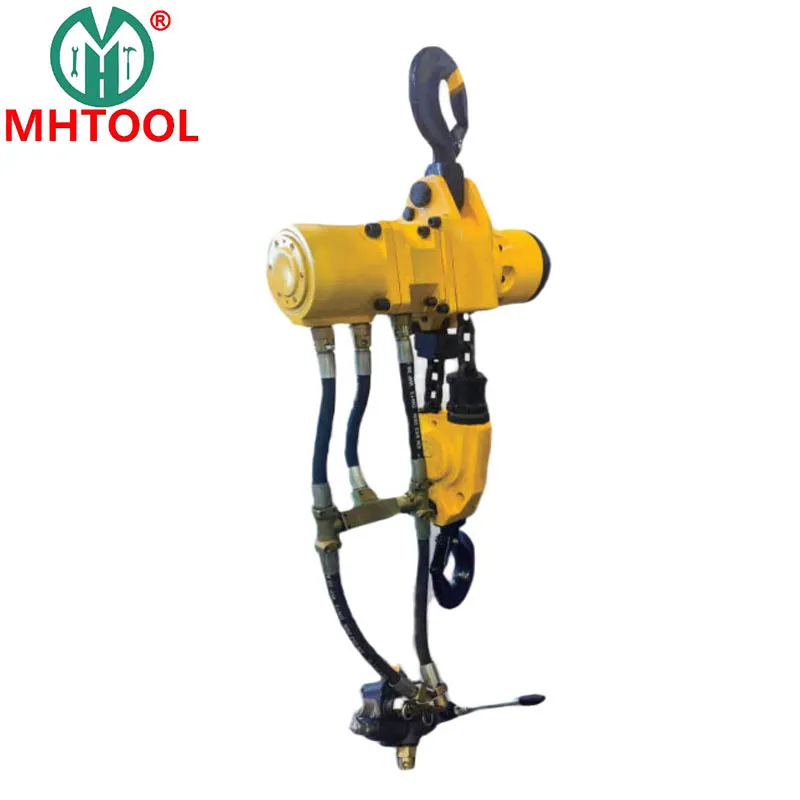

🛠️ 1- Hydraulic Hoist
The hydraulic hoist is applicable to special working places such as marine vessels, oil mining platforms and coal mines. It has stable transmission, strong bearing capacity, automatic lubrication to extend the service life of components, and special requirements for stepless speed change and low noise.
Technical Parameter (Hydraulic)
| Model Items |
HYD3 |
HYD6 |
HYD10 |
HYD16 |
HYD20 |
HYD25 |
HYD37 |
HYD50 |
| Capacity (Ton) |
3 |
6 |
10 |
16 |
20 |
25 |
37 |
50 |
| Ascending Speed (m/min) |
4 |
2 |
1.7 |
1.1 |
0.8 |
1.1 |
0.7 |
0.5 |
| Descending Speed (m/min) |
4.5 |
2.3 |
2.1 |
1.5 |
1 |
1.2 |
0.8 |
0.5 |
| Rated Air Pressure (Mpa) |
13 |
13 |
13 |
13 |
13 |
15 |
15 |
15 |

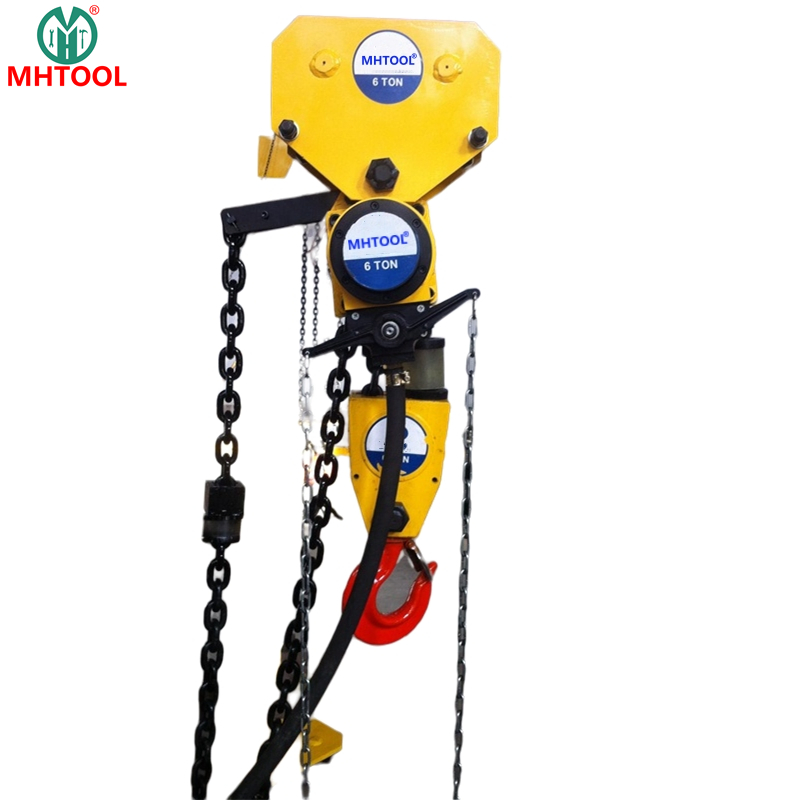

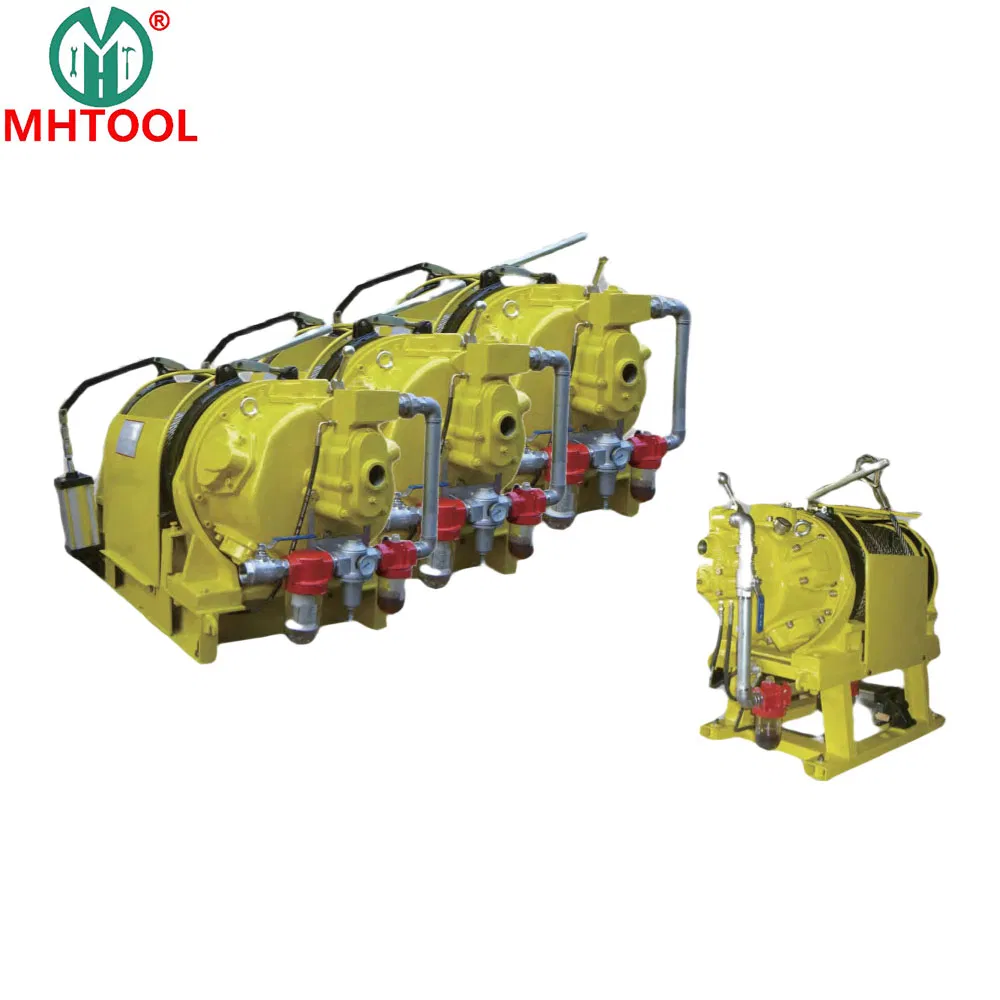

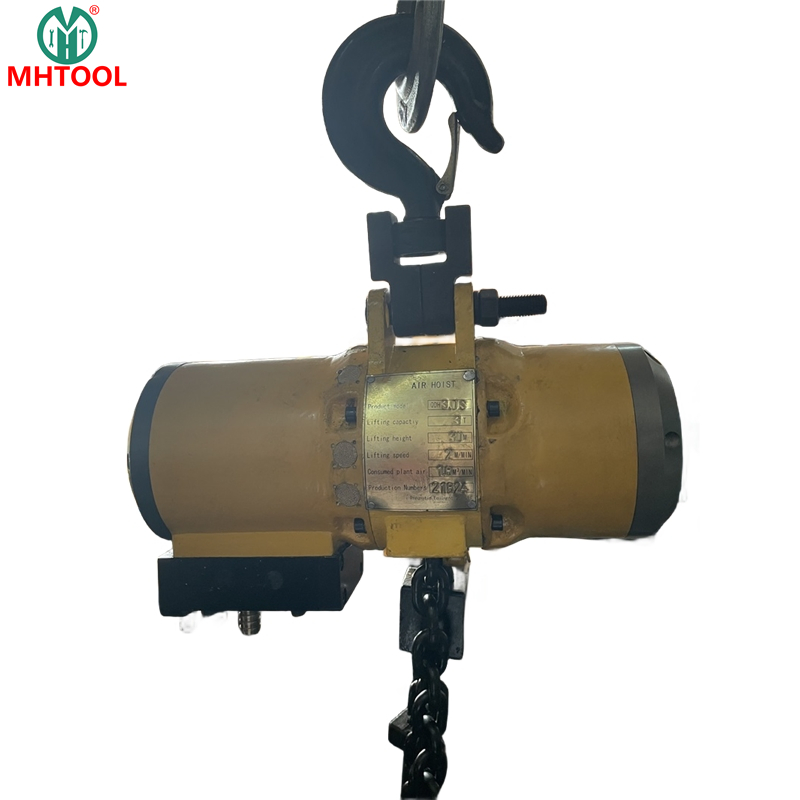

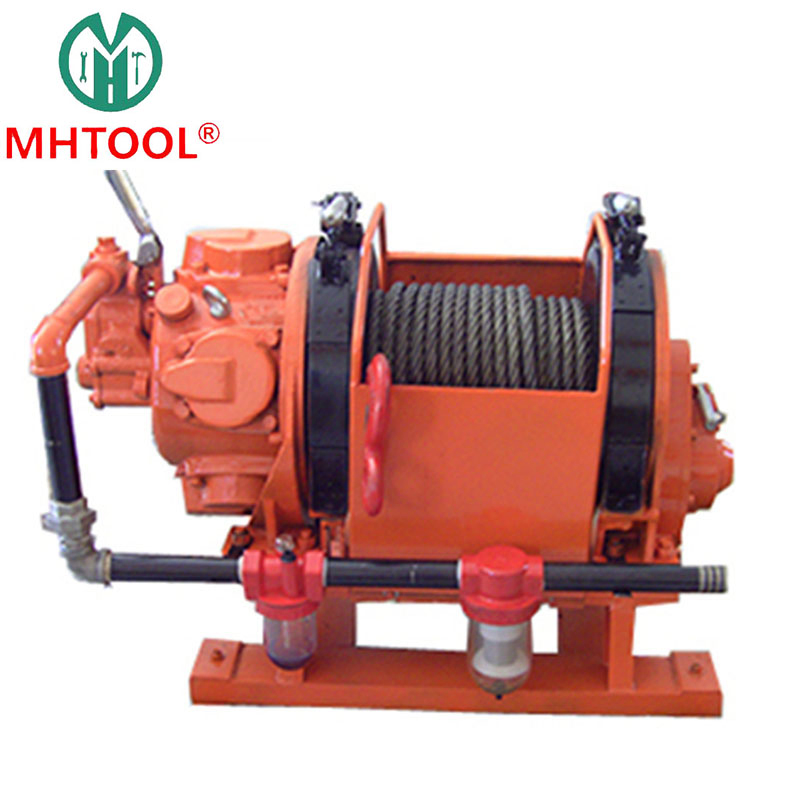

⚡ 2- Pneumatic Air Chain Hoist & Winch
Main Applications:
- Coal & Foundry Industry
- Chemical & Pharmaceutical
- Nuclear Power & Metallurgy
- Automotive Paint Shops
- Machining & Textiles
Product Advantages:
- Suitable for complex and dangerous environments
- Ideal for small working spaces
- Fewer parts, low maintenance, long life
- Lightweight and easy to operate

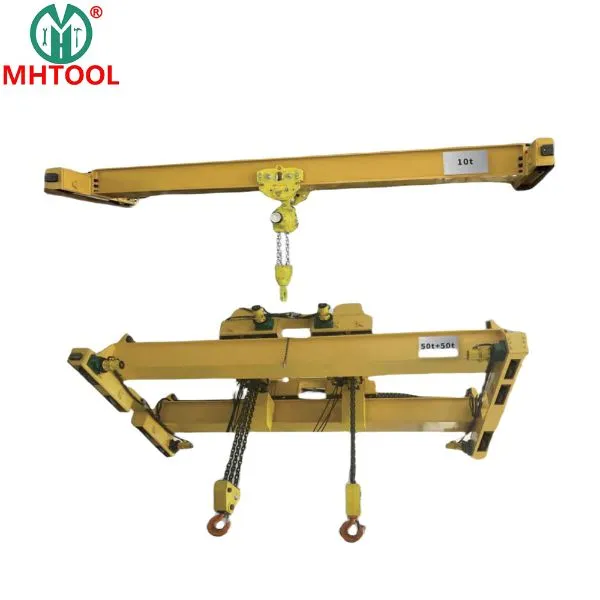

🏗️ 3- Pneumatic Single/Double Beam Traveling Crane
Technical Parameters (Single-beam)
| Capacity (t) |
0.1 | 0.2 | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 |
| Hook Up (m/min) |
6 | 3 | 5.4 | 4 | 3.3 | 2 | 1.4 | 0.75 | 0.4 |
| Trolley (m/min) |
10-13 | 8-10 |

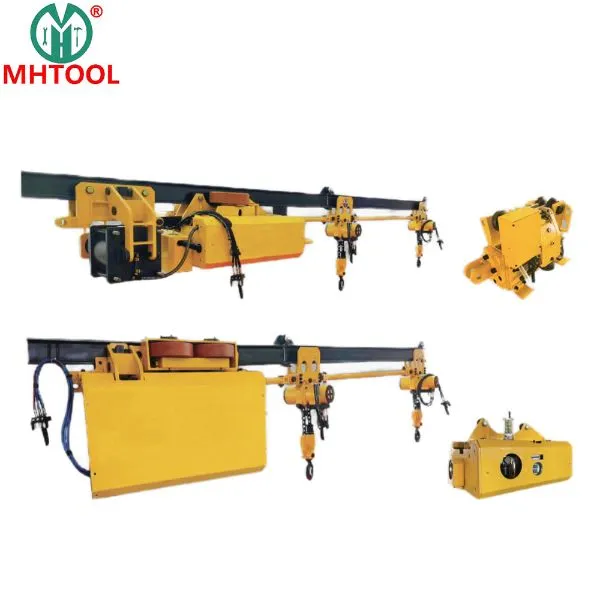

🛤️ 4- Pneumatic Monorail Crane
| Model |
DQ25 | DQ30 | DQ40 | DQ50 | DQ60 | DQ80 | DQ100 |
| Traction (kN) |
≥25 | ≥30 | ≥40 | ≥50 | ≥60 | ≥80 | ≥100 |
| Traveling Speed (m/min) |
24 | 24 | 24 | 24 | 24 | 24 | 24 |
| Weight (kg) |
1000 | 1000 | 1100 | 1500 | 1500 | 3000 | 3000 |
❓ Frequently Asked Questions
What environments are these pneumatic winches suitable for?
They are specifically designed for complex and dangerous environments, including explosion-proof areas like coal mines, oil platforms, and chemical plants.
What is the tonnage range for the air winch models?
Our models cover a broad carrying capacity range from 2 tons up to 15 tons, suitable for various industrial lifting needs.
Are the hydraulic hoists equipped with speed control?
Yes, the hydraulic hoists support stepless speed change, allowing for precise control during ascending and descending operations.
How is the durability of the components ensured?
The systems feature automatic lubrication which significantly extends the service life of internal components and ensures low-noise transmission.
Can the monorail crane be operated remotely?
Yes, the pneumatic monorail crane offers optional remote controller support with an effective control distance of 30 meters or more.
What certifications do these lifting products hold?
All mentioned products meet National Standards and carry the CE certification for quality and safety assurance.
