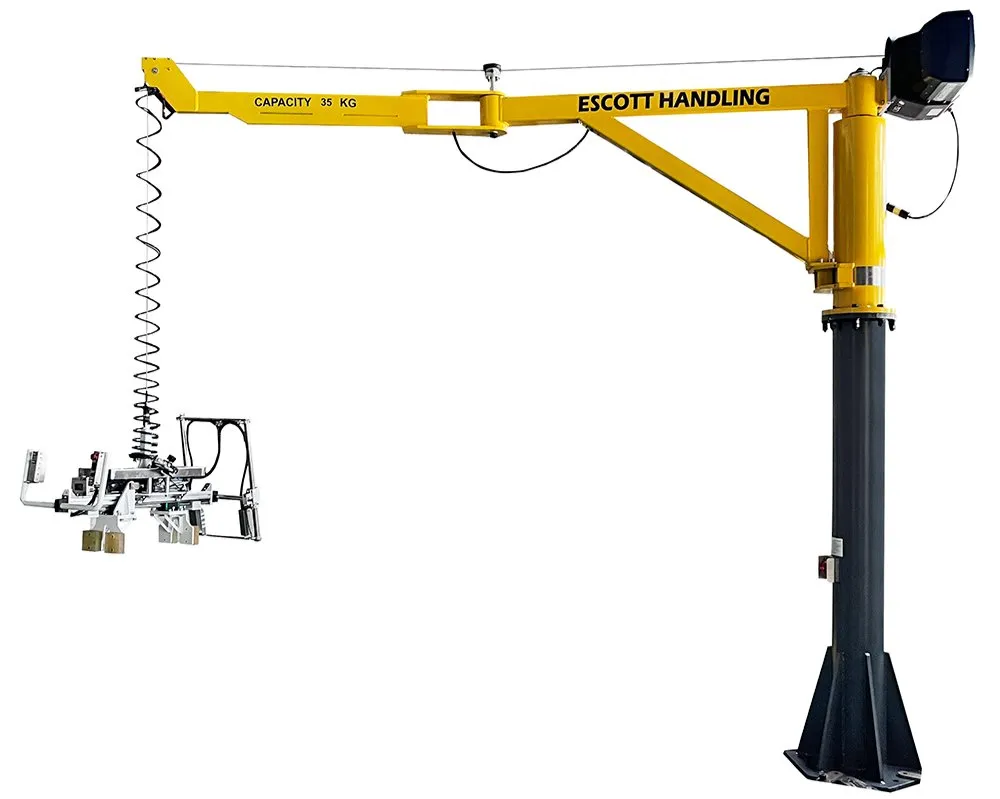

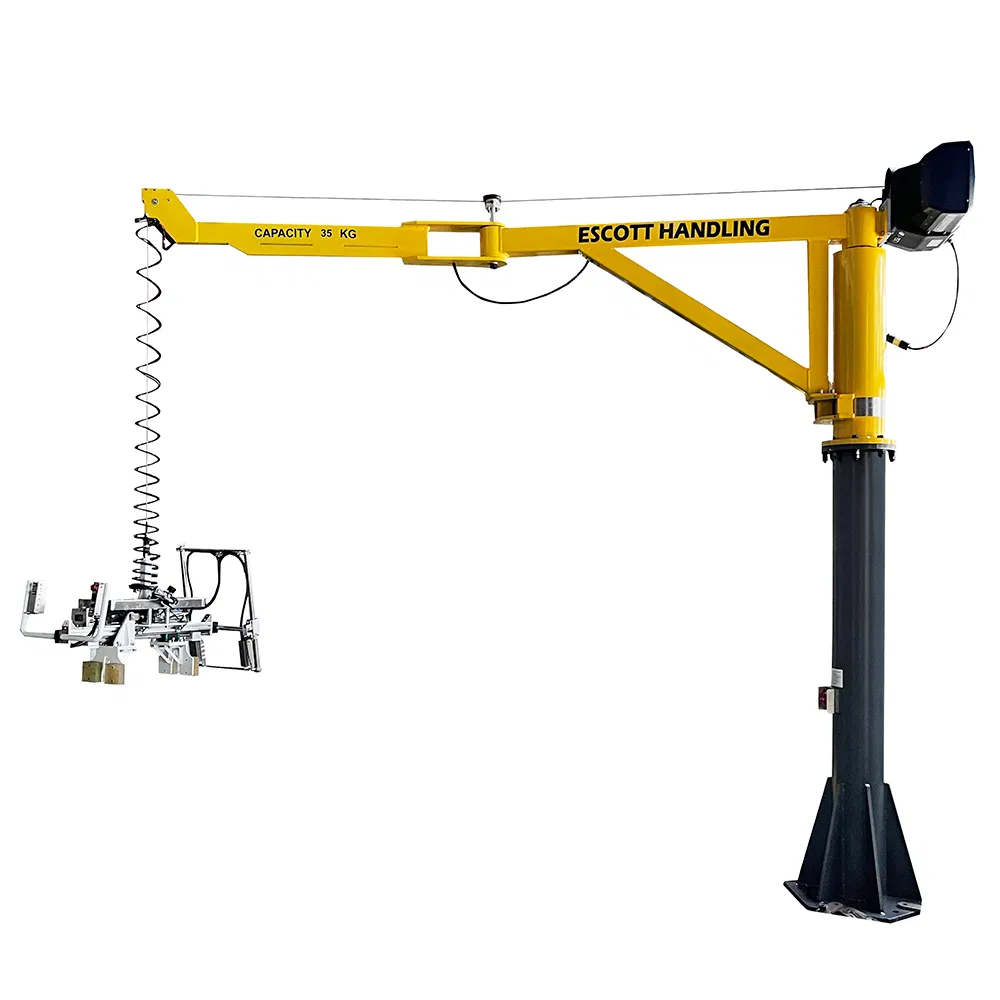

180 Degree Rotating 500kg Swing Arm Traveling Cantilever Jib Crane

📊 Basic Information

Model NO.

Intelligent Hoist

Certification

GS, RoHS, CE, ISO9001

Application

Workshop, Warehouse, Automobile Manufacturing, Port

Material

Steel

Control Mode

Handle Control / Intelligent Electric Control

Capacity

50-500kg (Customized)

Rotation Angle

0° – 270° / 0° – 360°

Power Supply

AC 380V / 50Hz

🏗️ Product Description

The 180° Rotating 500kg Swing Arm Traveling Cantilever Jib Crane is a versatile material lifting solution designed for efficient handling along production lines, assembly areas, or workstations. Mounted on a linear rail, this cantilever crane allows the arm to travel horizontally along the track while providing a 180-degree rotational range for flexible coverage. With a robust 500kg lifting capacity and compatibility with electric hoists, it is an ideal solution for repetitive and space-constrained lifting operations.

📋 Technical Specification

Item	Specification
Model	EST-TC500
Maximum Load Capacity	500 kg
Jib Arm Type	Cantilever swing arm
Arm Length	3 m (customizable 2–4 m)
Rotation Range	180°
Rail Travel Length	4–12 m (customizable)
Lifting Mechanism	Electric chain hoist / wire rope hoist
Lifting Height	Up to 3 m (customizable)
Slewing Mechanism	Manual or electric rotation

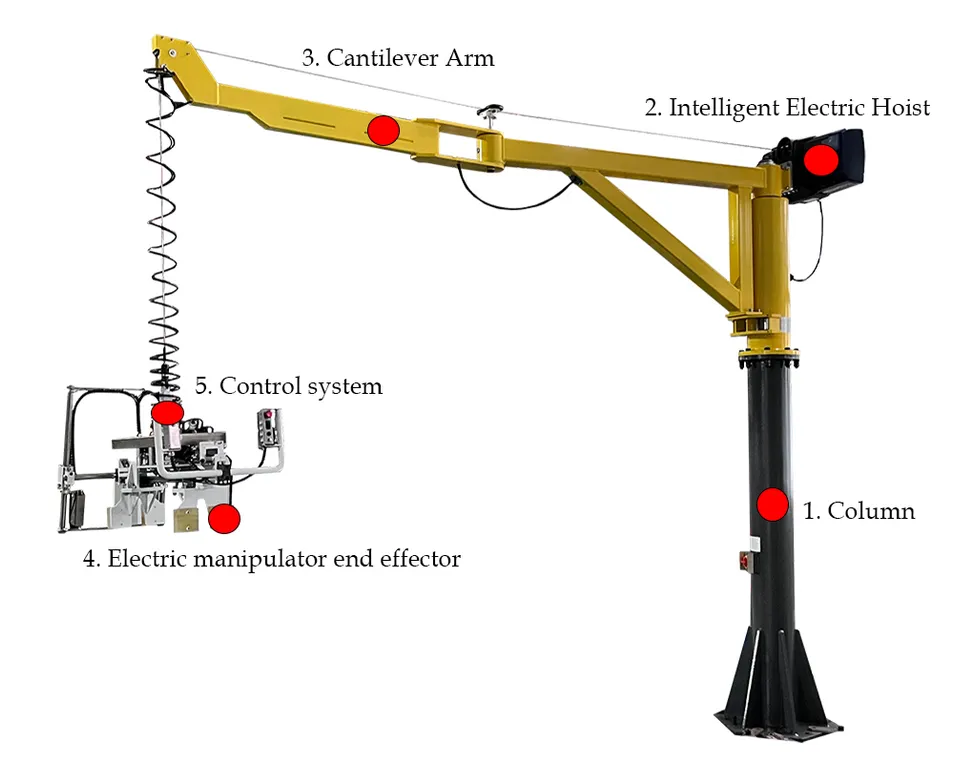

⚙️ Structural Composition

1. Column: High-strength seamless steel pipe for maximum stability.

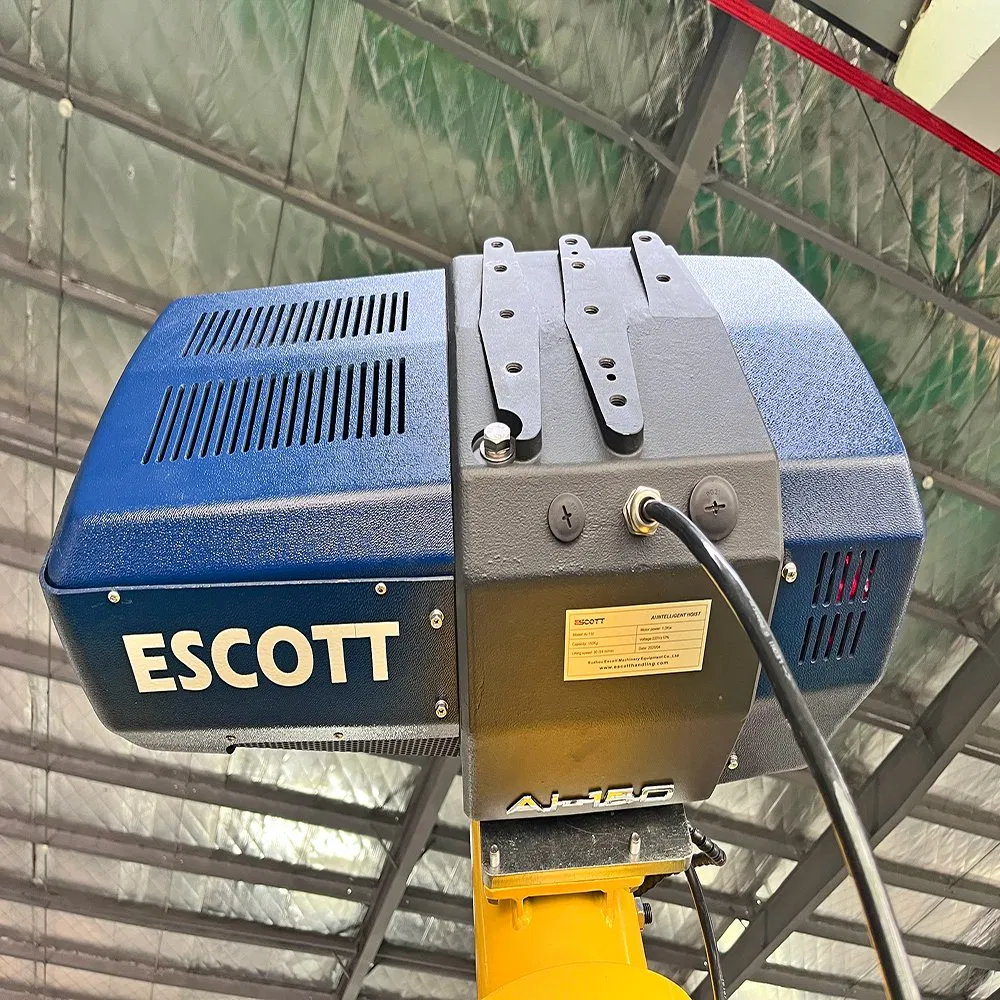

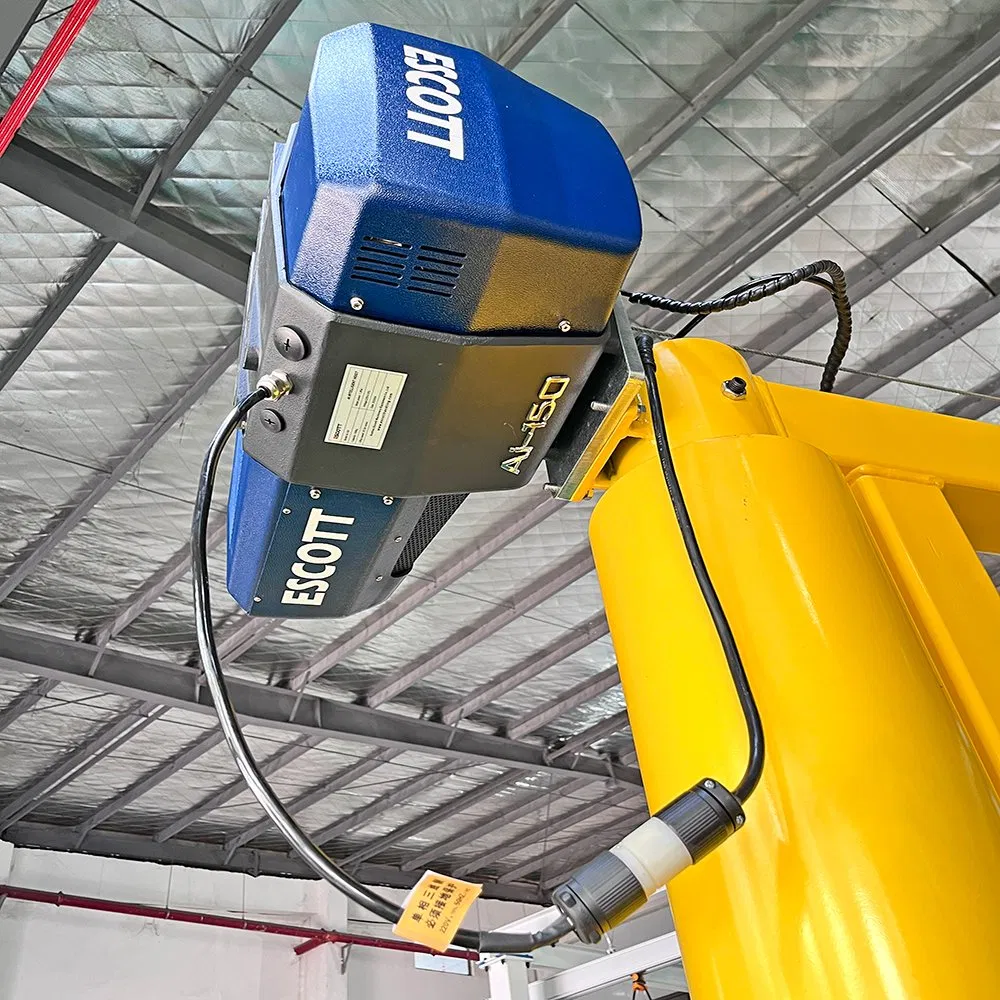

2. Intelligent Electric Hoist: Built-in sensors with overload detection and speed adjustment.

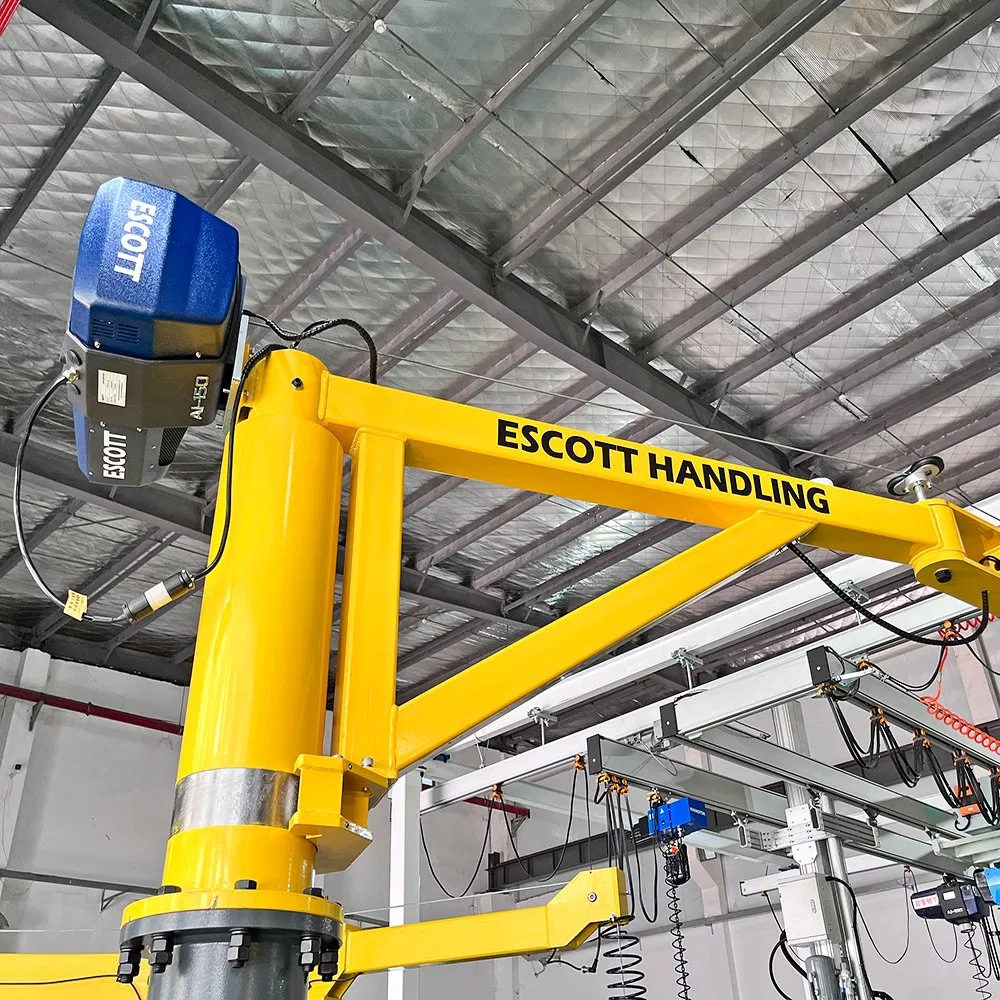

3. Cantilever Arm: Supports up to 360° rotation for full area coverage.

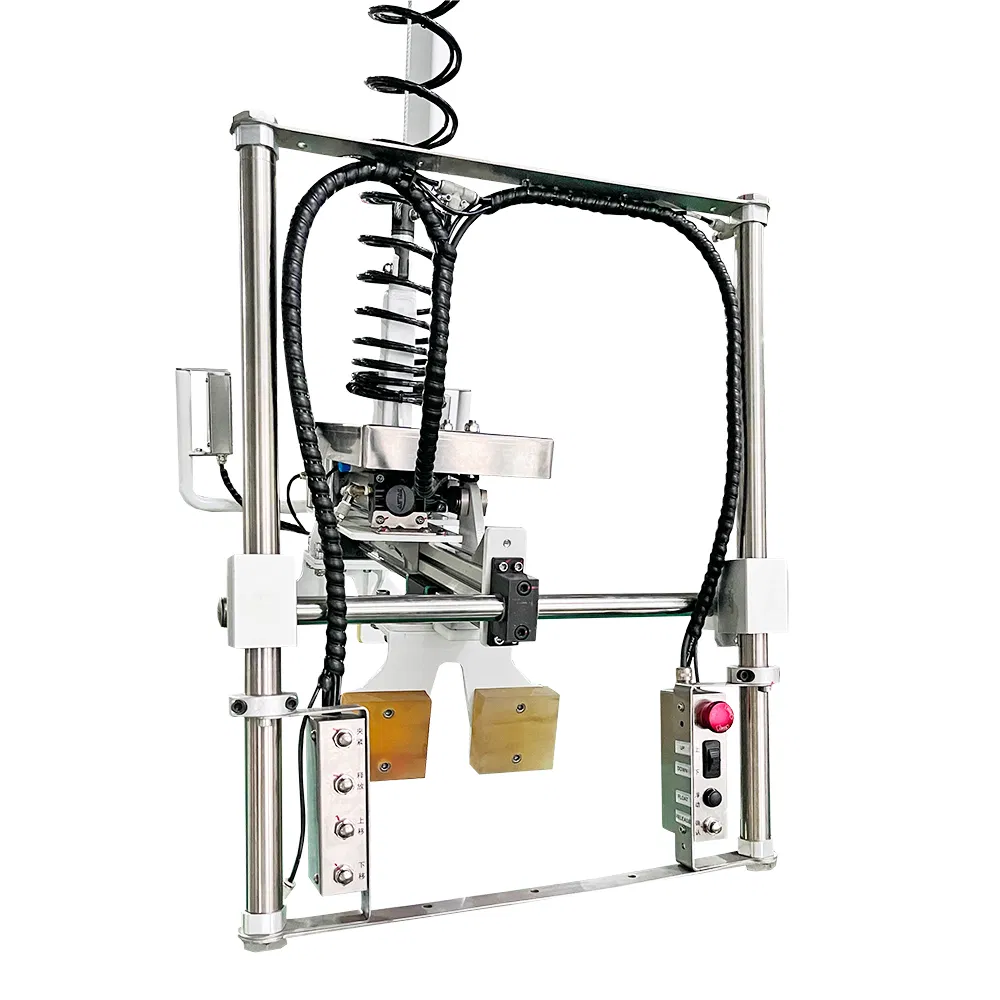

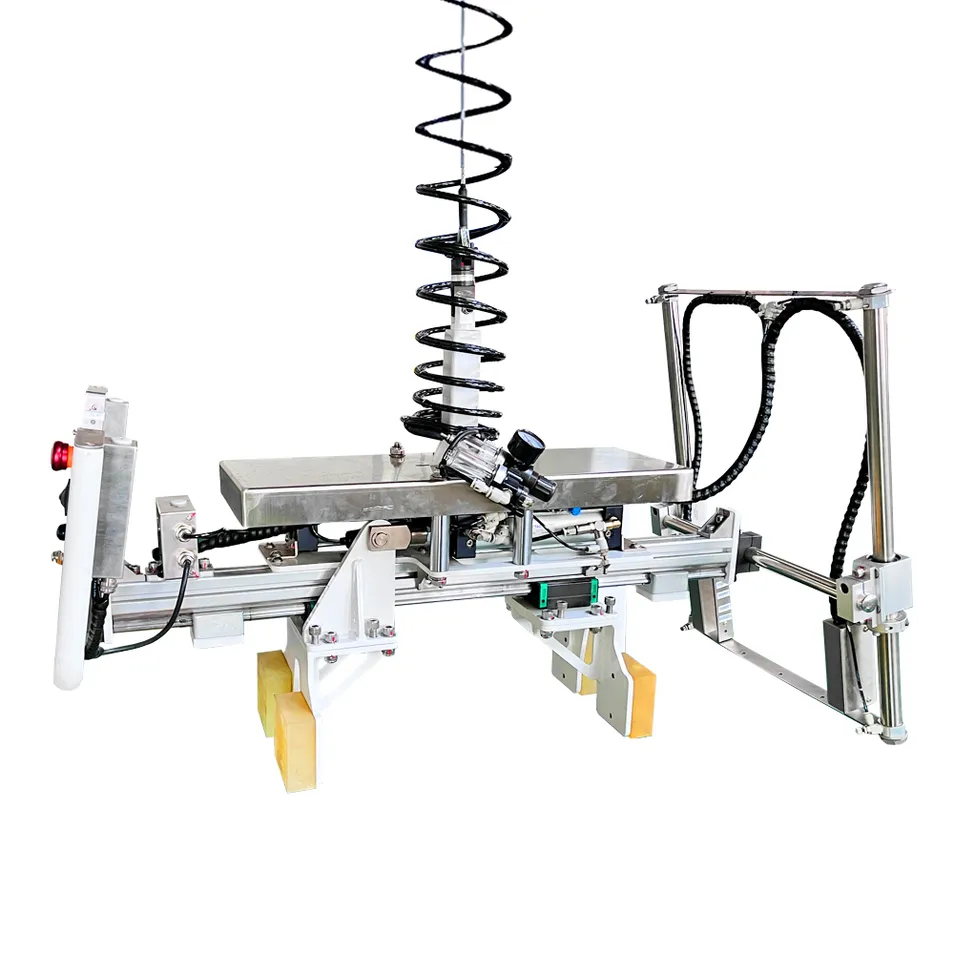

4. End Effector: Adaptable fixtures (vacuum suction, grippers, magnets).

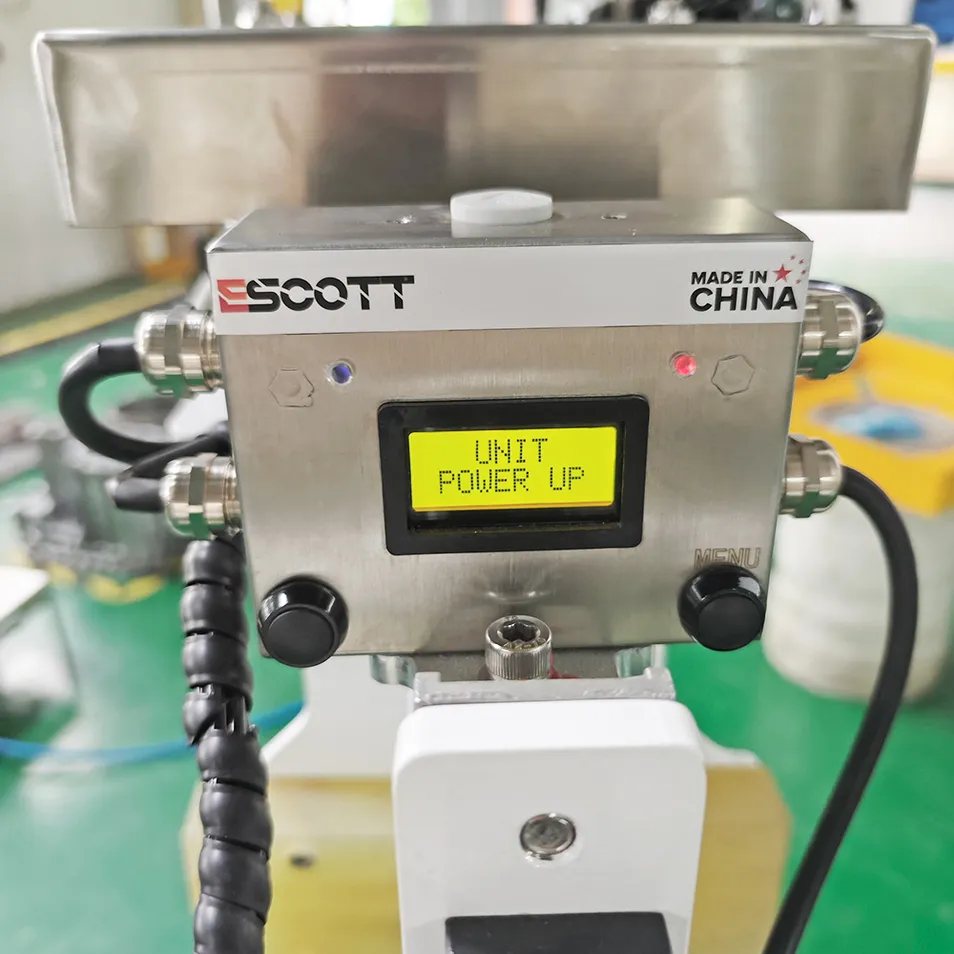

5. Control System: Wireless remote or precision joystick integration.

🔄 Working Principle

The operator starts the equipment through the control panel. The intelligent hoist drives the manipulator to rise or fall while the cantilever rotating structure moves the workpiece accurately from point A to point B. The system features automatic deceleration for safe placement.

🌟 Key Product Features

180° Slewing Rotation: Provides wide-angle coverage for semi-circular working areas.

Linear Traveling Design: Horizontal movement across multiple workstations via rail system.

High Load Capacity: Safely lifts up to 500kg for machinery parts and molds.

Safe Operation: Features limit stops, mechanical locking, and overload protection.

🏭 Application Scenarios

Production Lines: Perfect for moving components in linear workflows.
Loading Areas: Supports transfer zones from pallets to conveyors.
Mechanical Workshops: Precise positioning of engines and heavy tools.
Warehouse Storage: Efficient movement of heavy cartons and crates.

🛠️ After Sales Service

✔️ 12-Month Warranty: Coverage for main structure and core electrical components.

✔️ Spare Parts Support: Long-term availability of motors, rails, and controls.

✔️ Technical Support: Installation manuals, CAD drawings, and video assistance provided.

✔️ Customization: Tailored arm length, rail types, and power configurations.

🏢 Company Profile

We are a leading manufacturer specializing in innovative material handling solutions. With over 10 years of experience, we provide lifting equipment, vacuum lifters, JIB cranes, and intelligent hoists. We prioritize building long-term partnerships through exceptional pre-sales and technical assistance.

❓ Frequently Asked Questions

What’s the lead time for orders?

Standard models ship in 15–30 days; customized units require 30–45 days.

Do you provide after-sales service overseas?

Yes, we provide technical support and have partnered service centers in key regions.

Can I request a customized bucket or attachment size?

Absolutely! We offer various tailored attachments like vacuum grippers and magnets to suit your specific workpieces.

What documents do you provide for export?

We provide a full export package including Commercial Invoice, Packing List, Bill of Lading, and COC.

Is installation support available for the traveling rail system?

Yes, we provide detailed CAD foundation drawings, installation manuals, and remote video guidance for setup.

What is the main advantage of a traveling cantilever crane?

It combines the rotational flexibility of a jib crane with the long-distance coverage of a rail system, making it perfect for linear production lines.
