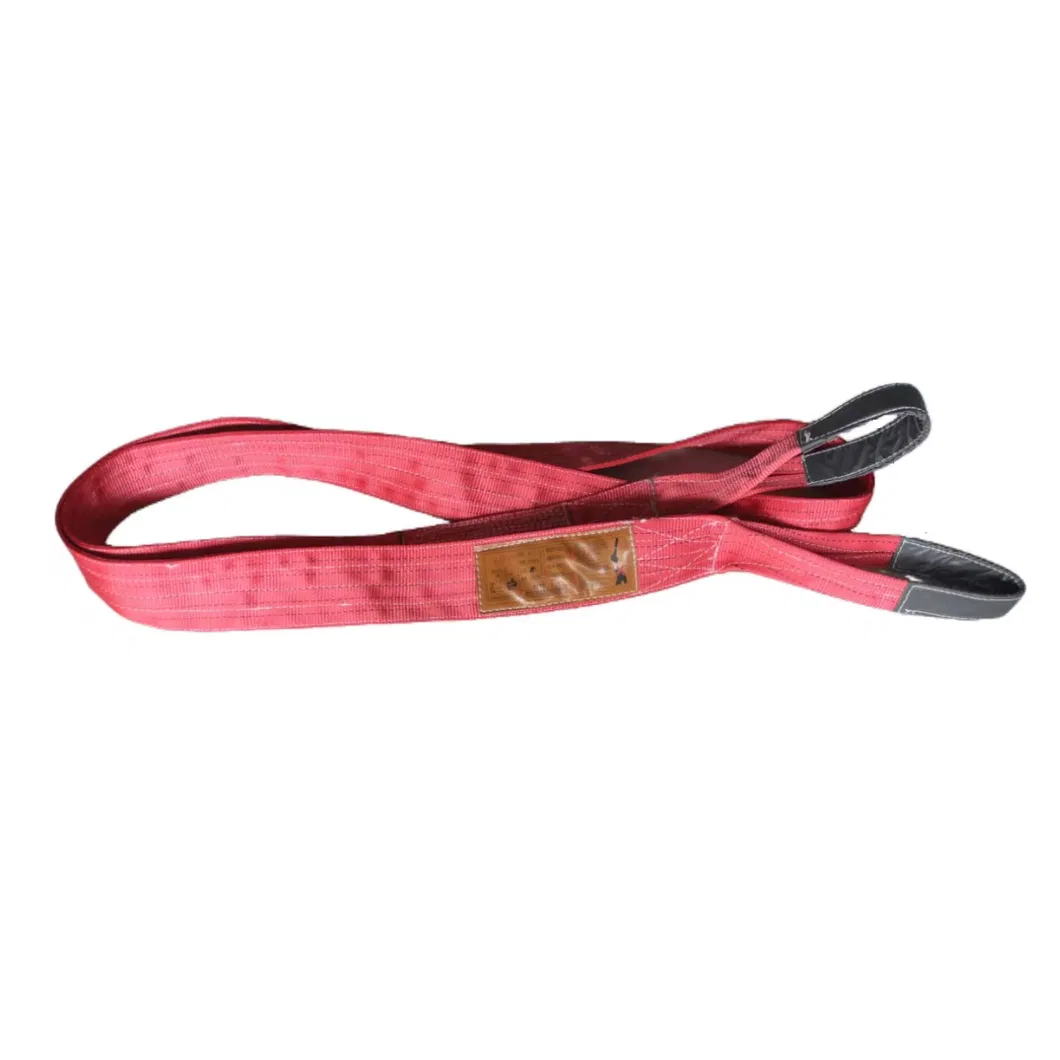

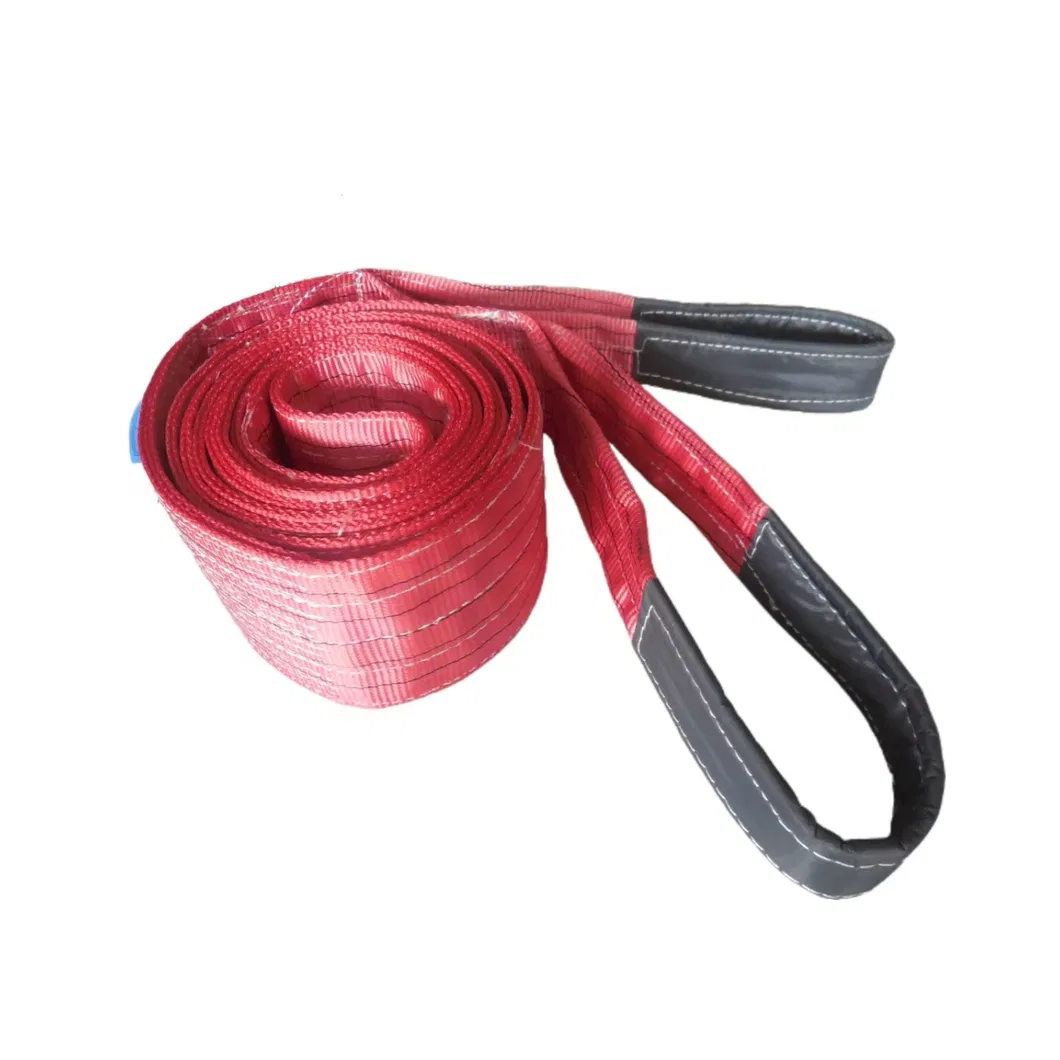

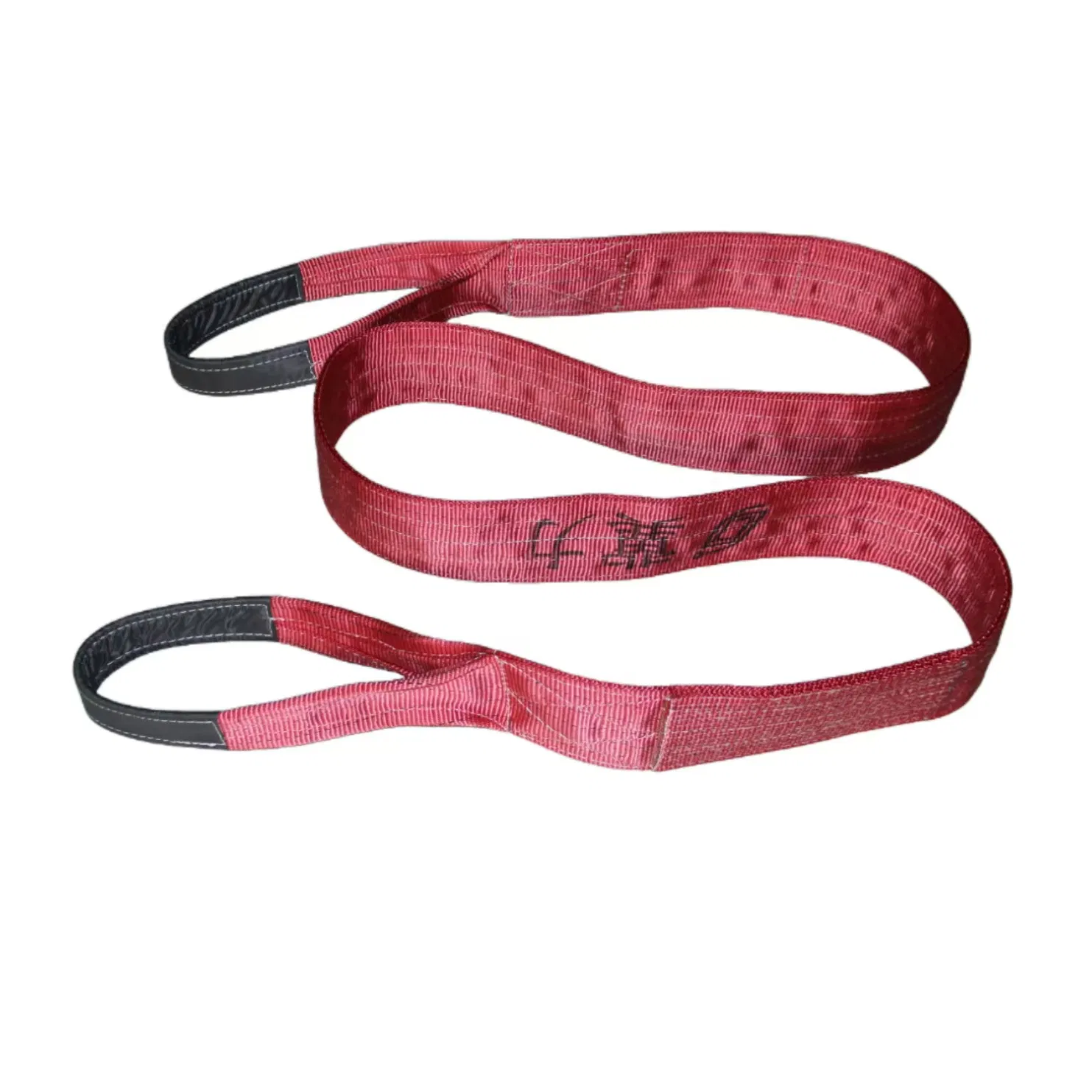

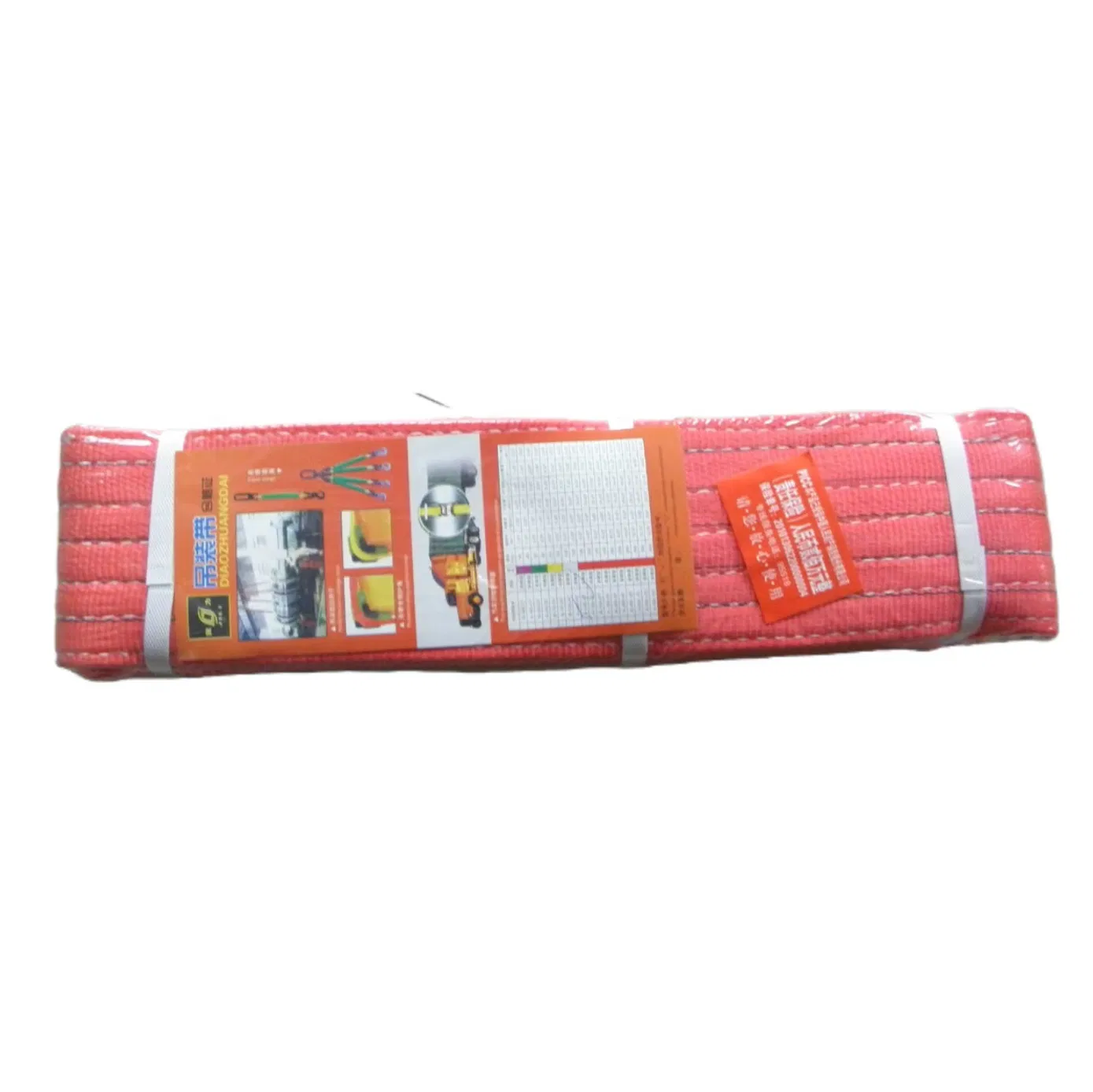

Polyester Flat Woven Webbing Sling for Lifting (CE Approved EN1492-1)
Our webbing slings are produced from top-quality synthetic fiber using advanced equipment. Depending on requirements, the safety factor of the sling can be 4:1, 5:1, 6:1, 7:1, or 8:1.
Load Range: 0.5t to 50t. Available in single ply, double ply, and four ply configurations.
Standards: EN1492-1, AS4497.1, ASME B30.9, JB-T 8521.2

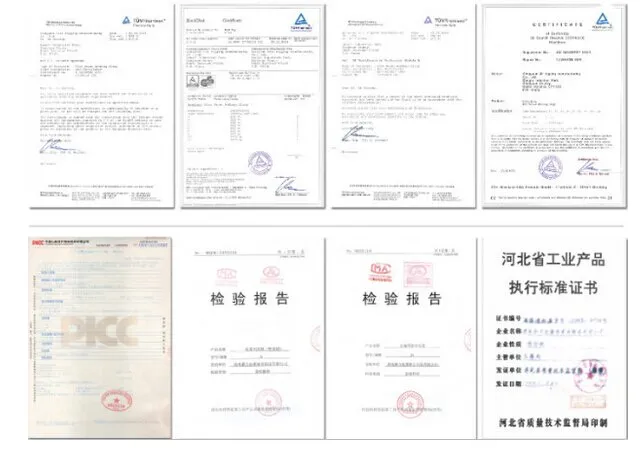

Certification: CE and TUV GS
01 MATERIAL
100% High tension industrial polyester yarn

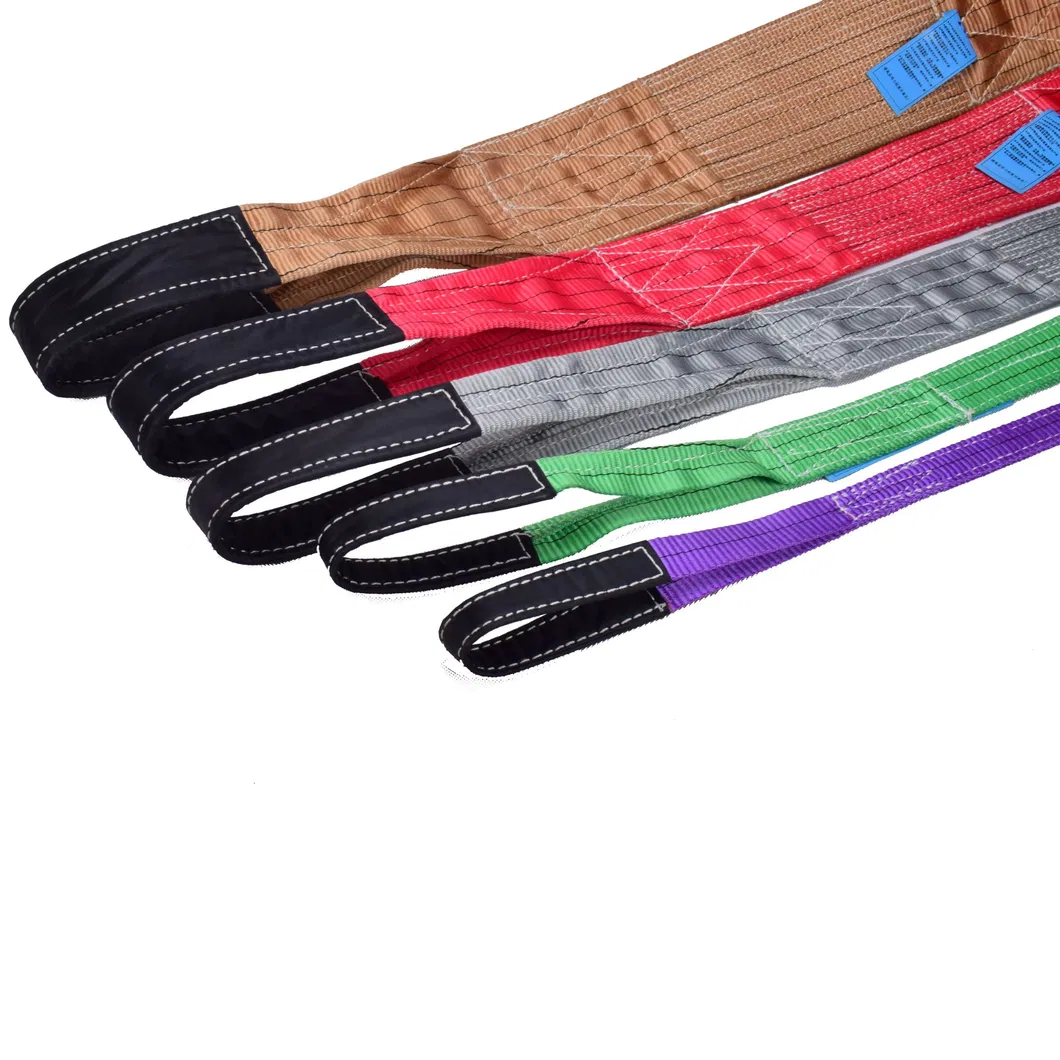

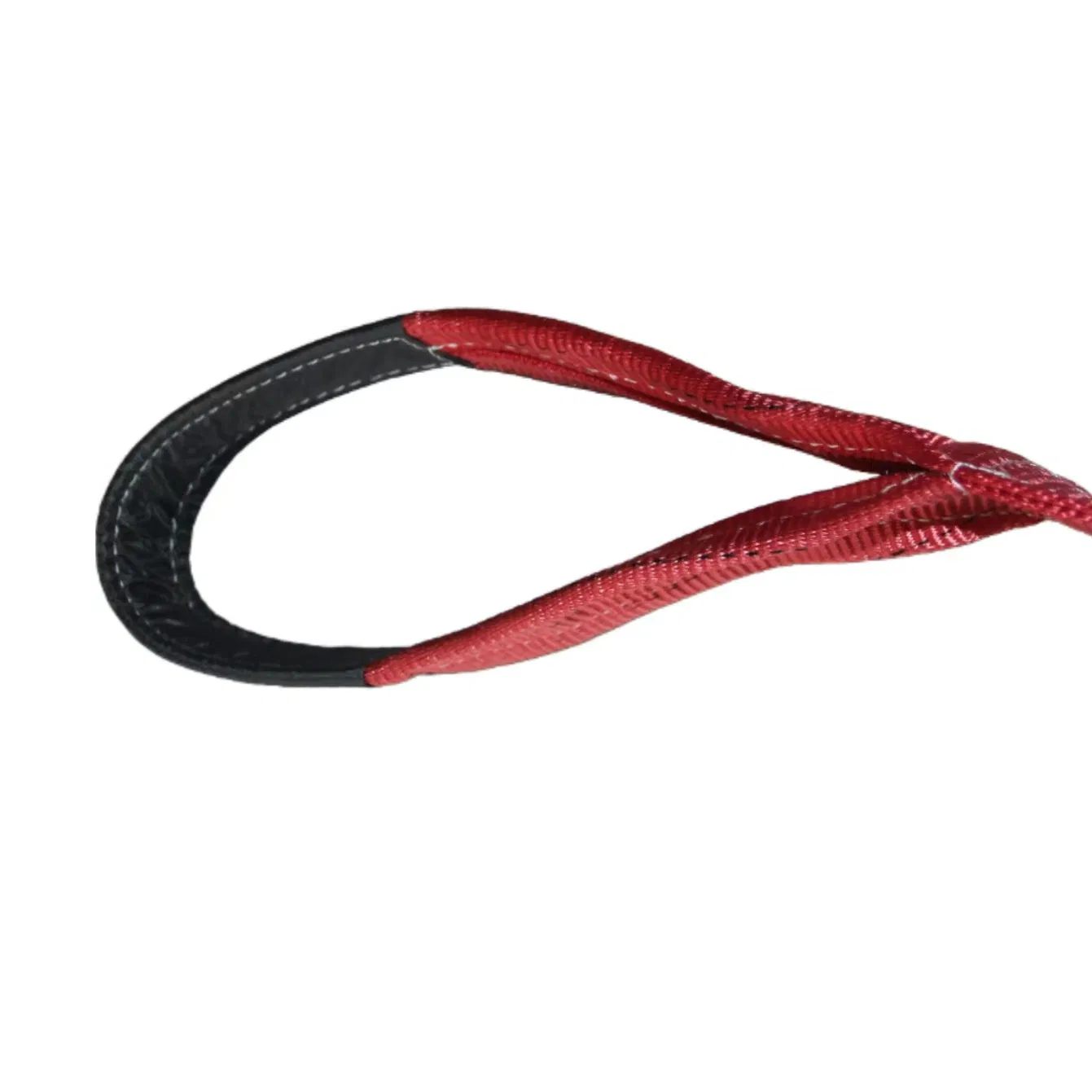

02 REINFORCED EYES
Anti-wear protective cover for prolonged service life

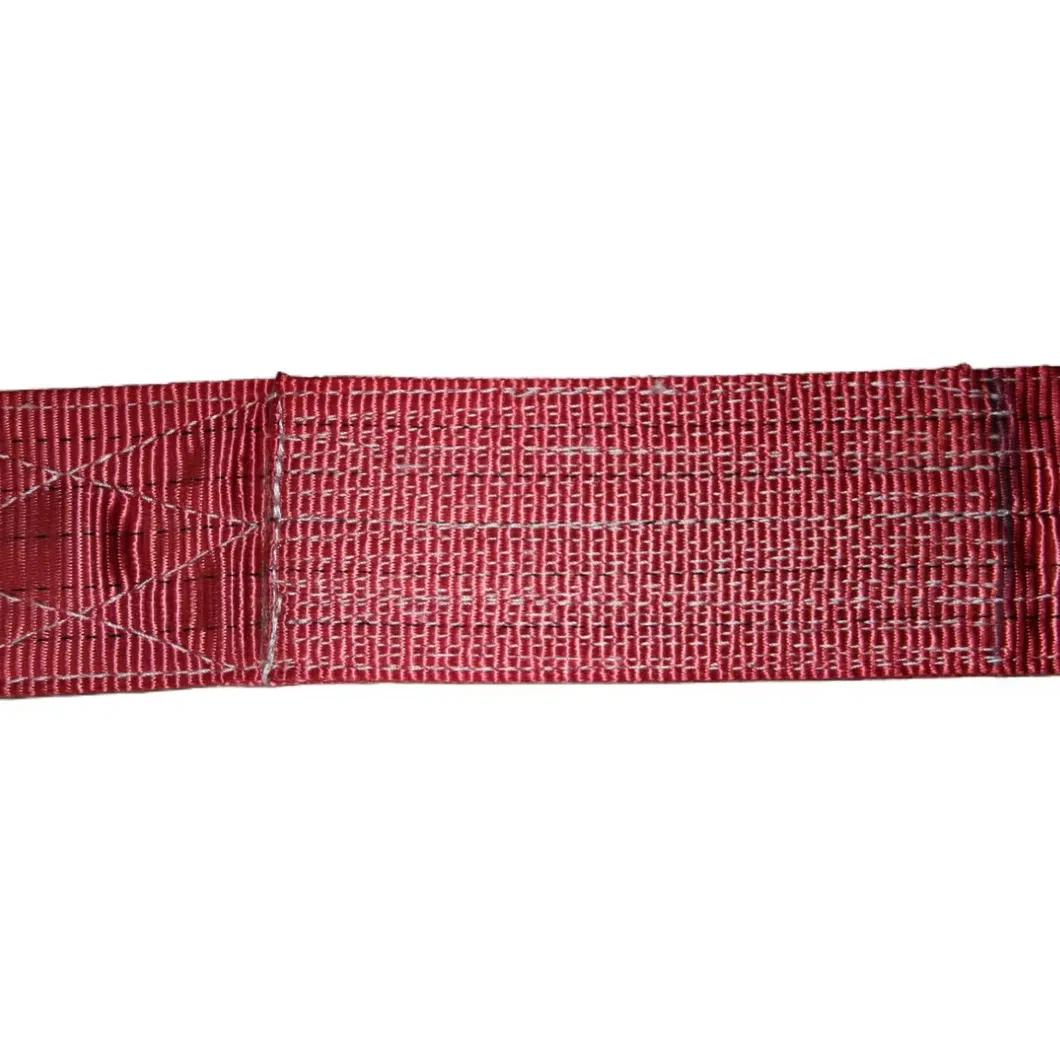

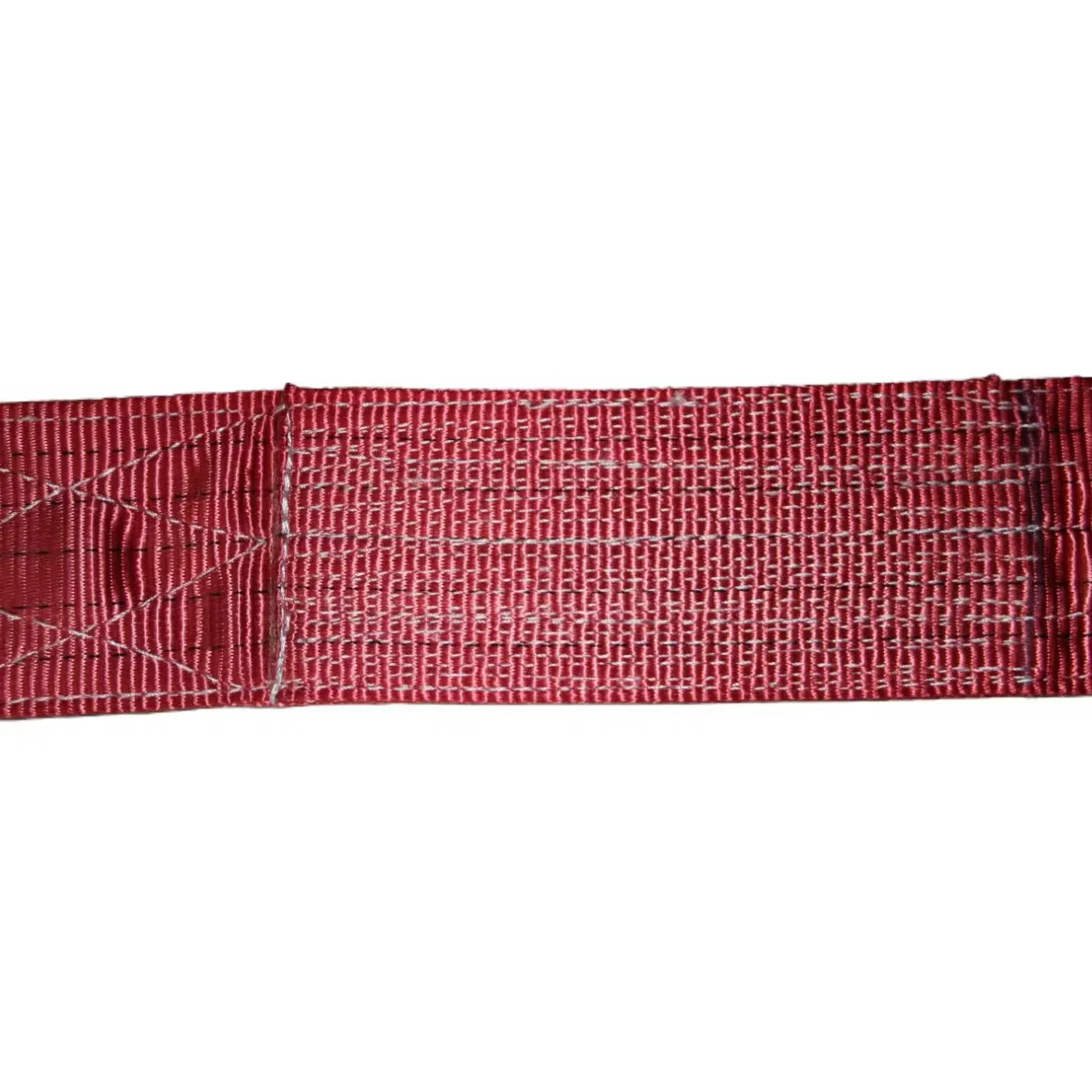

03 CLOSED STITCH
Uniform force, low elongation, and high flexibility

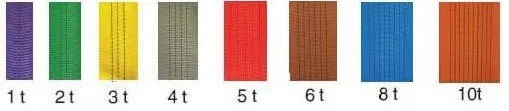

| Double Ply Polyester Webbing Sling | Working Load Limit (WLL) | Specifications | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Code | WLL | Color | Straight | Choked | 0-7° | 7-45° | 45-60° | 6:1 Width | 7:1 Width | Length |
| JB-01 | 1T | Purple | 1000 | 800 | 2000 | 1400 | 1000 | 25mm | 30mm | 1m-12m |
| JB-02 | 2T | Green | 2000 | 1600 | 4000 | 2800 | 2000 | 50mm | 60mm | 1m-12m |
| JB-03 | 3T | Yellow | 3000 | 2400 | 6000 | 4200 | 3000 | 75mm | 90mm | 1m-12m |
| JB-04 | 4T | Gray | 4000 | 3200 | 8000 | 5600 | 4000 | 100mm | 120mm | 1m-12m |
| JB-05 | 5T | Red | 5000 | 4000 | 10000 | 7000 | 5000 | 125mm | 150mm | 1m-12m |
| JB-06 | 6T | Brown | 6000 | 4800 | 12000 | 8400 | 6000 | 150mm | 180mm | 1m-12m |
| JB-08 | 8T | Blue | 8000 | 6400 | 16000 | 11200 | 8000 | 200mm | 240mm | 1m-12m |
| JB-10 | 10T | Orange | 10000 | 8000 | 20000 | 14000 | 10000 | 250mm | 300mm | 1m-12m |
Our company is a professional manufacturer specializing in the design and production of slings, rigging, and related crane accessories. With years of industry expertise, we are dedicated to research, development, design, production, and after-sales service.
Utilizing the latest production lines for synthetic fiber slings, we manage the entire process in-house—from weaving and dyeing to heating, sewing, and core filling. Our facilities are equipped with advanced production technology and stable quality testing equipment.
Our product range includes lifting slings, clamps, ratchet straps, towing straps, and complete rigging systems, widely used in metallurgy, power supply, petroleum, aviation, mining, and construction industries.
