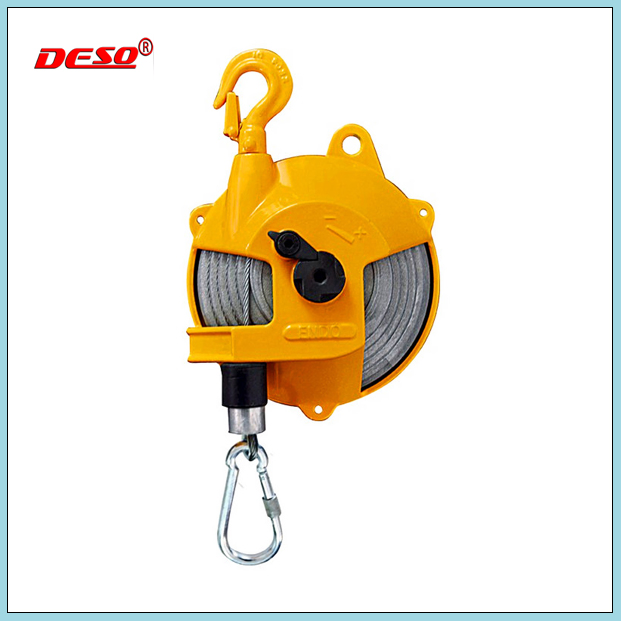

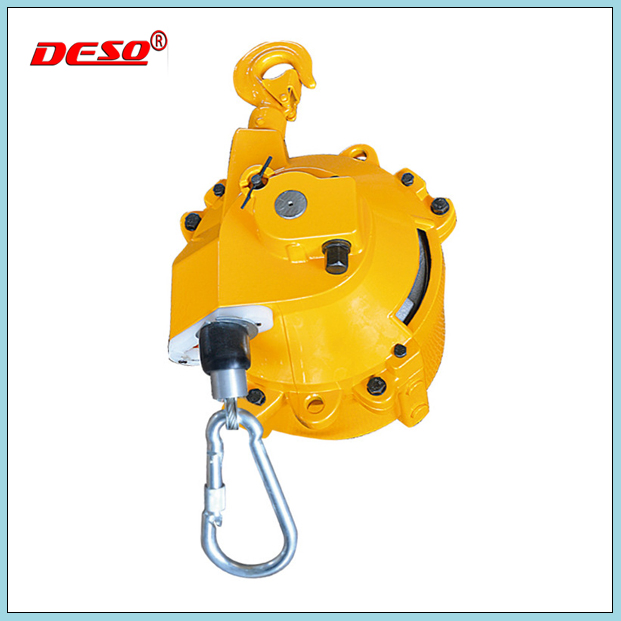

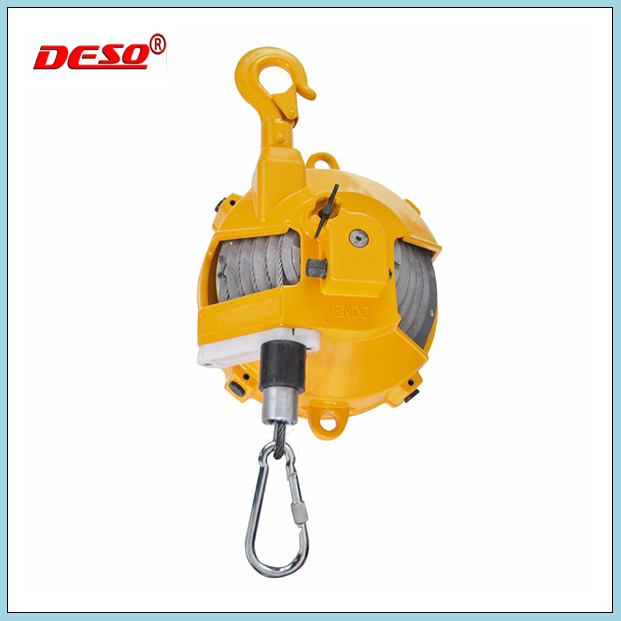

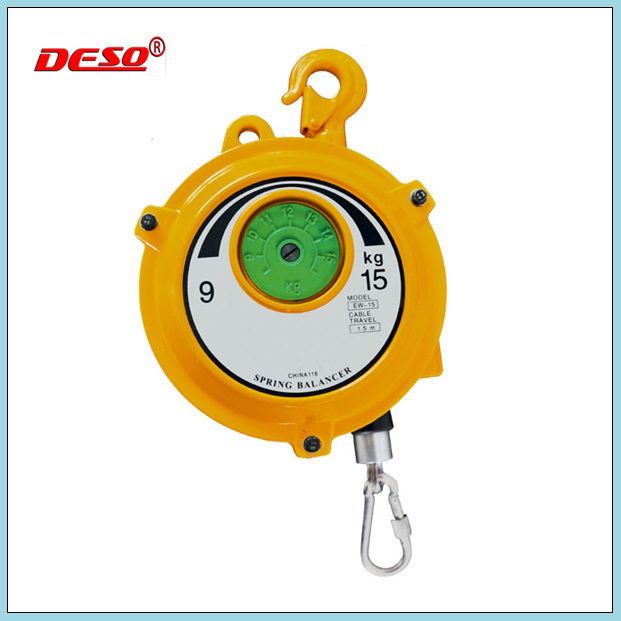

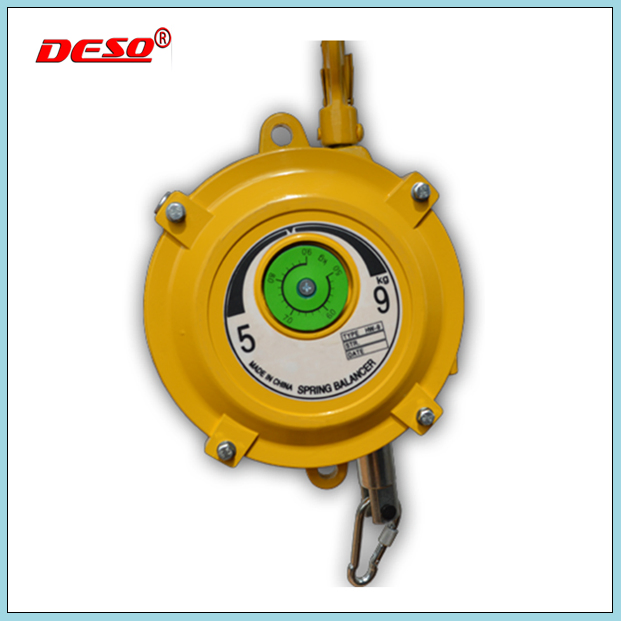

30-60kg Hand Tool Adjustable Spring Balancer

1 / 5

30-60kg Hand Tool Adjustable Spring Balancer

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

HW-1

Display Type

Mechanical Hand

Location

Platform Scale

Material

Carbon Steel

Measure Method

Manual

Application

Industrial Scales

Function

Weighing Scale

Structure

Mechanical Scale

Shape

Circular

Payment

T/T L/C

Delivery Time

20-40 days

Transport Package

Carton or Wooden Box

Specification

1.5-200kg

Origin

China Mainland

HS Code

84251100

Production Capacity

5000PCS Per Month

★

Product Description

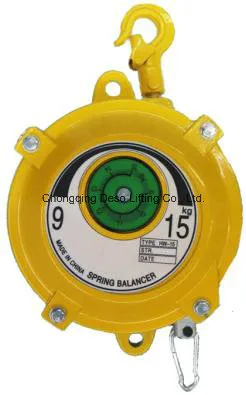

Spring Balancer Self-Locking

Key Features:

Provides 15kg to 22kg of lifting load, with 8 different load ranges available for options.
Equipped with an install hook allowing for 360-degree revolving performance.
High-quality aluminum die casting housing for enhanced durability.
Includes an anti-falling steel wire installation hole for safety.
Integrated tool anti-falling device provided in case of spring breakage.
Widely used in vehicle body welding lines, rivet lines, and assembly lines for engines, motorcycles, and home appliances.
Equipped with a highly durable internal spring.

Model No.	Min Load Capacity (kg)	Max Load Capacity (kg)	Cable Travel (m)	N.W (kg)
HW-1.5	0.5	1.5	1.9	1.58
HW-3	1	3	1.9	1.6
HW-5	3	5	1.9	1.65
HW-7	5	7	1.9	1.7
HW-9	5	9	1.8	4.5
HW-15	5	9	1.8	4.8
HW-22	15	22	2.8	8
HW-30	22	30	2.8	8.5
HW-40	30	40	2.8	10
HW-50	40	50	2.8	10.5
HW-60	50	60	2.3	11
HW-70	60	70	2.3	12
HW-80	70	80	2.3	12.5
HW-100	80	100	2.8	19
HW-120	100	120	2.5	20
HW-140	120	140	2.5	21
HW-160	140	160	2.4	22
HW-180	160	180	1.7	23
HW-200	180	200	1.7	24

If you need more details or have any questions, please feel free to contact us, we are more than pleased to do any help. Thanks!

Frequently Asked Questions

What is the main purpose of a Spring Balancer?

It is designed to suspend heavy tools in production lines, making them feel weightless to the operator, which reduces fatigue and increases assembly efficiency.

How does the safety anti-falling device work?

The balancer is equipped with a safety mechanism that automatically locks the tool in place if the internal spring breaks, preventing the tool from falling and causing injury or damage.

Can the balancer rotate during operation?

Yes, when installed with the standard hook, the unit supports 360-degree rotation, allowing for flexible tool movement in any direction.

What is the maximum load capacity available for these models?

Our HW series covers a wide range of capacities, starting from 0.5kg for small tools up to 200kg for heavy industrial equipment.

What industries typically use this self-locking balancer?

It is widely utilized in automotive manufacturing (welding and assembly), motorcycle production lines, engine assembly, and home appliance manufacturing.

Is the housing durable enough for industrial environments?

Absolutely. The housing is made of high-strength aluminum die casting, which provides excellent durability while remaining lightweight.
