Basic Information
Display Type
Mechanical Hand
Application
Industrial Scales
Structure
Mechanical Scale
Transport Package
Carton or Wooden Box
Production Capacity
5000PCS Per Month

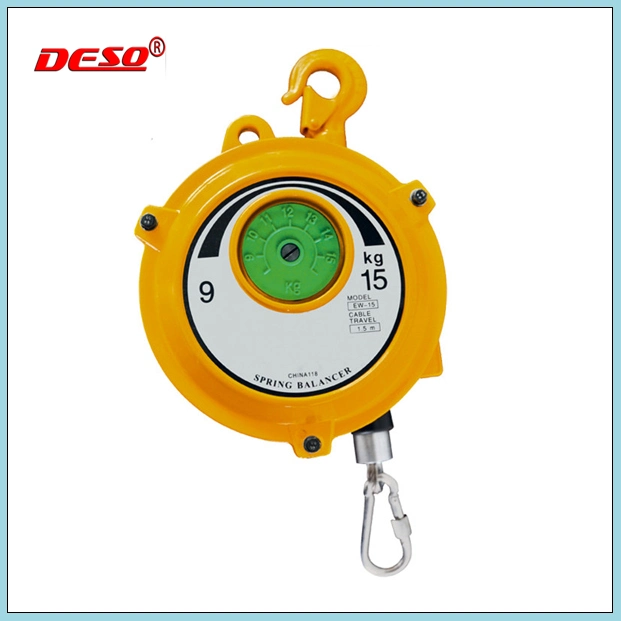

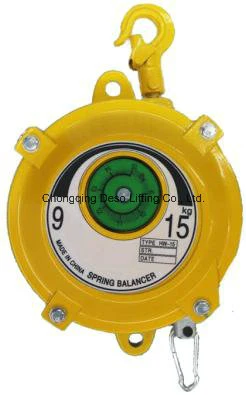

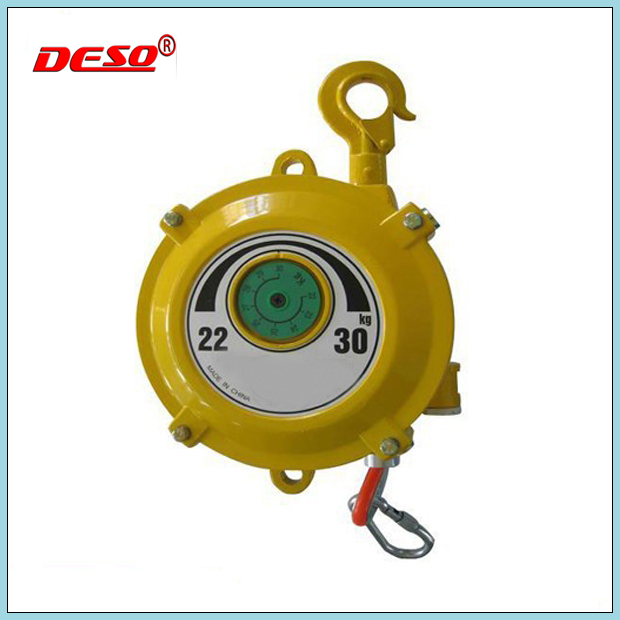

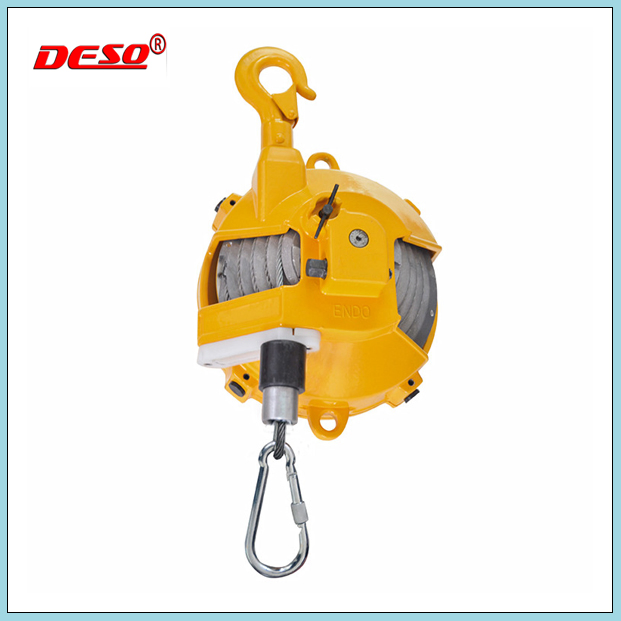

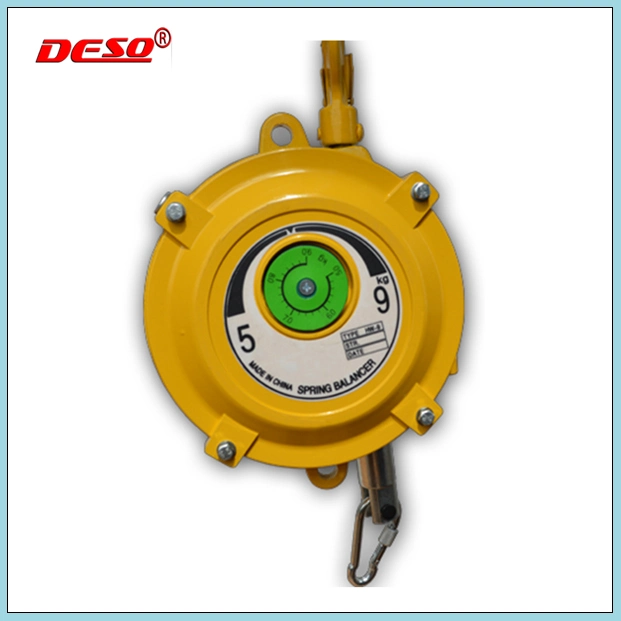

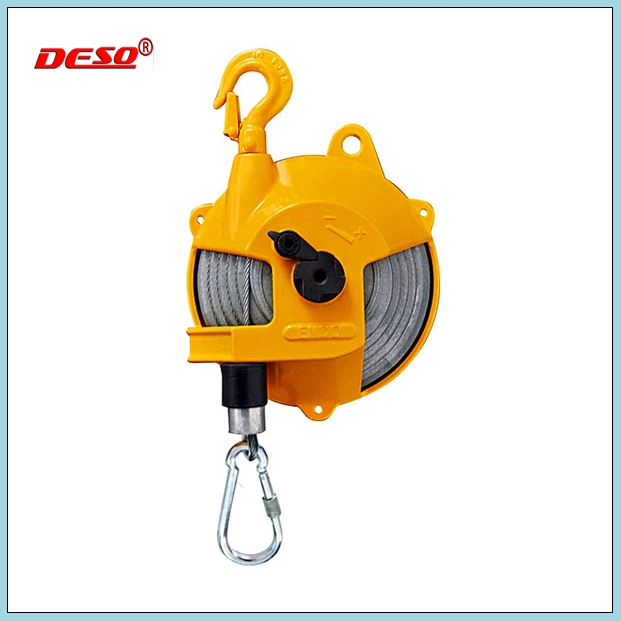

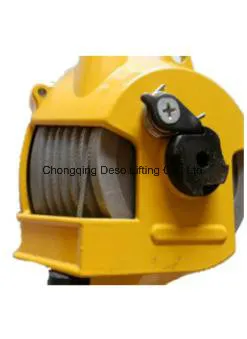

Spring Balancer Self-Locking
Key Features
- Provides 15kg to 22kg of lifting load, with 8 different load ranges available for options.
- Equipped with an install hook for 360-degree revolving performance.
- High-quality aluminum die-casting housing for durability.
- Includes an anti-falling steel wire installation hole for enhanced safety.
- Built-in tool anti-falling device in case of spring breakage.
- Ideal for welding lines, rivet lines, and assembly lines for engines, motorcycles, and home appliances.
- Equipped with a long-lasting, durable spring.
Technical Specifications
| Model No. |
Min Load (kg) |
Max Load (kg) |
Cable Travel (m) |
N.W (kg) |
| HW-1.5 | 0.5 | 1.5 | 1.9 | 1.58 |
| HW-3 | 1 | 3 | 1.9 | 1.6 |
| HW-5 | 3 | 5 | 1.9 | 1.65 |
| HW-7 | 5 | 7 | 1.9 | 1.7 |
| HW-9 | 5 | 9 | 1.8 | 4.5 |
| HW-15 | 5 | 9 | 1.8 | 4.8 |
| HW-22 | 15 | 22 | 2.8 | 8 |
| HW-30 | 22 | 30 | 2.8 | 8.5 |
| HW-40 | 30 | 40 | 2.8 | 10 |
| HW-50 | 40 | 50 | 2.8 | 10.5 |
| HW-60 | 50 | 60 | 2.3 | 11 |
| HW-70 | 60 | 70 | 2.3 | 12 |
| HW-80 | 70 | 80 | 2.3 | 12.5 |
| HW-100 | 80 | 100 | 2.8 | 19 |
| HW-120 | 100 | 120 | 2.5 | 20 |
| HW-140 | 120 | 140 | 2.5 | 21 |
| HW-160 | 140 | 160 | 2.4 | 22 |
| HW-180 | 160 | 180 | 1.7 | 23 |
| HW-200 | 180 | 200 | 1.7 | 24 |
Frequently Asked Questions
What is the primary function of this spring balancer?
The spring balancer is designed to suspend heavy tools in production lines, reducing operator fatigue and improving efficiency by making tools feel weightless.
Does this model support 360-degree rotation?
Yes, when mounted with the installation hook, it can perform 360-degree revolving movement for maximum flexibility.
What safety features are included?
It features an aluminum die-casting housing, an anti-falling steel wire installation hole, and a tool anti-falling device that activates if the spring breaks.
Can I use this for lightweight tools?
Yes, we offer models like the HW-1.5 which starts at a minimum load capacity of 0.5kg.
What industries typically use these balancers?
They are widely used in automotive assembly, engine manufacturing, home appliance production lines, and any workshop where repetitive tool use is required.
Is the cable travel distance sufficient for high workstations?
Our models offer varying cable travel distances ranging from 1.7m to 2.8m, depending on the specific model selected.
