Advanced Tank Lifting Jack with Hydraulic Jacking System Stock Available/Two-Stage Hydraulic Tank Jacking System with PLC Synchronous Lifting Control System

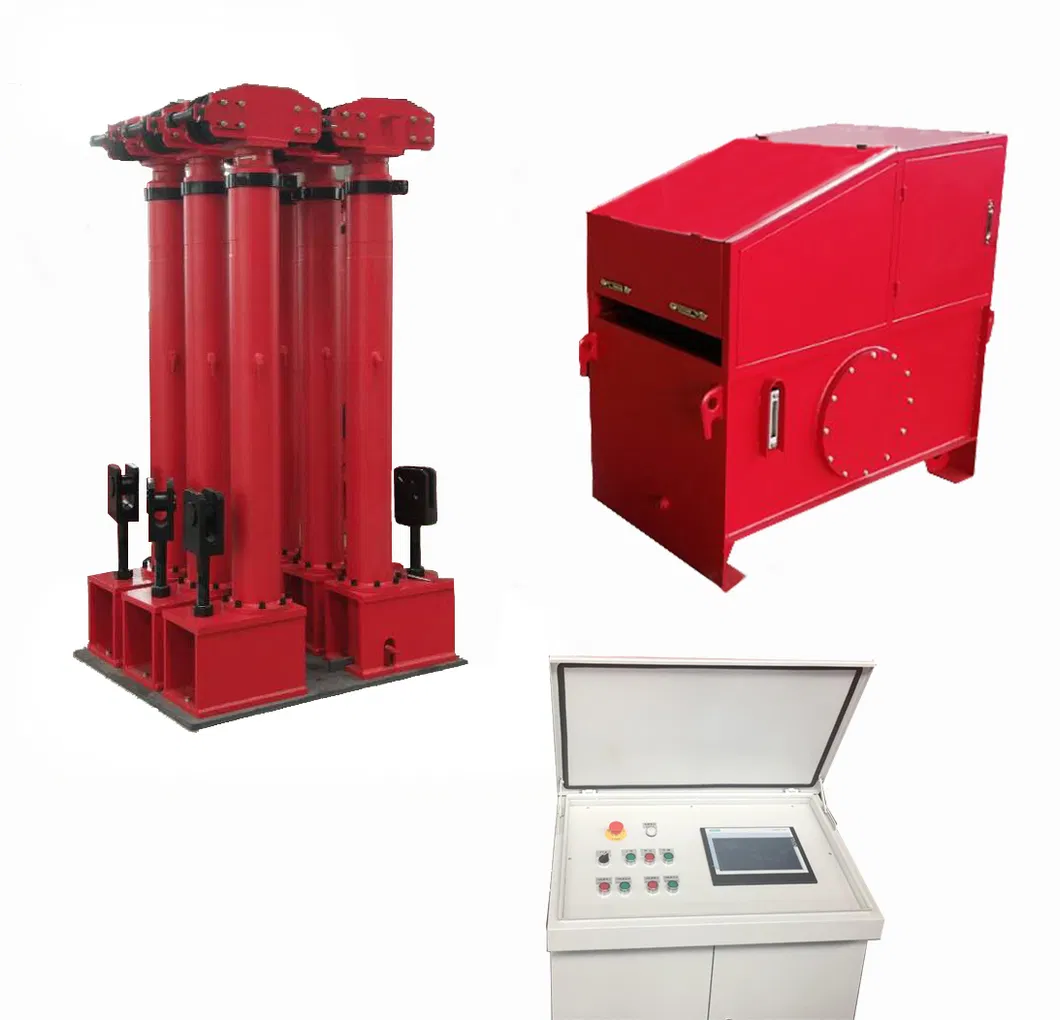

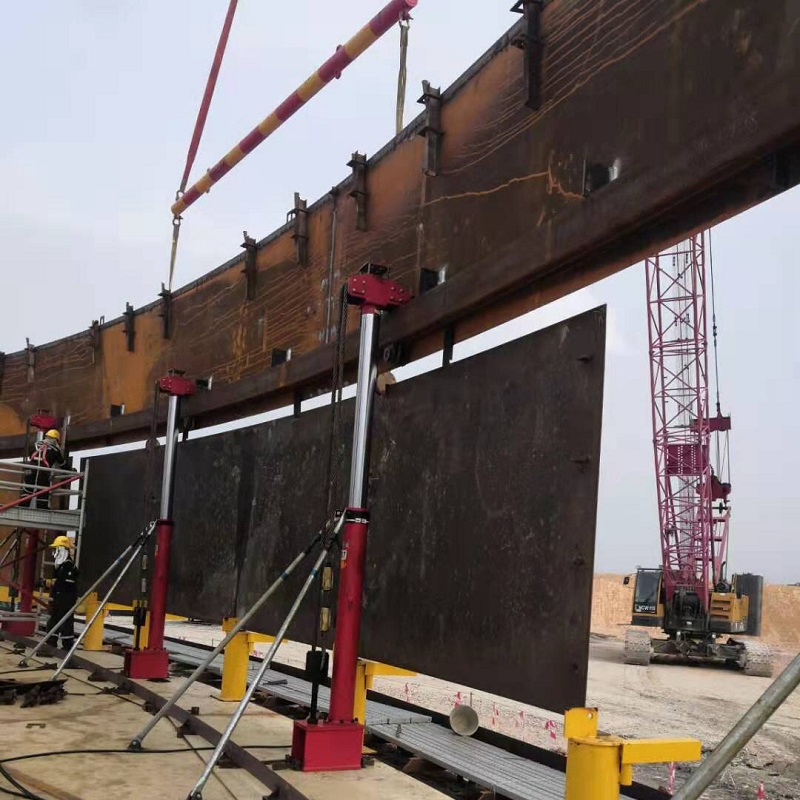

YT-C type hydraulic storage tank lifting equipment is a set of large hydraulic lifting equipment specially developed for national crude oil reserve projects. As long as the number of hydraulic cylinders and pump station systems is increased or decreased, this type of equipment can be applied to the inverted construction of large storage tanks with different volumes ranging from thousands of cubic meters to hundreds of thousands of cubic meters.
The control part adopts Siemens PLC modular design concept, ensuring simple operation and reliable quality. The hydraulic cylinder can be used for single or multiple lifting height adjustment, and can also be used for centralized control of multiple groups.
Working Principle & Features

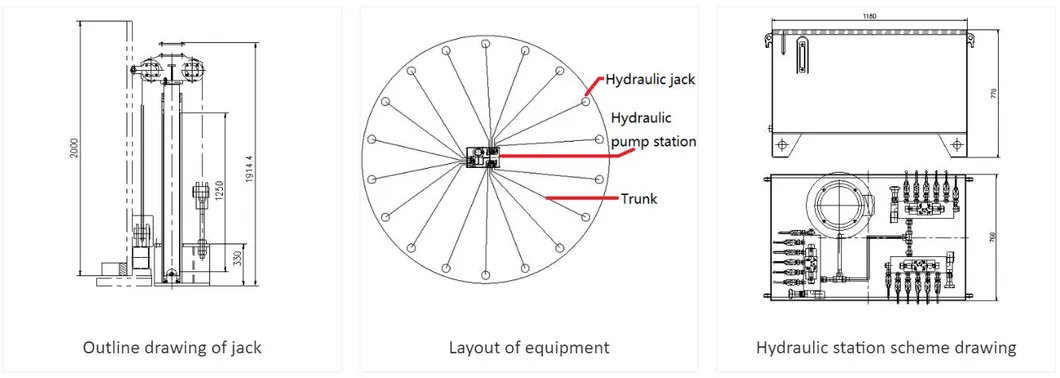

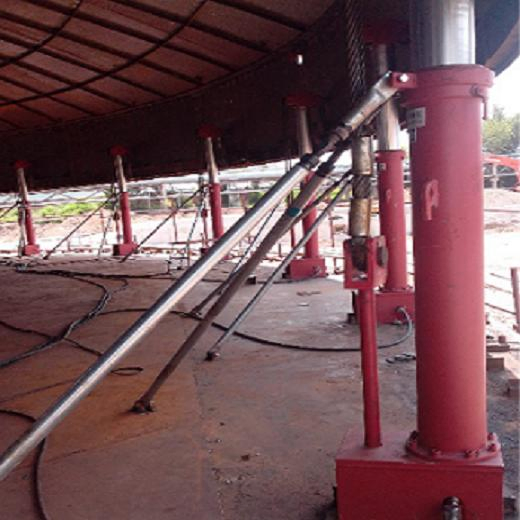

The transfer of force: output force of hydraulic cylinder → steel wire rope → rising ring (welded with lifting lug) → rib plate for transferring force → tank wall jacking.
PLC central control ensures precision of simultaneous lifting.
Safety valves automatically lock to avoid dropping even under power failure or hose damage.
High efficiency: lifting or falling only takes around 15 minutes.
Module configuration allows adjustment for different tank sizes and weights.
Compatible with automatic girth welding machines for internal girth seam welding.
Product Parameters
Model
Max Pressure
Single Output
Max Stroke
Lifting Speed
Pump Flow
Motor Power
Temp Range
YT10-2200C
24Mpa
10T
1250mm
190mm/min
14.4L/min
5.5kw
-15~50 ºC
YT12-2700C
31Mpa
12T
1400mm
250mm/min
7.2L/min
5.5kw
-15~50 ºC
YT18-3000C
25Mpa
18T
1600mm
187mm/min
7.2L/min
5.5kw
-10~60ºC
YT25-3000C
29Mpa
25T
3200mm
160mm/min
7.2L/min
4kw
-10~60ºC
YT30-2700C
29Mpa
30T
2050mm
130mm/min
7.2L/min
4kw
-10~60ºC

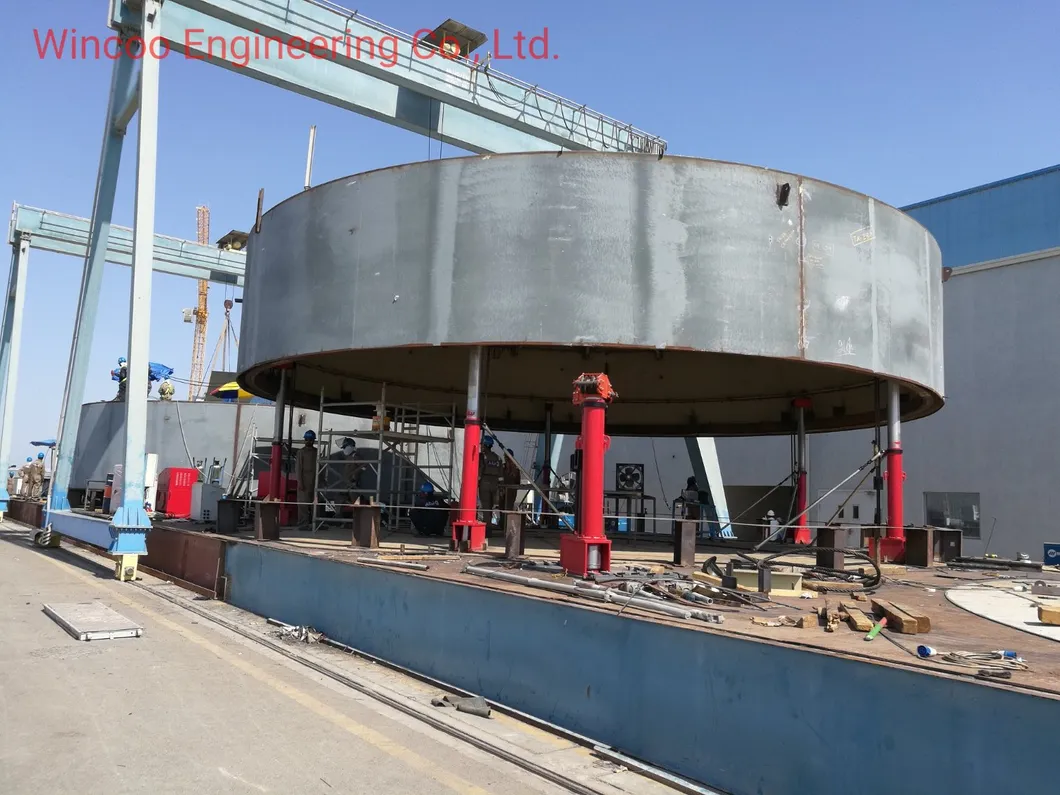

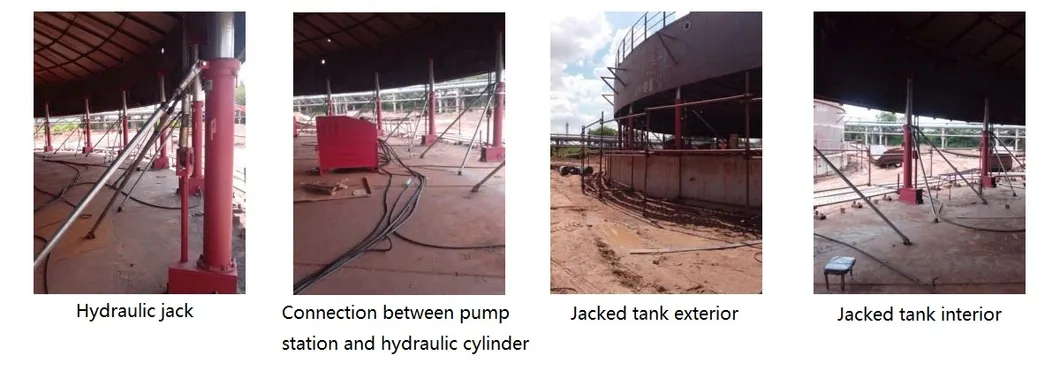

Detailed Photos
Services & Strength
We provide workable solutions to support clients with shorter project execution times, lower man-hour costs, and higher efficiency construction methods. Based on site space availability, we design matched configurations to guarantee production pace aligns with project requirements.
Frequently Asked Questions
1. How can you support our project during the bidding phase?
We provide the most suitable equipment configurations to help you shorten the construction time and improve competitiveness.
2. Do you provide technical documentation for construction?
Yes, we provide all necessary technical documents and expert advice to support your construction procedure clarifications.
3. Can you help calculate the number of hydraulic jacks needed?
Absolutely. we can calculate the exact number of hydraulic jacks required based on the specific weight and dimensions of your tank.
4. Are accessories available for the jacking system?
Yes, we provide all suitable hydraulic jack accessories at competitive prices through our long-term business partnerships.
5. Do you offer on-site training or manpower?
We provide site personnel training services, operation services, and can even act as a subcontractor for your project.
6. Is oversea engineer service available?
Yes, engineer oversea service is available specifically for projects involving more than 5-meter tank constructions.
