Product Overview

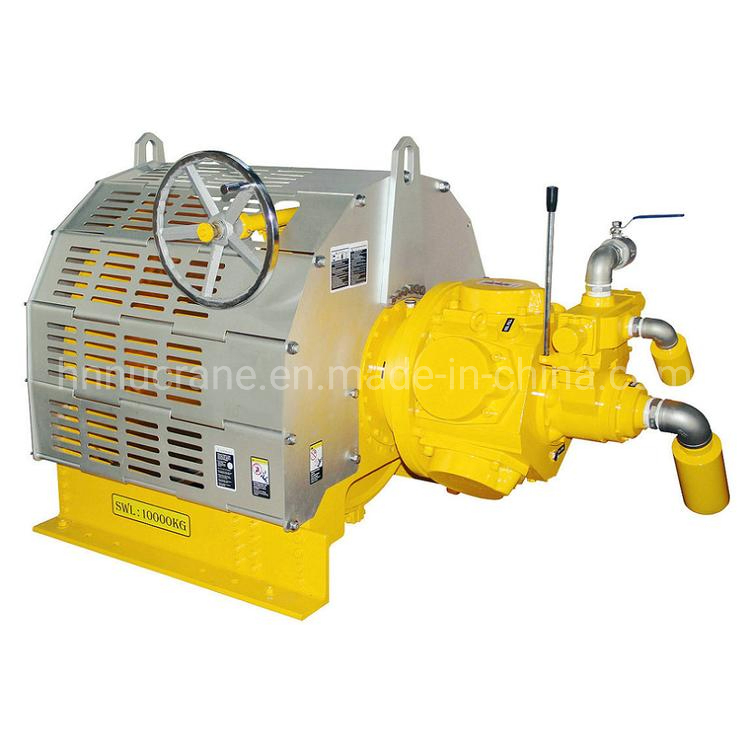

8 Ton 80kn Air Winch for Platform, Mining, Marines Winch
| Specifications |
1 Ton Air Winch |
2 Ton Air Winch |
| Rated Tension |
1 Ton |
2 Ton |
| Working Pressure |
6.9 bar |
6.2 bar |
| Max. Lifting Speed |
12 m/min |
12 m/min |
| Motor Inlet Pipe Diameter |
25.4 mm |
32 mm |
| Air Consumption (Max Load) |
7 m³/min |
11 m³/min |
| Drum Capacity |
100 m |
100 m |
| Rope Diameter |
8 mm (Galvanized) |
8 mm (Galvanized) |
| Standard Features |
Manual belt brake, clutch, local control valve, air source handling parts |
Manual belt brake, clutch, local control valve, air source handling parts |
⚙️

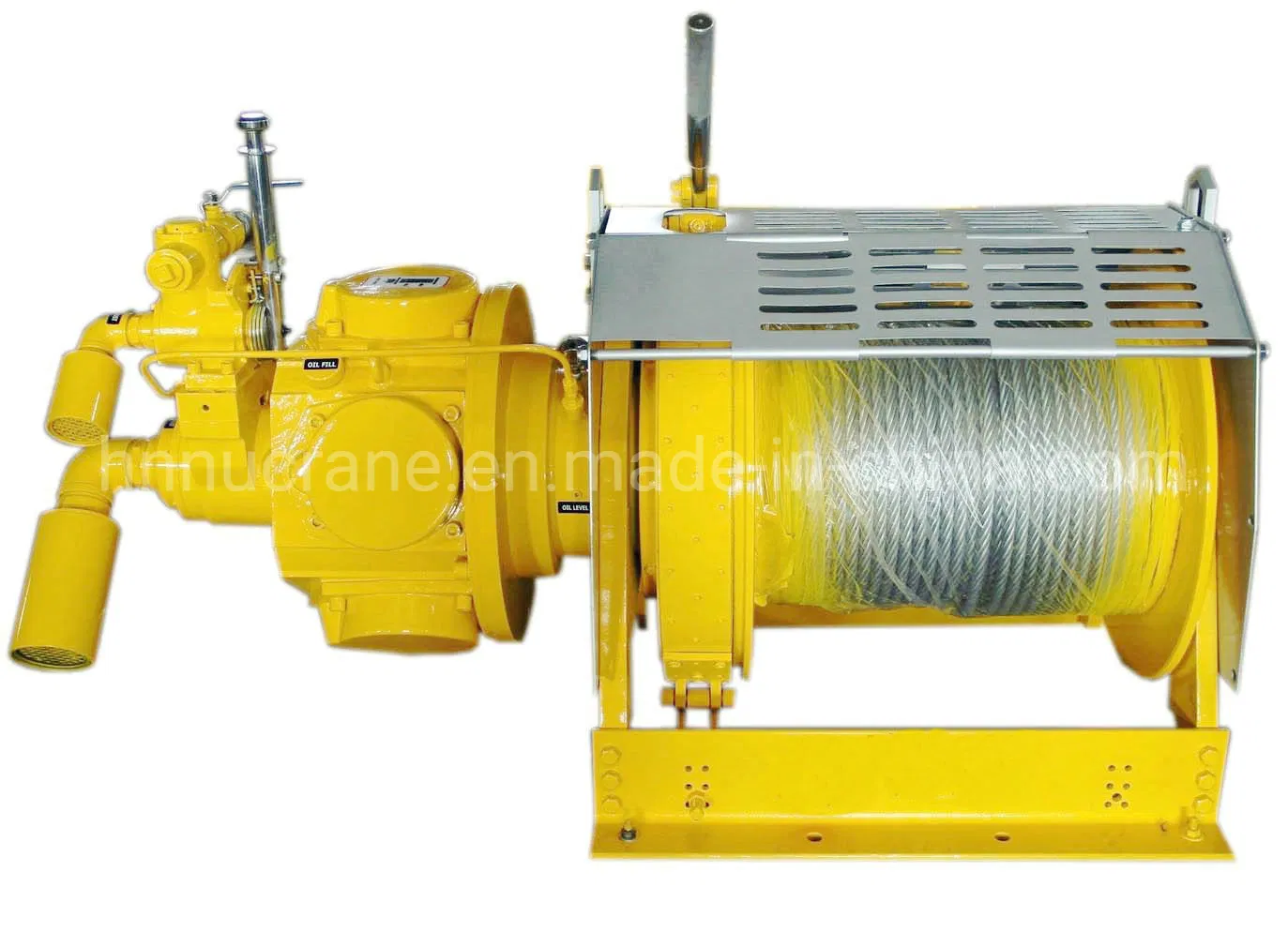

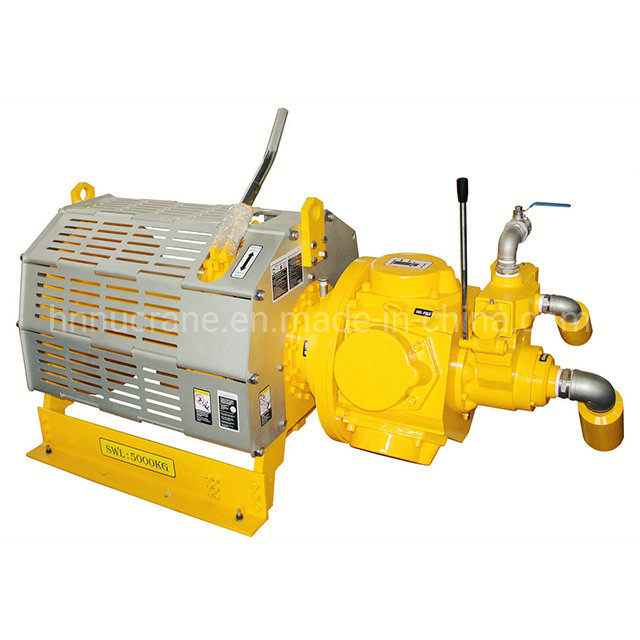

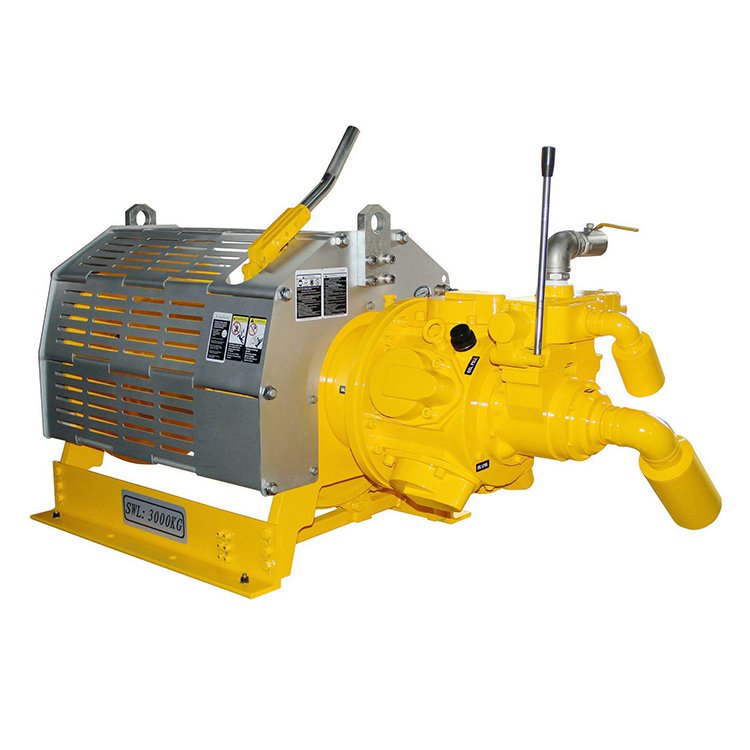

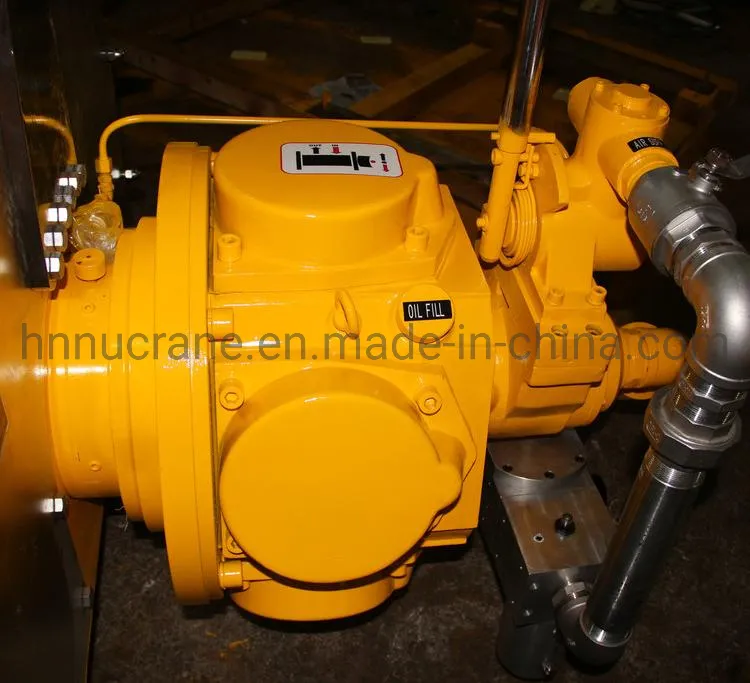

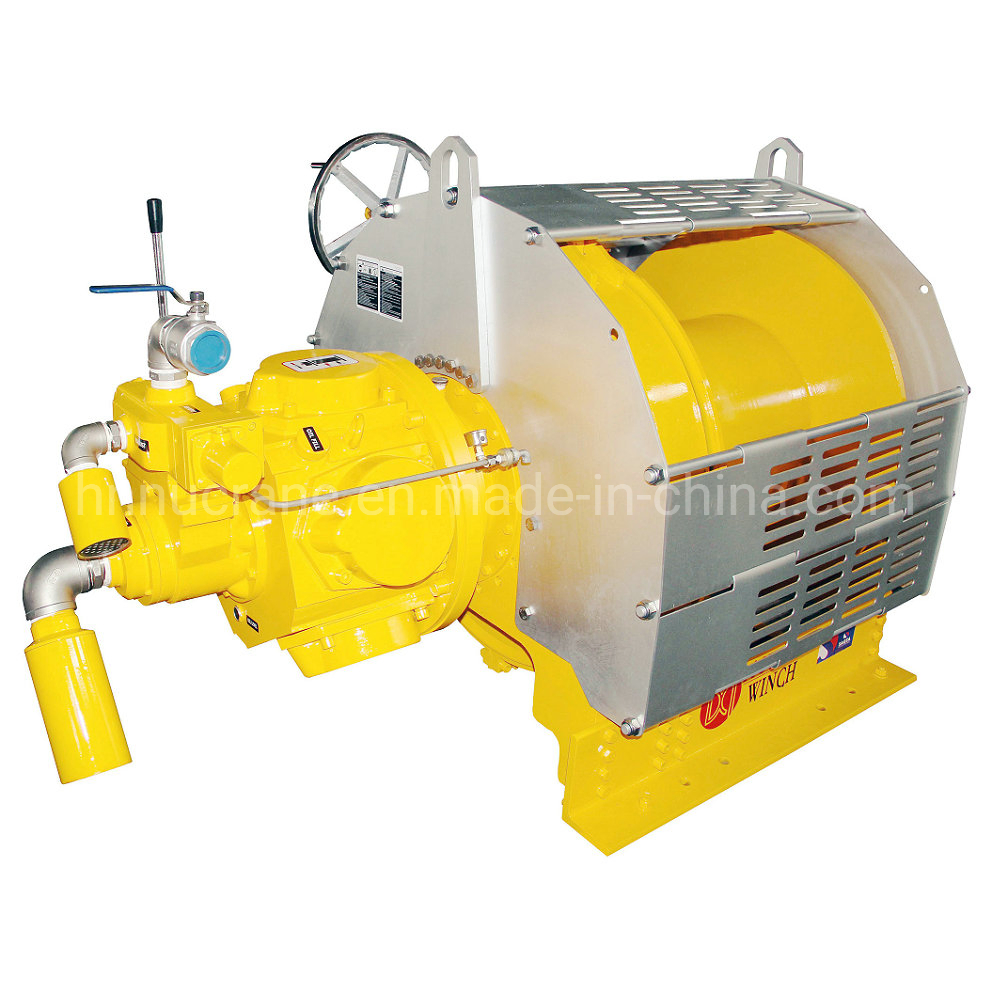

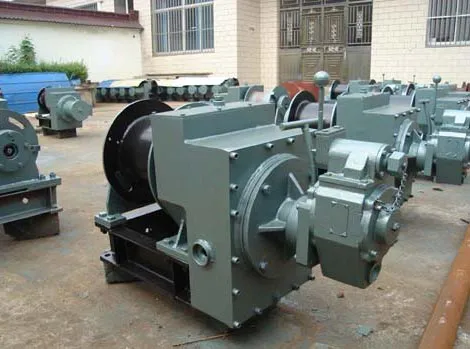

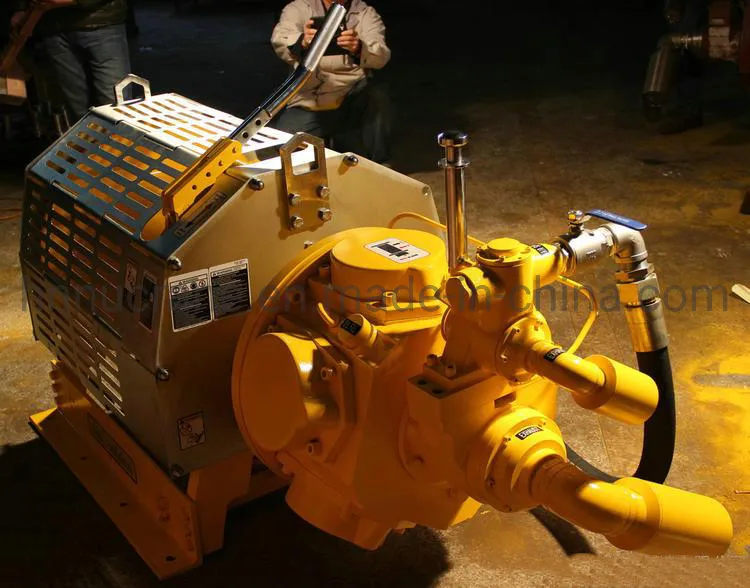

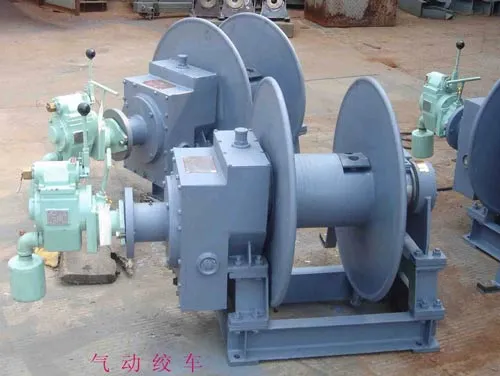

The Pneumatic winch is powered by a piston pneumatic motor, offering manual or remote operation. Known for high efficiency, simple operation, and enhanced safety, it is ideal for land drilling, offshore platforms, mining, marine vessels, and environments with inflammable gases.

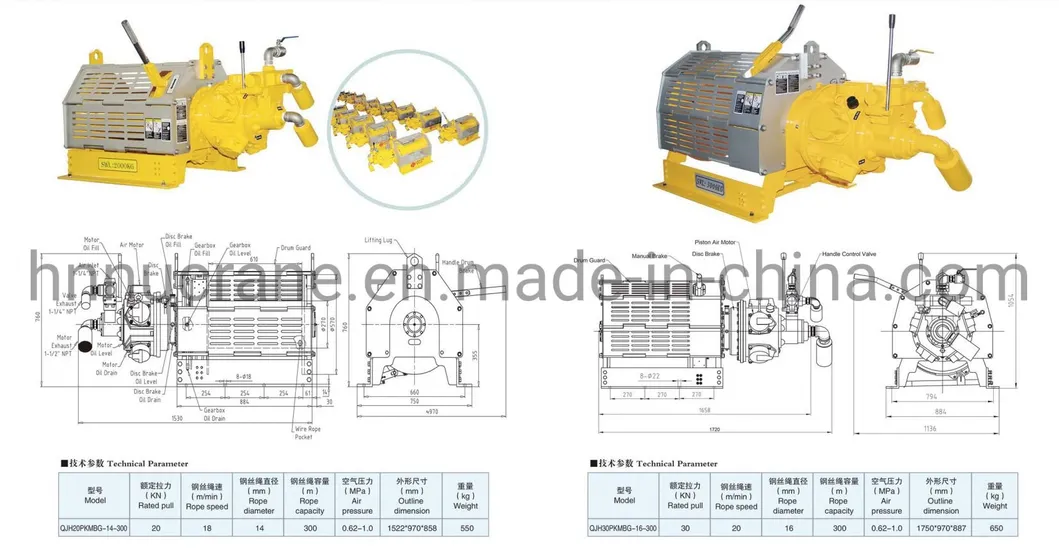

Configuration Options
- 🔹 Standard: Internal brake, external brake
- 🔹 Wireline Remote Control: For safer distance operation
- 🔹 Automatic System: Fixed length cable drawing and releasing
- 🔹 Special Silencer: Optimized for air compressor power sources
- 🔹 Rope Pressing System: Ensures orderly winding
Frequently Asked Questions
What are the primary advantages of a pneumatic winch?
Pneumatic winches are explosion-proof, making them ideal for hazardous environments. They offer high efficiency, easy handling, and can operate in high-temperature or damp conditions where electric winches might fail.
What power source is required for operation?
These winches are driven by compressed air, typically provided by an air compressor. The standard working pressure is approximately 0.69 MPa (6.9 bar).
In which industries are these air tugger winches most commonly used?
They are widely used in land and offshore oil drilling, mining, marine shipping, and any industrial site involving inflammable gases or requiring spark-free operation.
Can the winch be operated remotely?
Yes, while standard models come with local control valves, we offer optional wireline remote control systems for enhanced operator safety and convenience.

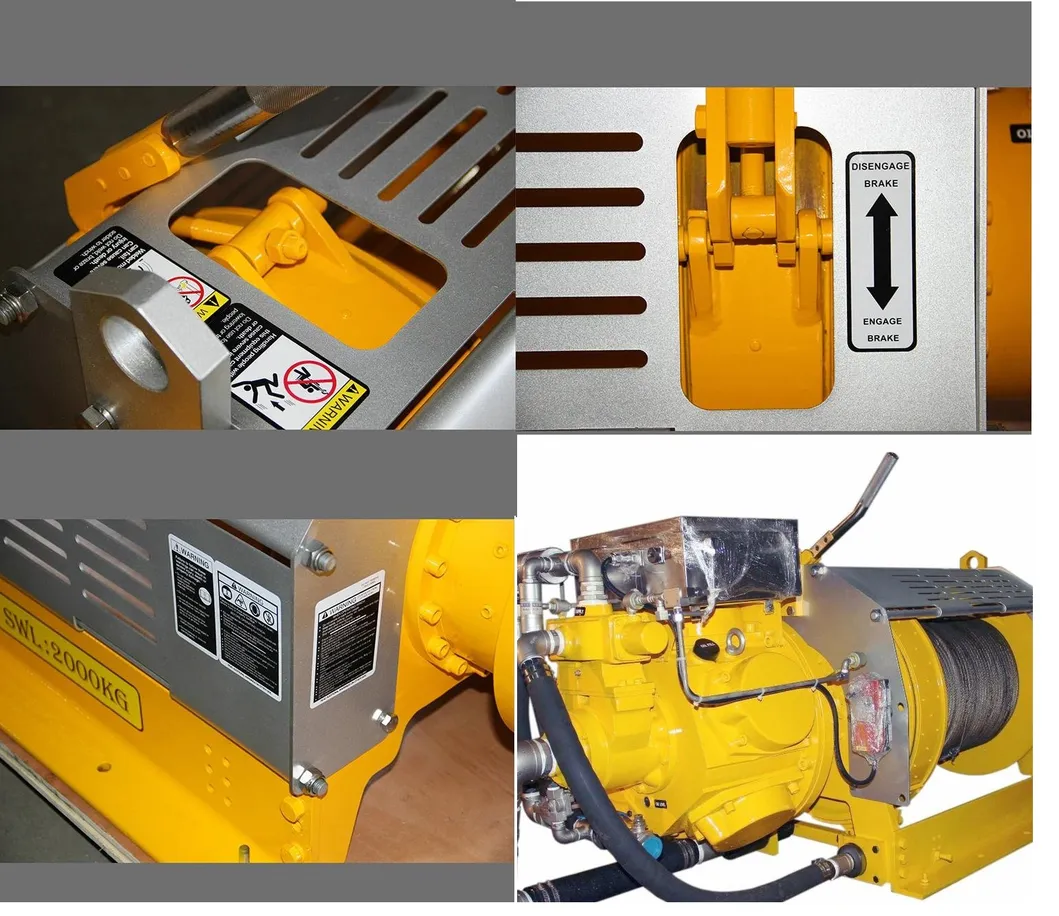

What safety braking systems are included?
The winches feature a dual braking configuration, including both internal and external brakes (manual belt brakes) to ensure secure load holding.
Is the wire rope customizable?
Our standard configurations use galvanized steel wire rope (e.g., 8mm for smaller tons), but the system can accommodate different diameters and drum capacities ranging from 90m to over 400m.
