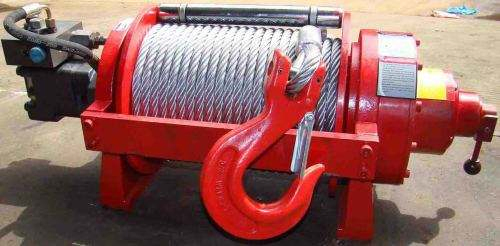

3 ton air winch fishing winch oil filed 5 ton air winch, air hoister

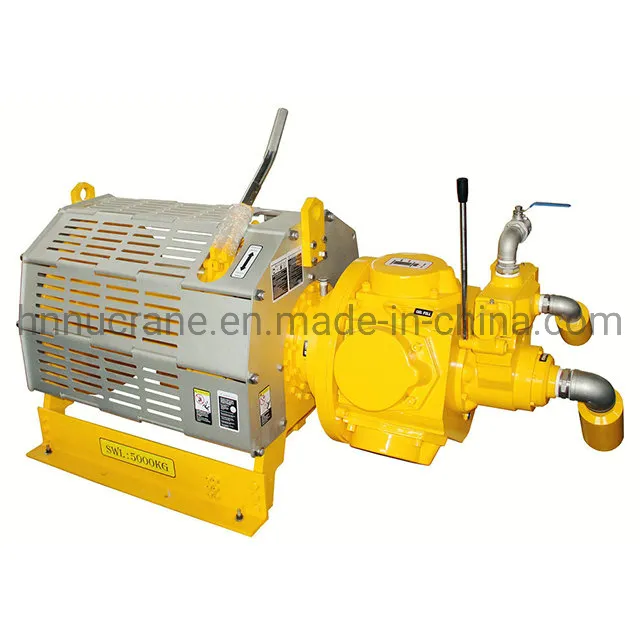

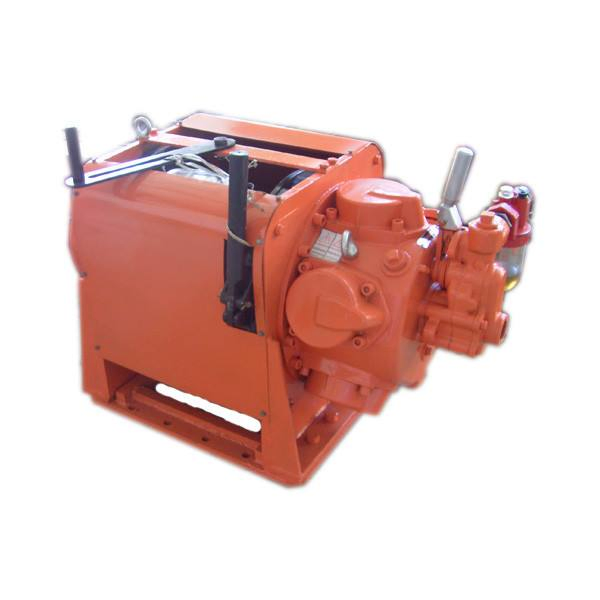

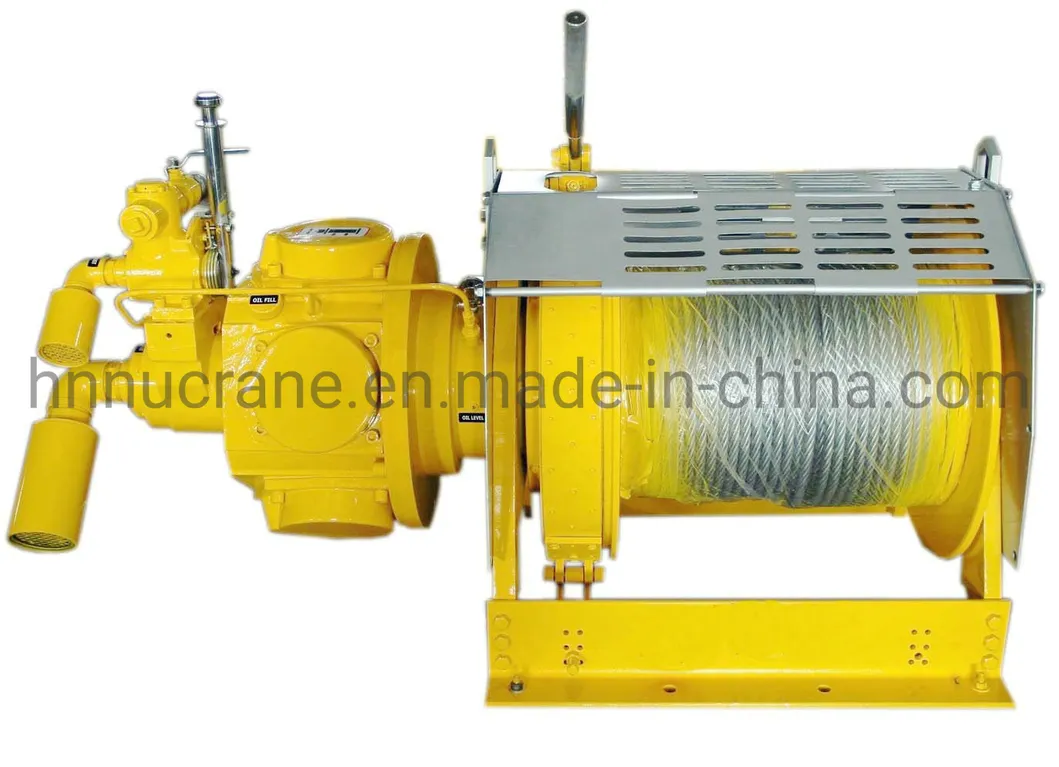

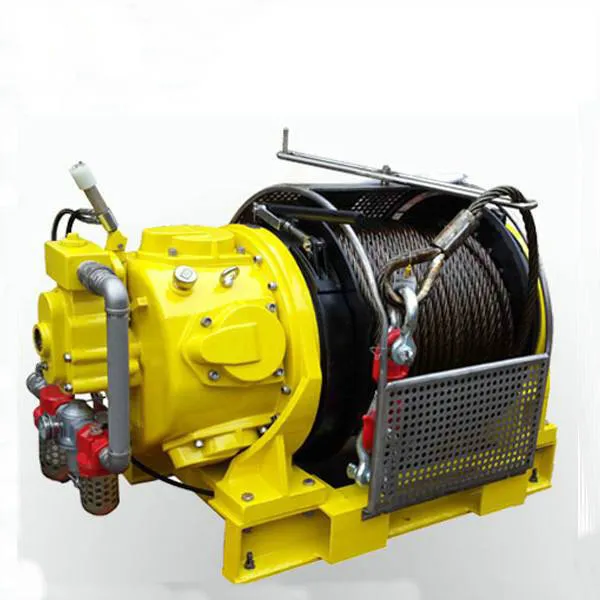

Pneumatic winch is a type of winch powered by a piston pneumatic motor, manually operated or remotely operated. It has the characteristics of high efficiency, simple operation, easy handling and safety. It can be used in land drilling, offshore drilling platform, mine drilling, ships and inflammable gas and other places for lifting or hauling heavy objects.
| 1ton Air Winch Specifications |
2ton Air Winch Specifications |
- Rated tension: 1ton
- Working pressure: 6.9bar
- Max. Lifting speed: 12m/min
- Diameter of inlet pipe: 25.4mm
- Air Consumption: 7m³/min
- Drum capacity: 100m
- Rope diameter: 8mm (Galvanized)
- Includes: Manual belt brake, clutch, control valve, air handling parts
|
- Rated tension: 2ton
- Working pressure: 6.2bar
- Max. Lifting speed: 12m/min
- Diameter of inlet pipe: 32mm
- Air Consumption: 11m³/min
- Drum capacity: 100m
- Rope diameter: 8mm (Galvanized)
- Includes: Manual belt brake, clutch, control valve, air handling parts
|
Standard Configuration
- Internal brake
- External brake
Optional Configuration
- Wireline remote control
- Auto cable drawing system
- Special silencer
- Rope pressing system
❓ Frequently Asked Questions
What powers these pneumatic tugger winches?
These winches are powered by a piston pneumatic motor driven by an air compressor, making them ideal for environments where electricity is unavailable or hazardous.
Are these winches safe for explosive environments?
Yes, the winches are designed with explosion-proof features, making them suitable for land and offshore drilling platforms, mines, and areas with inflammable gases.
What is the range of carrying capacity available?
The pulling capacity ranges from 2 tons to 20 tons, with various models designed to handle different tonnage requirements.
Can the winch be operated remotely?
Yes, while manual operation is standard, wireline remote control is an optional configuration available for these pneumatic winches.
What safety braking systems are included?
The standard configuration includes both internal and external brakes. It is also equipped with a manual belt brake and clutch device for secure operation.
What are the typical applications for this equipment?
Typical applications include land and offshore drilling, mining operations, marine use on ships, and lifting or hauling heavy objects in industrial settings.
