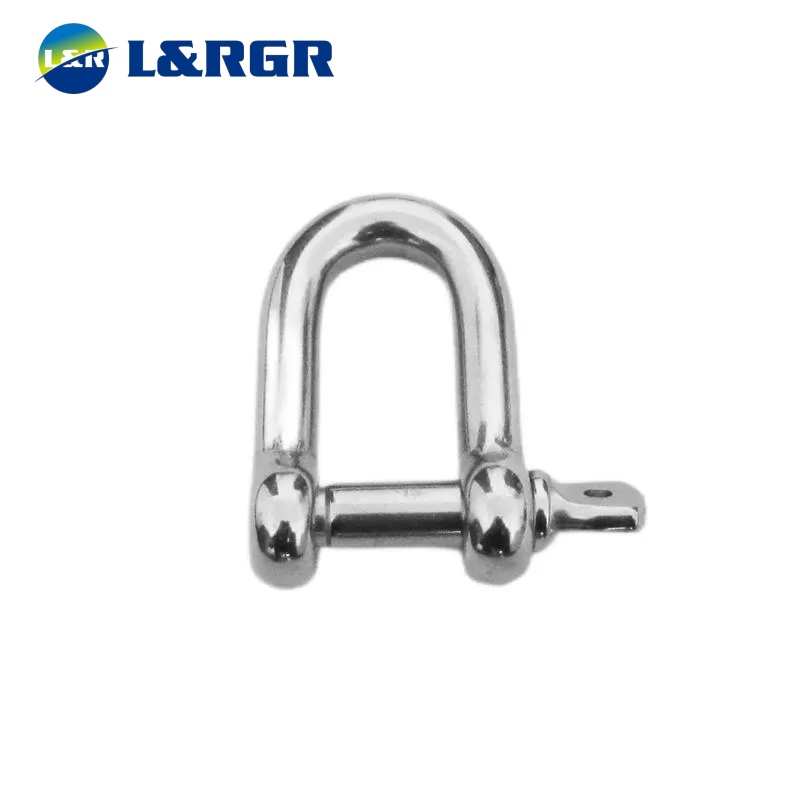

Hardware Stainless Steel Chain Shackle

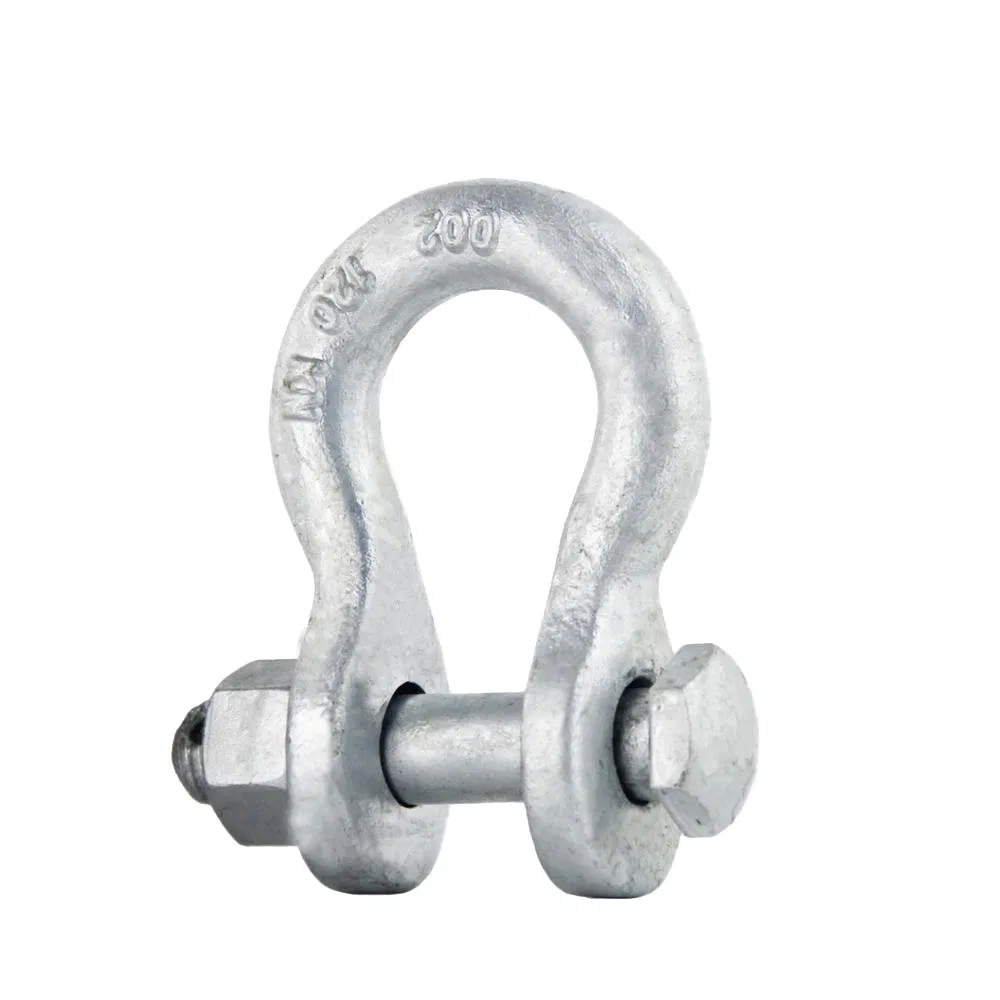

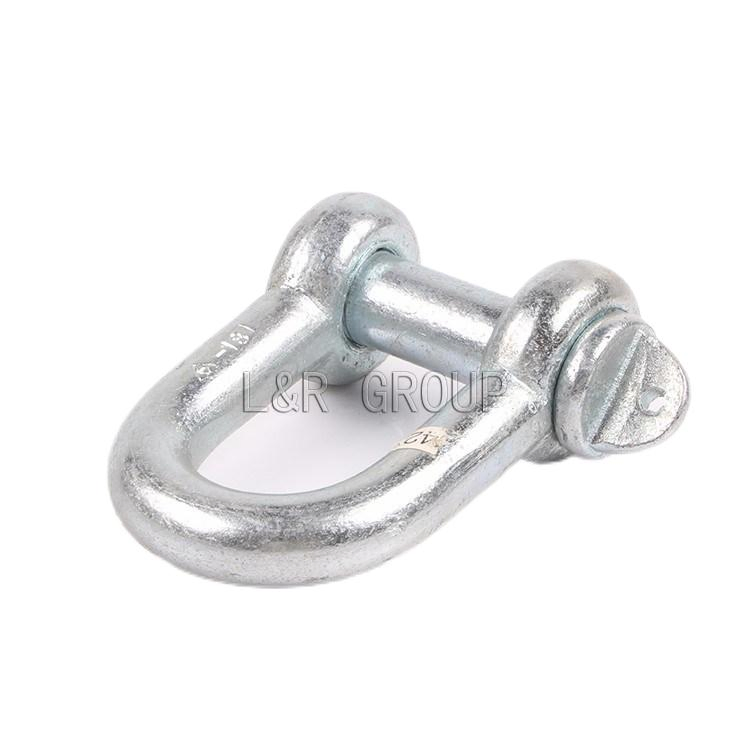

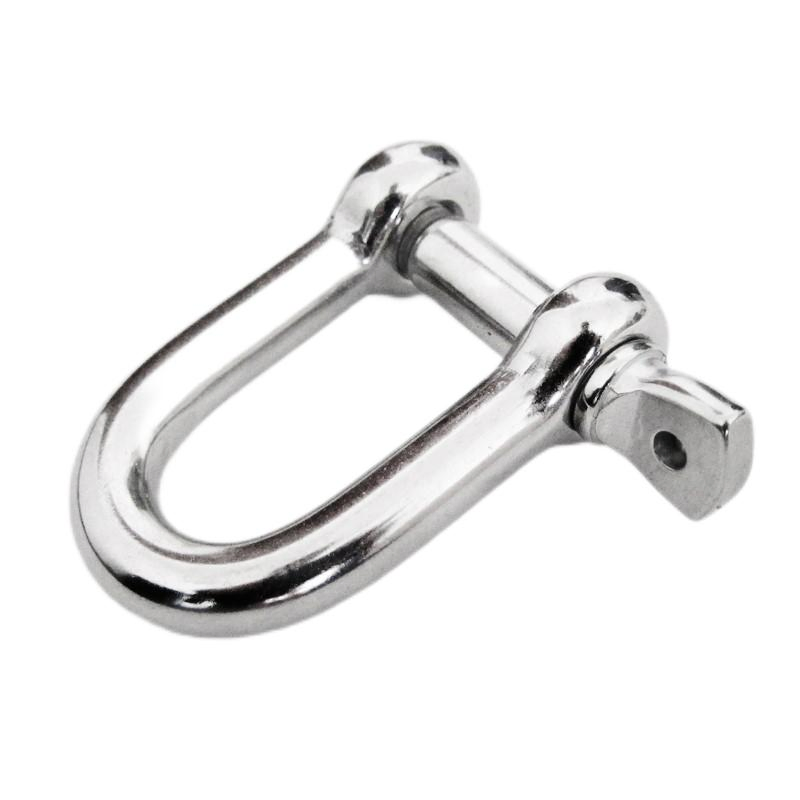

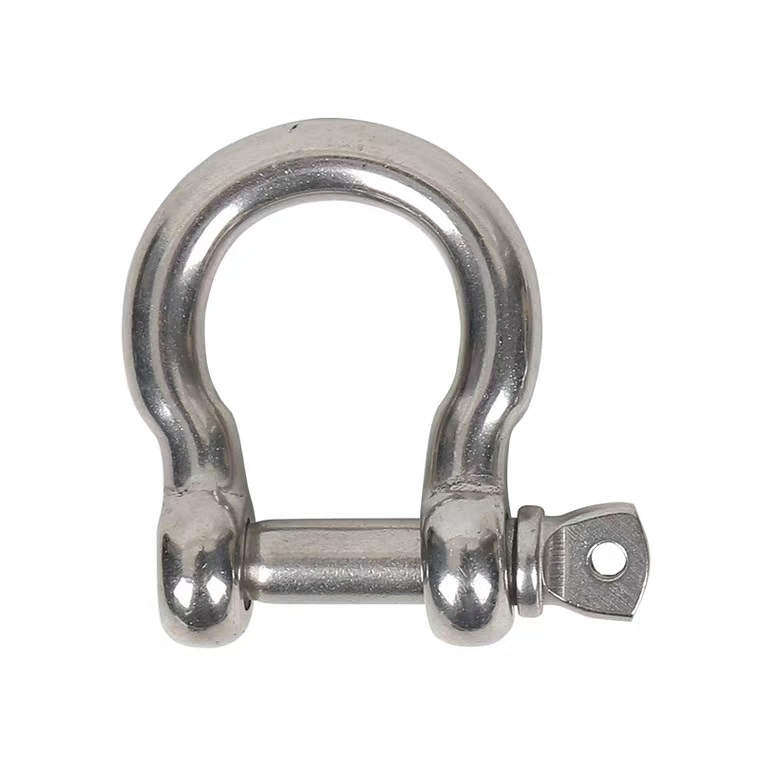

The Round Pin Anchor Shackle is made from grade 316-NM stainless steel and features an oversize round pin. The Round Pin Anchor Shackle is ideal for salt water applications. The Round Pin Anchor Shackle is primarily used to connect the anchor to the chain or anchor swivel.
| Type No. | Dimension | Failure load kN | ||||
|---|---|---|---|---|---|---|
| C | M | d | H | R | ||
| U-7 | 20 | 16 | 16 | 80 | 10 | 70 |
| U-10 | 22 | 18 | 18 | 85 | 11 | 100 |
| U-12 | 24 | 22 | 20 | 90 | 12 | 120 |
| U-16 | 26 | 24 | 22 | 95 | 13 | 160 |
| U-21 | 30 | 27 | 24 | 100 | 15 | 200 |
| UL-7 | 20 | 16 | 16 | 120 | 15 | 70 |
| UL-10 | 22 | 18 | 18 | 140 | 17 | 100 |
| UL-12 | 24 | 22 | 20 | 140 | 18 | 120 |
| UL-16 | 26 | 24 | 22 | 140 | 19 | 160 |
| UL-21 | 30 | 27 | 24 | 160 | 18 | 200 |
| UL-25 | 34 | 30 | 26 | 170 | 25 | 250 |
| UL-30 | 38 | 36 | 30 | 170 | 20 | 300 |
Material: Ductile iron, grade 604512
Finished: Hot dip galvanized.
