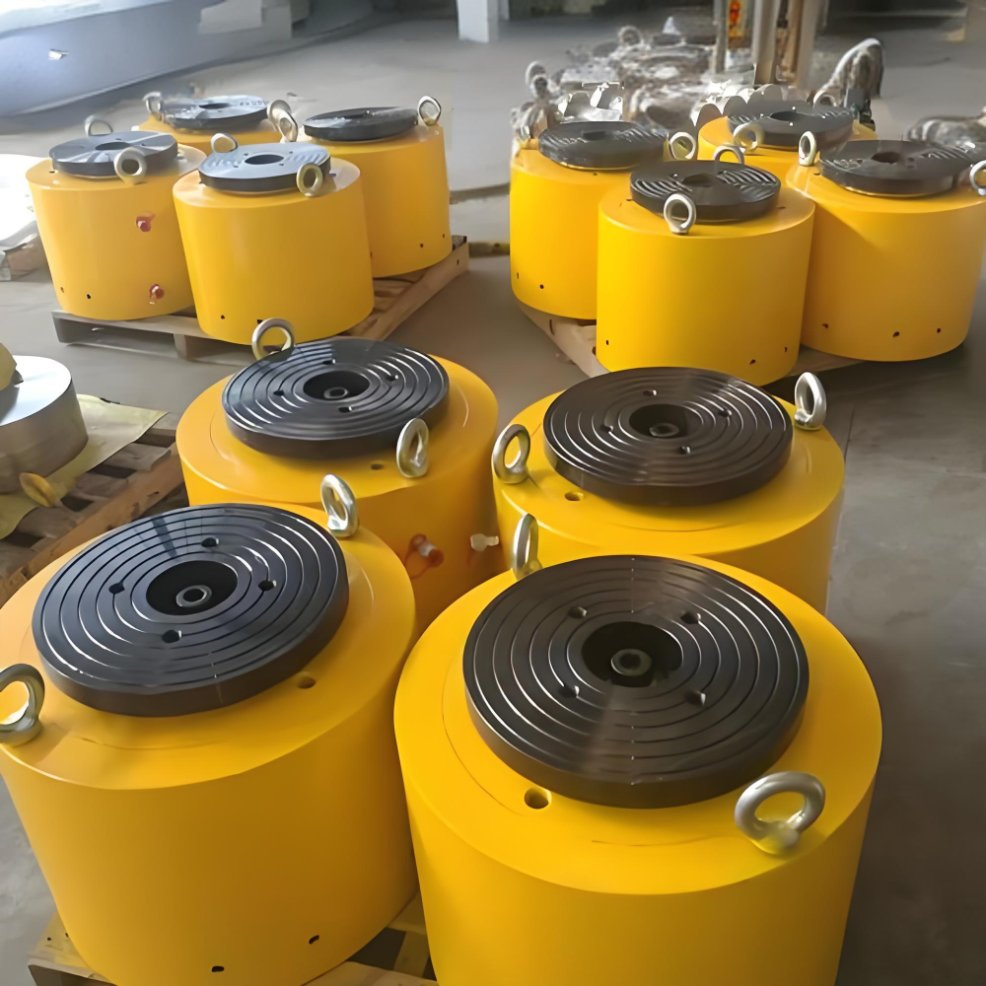

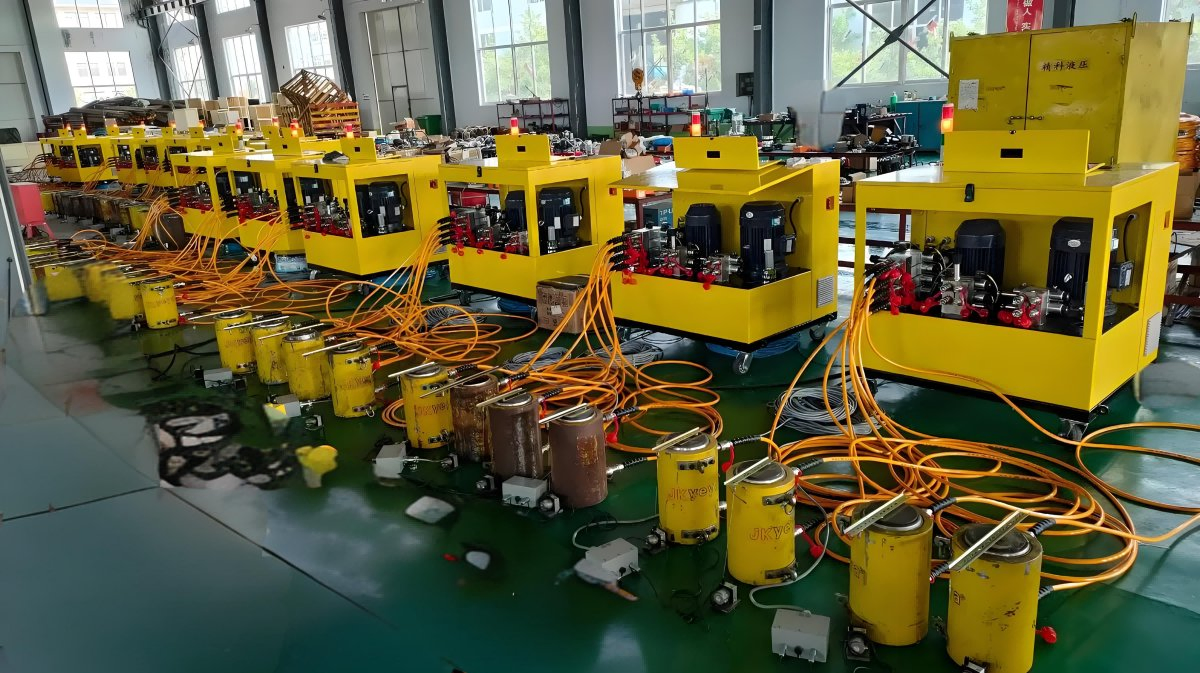

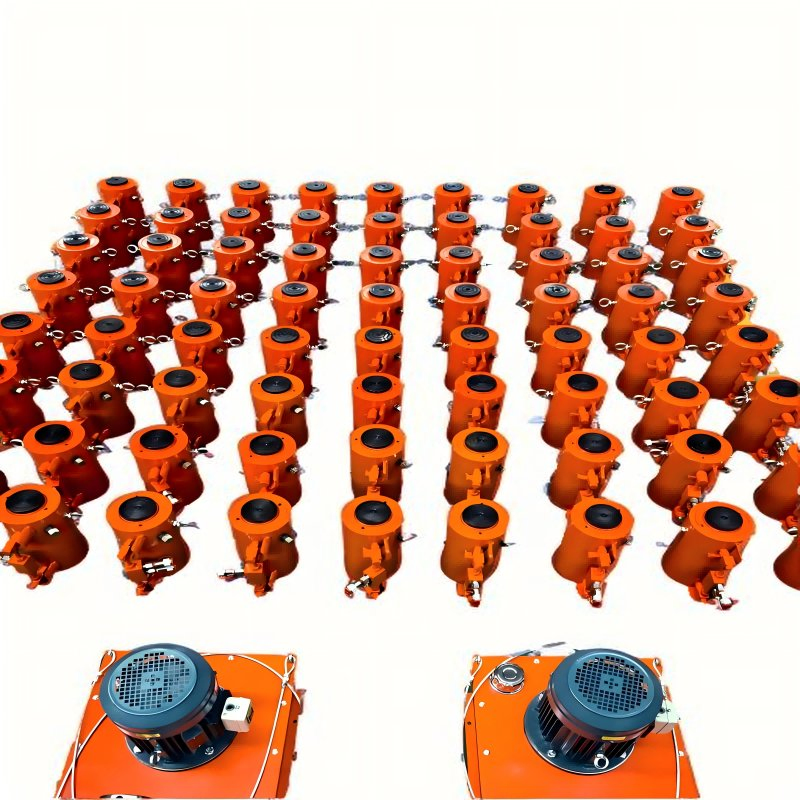

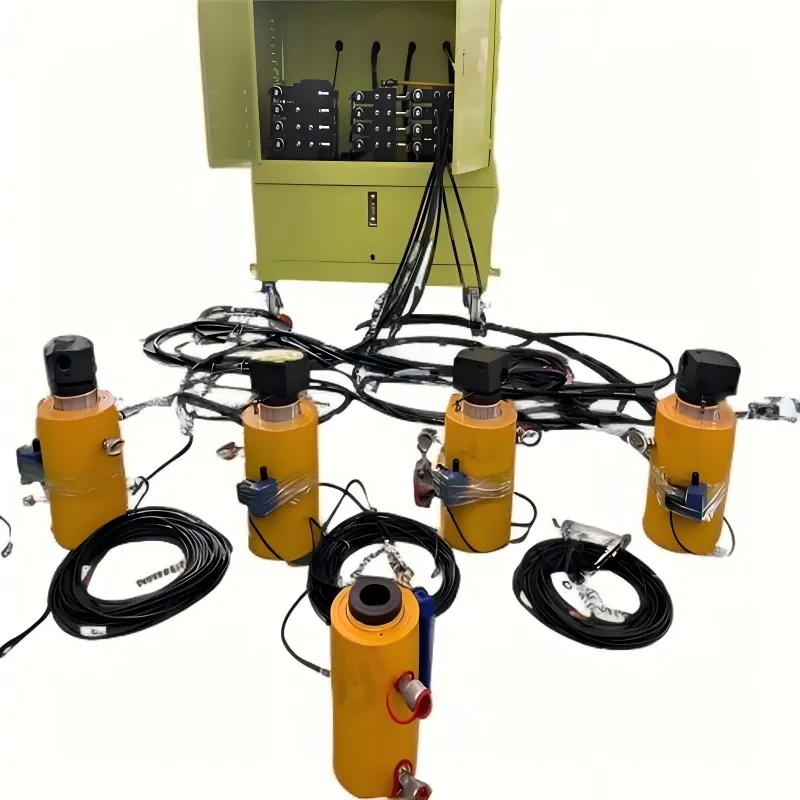

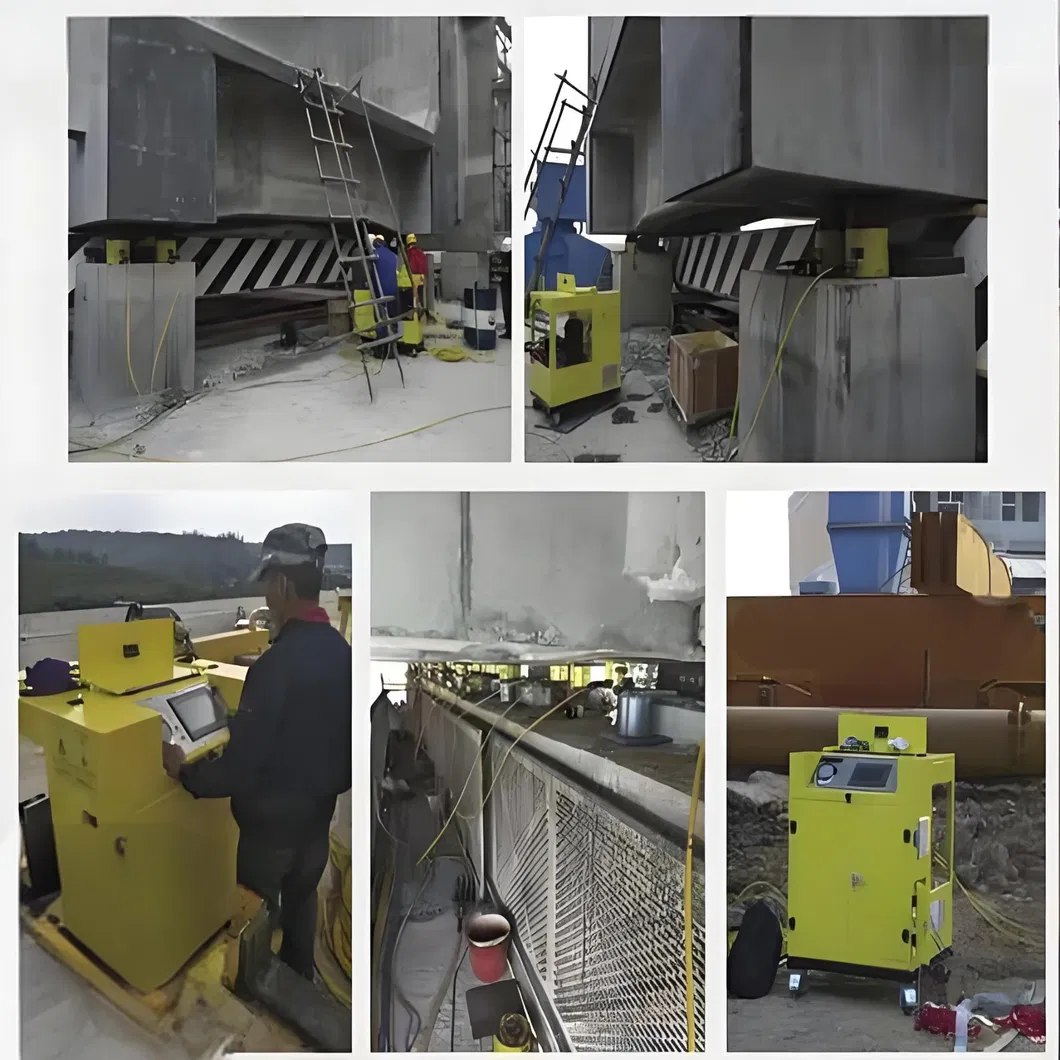

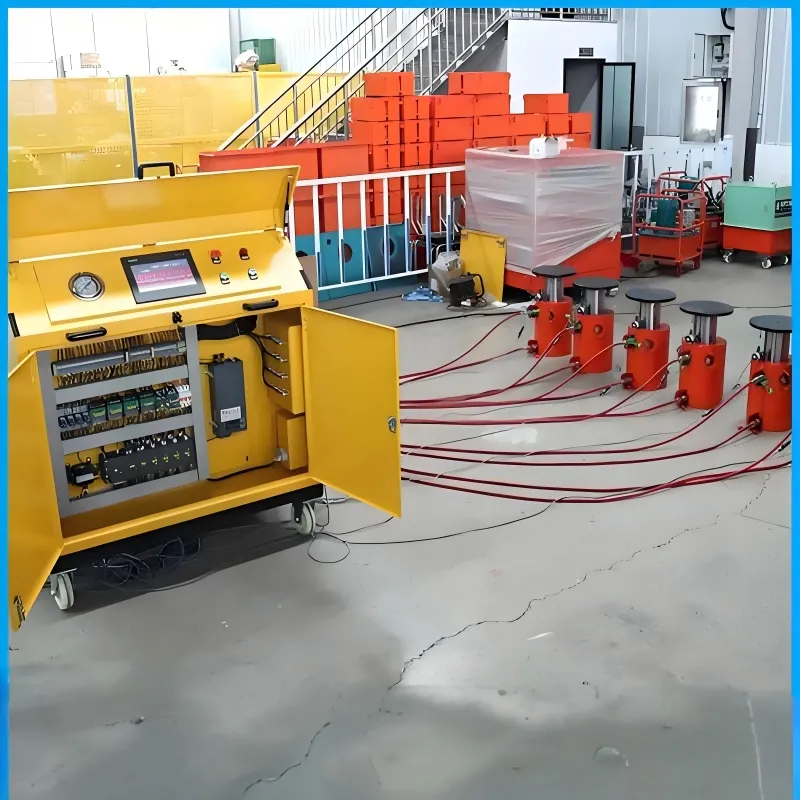

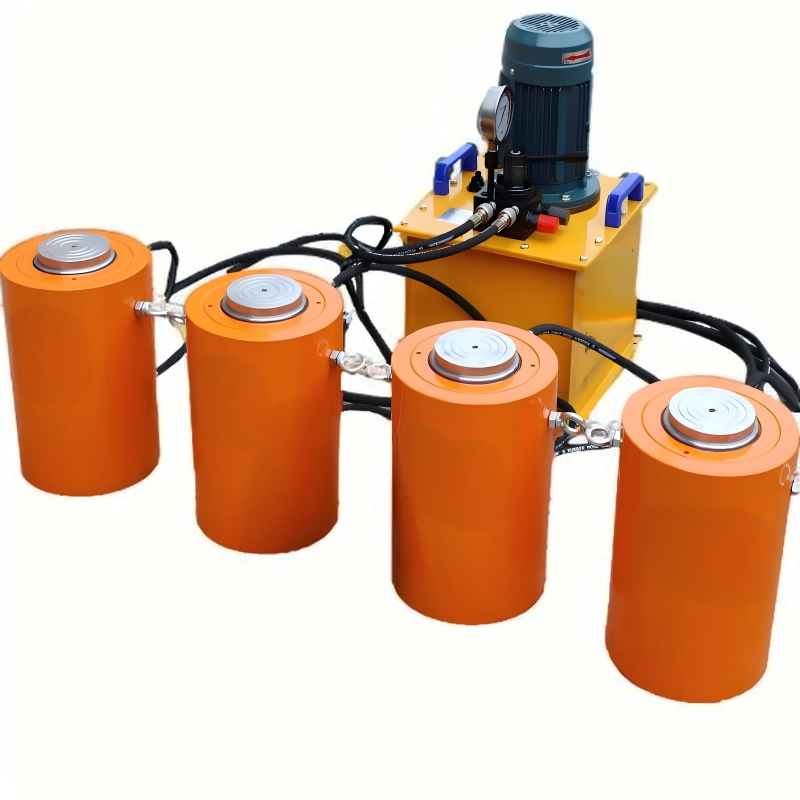

Synchronous lifting jacks are widely used, especially in automobile maintenance, machinery manufacturing, jacking construction and other fields. It achieves smooth and uniform lifting through the hydraulic principle to ensure the safety of operation. When using, ensure that the jack is placed on a solid and flat ground, avoid overloading, and check and maintain regularly to ensure performance. During the operation, safety operation procedures should be followed to ensure the safety of personnel.
| Model | Tonnage (Ton) | Stroke (mm) | Body Height (mm) | Stretch Height (mm) | Outside Diameter (mm) | Weight (Kg) | Max Pressure Mpa(bar) |
|---|---|---|---|---|---|---|---|
| SFST-50 | 5 | 6.35 | 40 | 46.35 | 64×52 | 1.0 | 40(400) |
| SFST-100 | 10 | 11.2 | 48 | 59.2 | 83×66 | 1.4 | 63(630) |
| SFST-200 | 20 | 11.2 | 56 | 67.2 | 100×84 | 3.1 | 63(630) |
| SFST-300 | 30 | 12.7 | 66 | 78.7 | 128×105 | 4.5 | 63(630) |
| SFST-500 | 50 | 16 | 75 | 91 | 145×128 | 6.8 | 63(630) |
| SFST-750 | 75 | 16 | 86 | 102 | 188×158 | 11.4 | 63(630) |
| SFST-1000 | 100 | 16 | 96 | 112 | 208×182 | 14.5 | 63(630) |
| SFST-1500 | 150 | 16 | 106 | 122 | 250×220 | 26.3 | 63(630) |
