Product Description

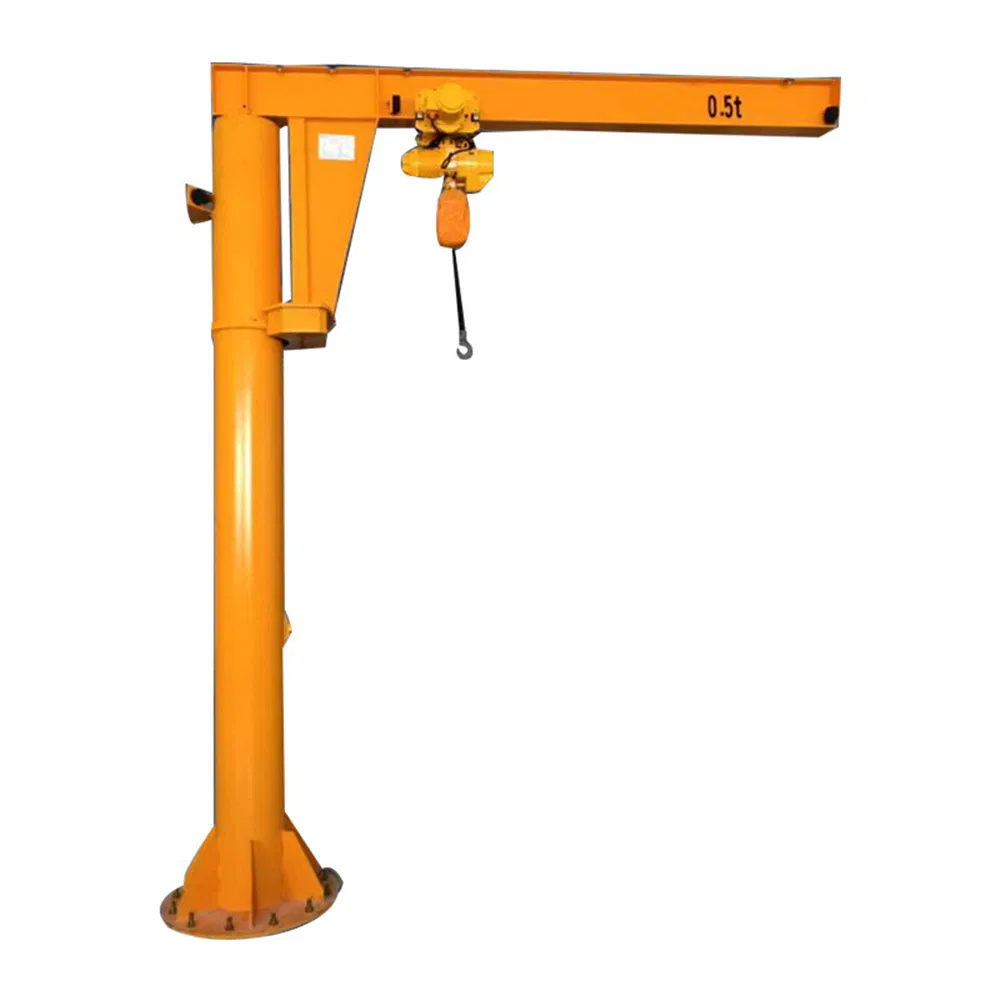

Jib Crane is widely used to control or position a load in areas that are generally inaccessible to other material handling equipment. They are designed to provide reliable long-life performance with minimum maintenance. This jib crane provides 360-degree rotation our jib include taglines, festoon systems, collector ring assemblies and motorized rotation.

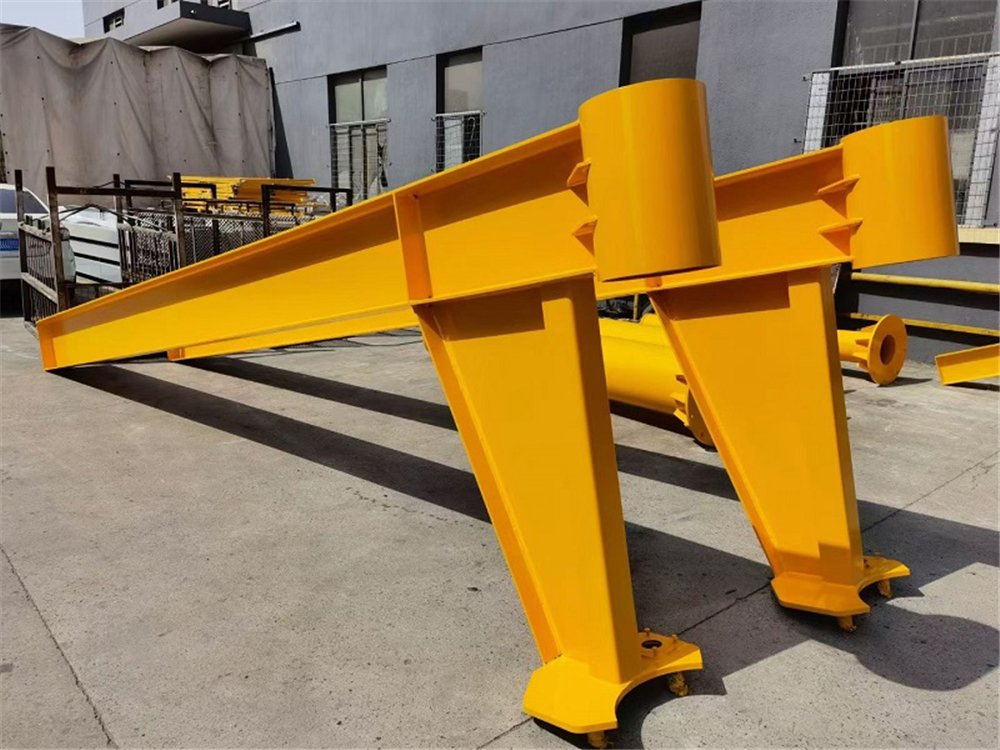

Free standing Jib Cranes are directly fixed on the floor without any support to keep it upright. To maintain it's stability and not topple over it you fix it to a foundation of 3 to 5 feet deep and up to 4 to 10 feet square foundation base. The foundation depends on the load and reach. Advantage of this type of crane is it doesn't need a support wall or structure and provides optimal range of span and control compare to wall mounted cranes and other types of Jib cranes.
Key Applications
✓ Fitting & fabrication workstations
✓ Building Maintenance
✓ Plant room maintenance
✓ Marine loading and maintenance
✓ Machine centre loading and maintenance
The versatility of our Jib Crane is unmatched. Our Jib Cranes offer an extensive range of installation options and capacities, with the power to create the best material handling solution with maximum space utilization. A Jib Crane can be mounted to your facility floor, foundation, column, pillar or wall to accommodate any space constraints or work plans.
Design Features
01 Precision upper pivot roller bearing
02 Easy set, self adjusting slew brake
03 Range of models: manual to fully powered
04 Wall, column or freestanding mounts
05 Engineered by qualified professionals
06 Medium / heavy weight design
07 Sturdy steel structure with low solid-web jib
08 Safety anchoring with sturdy, ribbed base
09 Rated slewing range infinite X 360 degree
10 Scope includes anchor bolts and foundation plans
11 Suitable for enclosed building operations
12 LIMIT SWITCHES for over hoisting protection
Technical Parameters
| Technical Parameter of Z Series Wall Mounted Jib Crane |
| Lifting Capacity(kg) |
Model |
Steel Type |
Working Method |
Slewing Method |
Valid Radius(m) |
Lifting Height(m) |
Total Height(m) |
Slewing Angle |
Lifting speed |
| 125 |
BX01-Z |
I beam |
Electric, Manual |
Electric, Manual |
2, 3, 4, 5, 6, 7 |
2, 3, 4, 5 |
4, 5, 6, 7 |
180 |
8.8/2 |
| 250 |
BX02-Z |
10, 10/2.5, 4, 4/1 |
| 500 |
BX05-Z |
10, 10/2.5, 5, 5/12.5 |
| 1000 |
BX10-Z |
5, 5/1.25, 8, 8/2 |
| 2000 |
BX20-Z |
Electric, Manual Chain |
4, 4/1 |
Product Gallery
Frequently Asked Questions
What is the maximum rotation of the Jib Crane?
The Jib Crane is designed to provide a full 360-degree infinite rotation for maximum coverage and flexibility in material handling.
What are the installation options for these cranes?
Our Jib Cranes are highly versatile and can be mounted on facility floors, foundations, columns, pillars, or walls depending on your space constraints.
What safety features are included in the design?
The cranes include limit switches to prevent over-hoisting and over-lowering, sturdy ribbed bases for safety anchoring, and are engineered by qualified professionals.
What is the maximum loading capacity available?
This model supports a rated loading capacity of up to 10 tons, making it suitable for a wide range of general industrial applications.
Is the crane suitable for outdoor use?
While designed for operation in completely enclosed buildings, the crane features IP55/IP65 protection ratings and sturdy steel structures.
What is included in the scope of supply?
The standard supply includes the crane unit, anchor bolts, a template, and a detailed plan for foundation design.
