Chain Type Tank Hydraulic Jack/Simple Hydraulic Lifting Jacking System for Tank Fabrication/Automatic Top-to-Bottom Tank Construction Hydraulic Jack in Stock

1 / 5

Chain Type Tank Hydraulic Jack/Simple Hydraulic Lifting Jacking System for Tank Fabrication/Automatic Top-to-Bottom Tank Construction Hydraulic Jack in Stock

Customization:	Available
After-sales Service:	Remote Instruction
Warranty:	90 Days

Send Inquiry

Product Description

Basic Specifications

Model NO.LYT

TypeHydraulic Jack

StructureHydraulic Jack

Capacity (Load)12-120t

Power SourceHydraulic

Max Height0-4600mm

CertificationCE, ISO 9001:2000

ConditionNew

KeywordsTank Jacking System

Rated Lifting Capacity300 Kn

Chain Stroke2700 mm

Rated Pressure25 MPa

HS Code8425421000

SpecificationSteel

Product Overview

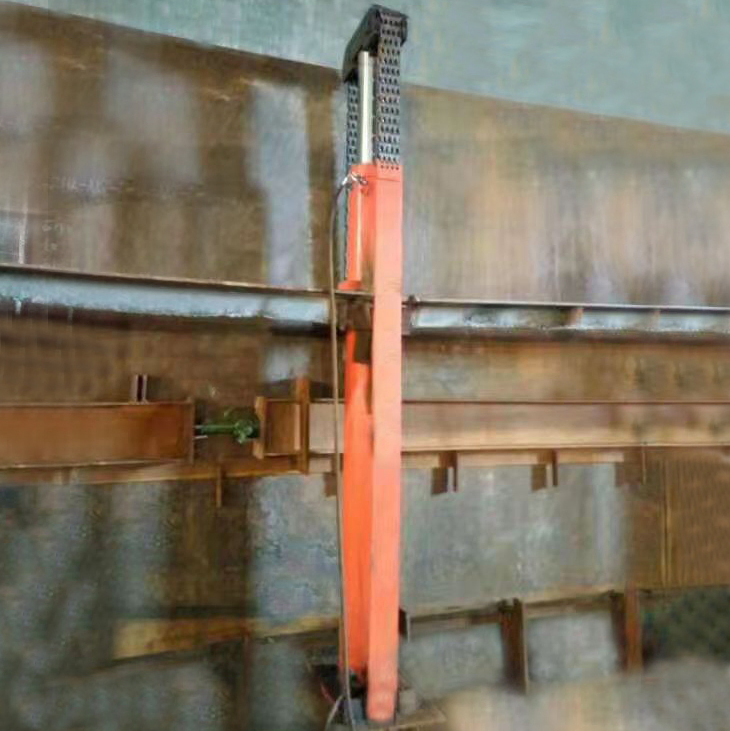

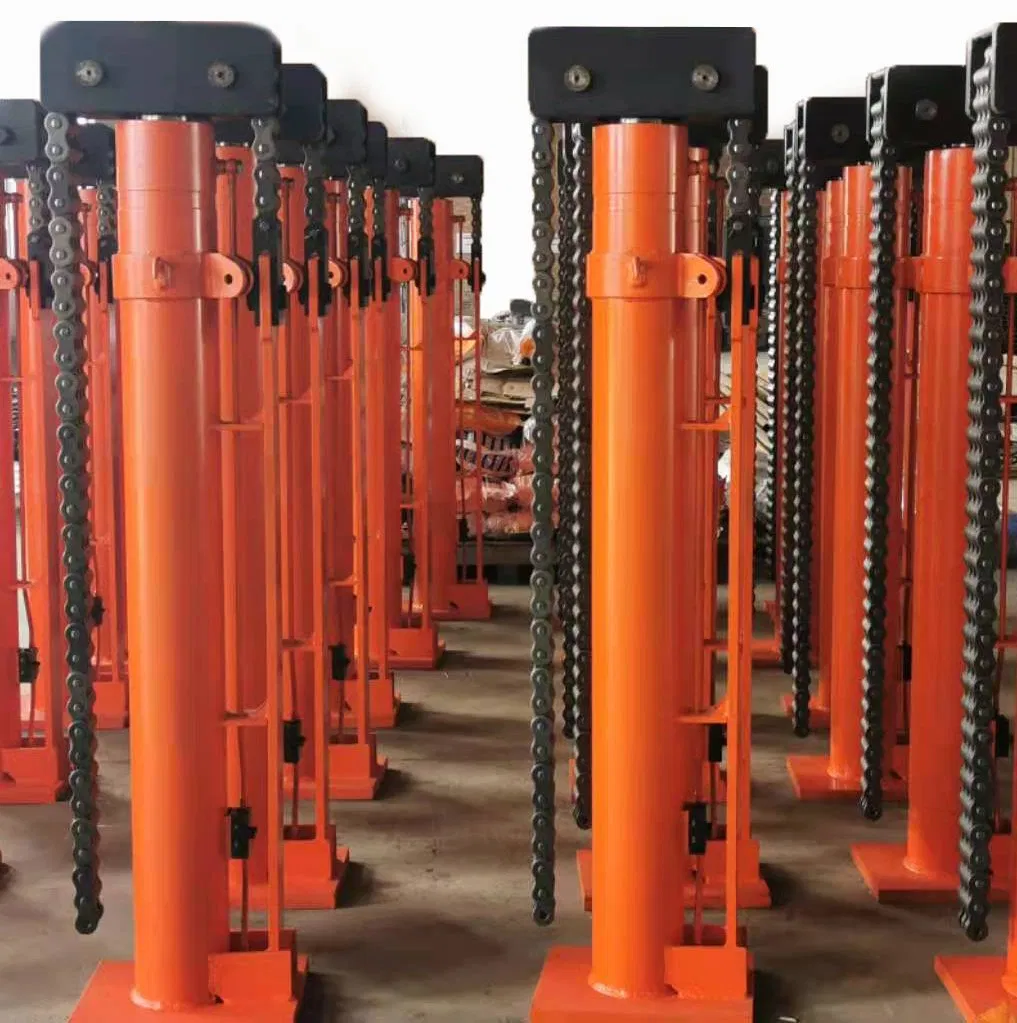

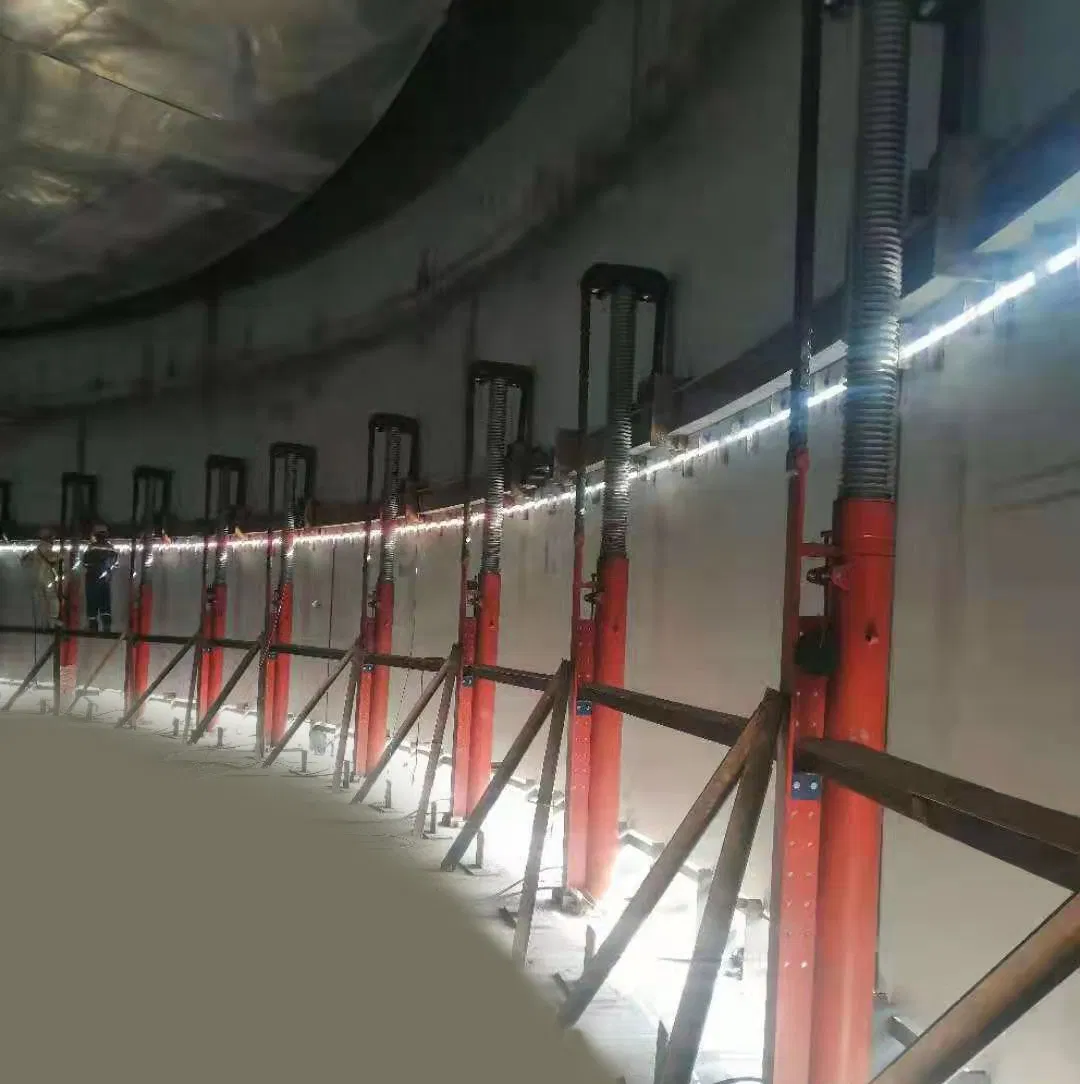

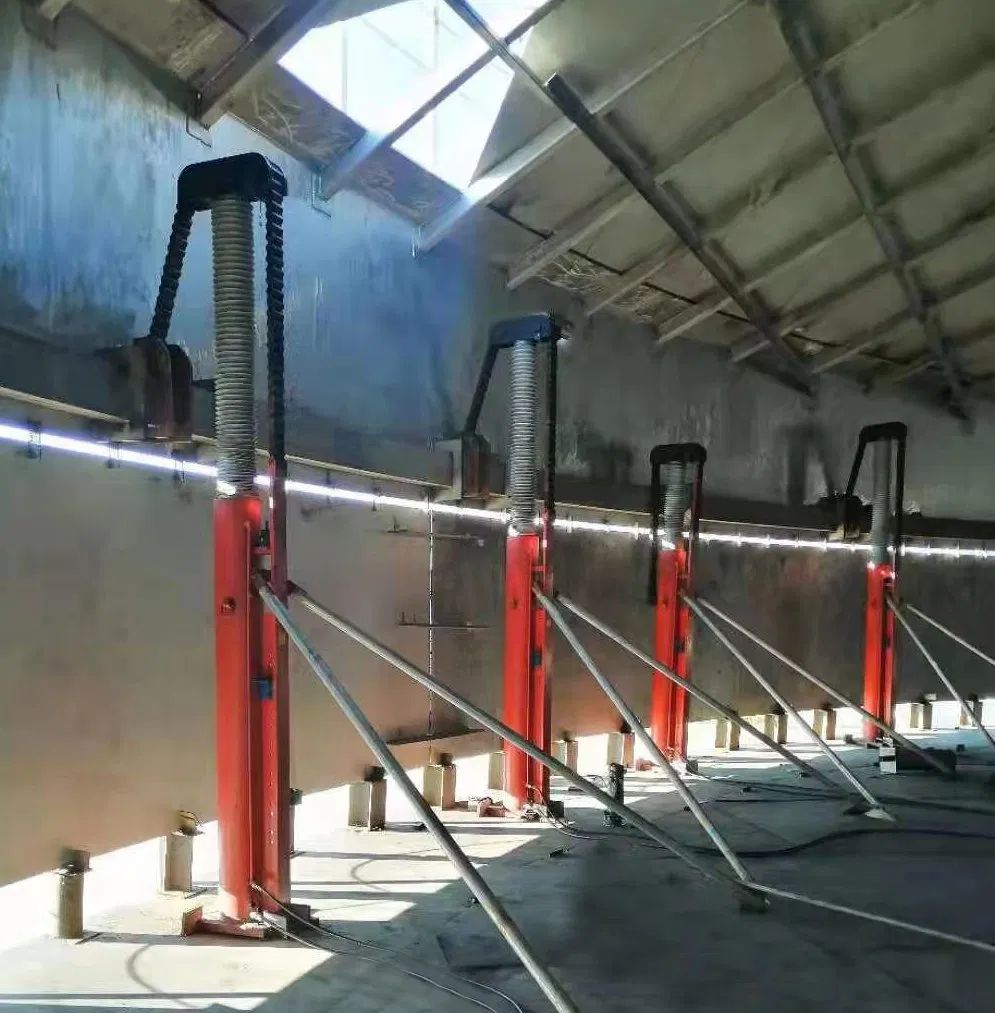

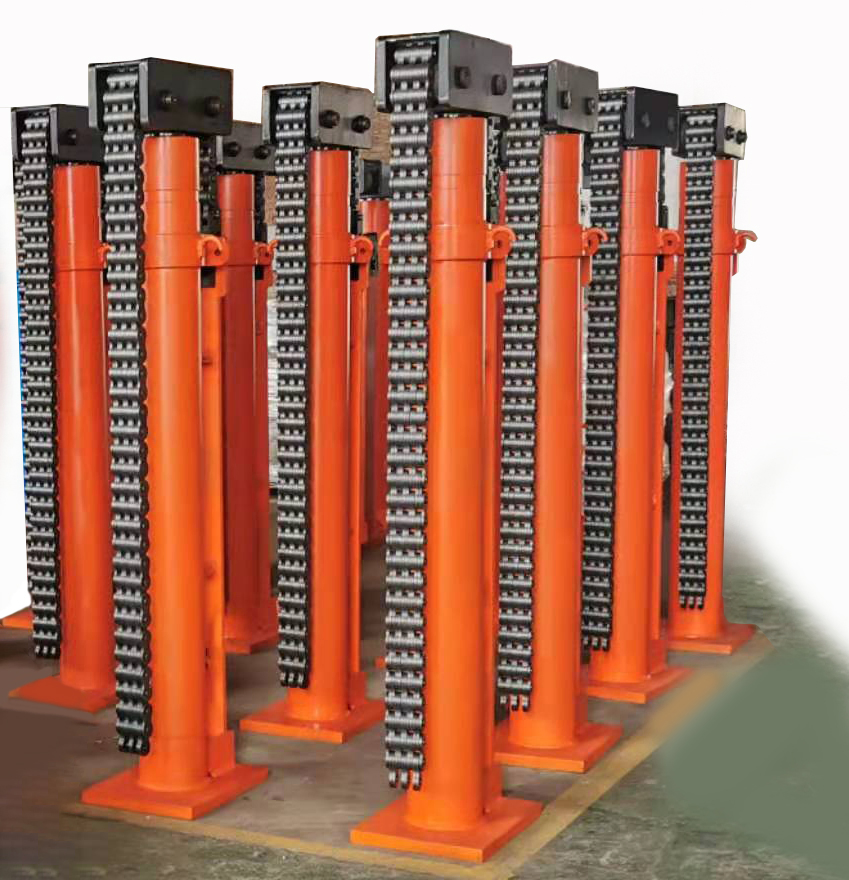

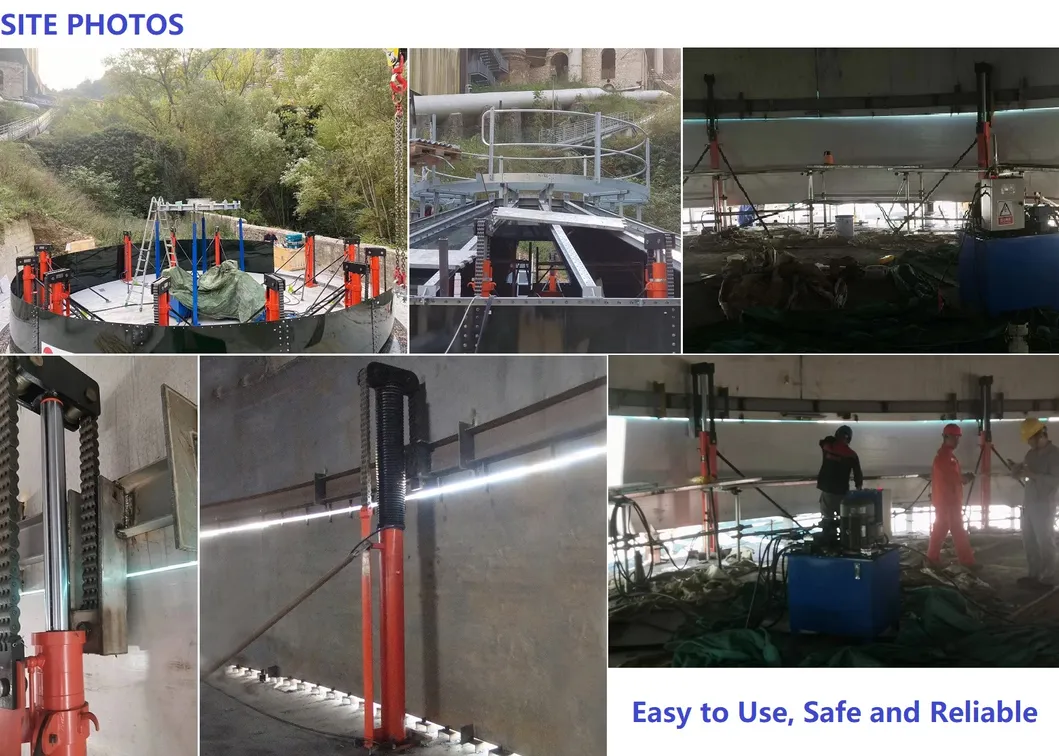

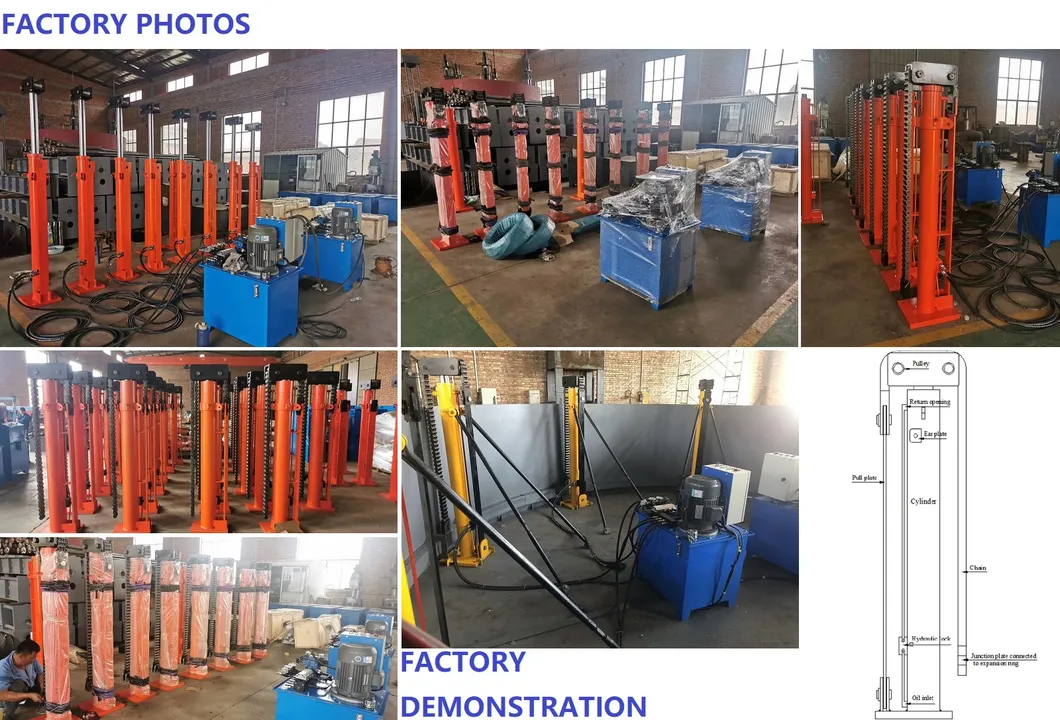

LYT-type hydraulic jacks are composed of a one-stage double-acting hydraulic cylinder, pulley block, load-bearing chain, and oil way. The moveable pulley is utilized to enlarge the chain stroke; specifically, the traveling distance of the cylinder is 1/2 of the lifting distance of the chain. This system is ideally suited for inverted installation and the construction of various large storage tanks (steel).

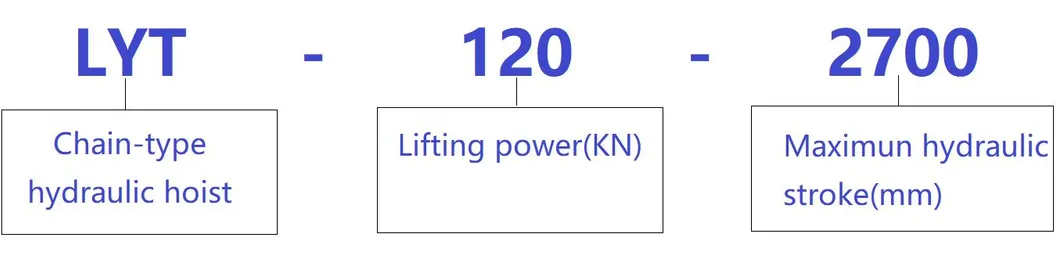

The LYT series includes models such as LYT-120-2700, LYT-200-2700, and LYT-300-2700. Custom strokes are available upon request to meet specific engineering requirements.

Hydraulic Pump Station Parameters

Model	Tank Volume	Rated Pressure	Rated Flow	Power	Control Voltage	Motor Drive Rate
YB-7.2	220L (700550580)	25Mpa	7.2L/min	Three-phase Four-wire (380V)	220V	5.5kw
YB-14.5	340L (750650650)	25Mpa	14.5L/min	Three-phase Four-wire (380V)	220V	7.5kw

Hoist Technical Performance

Model	Rated Lifting Capacity (KN)	Hydraulic Area (mm)	Rated Oil Pressure (MPa)	Piston Stroke (mm)	Chain Stroke (mm)	Safety Equipment	Reinforcement
LYT-120-2700	120	11304	25	1500	2700	Double-direction oil-way hydraulic lock	2 adjustable pull rods
LYT-200-2700	200	18859.6	25	1500	2700
LYT-300-2700	300	25434	25	1500	2700

Professional Services & Support

Support for winning projects during the bidding phase with optimized configurations to shorten construction time.

Comprehensive technical documentation and advice for construction procedure clarification.

Precise calculation of the required number of hydraulic jacks based on the specific weight of the tank.

Provision of high-quality hydraulic jack accessories at competitive prices.

On-site personnel training, operation services, and manpower support as a subcontractor.

Frequently Asked Questions (FAQ)

1. What is the main application of the LYT-type hydraulic jack system? It is primarily used for the inverted installation and construction of large steel storage tanks and various industrial containers.

2. How does the chain stroke relate to the piston movement? Due to the pulley block design, the lifting distance of the chain is twice the traveling distance of the hydraulic cylinder.

3. Are there safety features to prevent accidental load drops? Yes, the system is equipped with a double-direction oil-way hydraulic lock as a core safety measure.

4. Can the lifting stroke be customized for unique projects? While the standard chain stroke is 2700mm, special strokes can be customized to meet specific project needs.

5. What power source is required for the pump station? The standard pump stations (YB series) operate on a Three-phase Four-wire 380V power supply.

6. Does the equipment carry international certifications? Yes, the system is certified under CE and ISO 9001:2000 standards.
