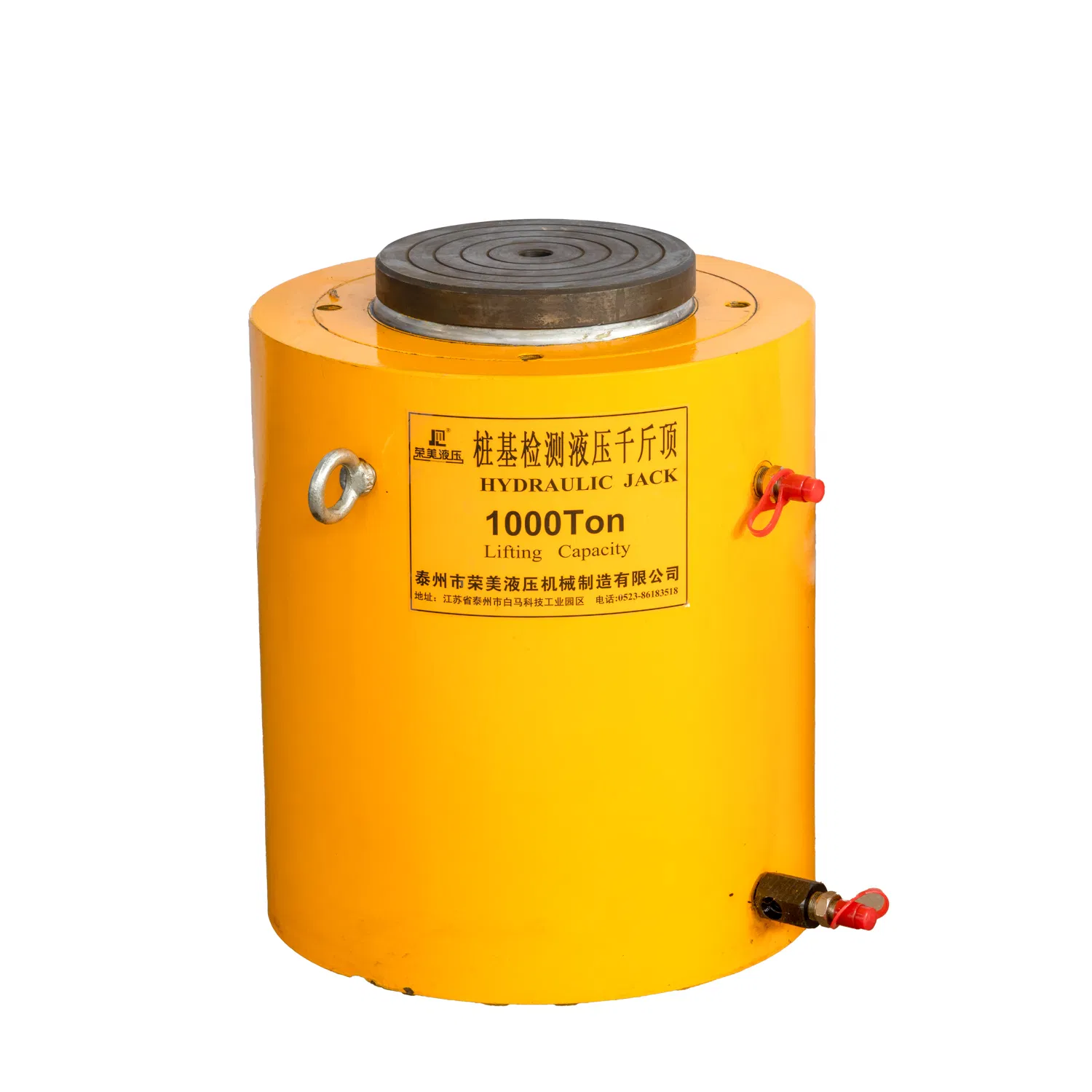

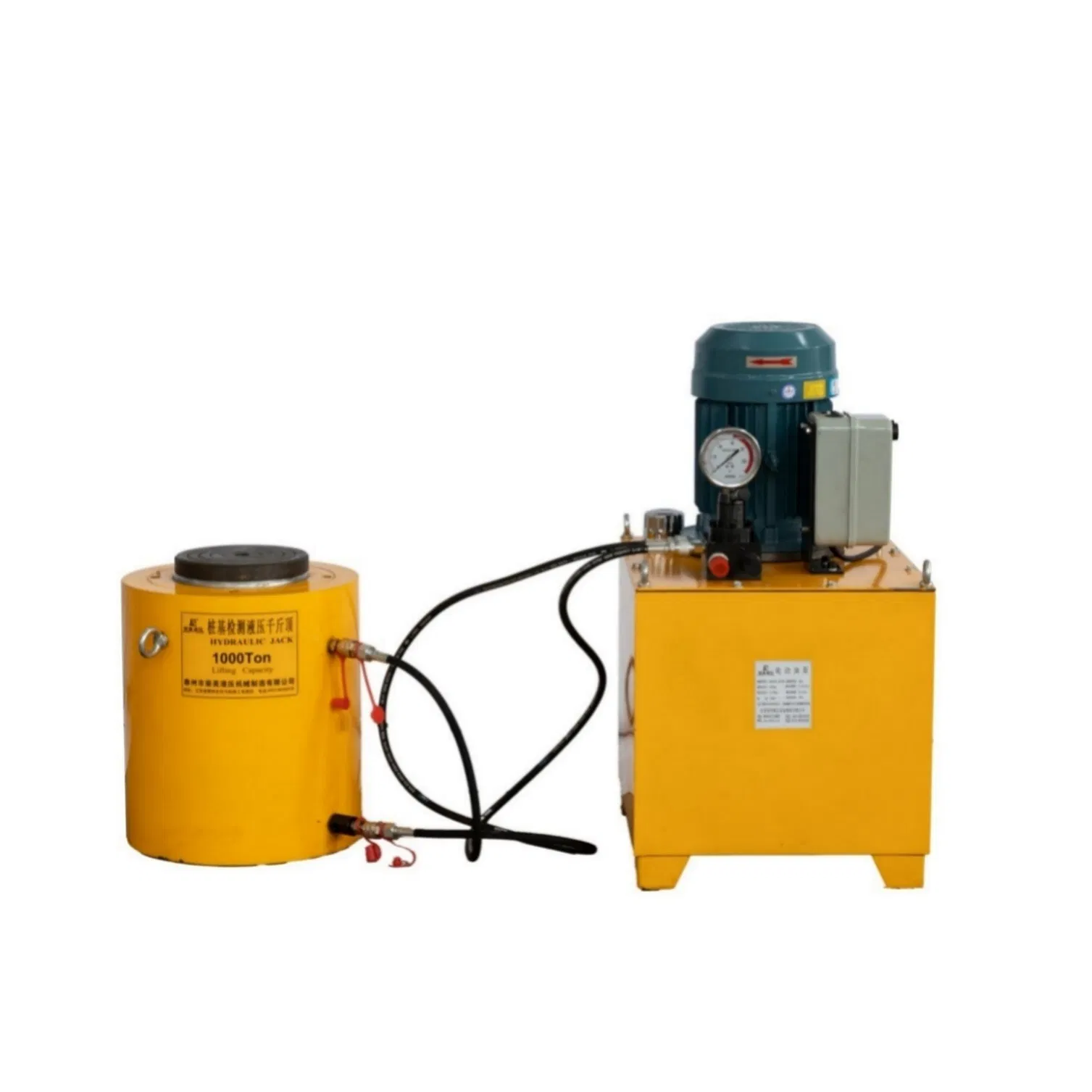

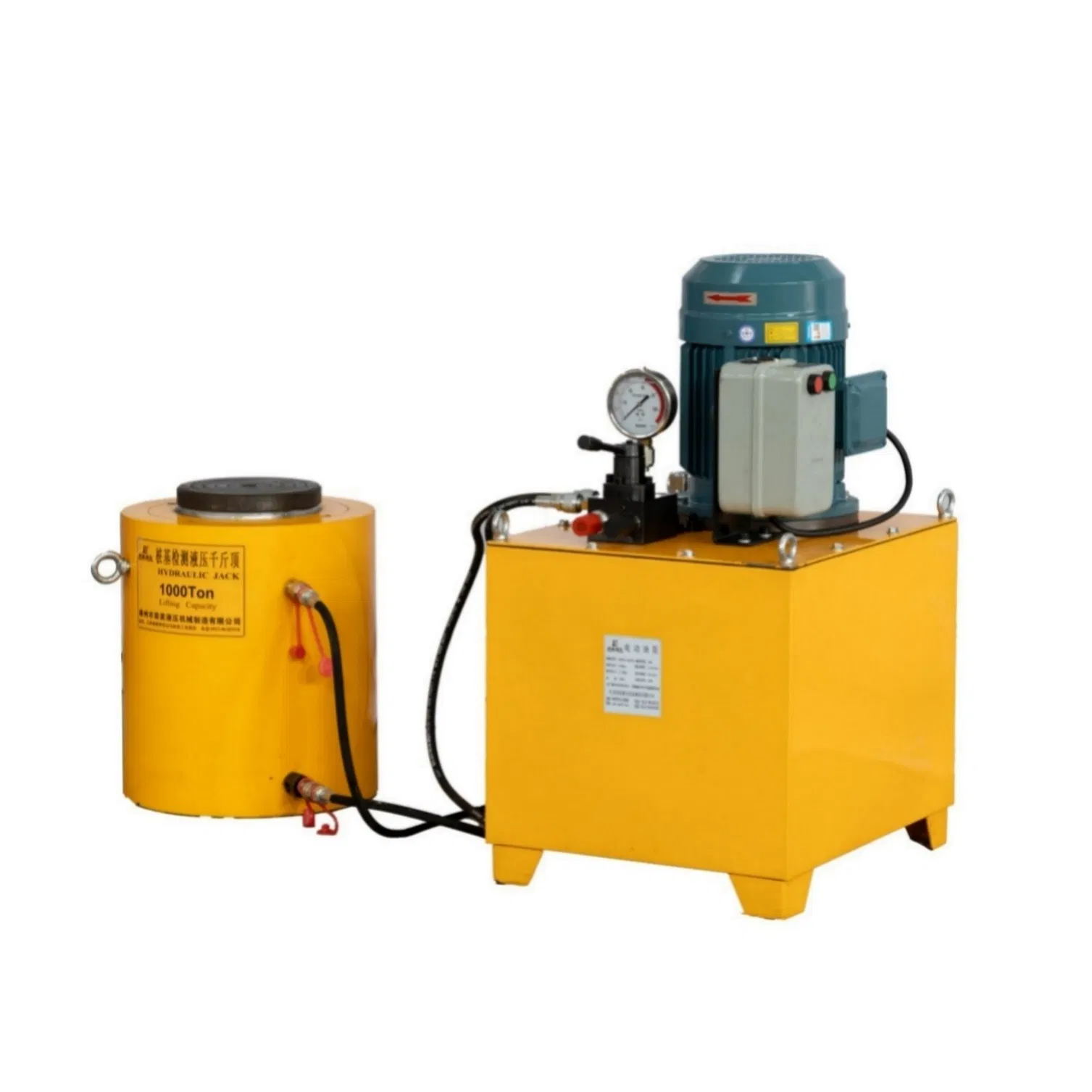

Dqf-1000t Heavy-Duty Hydraulic Jack with Customization for Extended-Stroke Use Cylinders

Customization:	Available
Certification:	ISO9001, ISO9001:2015
Pressure:	High Pressure

i

Basic Information

Model NO.

DQF-1000T

Work Temperature

Normal Temperature

Acting Way

Double Acting

Working Method

Straight Trip

Structure

Piston Type

Material

Carbon Steel

Working Pressure

63MPa

Capacity

50000pieces/Year

P

Product Description

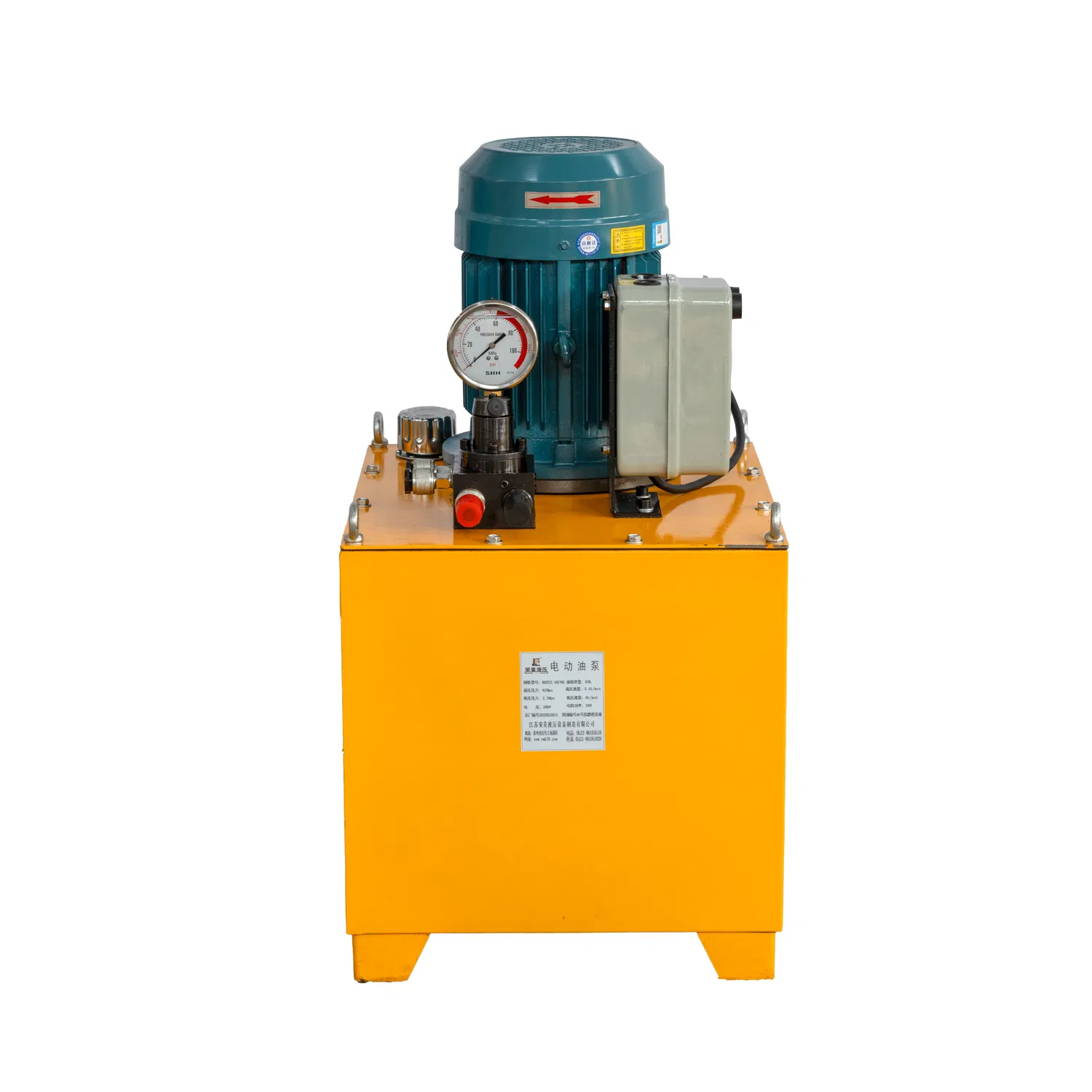

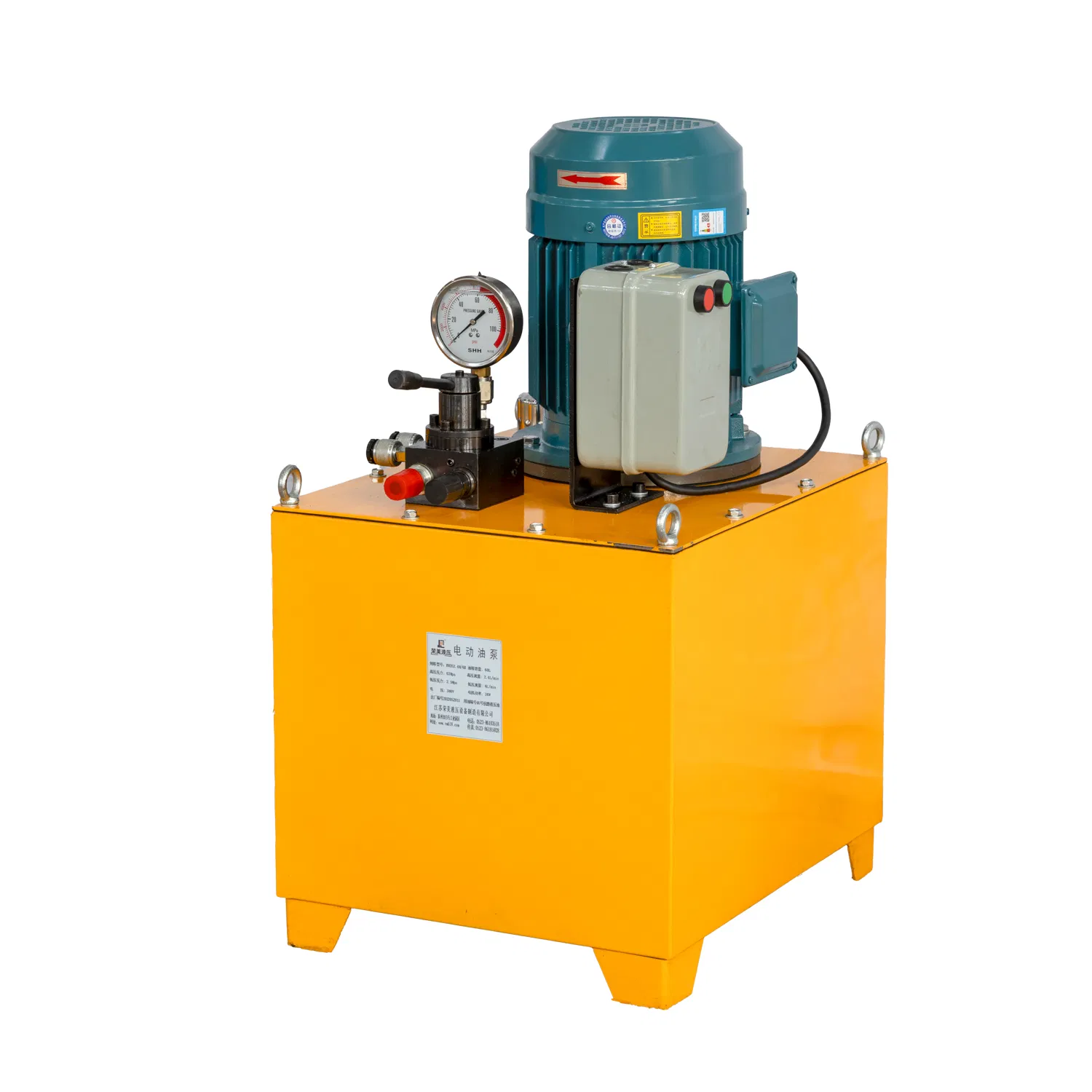

Characterized by its high output force, light weight, and remote operation, it is equipped with ultra-high pressure electric oil pump station. It can perform various operations such as jacking, pushing, pulling, and squeezing, and is widely used in construction engineering, shipbuilding, metallurgy, mining, petrochemical industry, railway engineering, and other industries for jacking, stretching, and squeezing operations.

Key Features

Double-acting, high-flow quick couplers for push and pull operations.
Proprietary design eliminates bore scoring and delivers superior wear resistance.
Honed inner bore and hard-chrome-plated piston rod prevent corrosion.
Extended-stroke cylinders available to customer specification.
Performs vertically, horizontally, inverted, or at any angle.
Working Capacity from 1 to 1000 Ton.

T

Technical Parameters

Model	Capacity (Ton)	Stroke (mm)	Closed Height (mm)	Outside Dia (mm)	Cylinder Bore (mm)	Pressure (Mpa)	Weight (kg)
DQF-50	50	125-300	250-435	127	100	63	25-56
DQF-100	100	125-300	282-456	178	140	63	46-86
DQF-150	150	50-300	165-460	219	180	63	43-108
DQF-200	200	150-300	335-510	250	200	63	66-136
DQF-500	500	150-250	395-516	425	320	63	390-489
DQF-1000	1000	150-250	485-670	600	450	63	921-1320

A

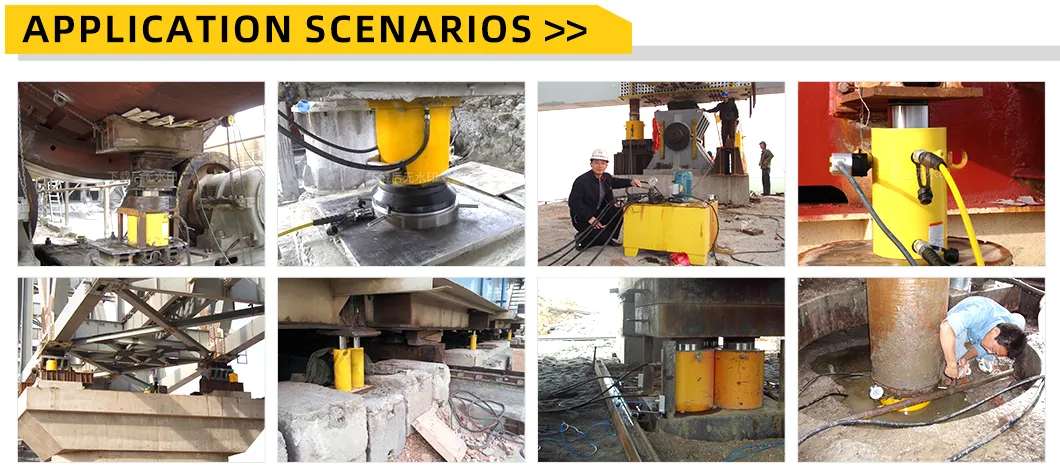

Product Application

Our products are widely used all over the world, especially in major enterprises, scientific research, shipbuilding, metallurgy, railways, petrification, bridges, construction, electricity, and shipping.

M

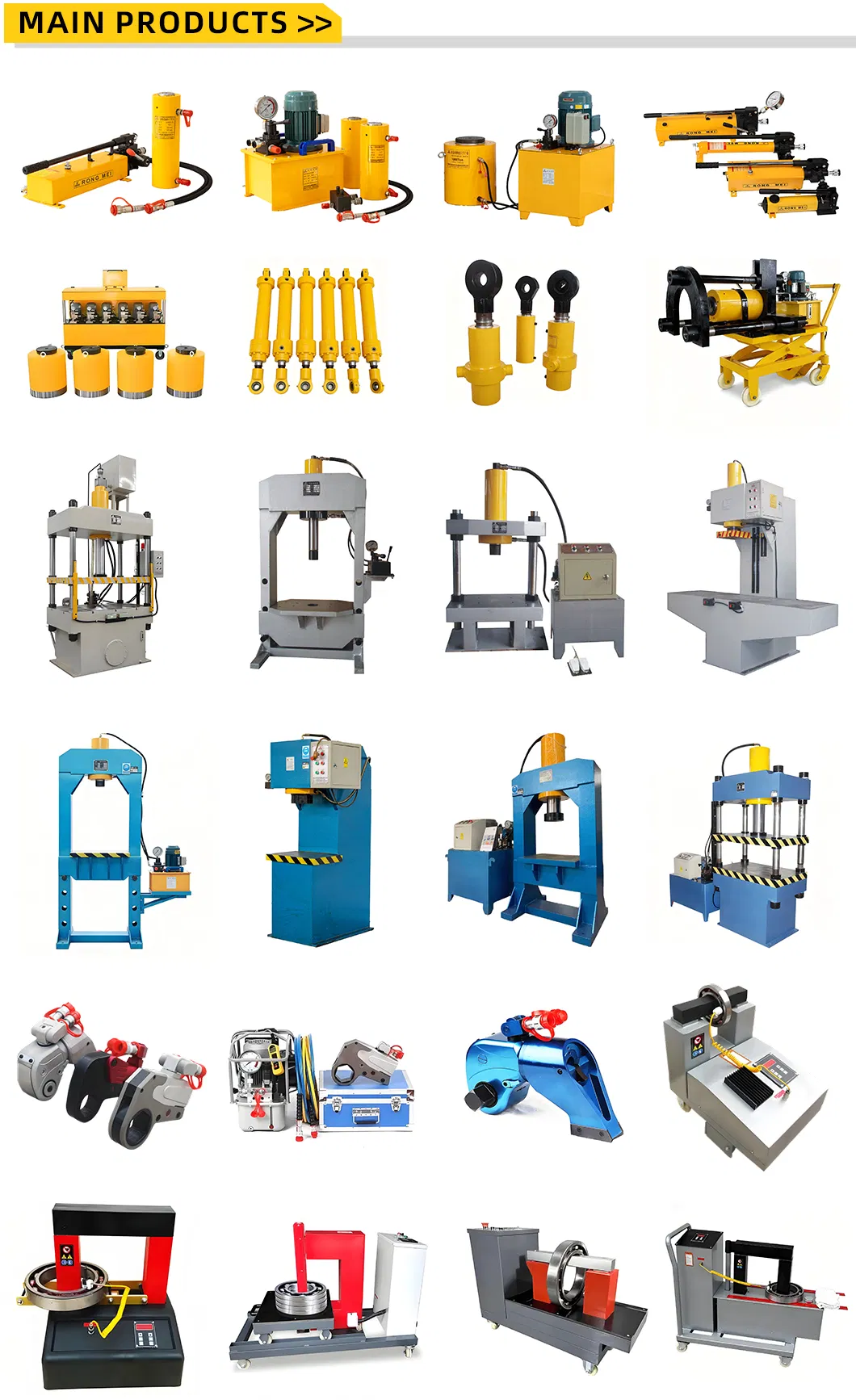

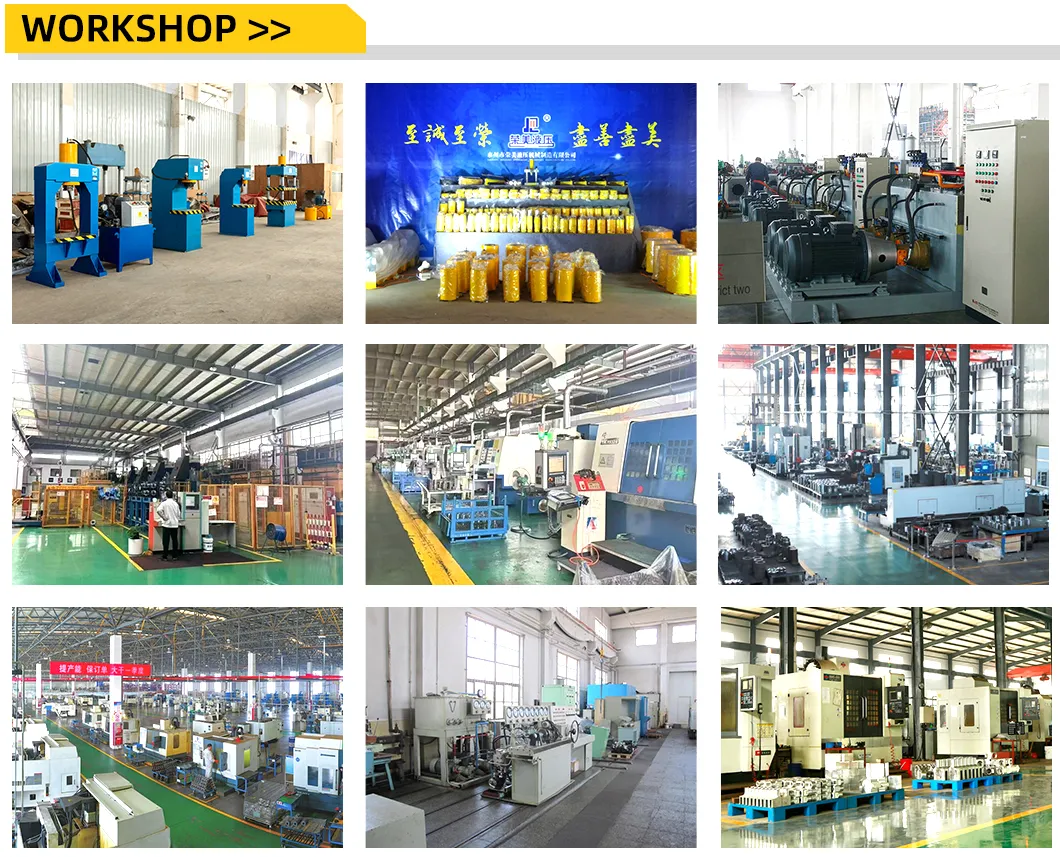

Main Products & Workshop

Specializing in the development and manufacture of hydraulic tools, including:
• Hydraulic Press machines (5 - 1000 tons)
• Hydraulic jacks (5 - 2000 tons)
• Hydraulic torque wrenches (100 - 72000Nm)
• Wire-rope swaging machines and mobile lifting platforms.
