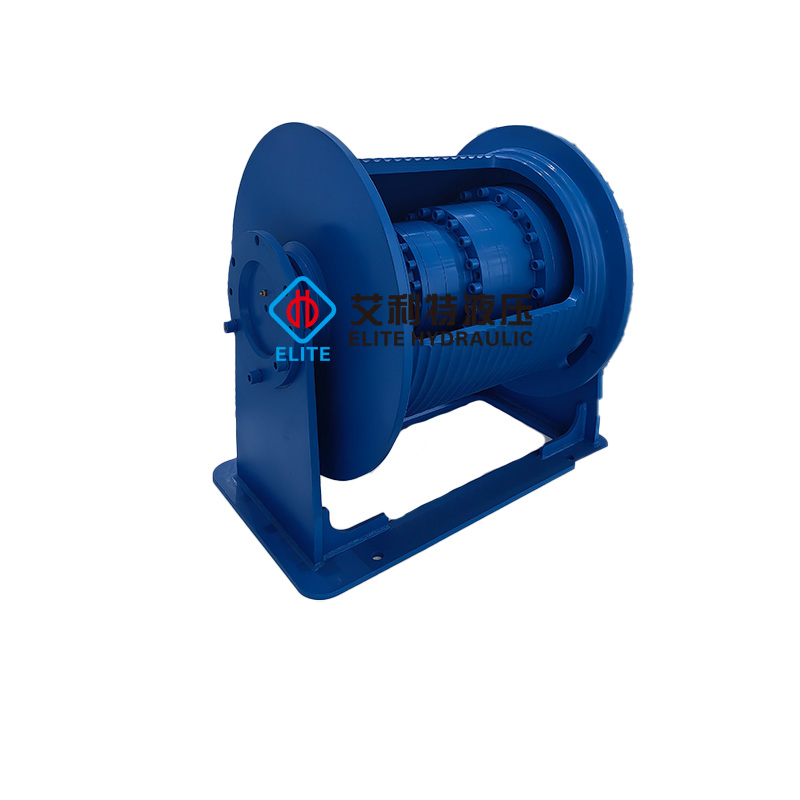

Electric Rope Winches, Pneumatic Wormgear Winches,

1 / 5

Electric Rope Winches, Pneumatic Wormgear Winches,

Customization:	Available
After-sales Service:	24h
Warranty:	18months

Send Inquiry

Product Description

Basic Info

Model NO.

HFT-W

Type

Construction Winch

Driven Type

Hydraulic

Speed

Fast

Carrying Capacity

Middle-Level

Tonnage

10T

Reel Number

Running Mode

Stationary

Feature

Explosion-Proof

Certification

ISO 9001

Standard

National Standards

Input Speed

4000rpm

Design

Robust and Modular Design

Brakes

Multiple Disc Brakes

Output Torque

Higher Output Torque

Bearing

Taper Roller Bearing

Packaging & Delivery

Package Size

50.00cm * 50.00cm * 50.00cm

Package Gross Weight

400.000kg

Product Description

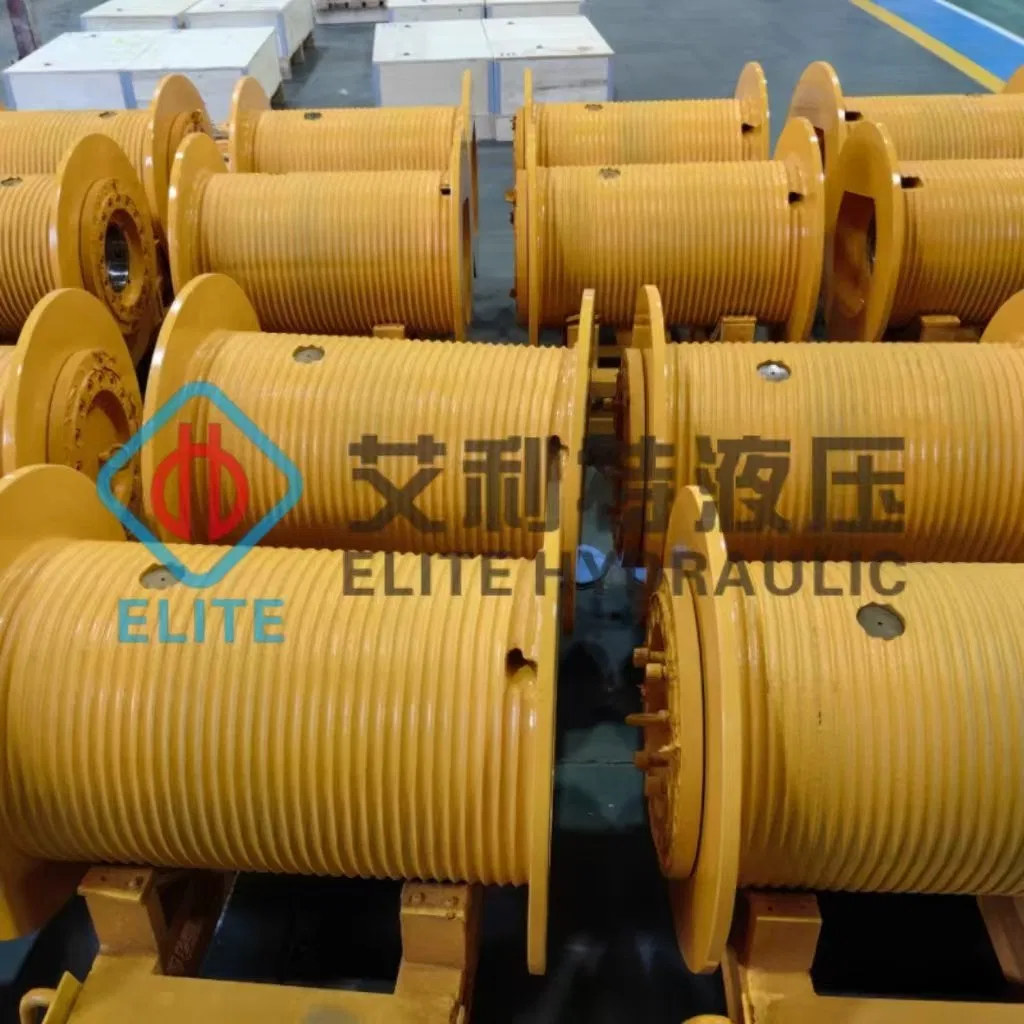

Planetary winch gearboxes of the HFW series are composed of 18 finely spaced frame sizes. The compact design allows the gearbox to be integrated into the winch drum. The failsafe brake can be integrated inside the gearbox or mounted externally, with common lubrication for the gears. Electrically driven versions are available with both in-line and right-angle configurations. Torque ratings are organized by FEM class, in accordance with minimum approved class safety factors for gears.

Compact structure and space-saving design
Robust main bearing system
High torque and load capacity
Integrated static multiple disk parking brake
Optional Disconnect/Quick disconnection device
Low-noise running operation & easy oil change
ATEX conformity on demand

Our Advantages

#	Category	Technical Advantages
1	Materials	All torque-bearing gearbox components are made of top-quality casehardened and tempered steels.
2	Gearbox Structure	Case-hardened and ground sun gears and planet wheels. High-strength tempered steel ring gears and forged supports for even load distribution and high performance density.
3	Bearings	Rotation element bearings throughout: Ball bearings for input, cylindrical Roller Bearings for planet wheels, and tapered Roller Bearings for output gearing.
4	Seals	High-quality floating oil seals for winch drives and rotating glyd ring seals for slewing drives.

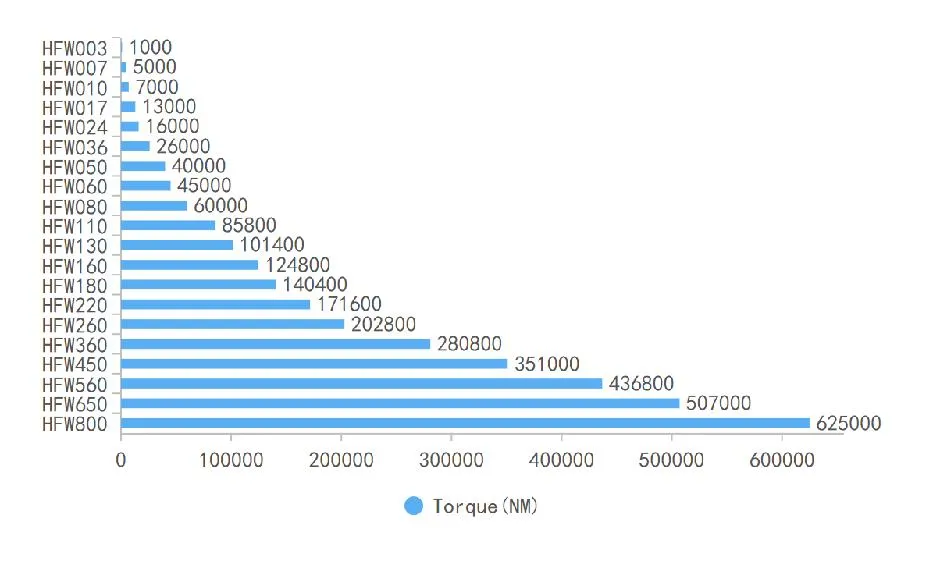

Product Specifications

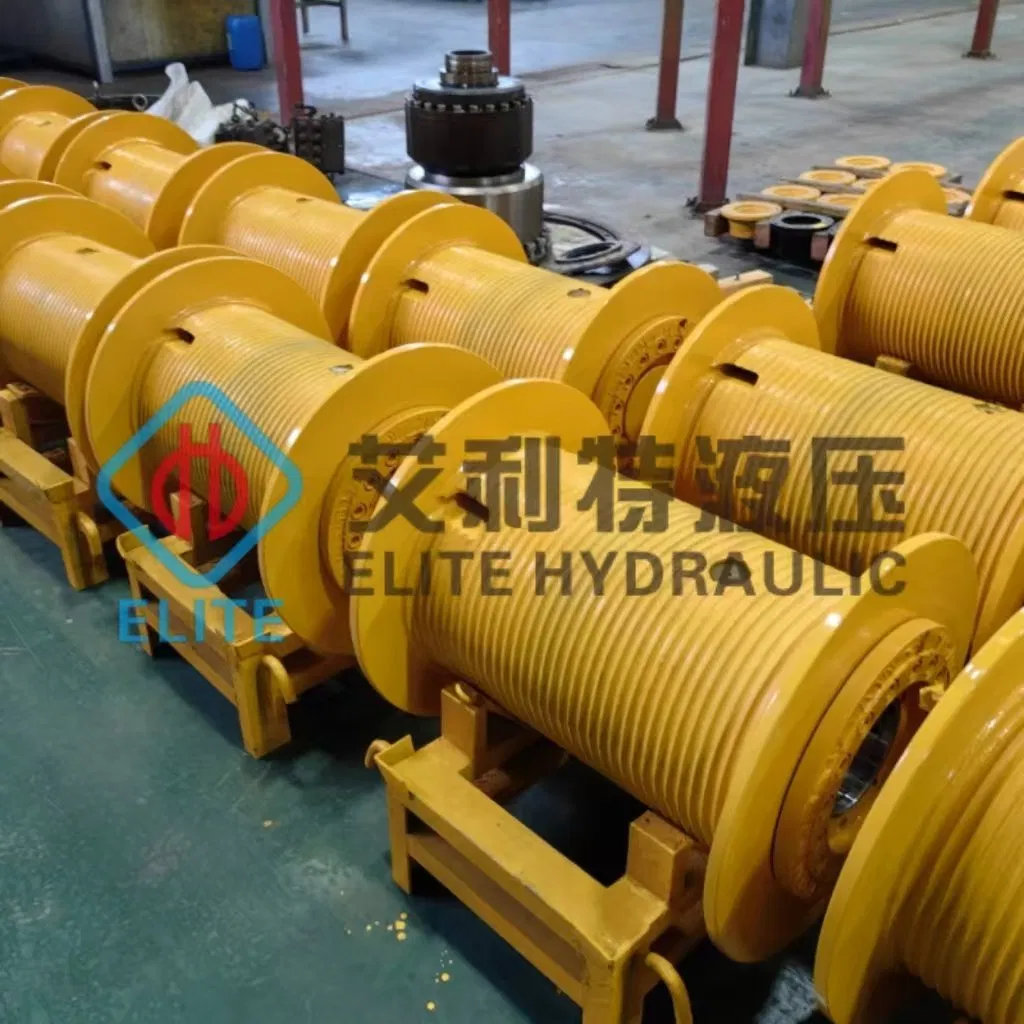

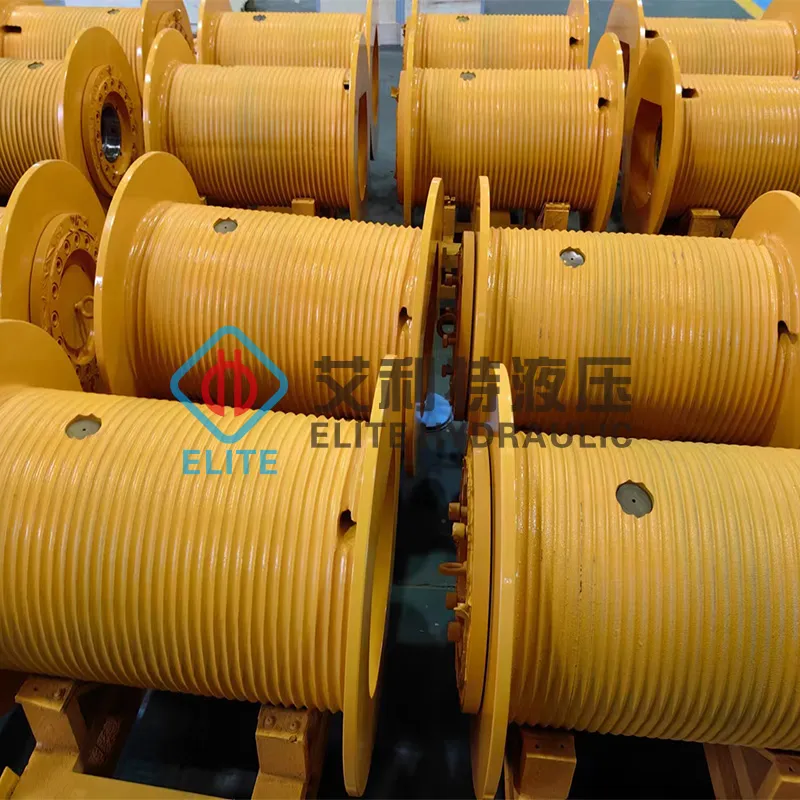

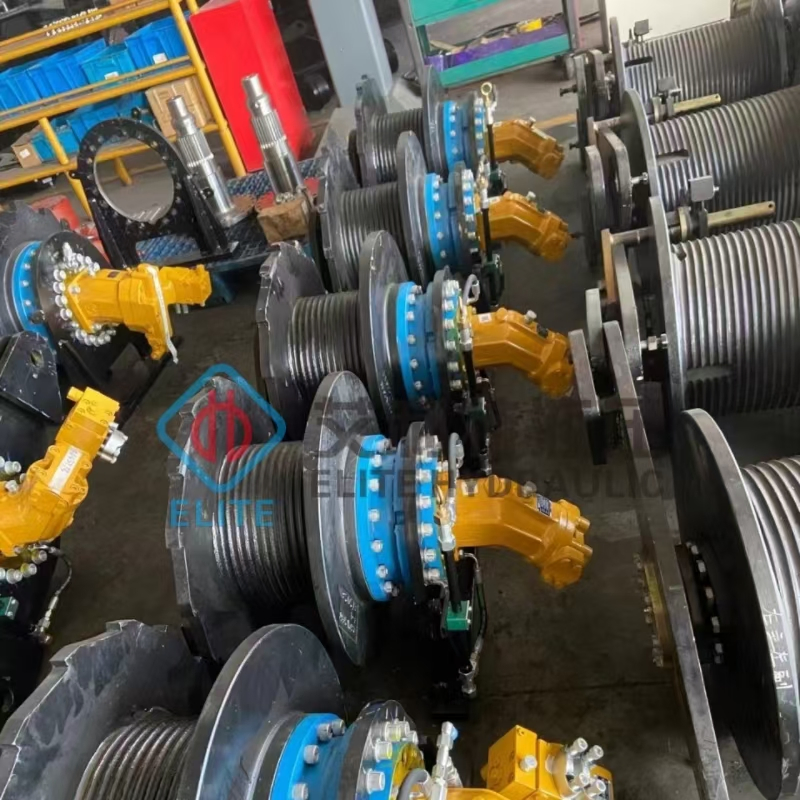

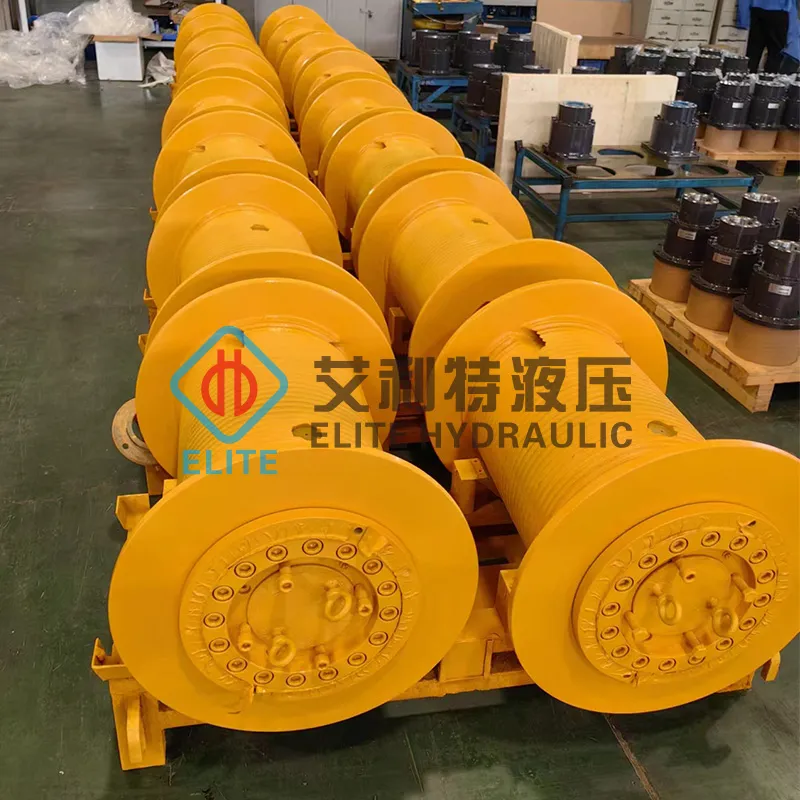

Detailed Photos

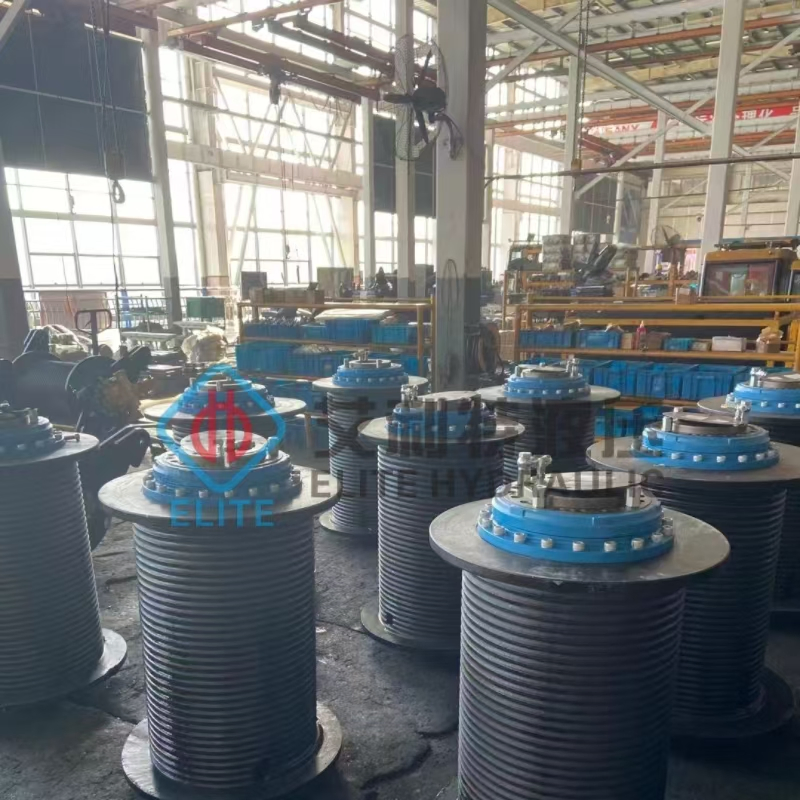

Production Showcase

We offer professional power transmission solutions that cater to a wide variety of industries. With specialized expertise and commitment to quality, we provide travel gearboxes, electrical drives, slew gearboxes, winch gearboxes, cutter gearboxes, and other hydraulic transmission solutions.

Frequently Asked Questions

1. What makes the HFW series winch gearbox compact? The planetary design allows the gearbox to be integrated directly into the winch drum, significantly saving installation space.

2. What types of braking systems are used? The units feature integrated static multiple disc parking brakes, which can be mounted internally or externally depending on requirements.

3. Are these gearboxes suitable for high-load applications? Yes, they are designed with high torque and load capacities, utilizing case-hardened steels and robust tapered roller bearings for maximum durability.

4. Can I get a customized ratio? Yes, the product parameters indicate support for different ratios to meet specific performance needs.

5. What industry standards do these gearboxes follow? Our gearboxes comply with ISO 9001 certifications and National Standards, with torque ratings organized by FEM class.

6. How is the lubrication managed for the brakes and gears? The failsafe brake and the gears share common lubrication, simplifying maintenance and ensuring consistent cooling.
