Workshop, Warehouse, Port, Wharf, Construction Site
Anchor
Removable
Structure
Solid Web
Material
Steel
Type
Cantilever
Arm Length
2m-10m
Power Supply
220-690V/3p/ 50Hz
Travelling
Manual or Electric
Lifting Height
on Request
Working Temp.
-20 - 40
Working Class
M4 M5 M6
Rotation Degree
180/270/360
Capacity
1 ton
Origin
China
Capacity/Year
500 Sets
Packaging & Delivery
Package Size
5.00cm * 0.80cm * 0.60cm
Gross Weight
500.000kg
Package Type
Bulk packing + wooden case

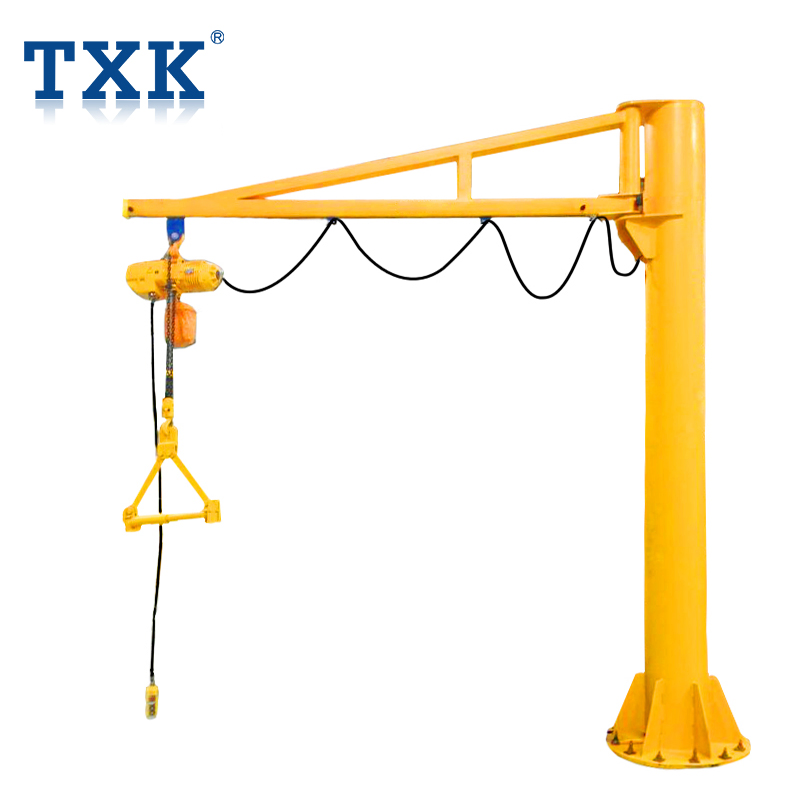

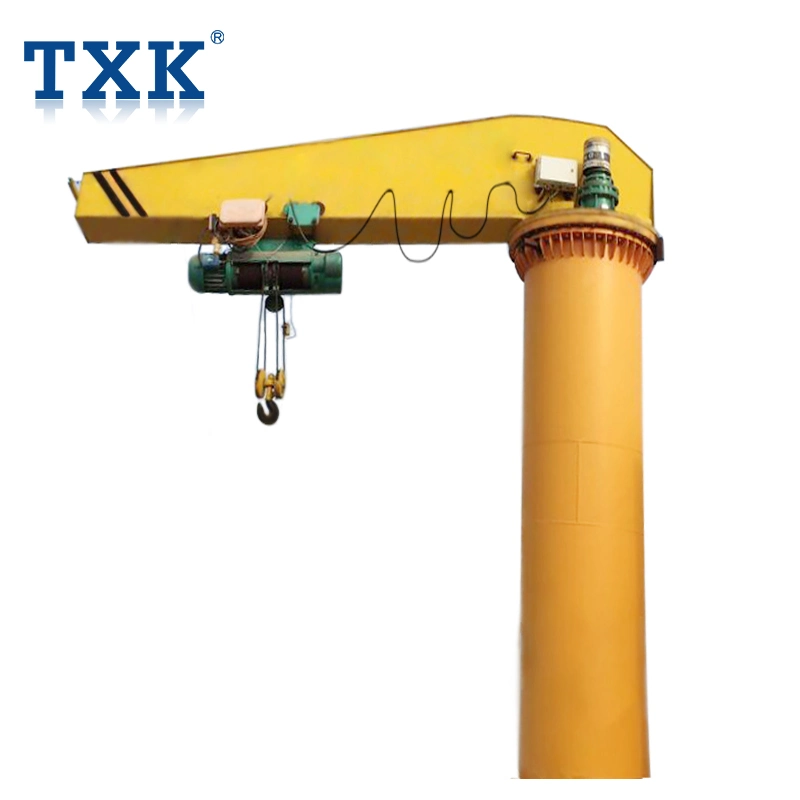

Product Description

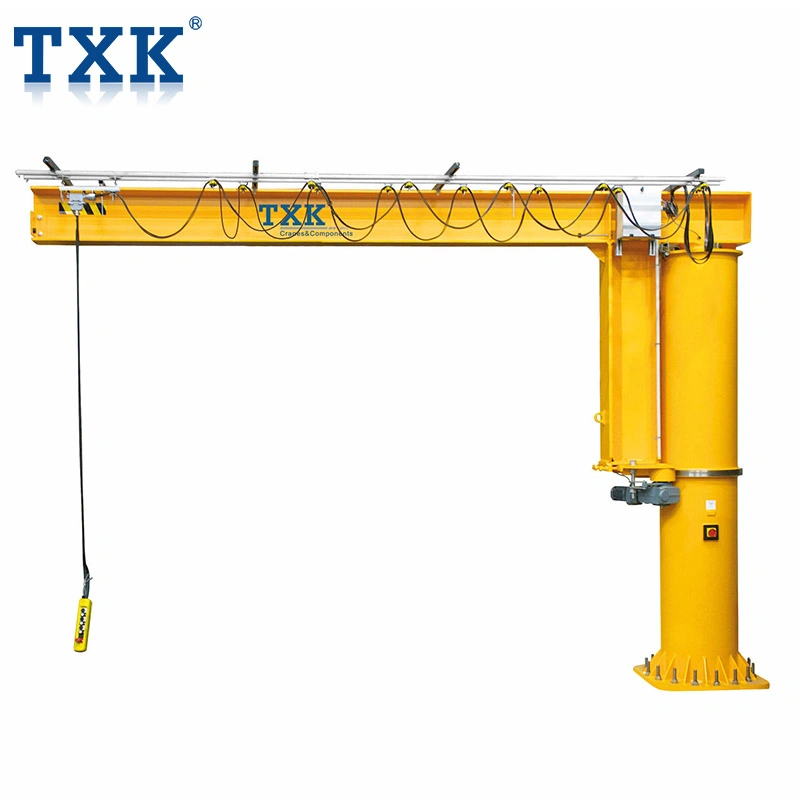

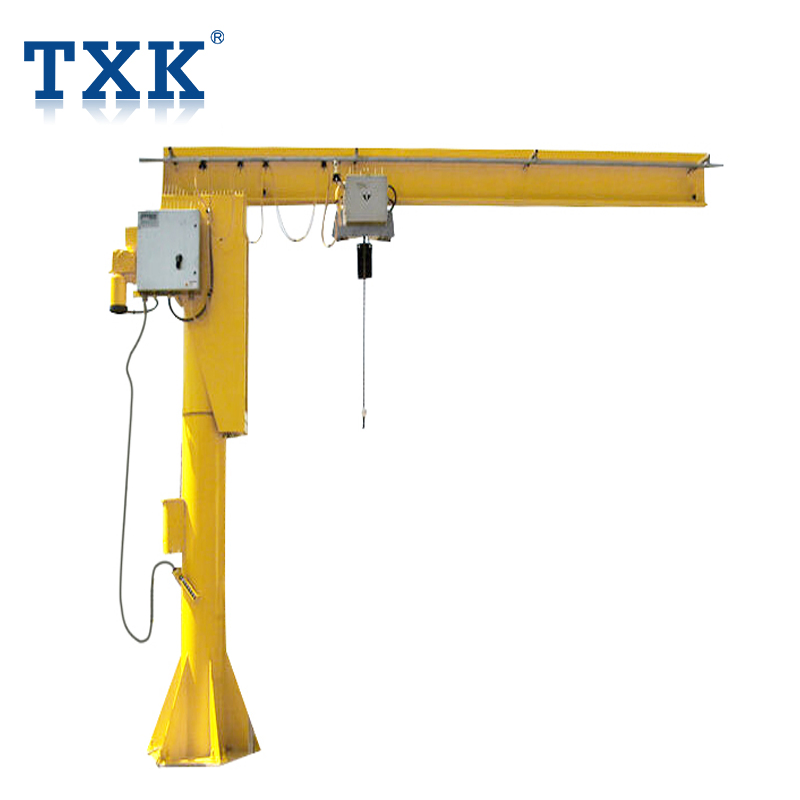

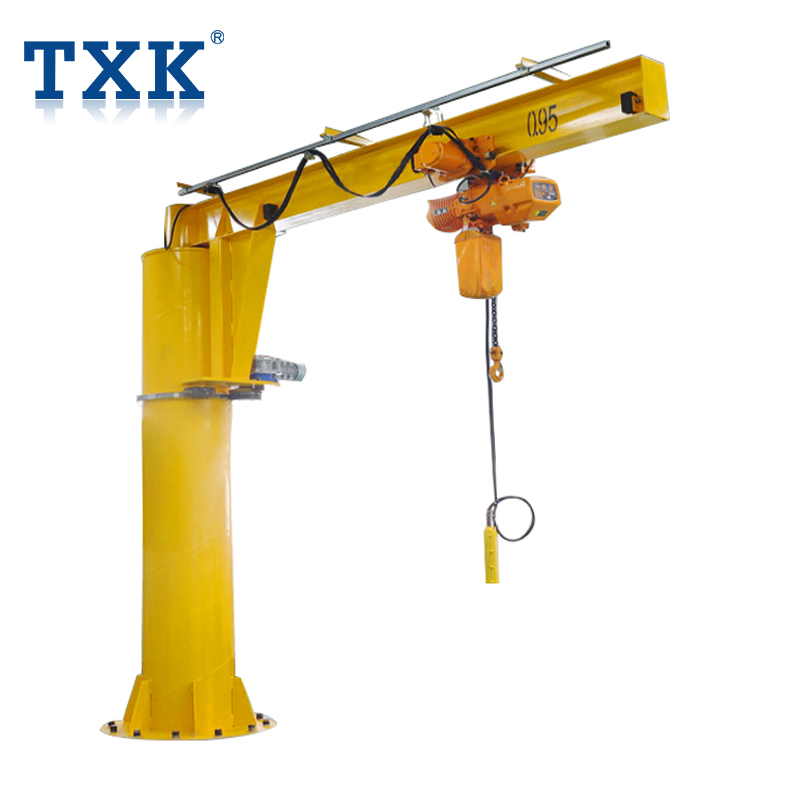

Jib Crane is a kind of small and medium-sized lifting equipment with the recent development. Its unique structure is safe and reliable. With high efficiency, energy conservation, time-saving, and flexibility, it can operate freely in 3D space, showing superiority especially in short-range and intensive lifting occasions.
Technical Parameters
Capacity(KG)
500 KG
1000 KG
2000 KG
3000 KG
5000 KG
Model
BZD0.5
BZ01
BZ02
BZ03
BZ05
Beam Material
H Beam & I Beam
Travelling Type
Electrical & Manual
Electrical
Electrical
Electrical
Revolving radius
1m - 7m
Lifting Height
2m - 10m

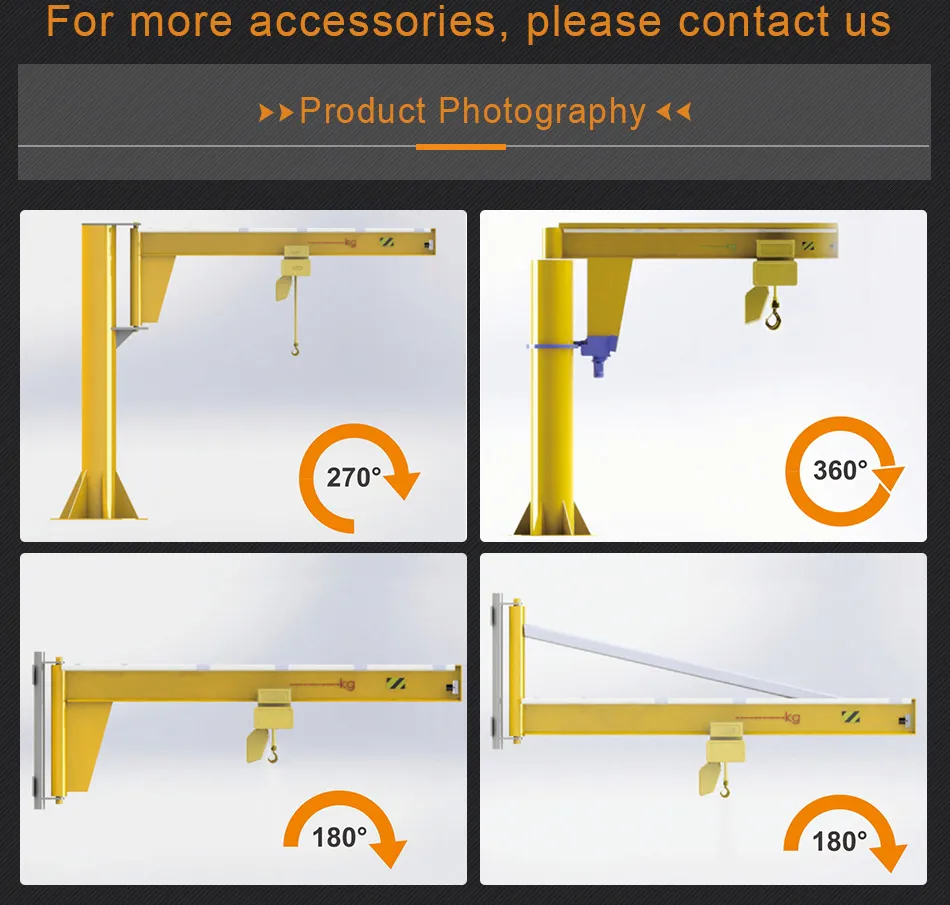

Revolving Angle
180° & 270° & 360°
Key Features
Compact Design
The advanced design gives the crane a light structure and excellent performance, narrowing hook operation distance and improving space utilization effectively.
Smooth & Fast Loading
Equipped with step-less frequency conversion control systems for both trolley and crane, ensuring stable braking, accurate location, and reliable performance.
High Reliability
The perfect braking system improves safety, featuring a dust-proof design that can be used more than 1 million times. Hardened and polished tooth surfaces ensure trouble-free operation.

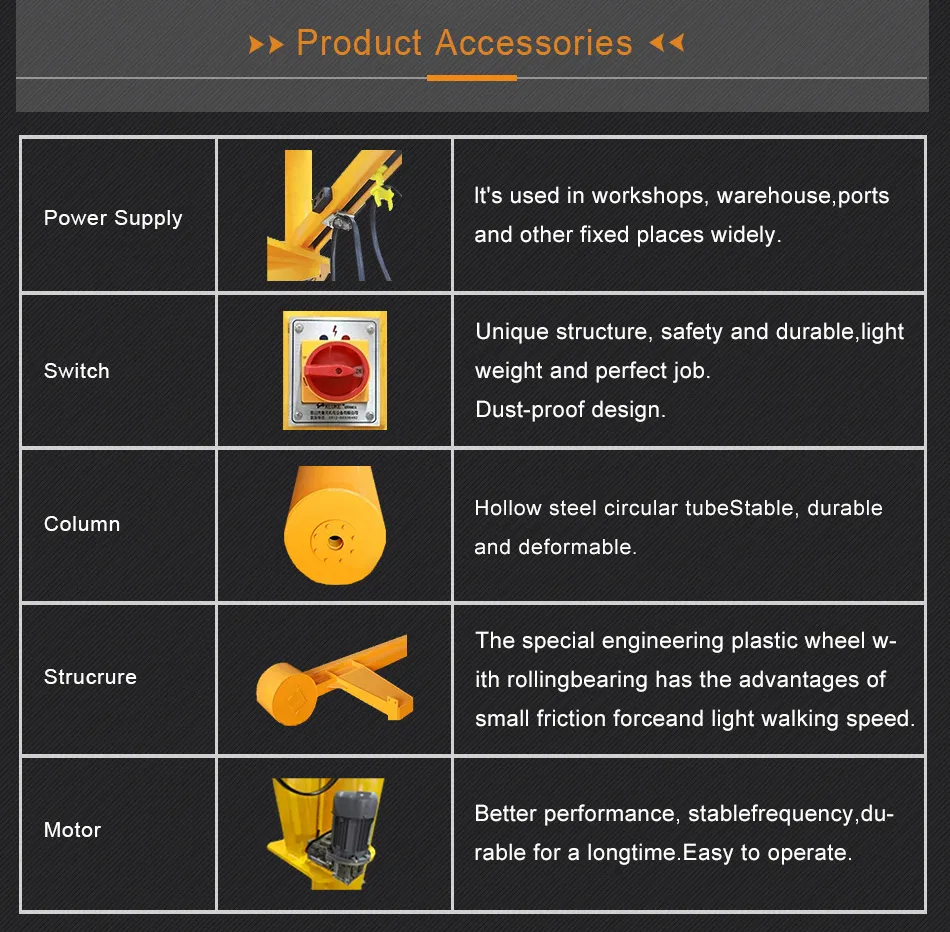

Crane Accessories

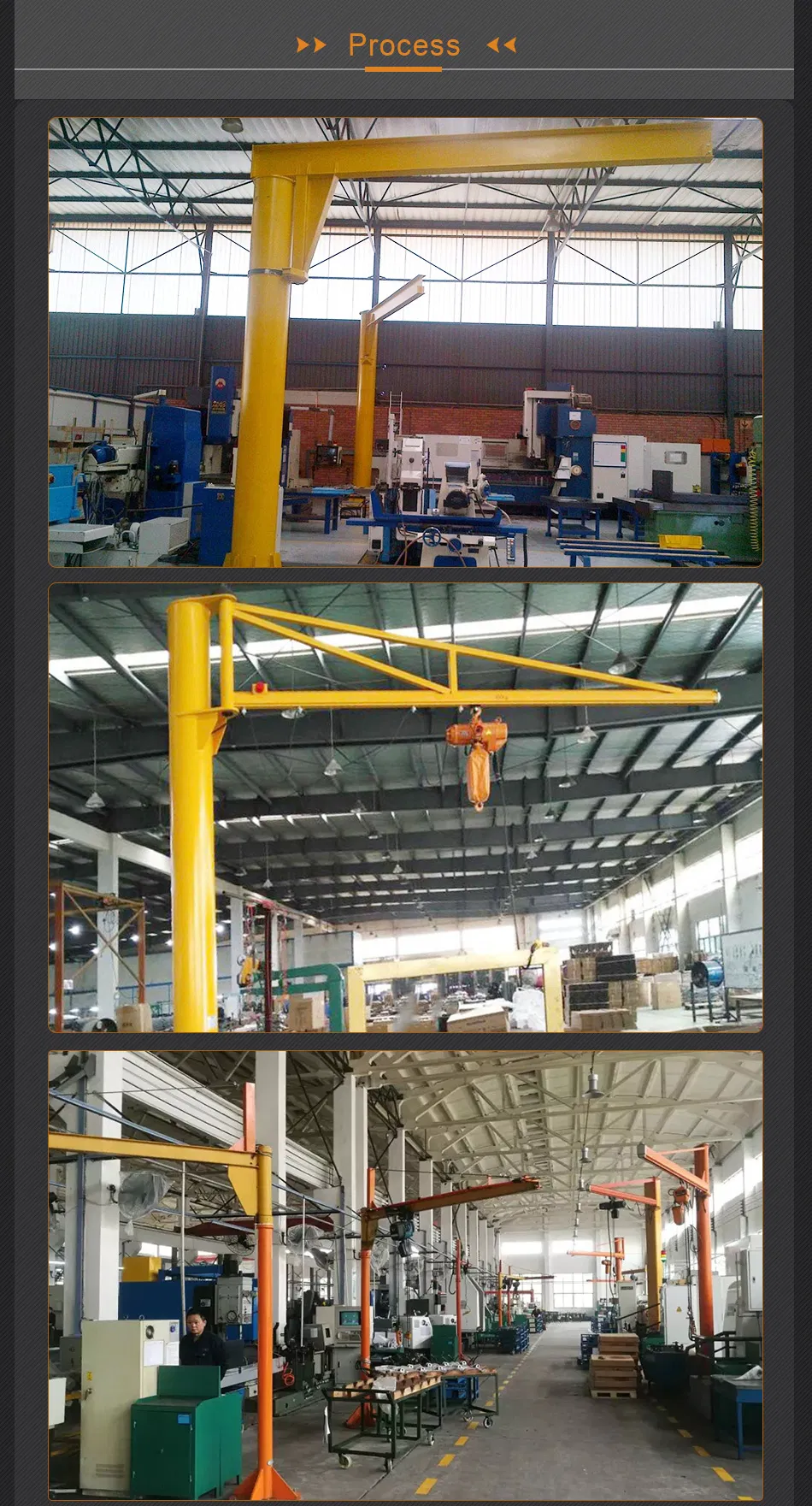

Application & Other Equipment
Packaging & Exhibition

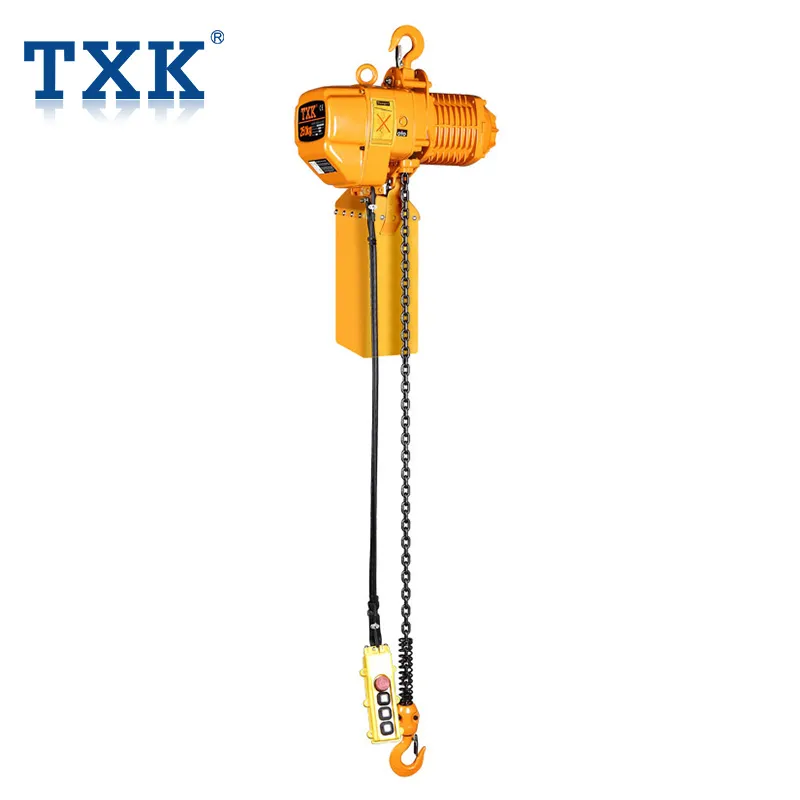

Other Lifting Equipment

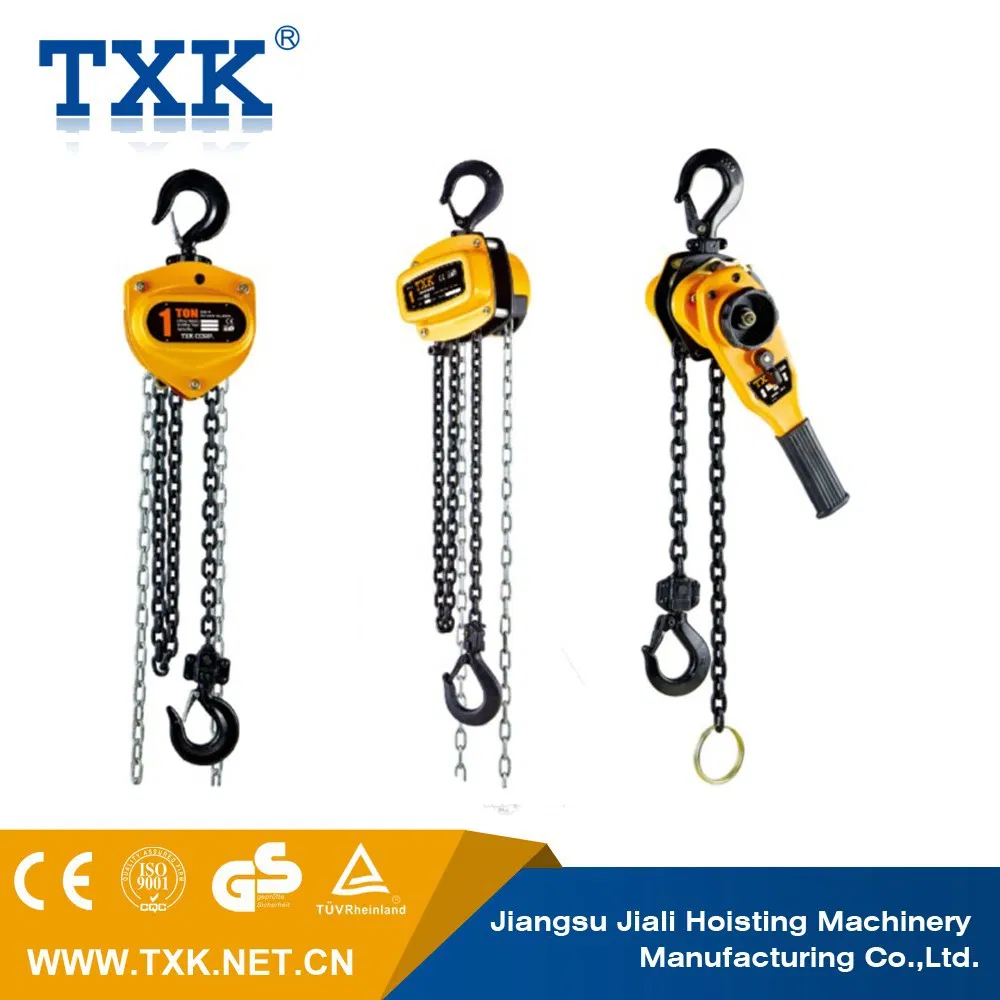

Manual Hoists and Electric Hoists are also available for various industrial needs.
Frequently Asked Questions
What is the maximum rotation angle of the pillar mounted jib crane?
The crane offers flexible rotation options of 180°, 270°, or a full 360° to suit different workshop layouts.
What lifting capacities are available for this model?
We provide a range of capacities including 500kg, 1000kg, 2000kg, 3000kg, and up to 5000kg (5 tons).
Can the crane be operated manually or electrically?
Both manual and electric moving/revolving methods are available depending on the specific model and customer requirements.
What are the typical applications for a jib crane?
It is widely used in workshops, warehouses, docks, ports, and construction sites for short-range and intensive lifting tasks.
What is the standard power supply for the electric components?
The standard power supply range is 220-690V, 3-phase, at 50Hz.
What materials are used for the crane beam?
The beams are constructed using high-quality H-Beam and I-Beam steel for maximum durability and safety.
