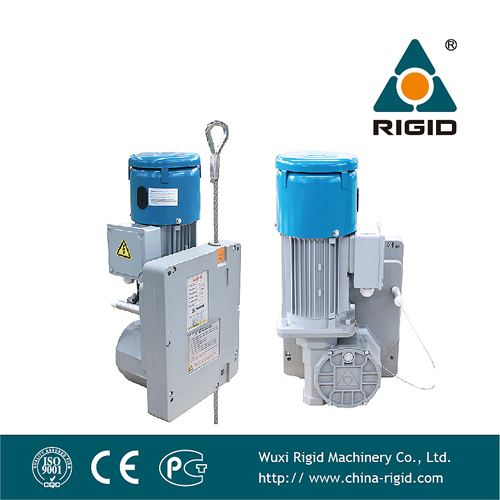

Ltd-P Electric Wire Rope Building Hoist

Customization:	Available
Application:	Man-Riding
Type:	Electric Hoist

Send Inquiry

Product Description

📋Basic Specifications

Model NO.LTD-P

Sling TypeWire Rope

Lift Speed9/18m/Min

Max Lifting HeightCustomer's Request

CertificationCE, TUV

ConditionNew

Voltage380V(415V/220V)

Frequency50Hz/60Hz

Capacity1000pieces/Month

HS Code8425110000

🏗️LTD-P Electric Wire Rope Building Hoist

Passenger elevation (man-riding) hoist designed for unlimited rope lengths.

The LTD-P Series endless hoist is a versatile man-riding solution suitable for lifting and lowering personnel. With capacities ranging from 500kg to 1000kg at speeds of 9 or 18 m/min, it offers a compact, lightweight, and easy-to-handle alternative for traction applications. Its unique design allows for unrestricted lifting heights as the wire rope is not stored within the unit.

💎Key Features & Benefits

✔ Robust die-cast aluminium housing for low dead-weight and high rigidity.

✔ Gearing and drive sheave fabricated from hardened steel.

✔ Motor protection rated to IP55 as standard.

✔ Thermal overload protection device fitted to the motor.

✔ Drive sheave surface hardness of approx. 70 HRC for low wear.

✔ Quiet running from -40°C to 70°C thanks to special synthetic oil.

✔ Certified by independent inspection institute (TUV).

✔ Universal attachment via 16mm load pin or M10 screws.

📊Main Technical Parameters

Model	Capacity (kg)	Lifting Speed (m/min)	Rope Dia (mm)	Motor (kW)	Weight (kg)
LTD50-8P9	500	9	8.3	1.1	46
LTD50-8P18	500	18	8.3	2.0	47
LTD63-8P9	600	9	8.3	1.5	48
LTD63-8P18	600	18	8.3	2.2	49
LTD80-9P9	800	9	9	1.8	50
LTD80-9P18	800	18	9	3.0	53
LTD100-10P9	1000	9	10.2	2.2	51
LTD100-10P18	1000	18	10.2	4.0	62

*Voltage and frequency are available upon request.

🛡️Safety Systems for Passenger Elevation

Compliant with DIN EN1808 standards, each hoist features an independent safety rope system. Our safety fall arresters are TUV certified for maximum protection.

Overspeed Safety Fall Arrester (OSL)
Trips automatically when lowering speed exceeds 30m/min. Hardened steel clamping jaws stop the rope within centimetres.

Anti-tilting Safety Fall Arrester (LSF)
Trips automatically when the platform angle exceeds 5°, immediately stopping movement.

📏Dimensional Specifications

Frequently Asked Questions

Q: What is the maximum load capacity of the LTD-P hoist? A: The LTD-P series offers capacities ranging from 500kg up to 1000kg depending on the specific model selected.

Q: Is this hoist suitable for lifting people? A: Yes, it is specifically designed for passenger elevation (man-riding) and complies with the DIN EN 1808 safety standard.

Q: How does the hoist handle power failures? A: It features a safety lowering mechanism that allows the electro-mechanical brake to be released manually for controlled descent.

Q: What environment can this hoist operate in? A: Thanks to special synthetic oil, the hoist operates efficiently in a wide temperature range from -40°C to +70°C.

Q: What happens if the hoist is overloaded? A: The internal mechanism includes overload protection; if the limit is exceeded, the hoist will stop rising and only allow descent.

Q: Does it support different voltages? A: While 380V is standard, other operating voltages and frequencies are available upon customer request.
