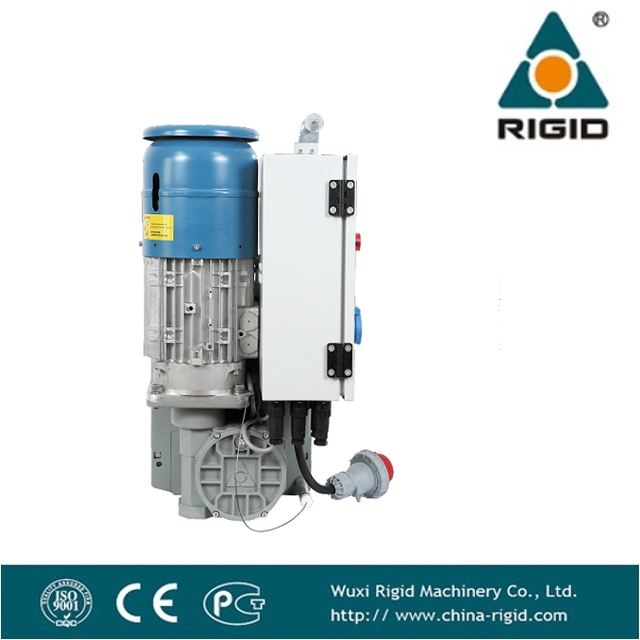

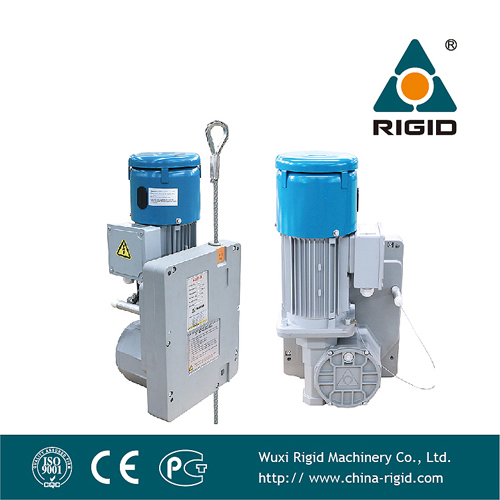

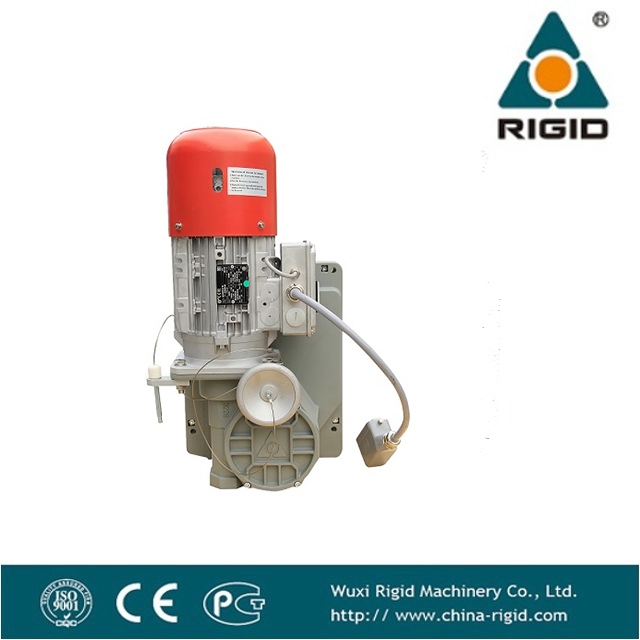

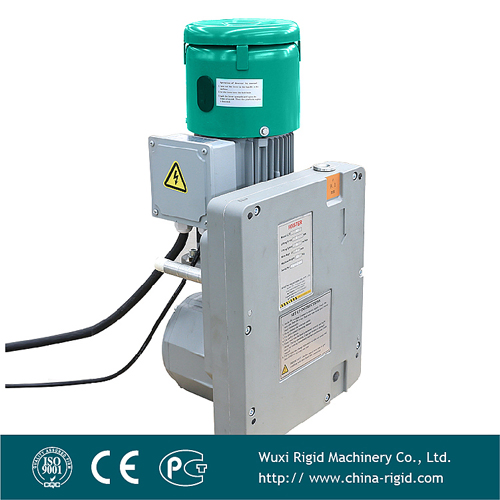

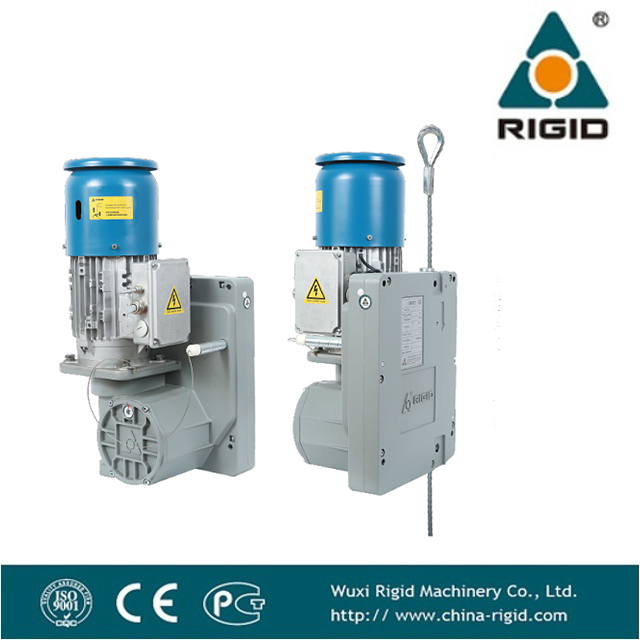

The LTD-P Series unlimited cable (wire rope) passenger lifting hoist is a versatile solution suitable for unlimited applications. The rope is not connected, which makes it compact, lightweight, and very easy to handle. The unrestricted wire rope lengths capability makes it possible to utilize unlimited lifting heights and traction lengths.
| Model | Capacity (kg) | Lifting Speed (m/min) | Rope Diameter (mm) | Motor (kW) | Weight (kg) |
|---|---|---|---|---|---|
| LTD50-8P9 | 500 | 9 | 8.3 | 1.1 | 46 |
| LTD50-8P18 | 500 | 18 | 8.3 | 2.0 | 47 |
| LTD63-8P9 | 600 | 9 | 8.3 | 1.5 | 48 |
| LTD63-8P18 | 600 | 18 | 8.3 | 2.2 | 49 |
| LTD80-9P9 | 800 | 9 | 9.0 | 1.8 | 50 |
| LTD80-9P18 | 800 | 18 | 9.0 | 3.0 | 53 |
| LTD100-10P9 | 1000 | 9 | 10.2 | 2.2 | 51 |
| LTD100-10P18 | 1000 | 18 | 10.2 | 4.0 | 62 |
*Voltage and frequency are available upon request.
In accordance with DIN EN1808, each hoist for passenger elevation must feature a safety system on an independent safety rope. We offer two different safety fall arresters compliant with DIN EN 1808 standards.

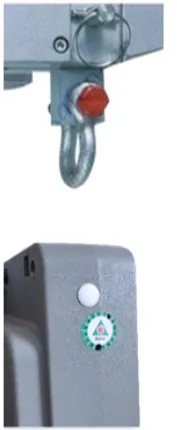

Flexible Attachment Points
Attachment points in the corners of the housing for flexible winch attachment with screws or pins.

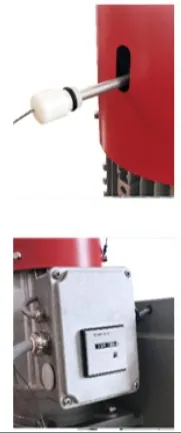

Safety Lowering Mechanism
Manual release of the electro-mechanical brake ensures safe lowering during power failure.
Inner Mechanism Overload
When load limits are exceeded, the hoist will stop rising or only allow descent.
Operating Counters
Records operating hours and number of starts for maintenance tracking.
Overspeed Safety (OSL)
Trips when lowering speed exceeds 30m/min. Stops rope within centimeters.
Anti-tilting Safety (LSF)
Trips when the rope or platform angle exceeds 5° to stop movement immediately.
