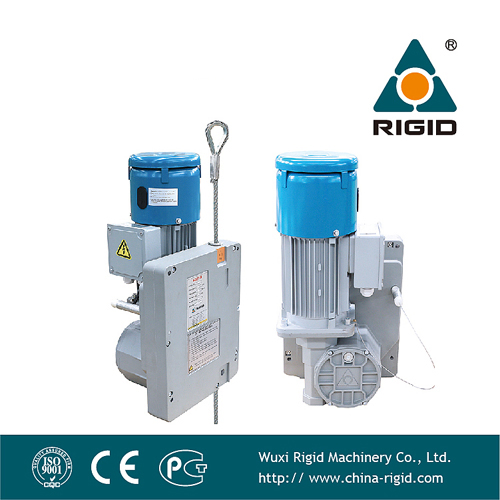

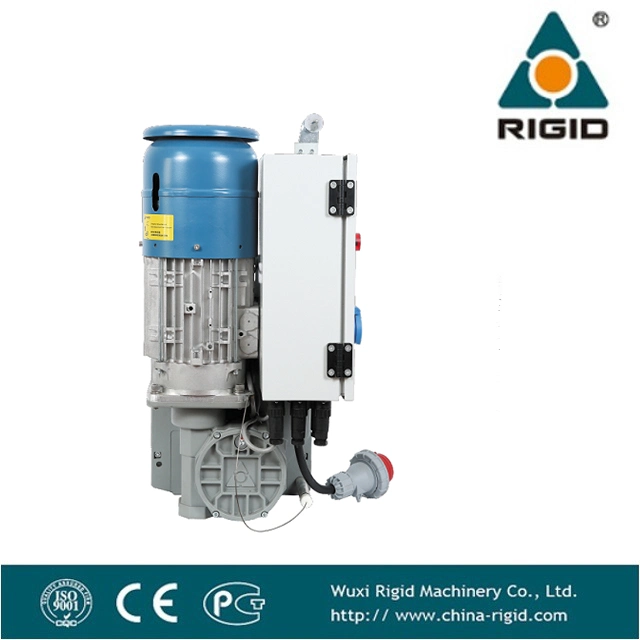

Ltd-P Electric Wire Rope Pulling Hoist

Customization:	Available
Application:	Man-Riding
Type:	Electric Hoist

Send Inquiry

Product Description

Basic Specifications

Model NO.:LTD-P

Sling Type:Wire Rope

Lift Speed:9/18m/Min

Max Lifting Height:Customer's Request

Certification:CE, TUV

Condition:New

Color:Customized

Voltage:380V (415V/220V)

Frequency:50Hz/60Hz

Transport Package:Cardboard Box

HS Code:8425110000

Production Capacity:1000 pieces/Month

Product Description

LTD-P series endless passenger elevation (man-riding) hoist designed to be used with unlimited rope lengths for lifting and lowering personnel. Capacities range from 500kg to 1000kg at either 9 or 18 m/min.

The LTD-P Series unlimited cable (wire rope) passenger lifting hoist is a versatile solution suitable for unlimited applications. The rope is not connected, which makes it compact, lightweight, and very easy to handle. The unrestricted wire rope lengths capability of the LTD-P Series makes it possible to utilize unlimited lifting heights and traction lengths.

Features and Benefits

The robust, precisely machined housing of die-cast aluminium ensures a low dead-weight and outstanding rigidity.
Gearing and drive sheave is fabricated from hardened steel.
Universal attachment of the winches via a central 16mm load pin or two M10 screws.
Motor protection: Protected to IP55 as standard.
Control Voltage: 24V for mobile application units and 42V for stationary applications.
Hoist motor fitted with a thermal overload protection device.
Nitrided steel drive sheave and pressure rollers (approx. 70 HRC) guaranteeing low wear.
Fully-synthetic special oil ensures efficiency and quiet running (-40°C to 70°C).

Technical Parameters

Model	Capacity (kg)	Lifting Speed (m/min)	Rope Diameter (mm)	Motor (kW)	Weight (kg)
LTD50-8P9	500	9	8.3	1.1	46
LTD50-8P18	500	18	8.3	2.0	47
LTD63-8P9	600	9	8.3	1.5	48
LTD63-8P18	600	18	8.3	2.2	49
LTD80-9P9	800	9	9	1.8	50
LTD80-9P18	800	18	9	3.0	53
LTD100-10P9	1000	9	10.2	2.2	51
LTD100-10P18	1000	18	10.2	4.0	62

*Voltage and frequency are available upon request.

Safety for Passenger Elevation

In accordance with DIN EN1808 requirements, each hoist used for passenger elevation must feature a safety system on an independent safety rope. We offer two different safety fall arresters compliant with standard DIN EN 1808 "Safety requirements on suspended access equipment", certified by TUV.

Flexible Attachment Points

Available in the corners of the housing for flexible winch attachment with screws or pins.

Safety Lowering Mechanism

In power failure events, the electro-mechanical brake can be released manually for safe, controlled lowering.

Inner Overload Mechanism

Stops rising if the load exceeds the limit, allowing only descent for safety.

Operational Counters

Records operating hours and number of starts for maintenance tracking.

Safety Devices (OSL & LSF)

OSL (Overspeed Fall Arrester): Trips automatically when lowering speed exceeds 30m/min. Hardened steel jaws stop the rope within centimeters.

LSF (Anti-tilting Fall Arrester): Trips automatically when the rope or platform angle exceeds 5°.

Dimensional Specifications

Frequently Asked Questions

Q1: What is the maximum capacity of the LTD-P series hoist?

The series offers capacities ranging from 500kg up to 1000kg, depending on the specific model selected.

Q2: Can this hoist be used for lifting people?

Yes, the LTD-P series is specifically designed for passenger elevation (man-riding) and complies with DIN EN 1808 safety standards.

Q3: How does the overspeed safety system work?

The OSL (Overspeed safety fall arrester) automatically trips and clamps the wire rope if the lowering speed exceeds 30m/min (0.5m/s).

Q4: What happens if there is a power failure?

The hoist features a manual release mechanism for the electro-mechanical brake, allowing the load or personnel to be lowered safely and under control.

Q5: Is the lifting height limited by the hoist?

No, the "endless" design means the wire rope is not collected on a drum, allowing for unlimited lifting heights and traction lengths.

Q6: What environment can the hoist operate in?

With IP55 protection and specialized synthetic oil, it can operate efficiently in temperature ranges from -40°C to 70°C.
