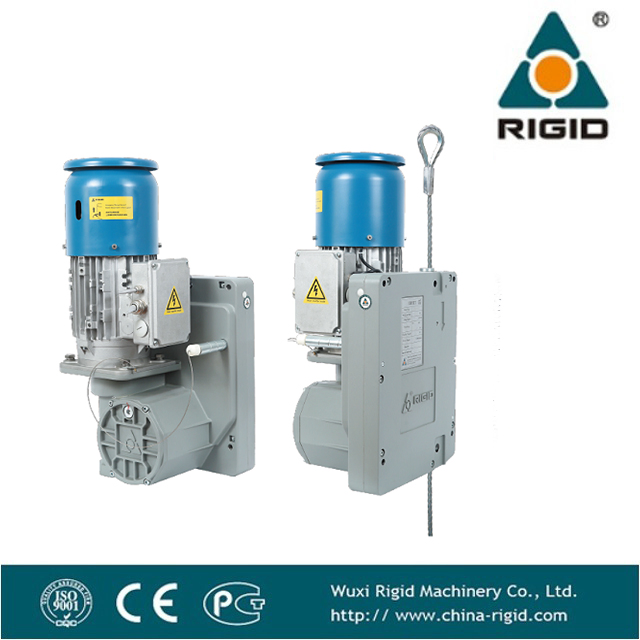

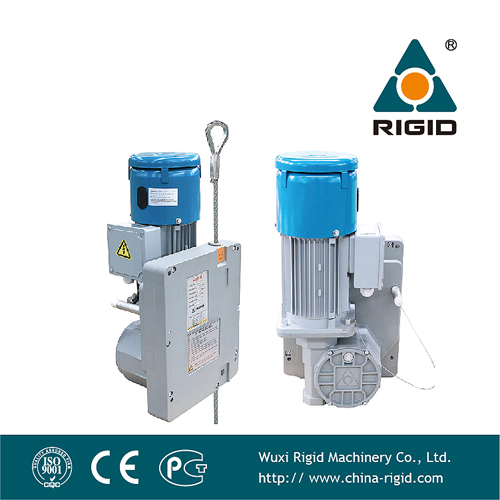

Ltd-P Electric Wire Rope Man-Riding Hoist

1 / 5

Ltd-P Electric Wire Rope Man-Riding Hoist

Customization:	Available
Application:	Man-Riding
Type:	Electric Hoist

Send Inquiry

Product Description

Basic Info.

Model NO.

LTD-P

Sling Type

Wire Rope

Lift Speed

9/18m/Min

Maximum Lifting Height

Customer's Request

Certification

CE, TUV

Condition

New

Voltage

380V (415V/220V)

Frequency

50Hz/60Hz

Transport Package

Cardboard Box

HS Code

8425110000

Production Capacity

1000 pieces/Month

Product Description

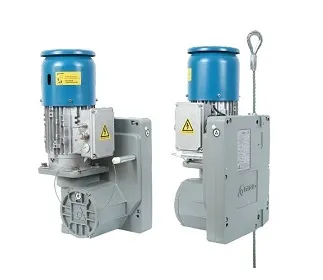

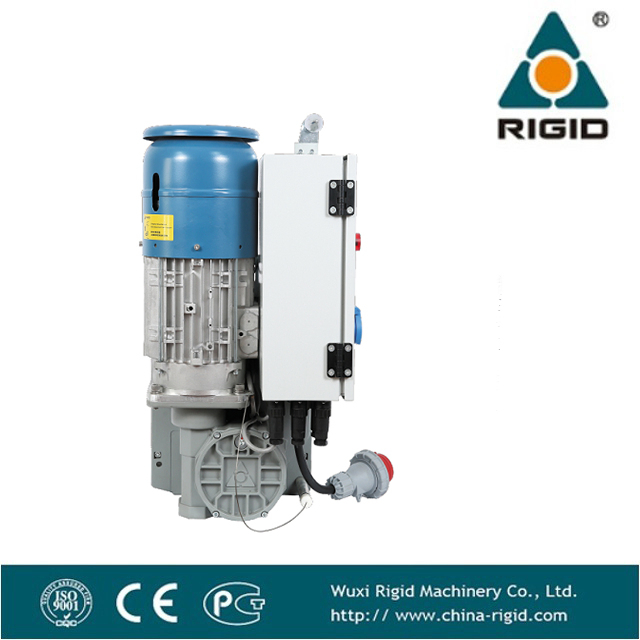

LTD-P Electric Wire Rope Man-Riding Hoist

Endless passenger elevation (man-riding) hoist designed to be used with unlimited rope lengths for lifting and lowering personnel. Capacities range from 500kg to 1000kg at either 9 or 18 m/min.

The LTD-P Series unlimited cable (wire rope) passenger lifting hoist is a versatile solution suitable for unlimited applications. The rope is not connected which makes it compact, lightweight and very easy to handle. The unrestricted wire rope lengths capability makes it possible to utilise unlimited lifting heights and traction lengths.

Features and Benefits

★

The robust, precisely machined housing of die-cast aluminium, ensures a low dead-weight and outstanding rigidity.

★

Gearing and drive sheave is fabricated from hardened steel.

★

Universal attachment of the winches is capable by means of a central 16mm load pin, or two M10 screws.

★

Motor protection: Protected to IP55 as standard.

★

Standard LTD-P series operating voltage: 380V, 3ph, 50Hz (custom voltage available).

★

Control Voltage: 24V for mobile application units and 42V for stationary models.

★

Phase monitoring: Standard on mobile application models.

★

Hoist motor fitted with thermal overload protection device.

★

Certification: Certified by independent inspection institute (TUV).

★

Drive sheave and pressure rollers of special nitrided steel (70 HRC) for low wear.

★

Fully-synthetic special oil for high efficiency and quiet running (-40°C to 70°C).

★

Standardised components ensure easy access to all wearing parts.

Main Parameters of LTD Series Hoist

Model	Capacity (kg)	Lifting Speed (m/min)	Nominal Rope Dia (mm)	Motor (kW)	Weight (kg)
LTD50-8P9	500	9	8.3	1.1	46
LTD50-8P18	500	18	8.3	2.0	47
LTD63-8P9	600	9	8.3	1.5	48
LTD63-8P18	600	18	8.3	2.2	49
LTD80-9P9	800	9	9	1.8	50
LTD80-9P18	800	18	9	3.0	53
LTD100-10P9	1000	9	10.2	2.2	51
LTD100-10P18	1000	18	10.2	4.0	62

*Voltage and frequency are available upon request.

Safety for Passenger Elevation

In accordance with DIN EN1808, each hoist used for passenger elevation must feature a safety system on an independent safety rope. We offer two different safety fall arresters approved for passenger elevation, certified by TUV.

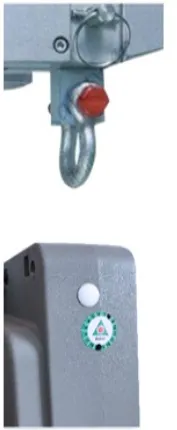

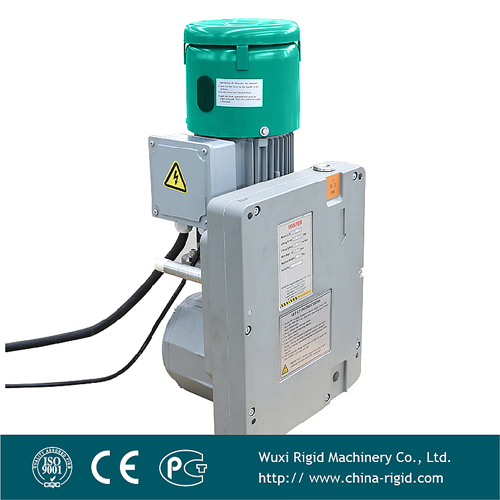

Flexible Attachment Points

Attachment points in the corners of the housing are available for flexible attachment of the winch with screws or pins.

Inner Mechanism Overload

When the load reaches or exceeds the limit, the hoist will stop rising or only descend.

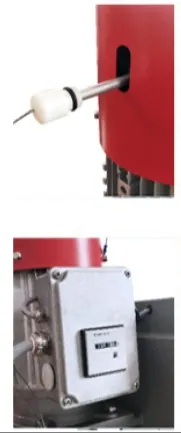

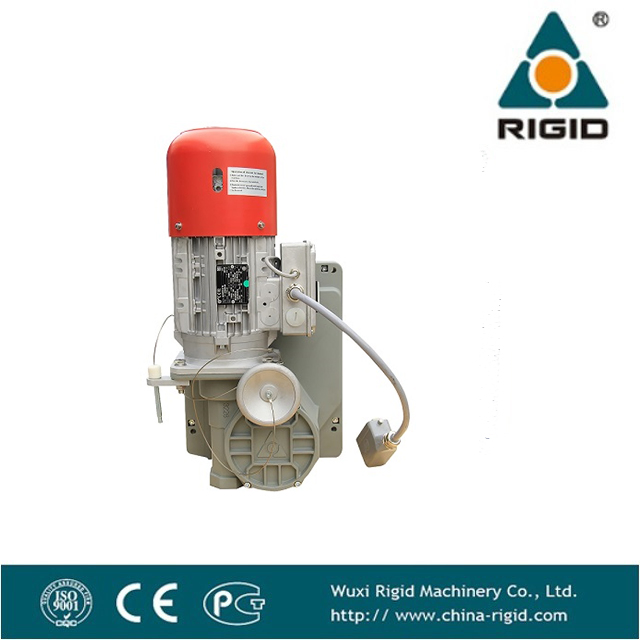

Safety Lowering Mechanism

In the event of a power failure, the electric-mechanical brake can be released manually for safe, controlled lowering.

Counters

Records operating hours and number of starts for maintenance tracking.

Safety Devices (OSL & LSF)

Overspeed safety fall arrester (OSL)

Automatically tripped when lowering speed exceeds 30m/min. Clamping jaw mechanism stops the rope within centimeters.

Anti-tilting safety fall arrester (LSF)

Automatically tripped when the angle of the rope or platform exceeds 5°. Immediately stops movement.

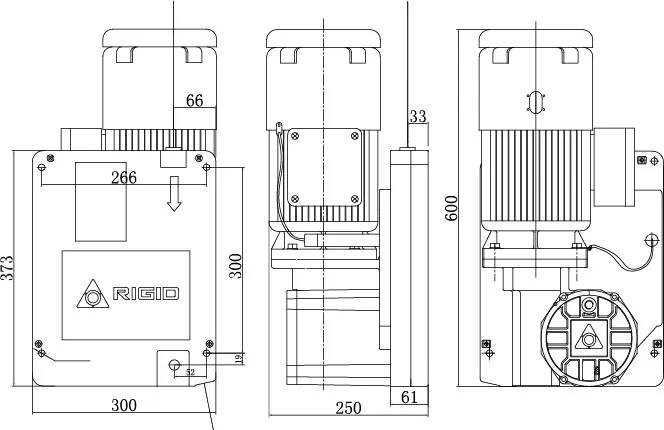

Dimensional Specifications

Frequently Asked Questions

What is the maximum lifting capacity of the LTD-P hoist?

The LTD-P series offers capacities ranging from 500kg up to 1000kg, depending on the specific model chosen.

Does this hoist comply with international safety standards?

Yes, the hoist is CE and TUV certified. It also complies with the DIN EN 1808 standard for safety requirements on suspended access equipment for passenger elevation.

What lifting speeds are available?

The LTD-P series is available with two standard lifting speeds: 9 m/min or 18 m/min.

How does the safety system handle power failures?

The hoist is equipped with a safety lowering mechanism that allows the electric-mechanical brake to be released manually, ensuring a safe and controlled descent during power outages.

Is the lifting height limited?

No, the "endless" design of the LTD-P hoist means the rope is not stored on a drum, allowing for unlimited lifting heights and traction lengths.

What kind of maintenance tracking does the hoist offer?

The hoist includes counters that record total operating hours and the number of starts, helping operators manage maintenance intervals effectively.
