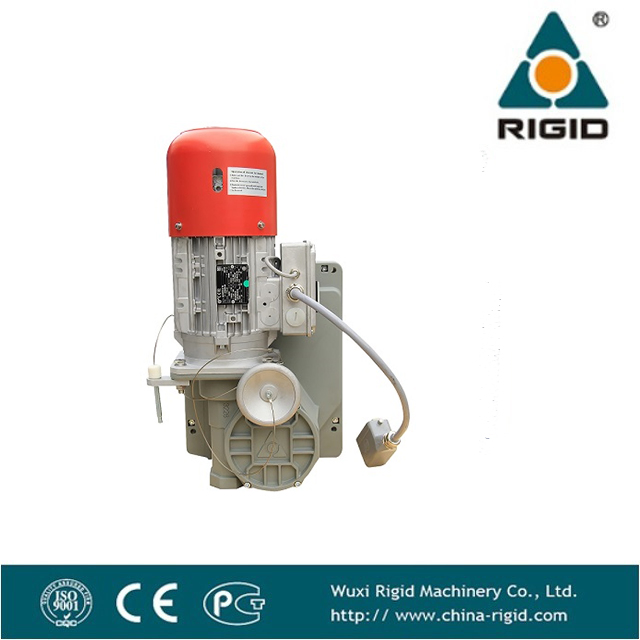

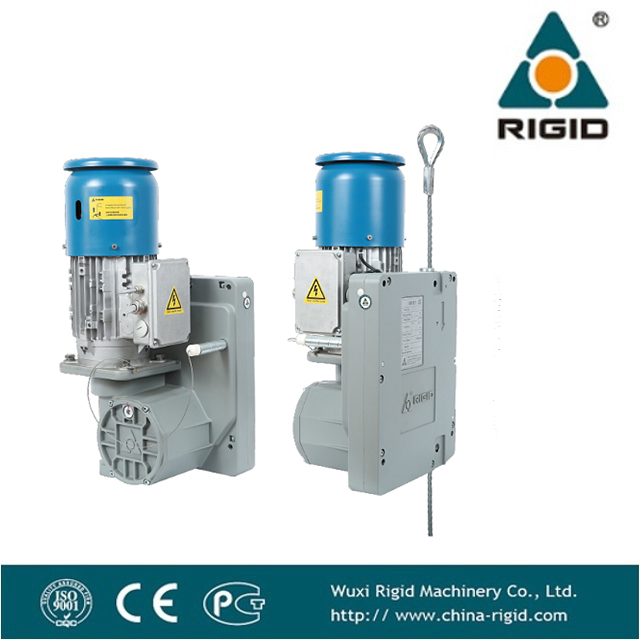

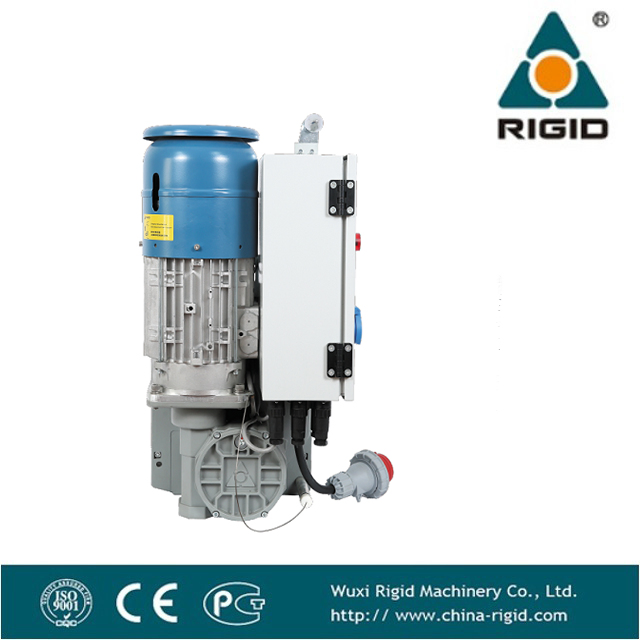

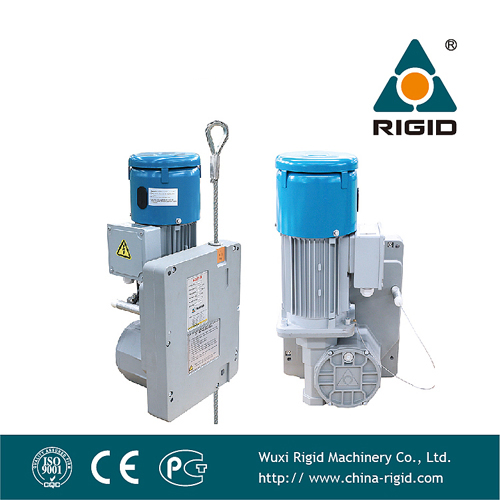

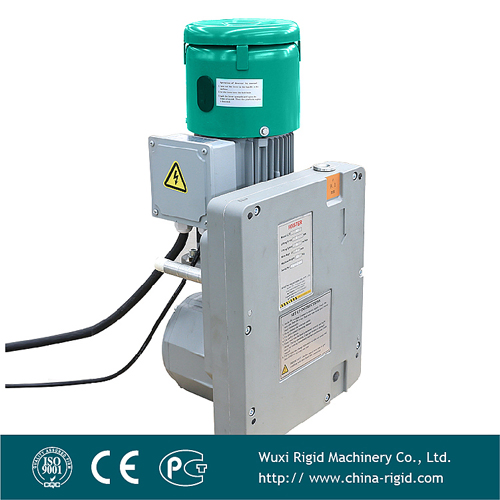

Endless passenger elevation (man-riding) hoist designed to be used with unlimited rope lengths for lifting and lowering personnel. Capacities range from 500kg to 1000kg at either 9 or 18 m/min.

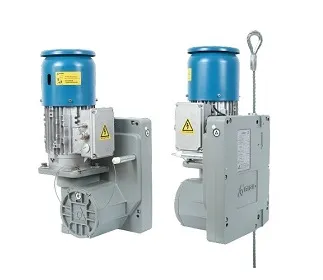

The LTD-P Series unlimited cable (wire rope) passenger lifting hoist is a versatile solution suitable for unlimited applications. The rope is not connected, making it compact, lightweight, and very easy to handle. The unrestricted wire rope lengths capability makes it possible to utilize unlimited lifting heights and traction lengths.
| Model | Capacity (kg) | Lifting Speed (m/min) | Nominal Rope Dia (mm) | Motor (kW) | Weight (kg) |
|---|---|---|---|---|---|
| LTD50-8P9 | 500 | 9 | 8.3 | 1.1 | 46 |
| LTD50-8P18 | 500 | 18 | 8.3 | 2.0 | 47 |
| LTD63-8P9 | 600 | 9 | 8.3 | 1.5 | 48 |
| LTD63-8P18 | 600 | 18 | 8.3 | 2.2 | 49 |
| LTD80-9P9 | 800 | 9 | 9 | 1.8 | 50 |
| LTD80-9P18 | 800 | 18 | 9 | 3.0 | 53 |
| LTD100-10P9 | 1000 | 9 | 10.2 | 2.2 | 51 |
| LTD100-10P18 | 1000 | 18 | 10.2 | 4.0 | 62 |
*Voltage and frequency are available upon request.

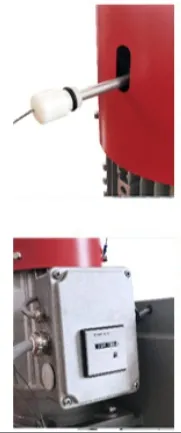

In accordance with DIN EN1808 requirements, each hoist used for passenger elevation must feature a safety system on an independent safety rope. These safety fall arresters are approved for passenger elevation and comply with standard DIN EN 1808.
Overspeed Fall Arrester (OSL)
Automatically trips when lowering speed exceeds 30m/min. Integrated clamping mechanism stops the rope within centimeters.
Anti-tilting Fall Arrester (LSF)
Trips when the angle of the rope or platform exceeds 5°. Immediately stops movement of the system.
