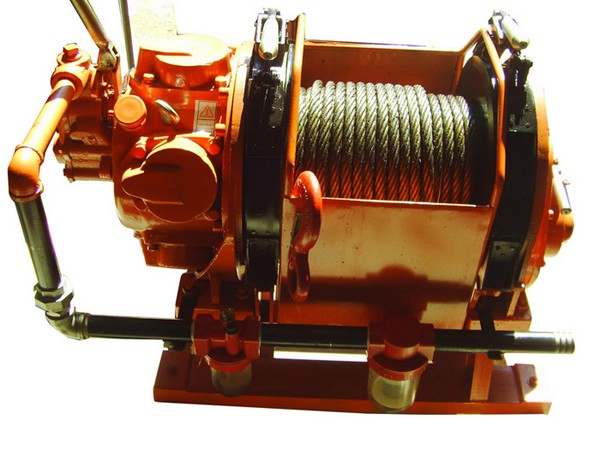

Ex-Proof 10 Ton Air Pneumatic Wire Rope Winch for Oil Gas Coal Mine Industry

1 / 5

Ex-Proof 10 Ton Air Pneumatic Wire Rope Winch for Oil Gas Coal Mine Industry

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Ex-proof 10 Ton Air Pneumatic Wire Rope Winch

Industrial Application: Oil, Gas, and Coal Mine Industry

Spark proof air chain hoist (0.1 ton - 50 tons)
Air trolley (0.1 ton - 50 tons)
Pneumatic cranes (0.5 tons - 10 tons)
Flame-proof Monorail Trolley (0.5 tons - 30 tons)
Chain Blocks and Chain hoist without spark (0.5 tons - 30 tons)
Air balancer (60kg - 880kgs)
Hand hydraulic carrier
Mobile horizontal hydraulic jack car
Movable gantry crane
Aluminum alloy triangle hoisting frame

Basic Specifications

Model NO.

QDJC100

Driven Type

Air / Pneumatic

Tonnage

10T (10000kg)

Feature

Explosion-Proof

Lifting Speed

6m/Min

Rated Power

30kw

Air Intake Pressure

0.6-0.8 Mpa

Wire Capacity

100m

Certification

ISO 9001

Running Mode

Stationary

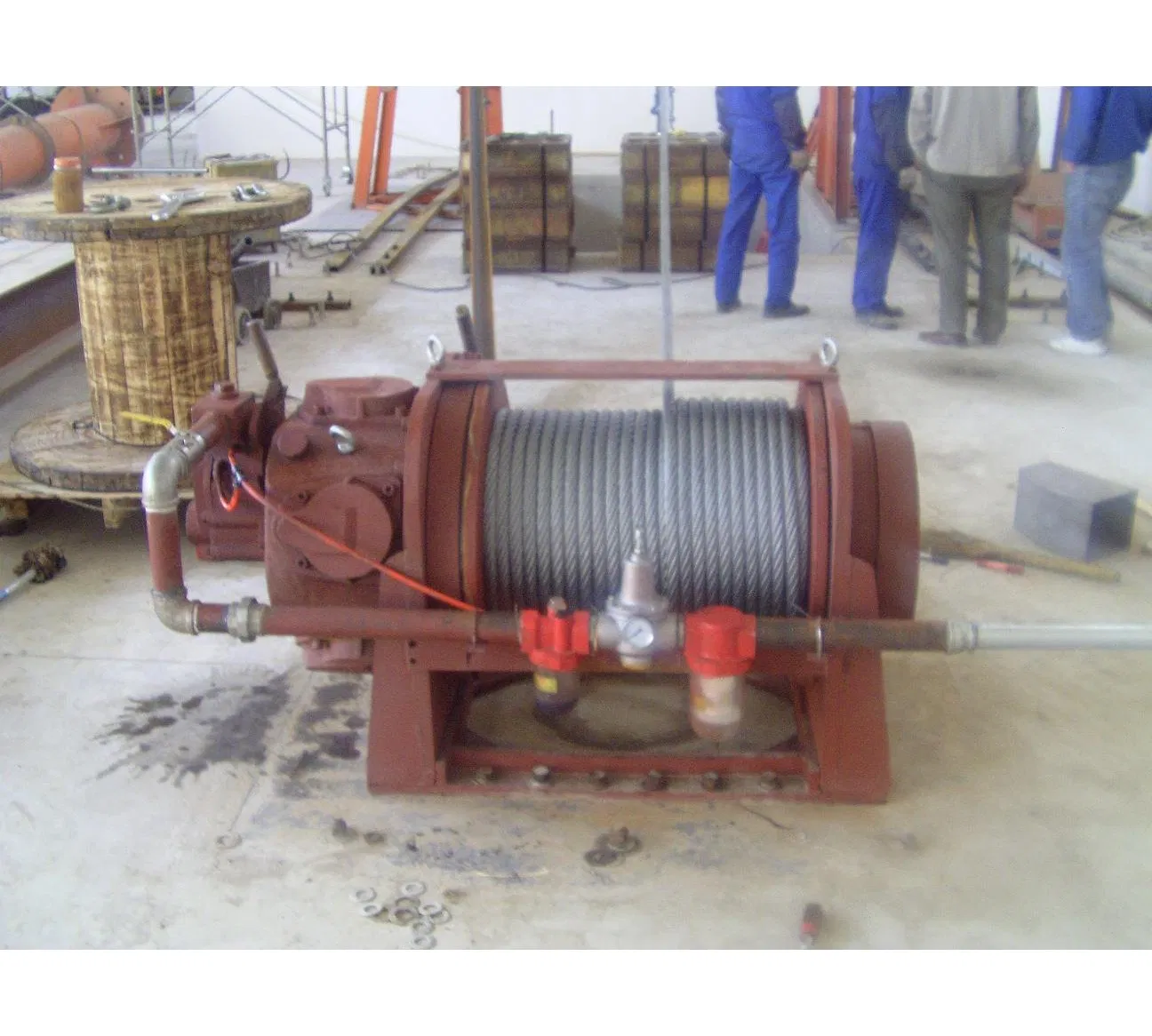

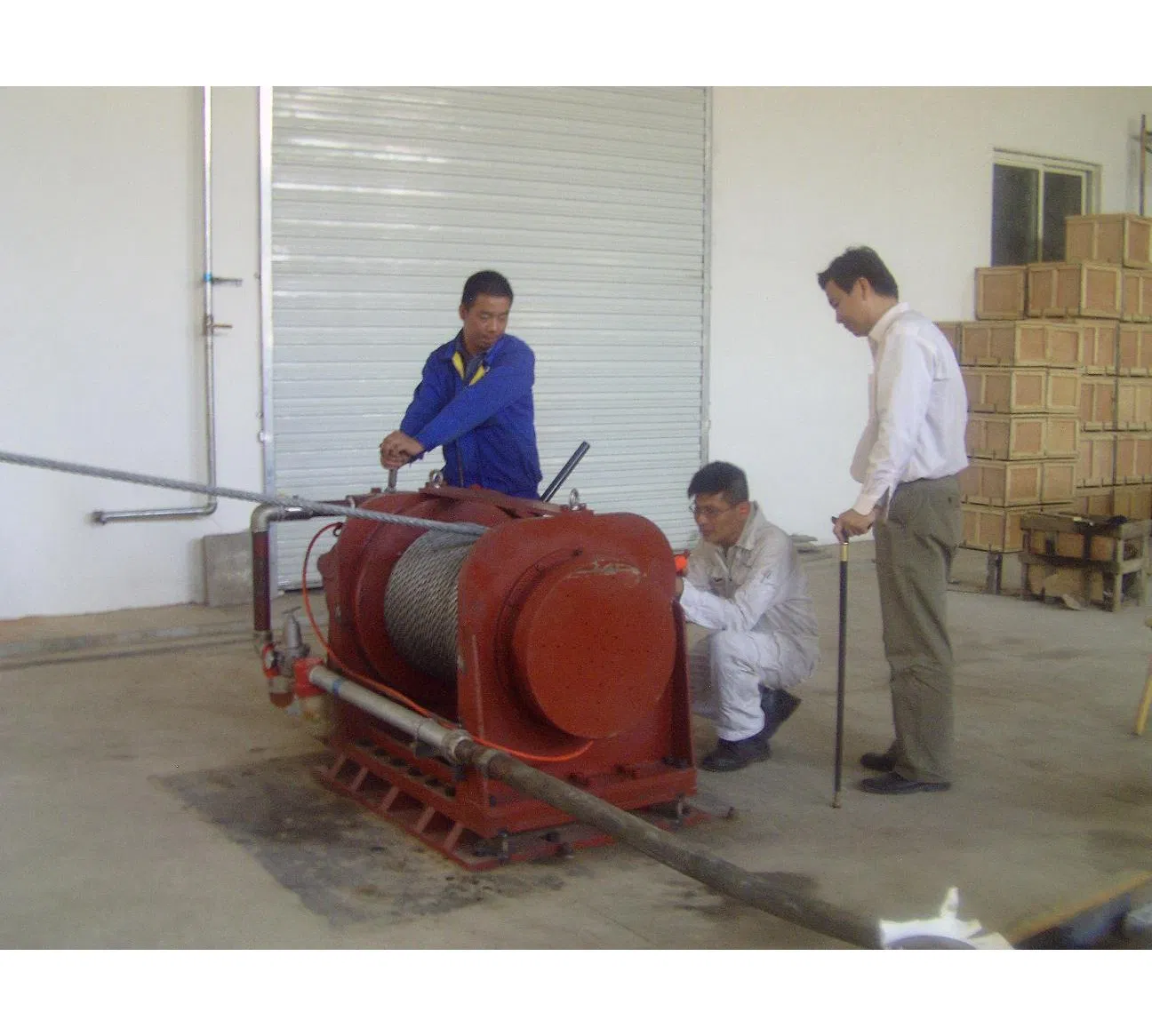

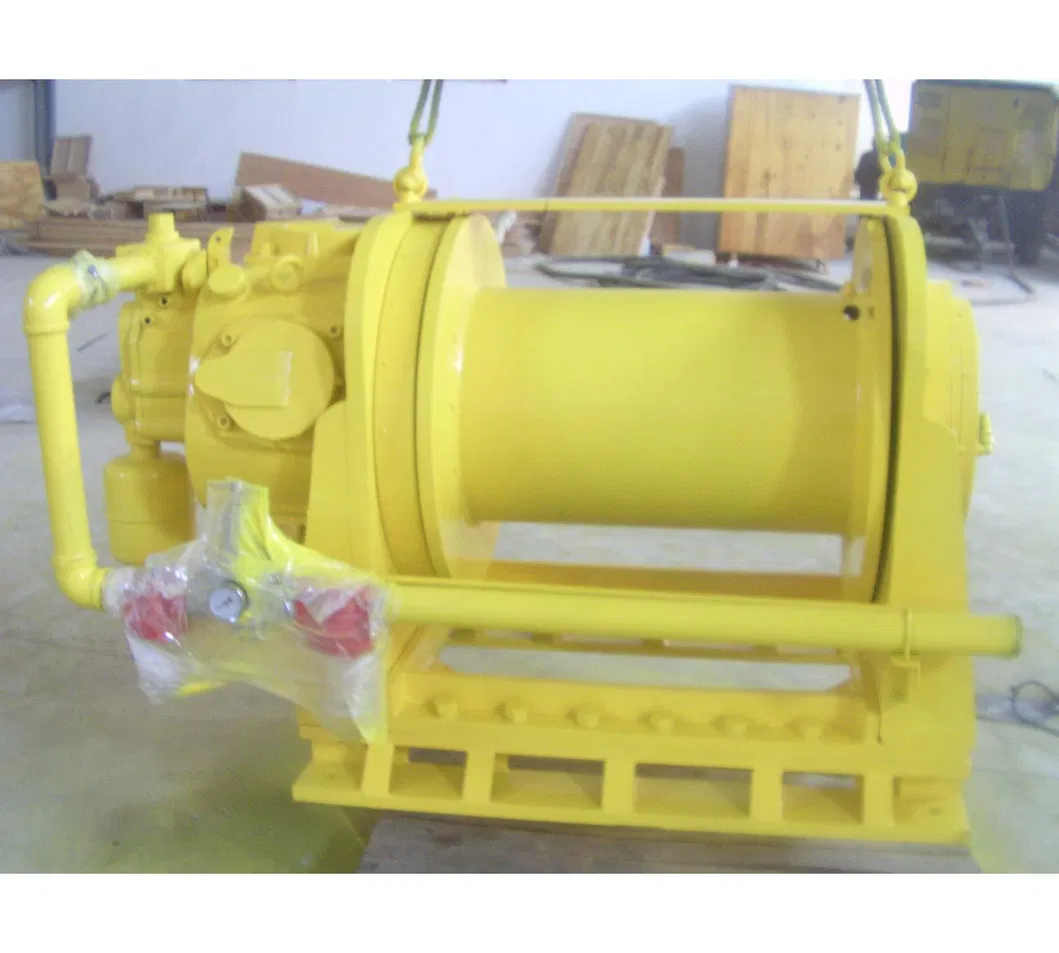

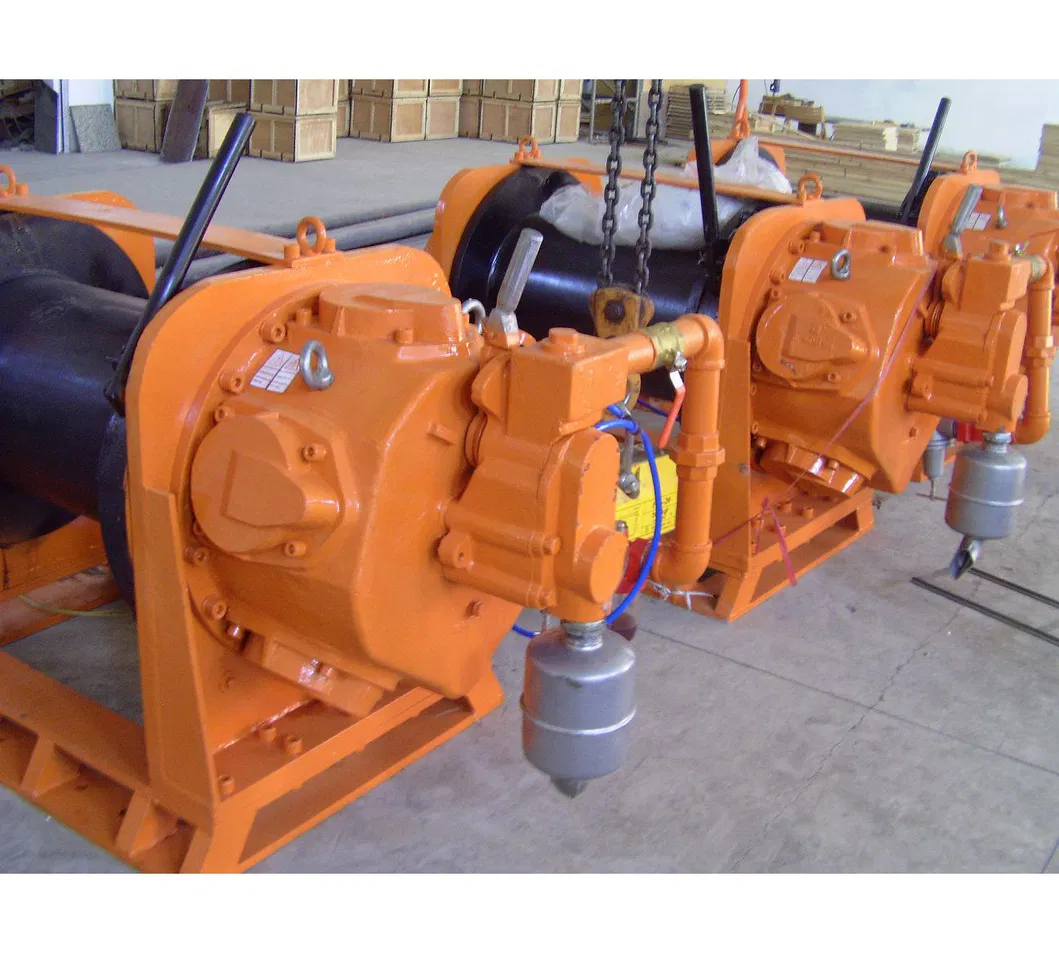

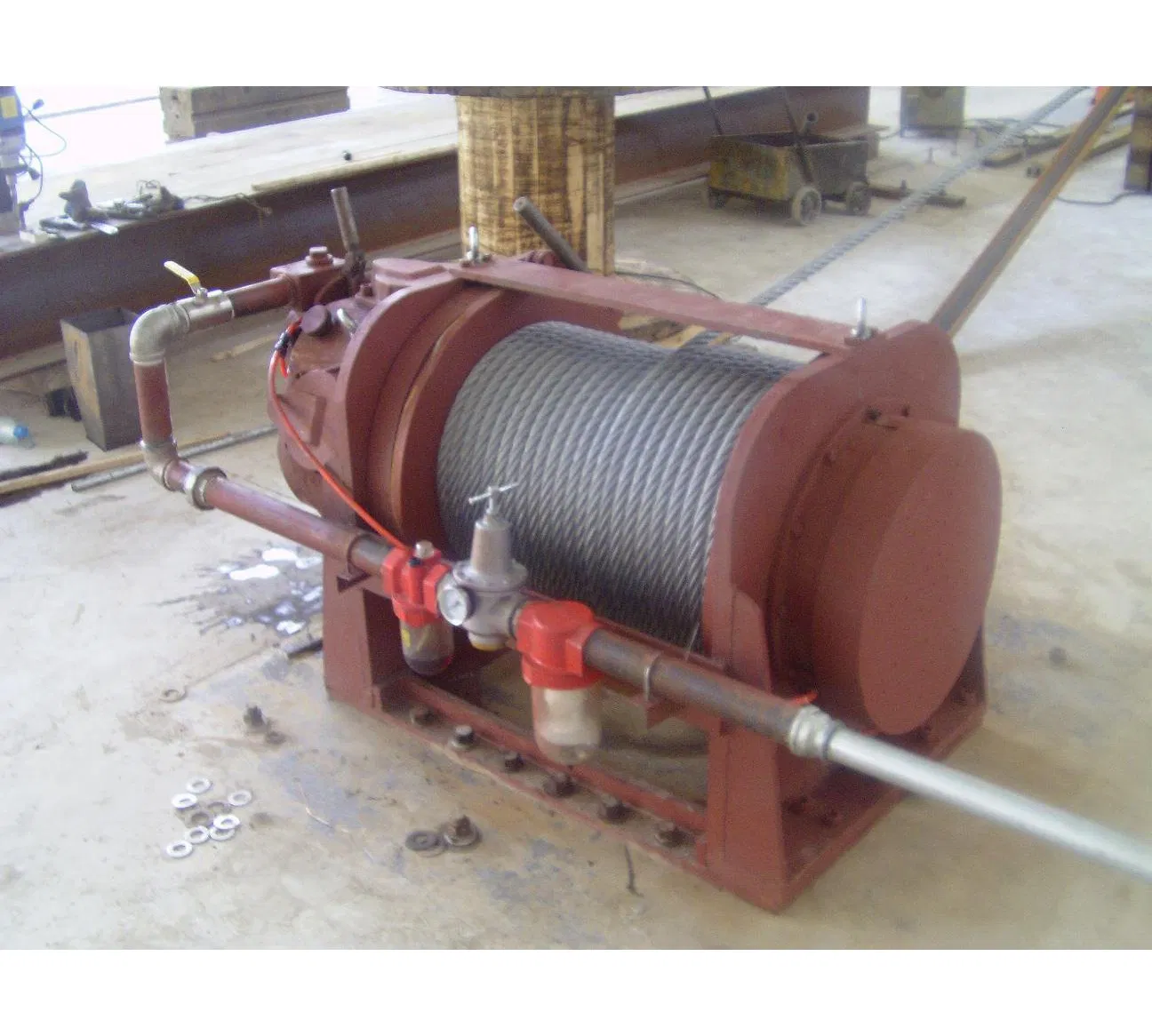

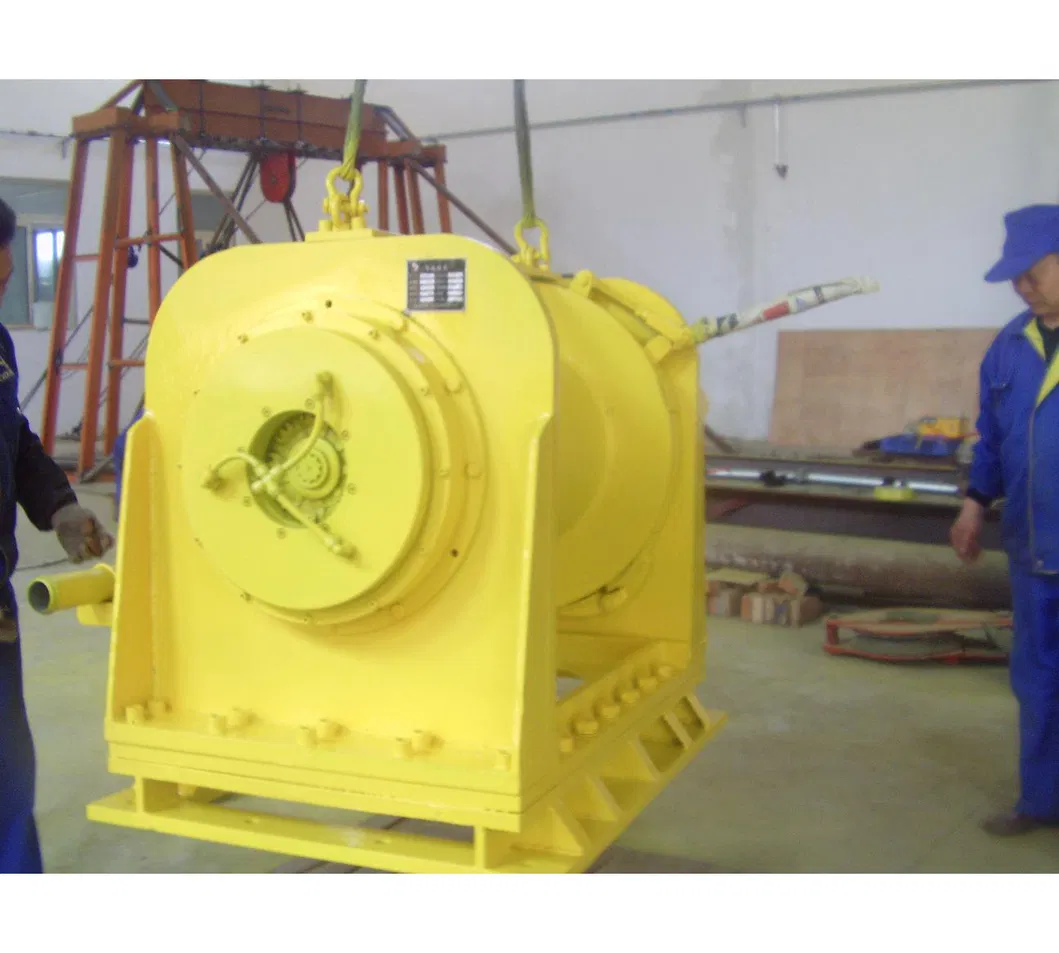

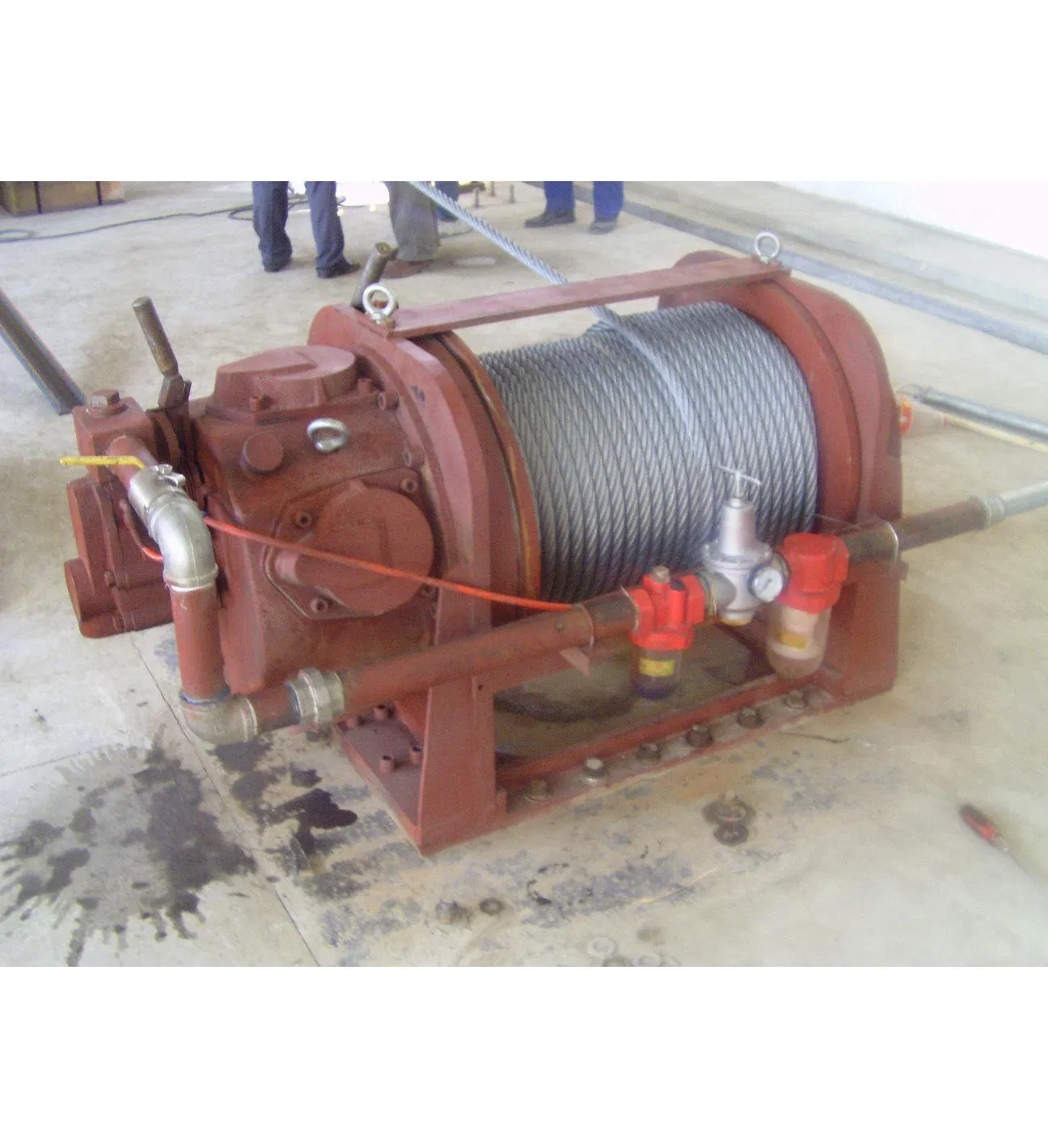

Product Visuals

Technical Comparison Data

Model	Max. Lifting Force	Max. Speed	Rated Power	Air Pressure	Wire Capacity	Wire Diameter	Net Weight
QDJC-5	5KN	48 m/min	2.7 KW	0.6-0.8 Mpa	120m	7.8mm	70Kg
QDJC-10	10KN	30 m/min	4.1 KW	0.6-0.8 Mpa	120m	12mm	160Kg
QDJC-20	20KN	24 m/min	4.6 KW	0.6-0.8 Mpa	100m	14mm	170Kg
QDJC-30	30KN	20 m/min	10.2 KW	0.6-0.8 Mpa	100m	16mm	310Kg
QDJC-50	50KN	12 m/min	16 KW	0.6-0.8 Mpa	100m	20mm	500Kg
QDJC-100	100KN	6 m/min	30 KW	0.6-0.8 Mpa	100m	26mm	1300Kg
QDJC-150	150KN	4 m/min	32 KW	0.6-0.8 Mpa	100m	28mm	1700Kg
QDJC-200	200KN	3 m/min	40 KW	0.6-0.8 Mpa	100m	30mm	2000Kg

Packaging & Logistics

Package Size

170.00cm * 100.00cm * 100.00cm

Gross Weight

1500.00kg

Transport Package

Wooden Case

Production Capacity

5000 Units/Year

Frequently Asked Questions

What makes the QDJC100 winch suitable for mine industries?

The QDJC100 is specifically designed with explosion-proof and spark-proof features, making it safe for high-risk environments like oil, gas, and coal mines.

What is the required air pressure for operation?

The standard air intake pressure required for optimal performance ranges between 0.6 and 0.8 Mpa.

What type of braking system is equipped on this air winch?

This model features both a hand brake and a disk brake for enhanced safety and precise control during lifting operations.

What is the maximum lifting capacity and speed of the QDJC100?

The QDJC100 model has a maximum lifting force of 100KN (10 Tons) and a lifting speed of 6 meters per minute.

How is the product protected during shipping?

All winches are securely packed in heavy-duty wooden cases to ensure protection against damage during international transport.

Does this equipment meet international quality standards?

Yes, the production process follows ISO 9001 certifications and adheres to strict National Standards for construction and industrial winches.

Ex-Proof 10 Ton Air Pneumatic Wire Rope Winch for Oil Gas Coal Mine Industry

Product Description

Ex-proof 10 Ton Air Pneumatic Wire Rope Winch

Basic Specifications

Product Visuals

Technical Comparison Data

Packaging & Logistics

Frequently Asked Questions
