Ltd-P Hanging Wire Rope Construction Hoist Construction Lift for Building

Customization:	Available
Application:	Man-Riding
Type:	Electric Hoist

📑 Basic Information

Model NO.

LTD-P

Sling Type

Wire Rope

Lift Speed

9/18m/Min

Max Lifting Height

Customer's Request

Certification

CE, TUV

Condition

New

Voltage

380V (415V/220V)

Frequency

50Hz/60Hz

HS Code

8425110000

Capacity

1000 pieces/Month

🏗️ Product Description

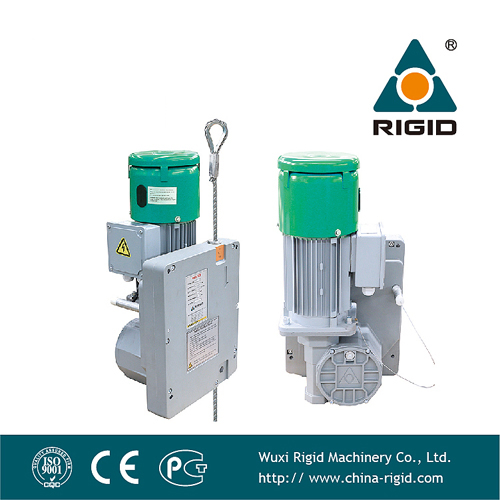

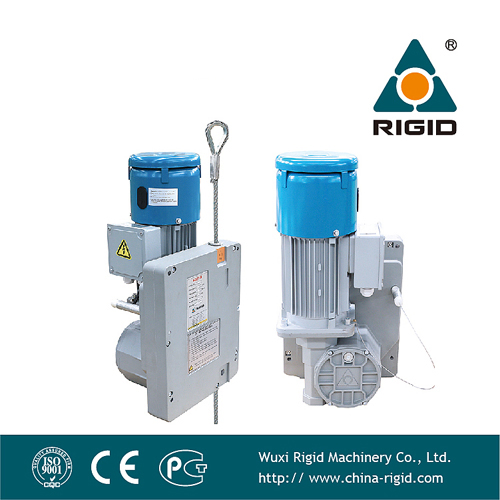

LTD-P Hanging Wire Rope Construction Hoist

Endless passenger elevation (man-riding) hoist designed for unlimited rope lengths for lifting and lowering personnel. Capacities range from 500kg to 1000kg at either 9 or 18 m/min.

The LTD-P Series unlimited cable passenger lifting hoist is versatile and suitable for unlimited applications. The rope is not connected, making it compact, lightweight, and easy to handle. Unrestricted wire rope lengths allow for unlimited lifting heights and traction lengths.

🌟 Features and Benefits

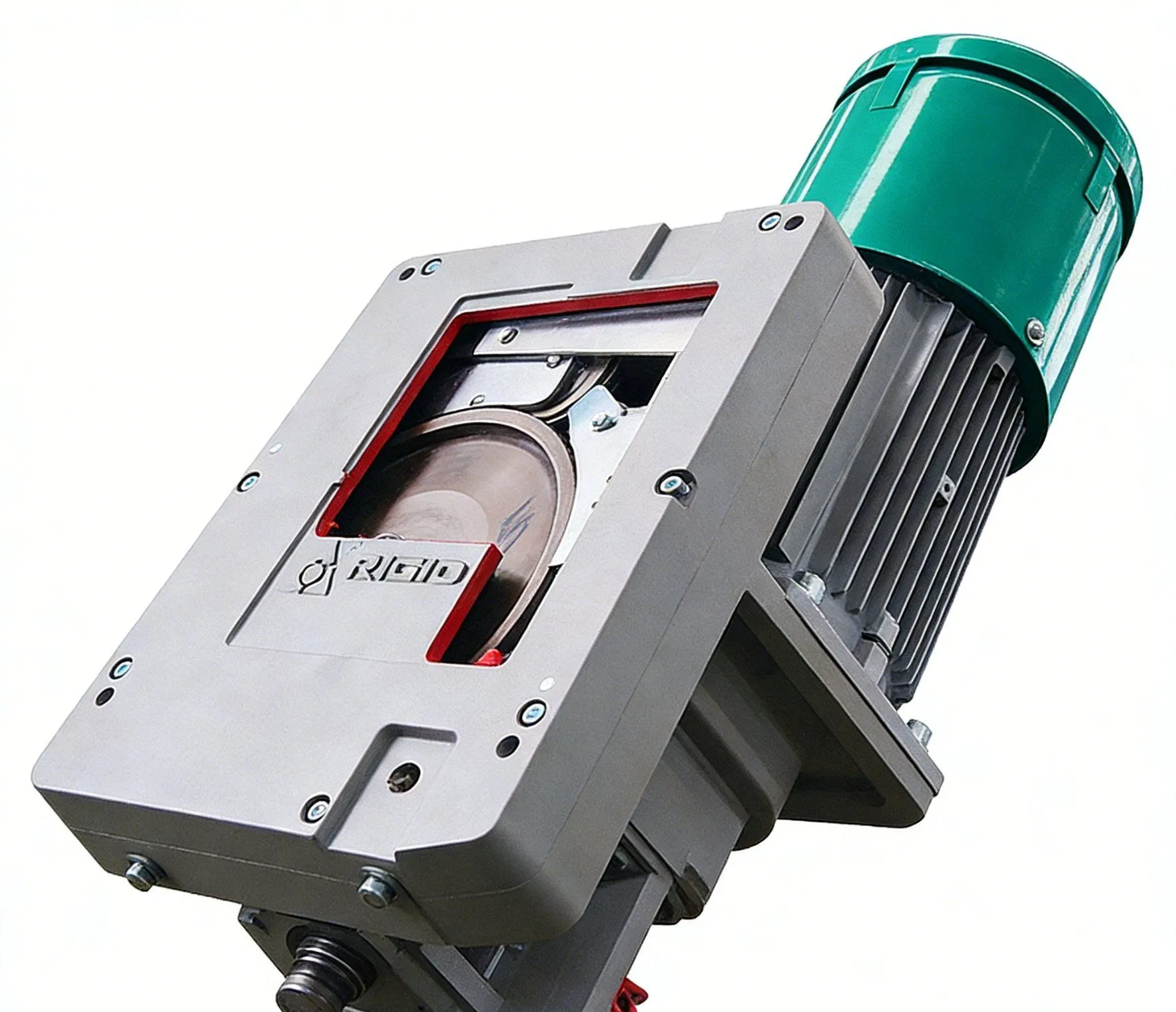

Robust, precisely machined housing of die-cast aluminium for low dead-weight and high rigidity.
Gearing and drive sheave fabricated from hardened steel.
Universal attachment via central 16mm load pin or two M10 screws.
Motor protection: IP55 standard.
Standard operating voltage: 380V, 3ph, 50Hz (Customizable).
Control Voltage: 24V for mobile units, 42V for stationary models.
Thermal overload protection device fitted as standard.
Certified by independent inspection institute (TUV).
Nitrided steel drive sheave and pressure rollers (70 HRC) for low wear.
Fully-synthetic special oil for quiet operation (-40°C to 70°C).
Standardised components for easy access to wearing parts.

📊 Main Parameters of LTD Series Hoist

Model	Capacity (kg)	Lifting speed (m/min)	Rope Diameter (mm)	Motor (kW)	Weight (kg)
LTD50-8P9	500	9	8.3	1.1	46
LTD50-8P18	500	18	8.3	2.0	47
LTD63-8P9	600	9	8.3	1.5	48
LTD63-8P18	600	18	8.3	2.2	49
LTD80-9P9	800	9	9	1.8	50
LTD80-9P18	800	18	9	3.0	53
LTD100-10P9	1000	9	10.2	2.2	51
LTD100-10P18	1000	18	10.2	4.0	62

*Voltage and frequency are available upon request.

🛡️ Safety for Passenger Elevation

In accordance with DIN EN1808, every hoist used for personnel elevation must feature a safety system on an independent rope. Our systems comply with DIN EN 1808 "Safety requirements on suspended access equipment" and are TUV certified.

Flexible Attachment Points
Housing corners allow attachment with screws or pins.

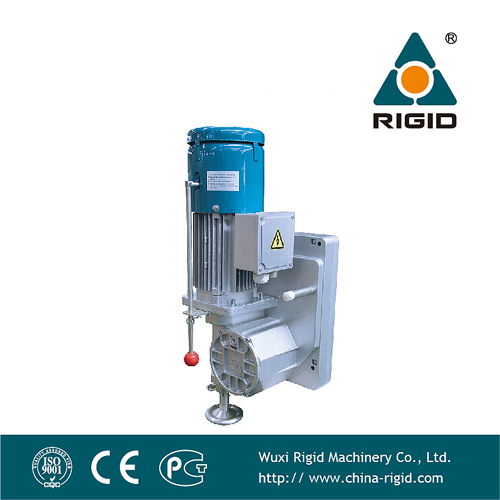

Safety Lowering Mechanism
Manual release for controlled lowering during power failure.

⚙️ Safety Devices

Overspeed fall arrester (OSL)
Automatically trips when speed exceeds 30m/min.

Anti-tilting fall arrester (LSF)
Trips automatically if the platform angle exceeds 5°.

📐 Dimensional Specifications

❓ Frequently Asked Questions

1. What is the weight capacity range of the LTD-P hoist? The LTD-P series offers capacities ranging from 500kg up to 1000kg, depending on the specific model selected.

2. Is the lifting height limited for this hoist? No, the LTD-P series is an "endless" hoist, meaning it can handle unlimited wire rope lengths, allowing for unrestricted lifting heights.

3. Does this hoist meet safety standards for personnel? Yes, it is specifically designed for man-riding applications and complies with DIN EN 1808 safety standards and is TUV certified.

4. Can I customize the voltage and frequency? While the standard is 380V/50Hz, other operating voltages and frequencies can be provided upon customer request.

5. What happens if there is a power failure while in use? The hoist features an electric-mechanical brake that can be manually released to ensure a safe and controlled lowering of the load.

6. What safety devices are included for passenger elevation? It includes an overspeed safety fall arrester (OSL) and an anti-tilting safety fall arrester (LSF) to prevent accidents.
