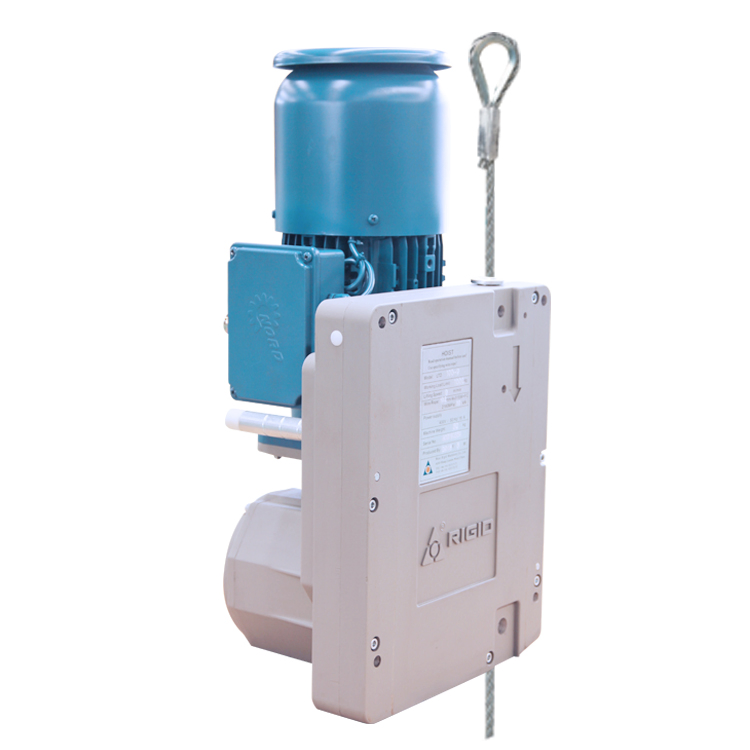

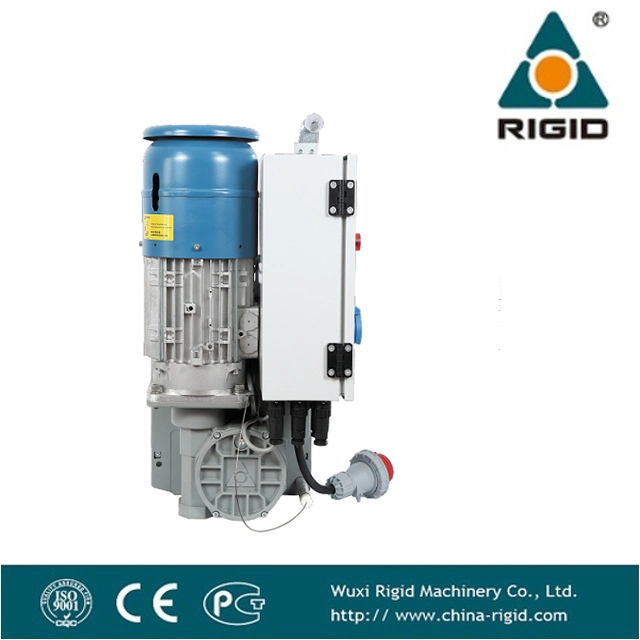

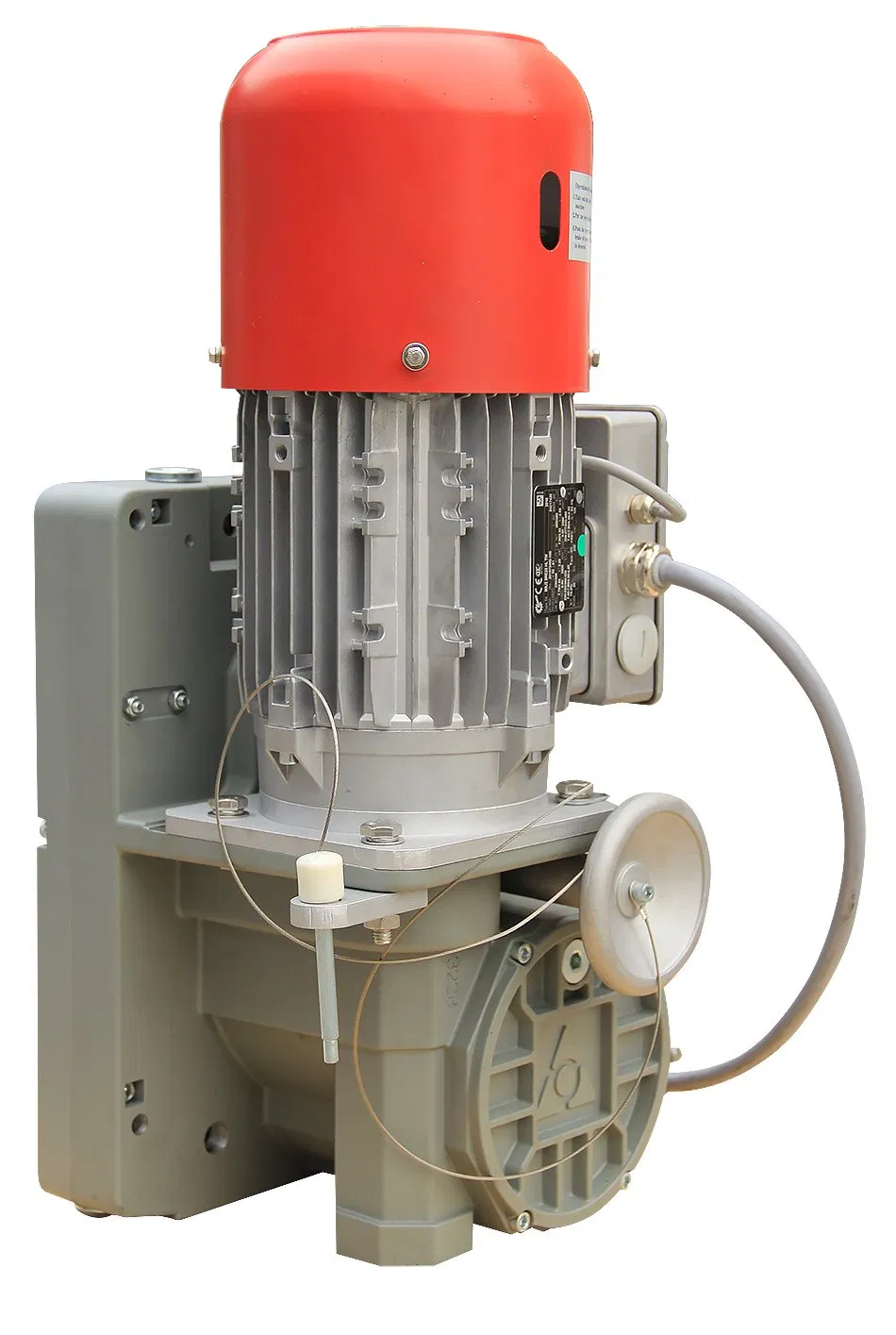

Ltd-P Hanging Wire Rope Suspended Platform Hoist

1 / 5

Ltd-P Hanging Wire Rope Suspended Platform Hoist

Customization:	Available
Voltage:	380V(415V/220V)
Frequency:	50Hz/60Hz

Send Inquiry

Product Description

Basic Specifications

Model NO.:LTD-P

Certificate:TUV CE

Condition:New

Package:Cardboard Box

HS Code:8425110000

Capacity:1000 pieces/Month

LTD-P Hanging Wire Rope Suspended Platform Hoist

🎯 Endless passenger elevation (man-riding) hoist designed for unlimited rope lengths.

The LTD-P Series unlimited cable passenger lifting hoist is a versatile solution suitable for unlimited applications. Capacities range from 500kg to 1000kg at speeds of 9 or 18 m/min. The rope is not connected, making the unit compact, lightweight, and very easy to handle, enabling unlimited lifting heights and traction lengths.

Features & Benefits

✓Robust die-cast aluminium housing for low dead-weight and rigidity.

✓Gearing and drive sheave fabricated from hardened steel.

✓Universal attachment via central 16mm load pin or M10 screws.

✓IP55 standard motor protection.

✓Standard operating voltage: 380V, 3ph, 50Hz.

✓24V/42V control voltage for enhanced safety.

✓Integrated thermal overload protection device.

✓Certified by TUV independent inspection institute.

✓Nitrided steel drive components (70 HRC) for low wear.

✓Fully-synthetic oil for efficiency (-40°C to 70°C).

✓Easy access to all wearing parts.

✓Standardised components for simplified maintenance.

Main Parameters

Model	Capacity (kg)	Lifting Speed (m/min)	Rope Diameter (mm)	Motor (kW)	Weight (kg)
LTD50-8P9	500	9	8.3	1.1	46
LTD50-8P18	500	18	8.3	2.0	47
LTD63-8P9	600	9	8.3	1.5	48
LTD63-8P18	600	18	8.3	2.2	49
LTD80-9P9	800	9	9	1.8	50
LTD80-9P18	800	18	9	3.0	53
LTD100-10P9	1000	9	10.2	2.2	51
LTD100-10P18	1000	18	10.2	4.0	62

*Voltage and frequency are available upon request.

Safety for Passenger Elevation

In accordance with DIN EN1808 requirements, each hoist for passenger elevation features an independent safety rope system. Both systems are TUV certified.

Flexible Attachment Points

Safety Lowering Mechanism

Overspeed Fall Arrester (OSL)

Trips automatically when lowering speed exceeds 30m/min (0.5m/s), stopping the rope within centimetres.

Anti-tilting Fall Arrester (LSF)

Trips automatically when the rope or platform angle exceeds 5°, immediately stopping movement.

Dimensional Specifications

Frequently Asked Questions

Q1: What is the maximum capacity of the LTD-P series hoist? A: The LTD-P series offers a range of capacities from 500kg up to 1000kg, depending on the specific model selected.

Q2: Is this hoist suitable for man-riding applications? A: Yes, it is specifically designed for passenger elevation (man-riding) and complies with the DIN EN 1808 safety standards.

Q3: How does the hoist handle power failures? A: In the event of power loss, the electric-mechanical brake can be released manually to ensure a safe and controlled lowering of the load.

Q4: What happens if the hoist exceeds its load limit? A: The hoist is equipped with an inner mechanism overload protector. When the limit is reached, it will stop rising and only allow descending.

Q5: Can the operating voltage be customized? A: Yes, while the standard voltage is 380V/50Hz, other operating voltages and frequencies are available upon request.

Q6: What certifications do these hoists have? A: All LTD-P series hoists and safety fall arresters are certified by TUV, an independent inspection institute.
