Heavy Duty Double Girder Rubber-Tyred 50t Rtg Gantry Crane

Customization:	Available
After-sales Service:	for All Service Life
Warranty:	2 Years

Send Inquiry

Product Description

📋 Basic Information

Model NO.

YTL120t

Certification

CE, ISO9001

Condition

New

Max Lifting Weight

>200t

Max Lifting Height

10-15m

Operation Form

Remote Control

Type

Rubber Tyred Gantry Crane

Main Girder Form

Double Girder

Span

5m, 6m, 7m, 8m, Customized

Drive

Hydraulic / Electric

Power

Diesel Generator

Steering

2/4 Wheels Steering

🏗️ Product Description

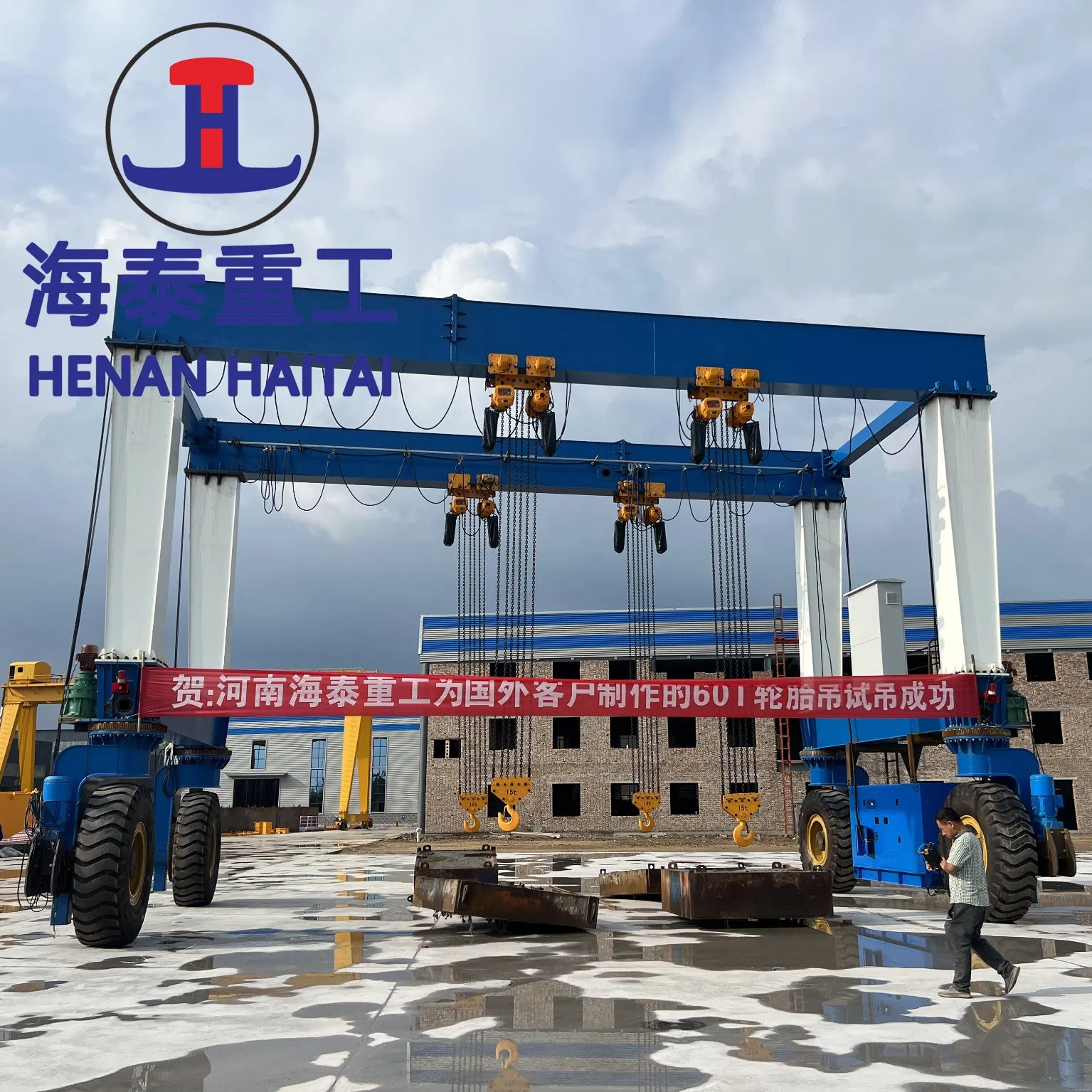

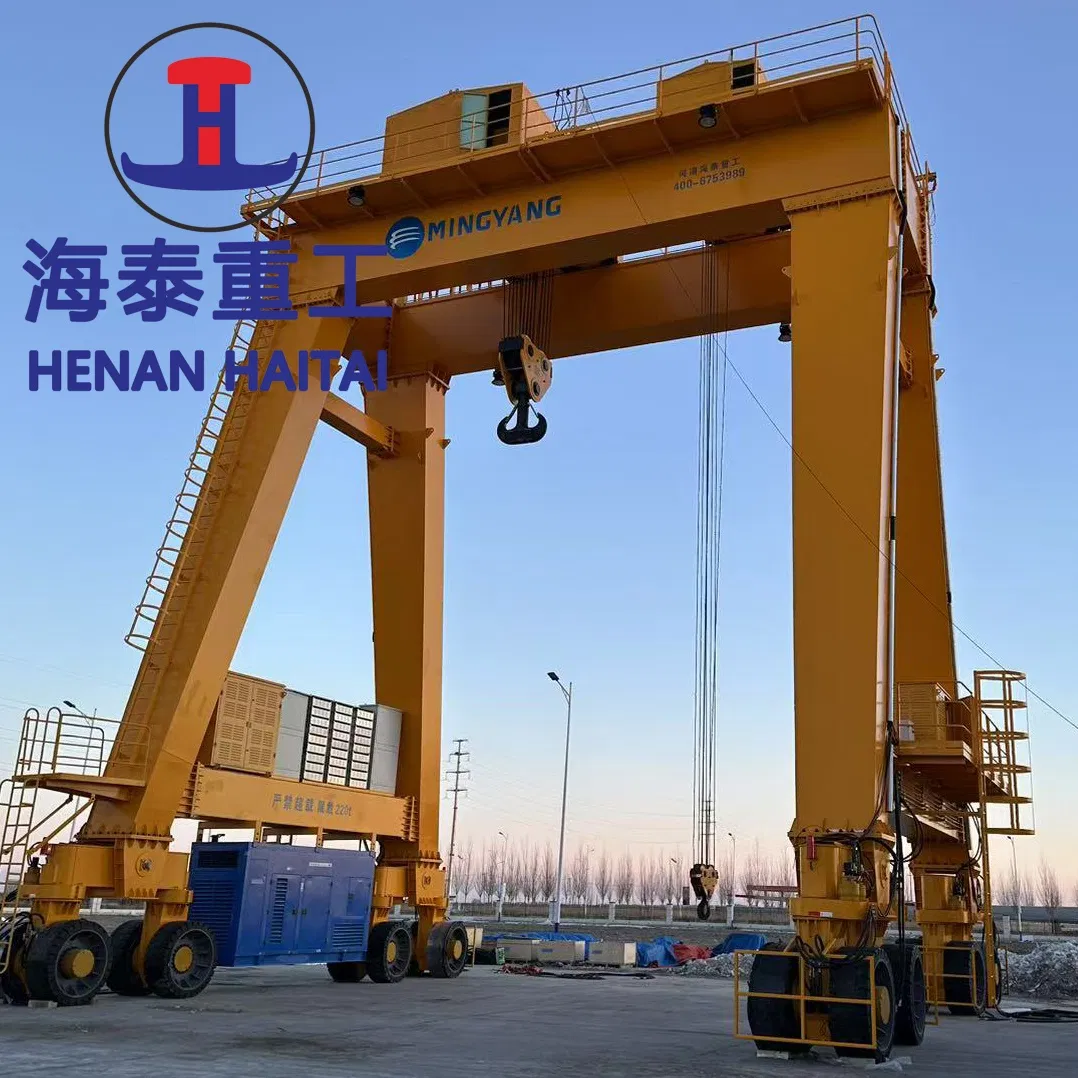

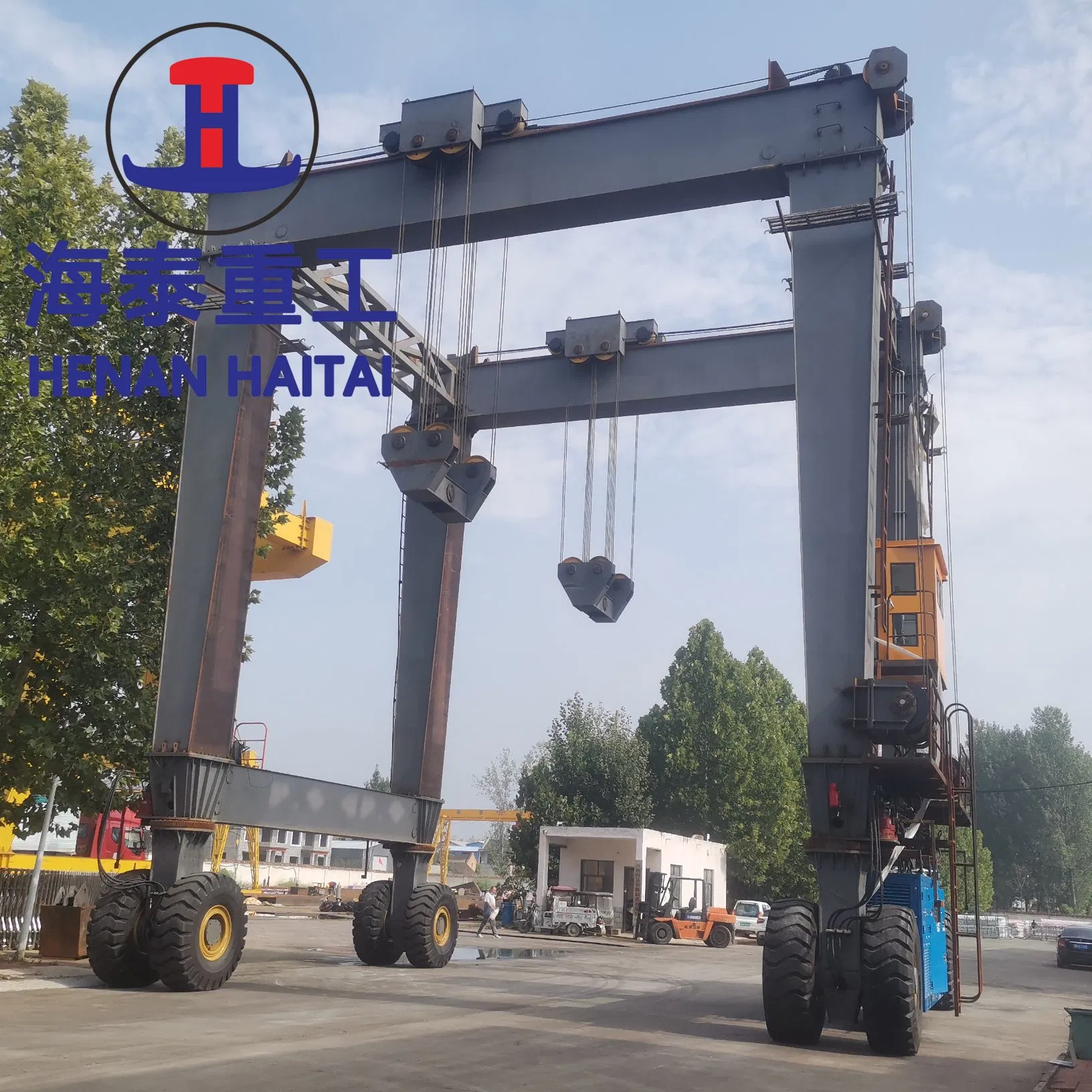

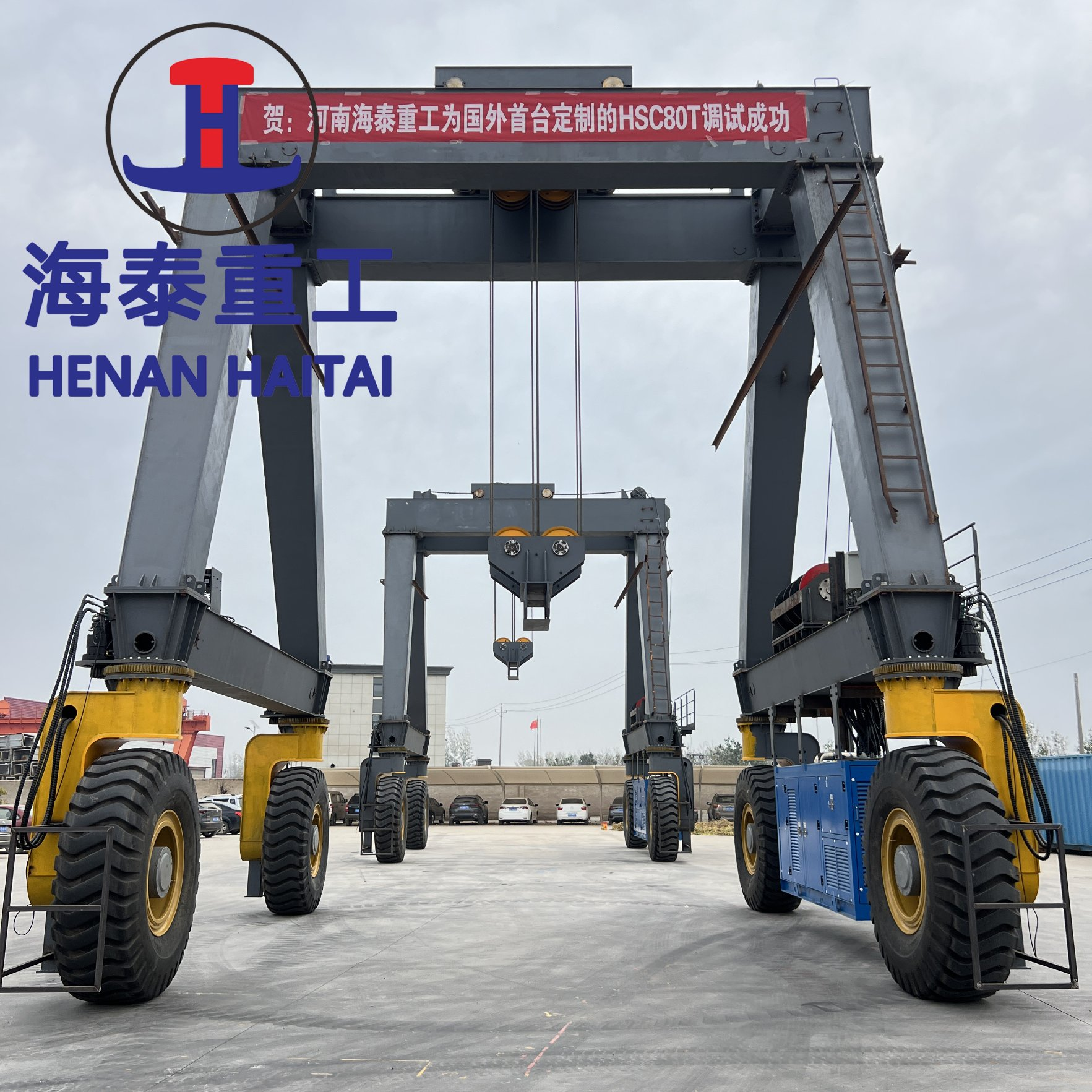

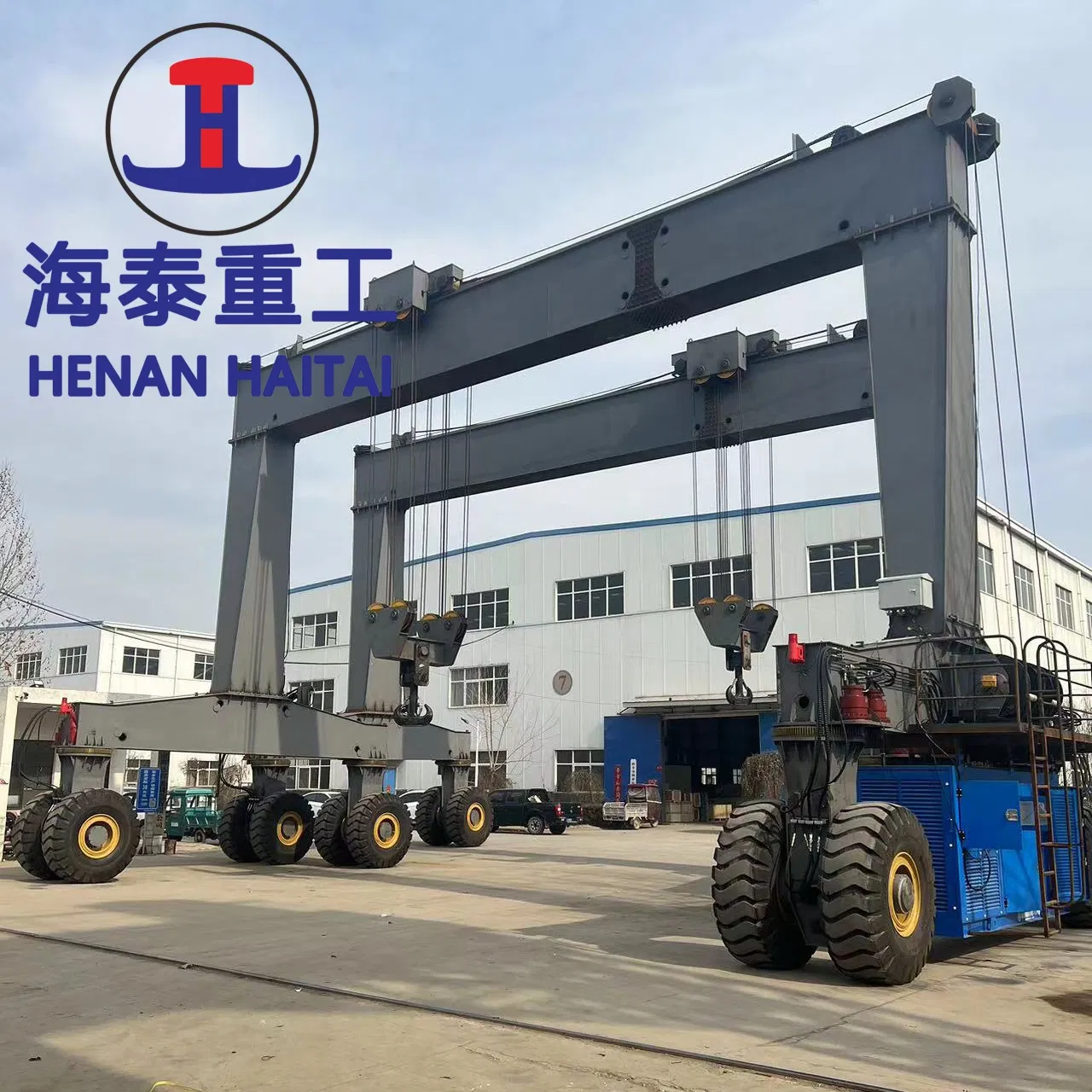

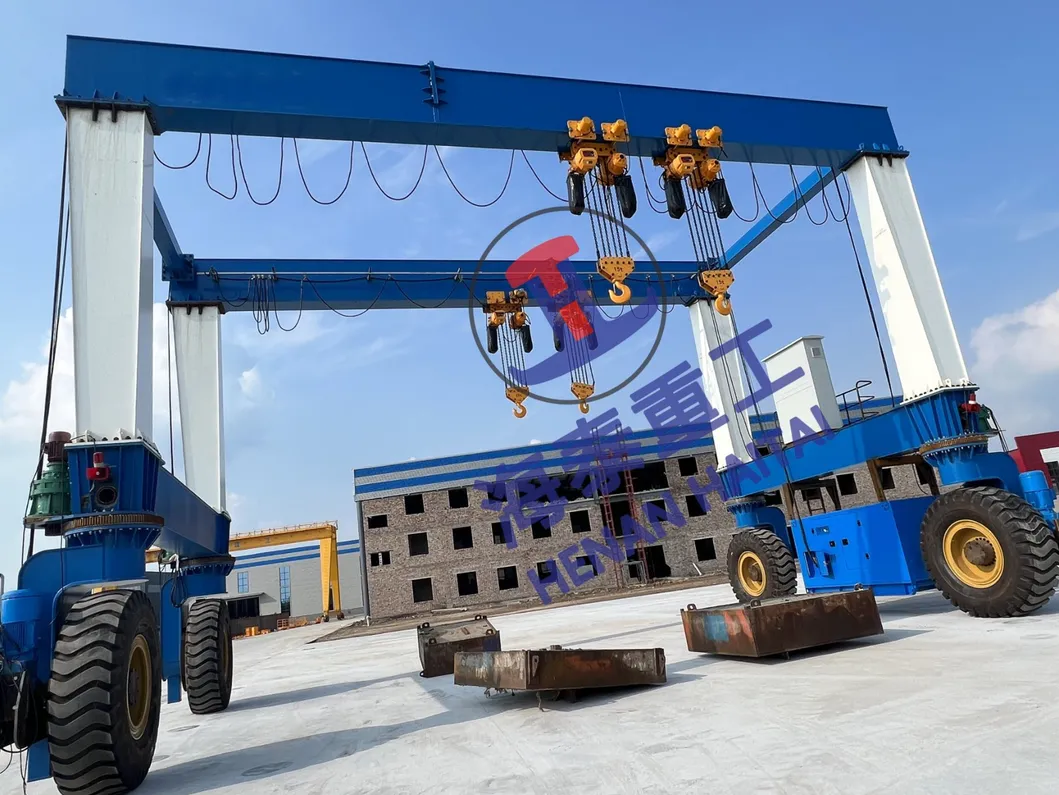

Rubber Tyred Gantry Crane (RTG)

The tyre gantry crane is primarily designed for outdoor handling and transportation tasks. It is characterized by high site utilization, a broad scope of operation, and excellent adaptability to various environments.

Our double beam tyre gantry cranes offer lifting capacities ranging from 20 tons to over 200 tons. Each lifting solution is engineered to solve complex material handling challenges, ensuring the equipment meets specific operational requirements and exceeds performance expectations.

Core Components: Main frame, tire running mechanism, steering mechanism, hydraulic transmission system, power system, electrical system, hoisting system, and integrated safety devices.

⚙️ Key Characteristics & Special Design

✔ Reasonable Structural Design

✔ Imported Core Components

✔ Lower Maintenance Costs

✔ Longer Service Life

⭐ Electro-hydraulic Controls

⭐ Closed Hydraulic System

⭐ Wireless Remote Control

⭐ Slewing Bearing Steering

⭐ Emergency Stop System

⭐ Alarms and Strobe Lights

📄 Technical Drawings & Documents

No.	Name of Drawing / Document	Appr. DWG	Final DWG
1	General Arrangement (G.A.)	YES	YES
2	Hydraulic Drawing	YES	YES
3	Electric Circuit and Wiring Drawing	YES	YES
4	Instruction Manual	-	YES
5	Spare Parts List	-	YES
6	Test Report	-	YES
7	Factory Certification	-	YES
8	Class Certification	-	YES
9	Packing List	-	YES

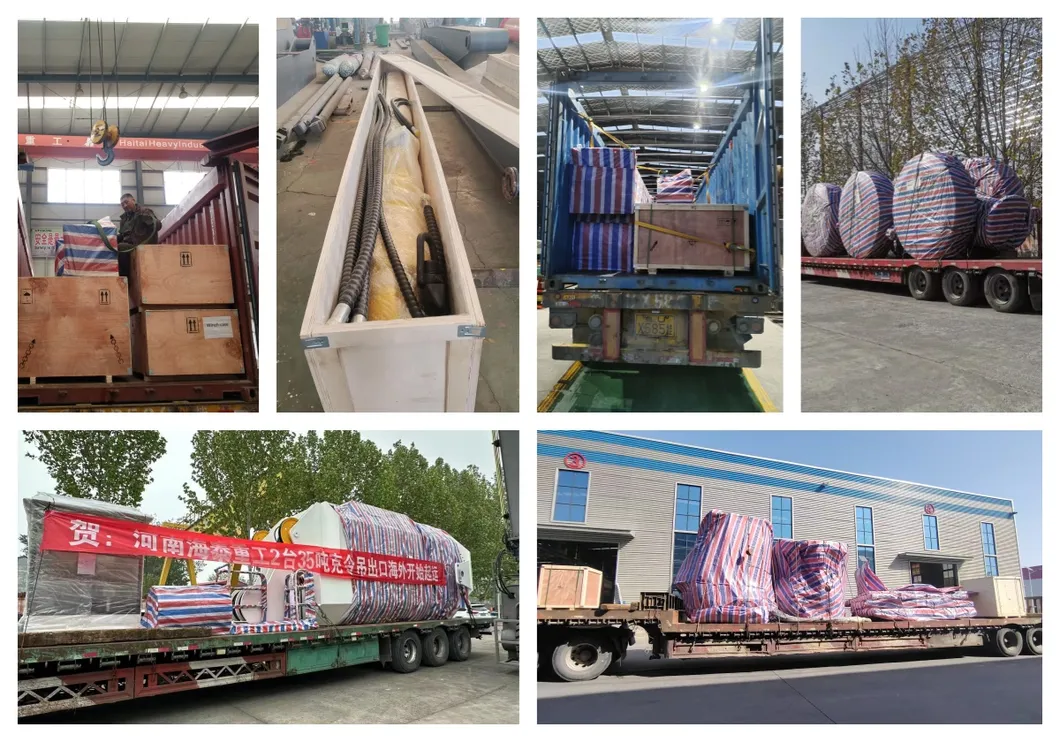

🚢 Packaging & Shipping

Transportation is usually conducted by sea.
Most components are compatible with open-top containers.
Steel structures are protected with plastic cloth; electrical and hydraulic parts are secured in wooden boxes.
Oversized components that exceed container dimensions are loaded onto bulk carriers.

📜 Certifications

The enterprise is a recognized high-tech entity with multiple patents and specialized engineering research status. We maintain rigorous quality standards through the following certifications:

🛡️ ISO9001, ISO45001, ISO14001

🛡️ CCS, BV, RMRS Certification

🛡️ SGS, CE, CUTR Compliance

FAQ

1. What is the maximum lifting capacity of this RTG crane?

Our rubber tyred gantry cranes are designed for heavy-duty operations, with standard models ranging from 20 tons to over 200 tons. Custom solutions for higher capacities are also available.

2. What power source does the crane use?

The crane is powered by a high-efficiency diesel generator, providing the necessary energy for both the hydraulic and electrical systems in outdoor environments.

3. Can the span and lifting height be customized?

Yes, while we offer standard spans of 5m, 6m, 7m, and 8m, all dimensions including span and lifting height (typically 10-15m) can be fully customized to fit your specific site requirements.

4. What steering modes are available for the rubber tires?

The crane features a flexible steering mechanism with options for 2-wheel or 4-wheel steering, utilizing a slewing bearing system for precise movement and maneuverability.

5. How is the equipment controlled?

The crane is operated via a wireless remote control system, allowing the operator to maintain a safe distance while having full control over the electro-hydraulic systems.

6. What international standards do your cranes comply with?

Our products are manufactured under ISO9001 quality management and can be provided with CE, SGS, CCS, BV, and RMRS certifications to meet global safety and quality standards.
