🏗️ Product Overview
What's a gantry crane and what's it used for?

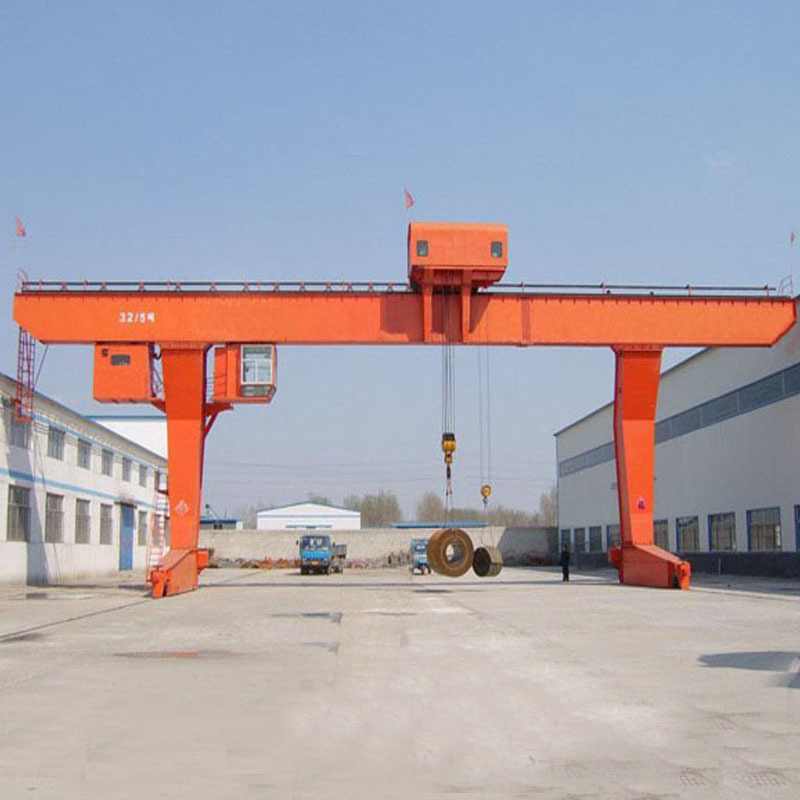

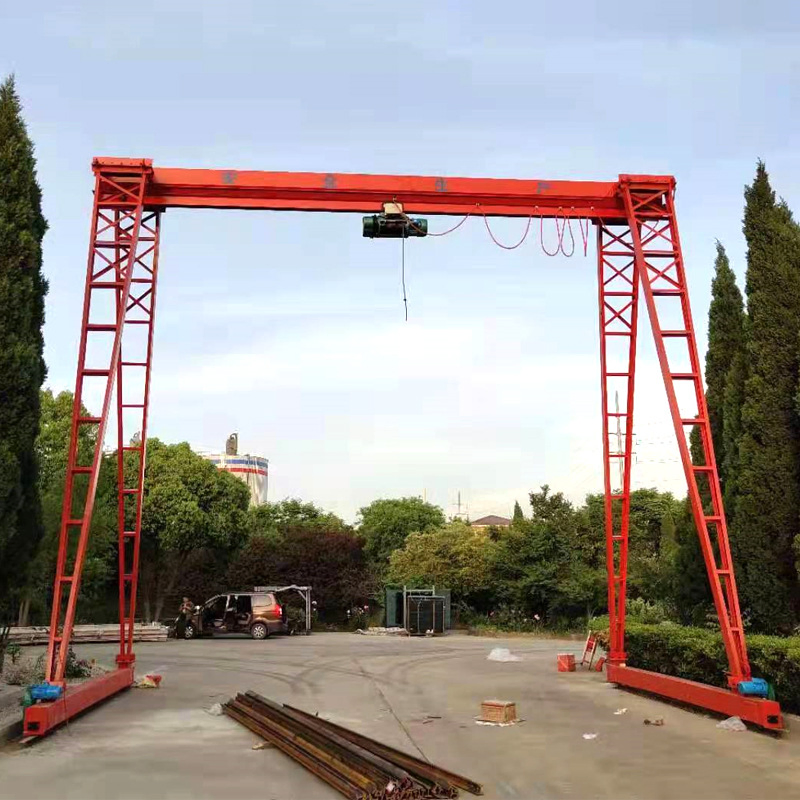

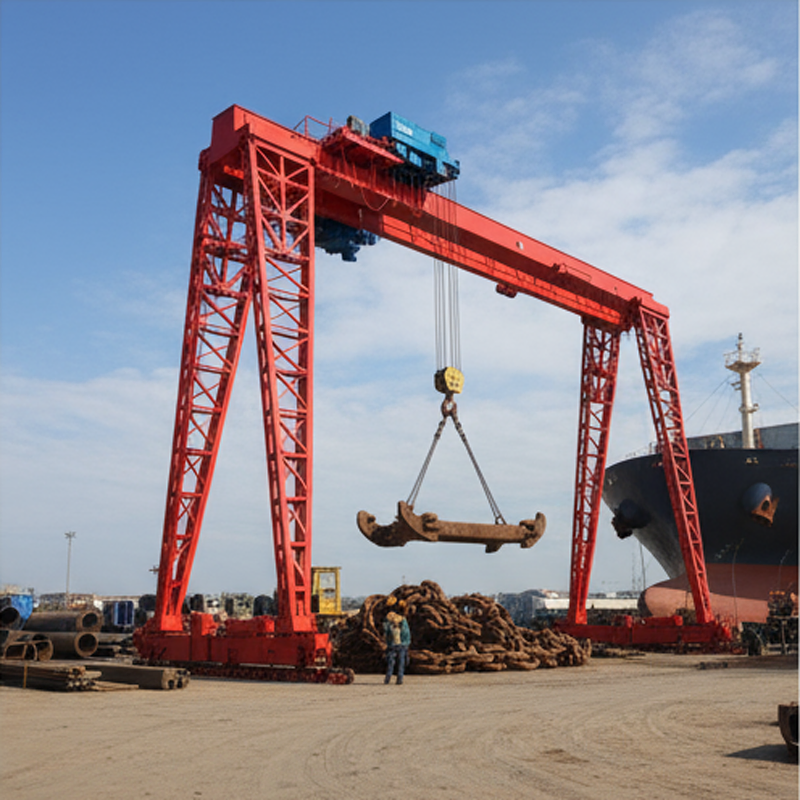

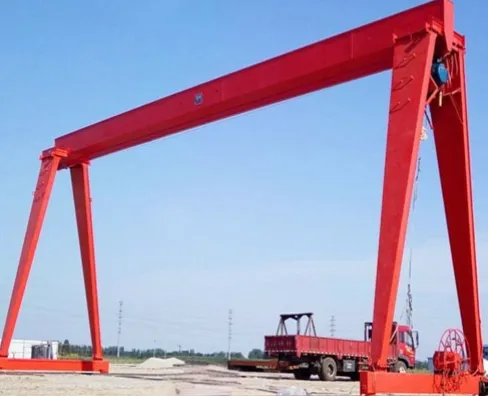

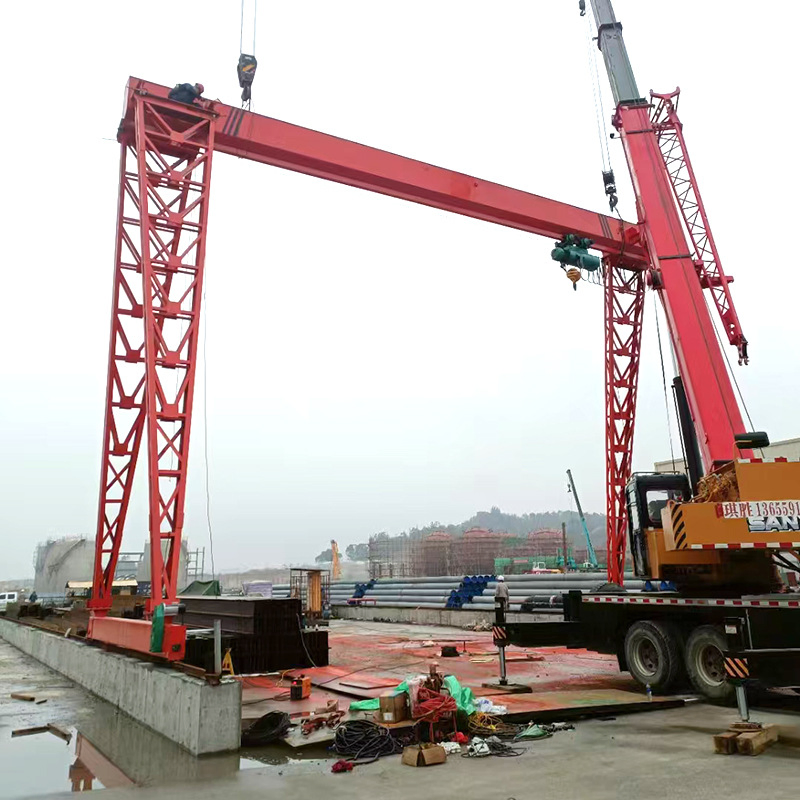

A gantry crane is a variant of a bridge crane. At ports, it is mainly used for loading and unloading operations of goods and bulk cargo in outdoor cargo yards and material yards. Its metal structure resembles a door-shaped frame, with two legs installed under the main beam, allowing it to move directly on tracks on the ground. The ends of the main beam can be equipped with outward-extending cantilever beams. Gantry cranes are characterized by high land utilization, a wide operating range, strong adaptability, and versatility, making them widely used in port cargo yards.

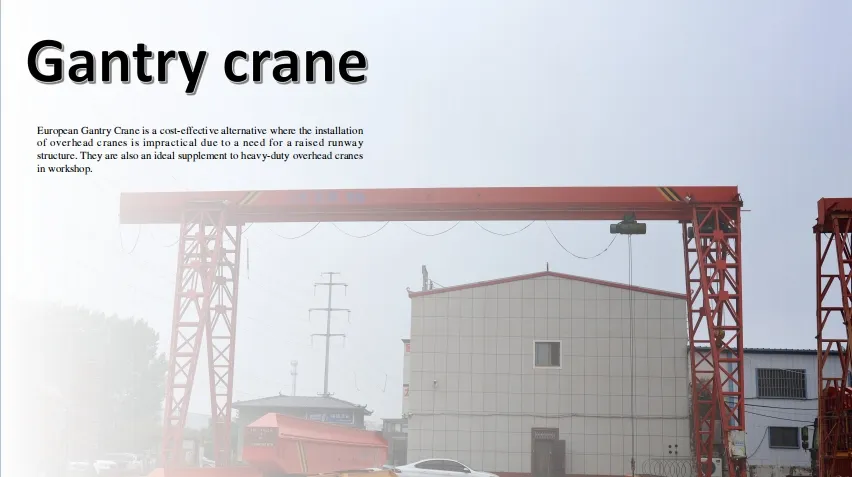

Description: European Gantry Crane is a cost-effective alternative where the installation of overhead cranes is impractical due to a need for a raised runway structure. They are also an ideal supplement to heavy-duty overhead cranes in workshop.

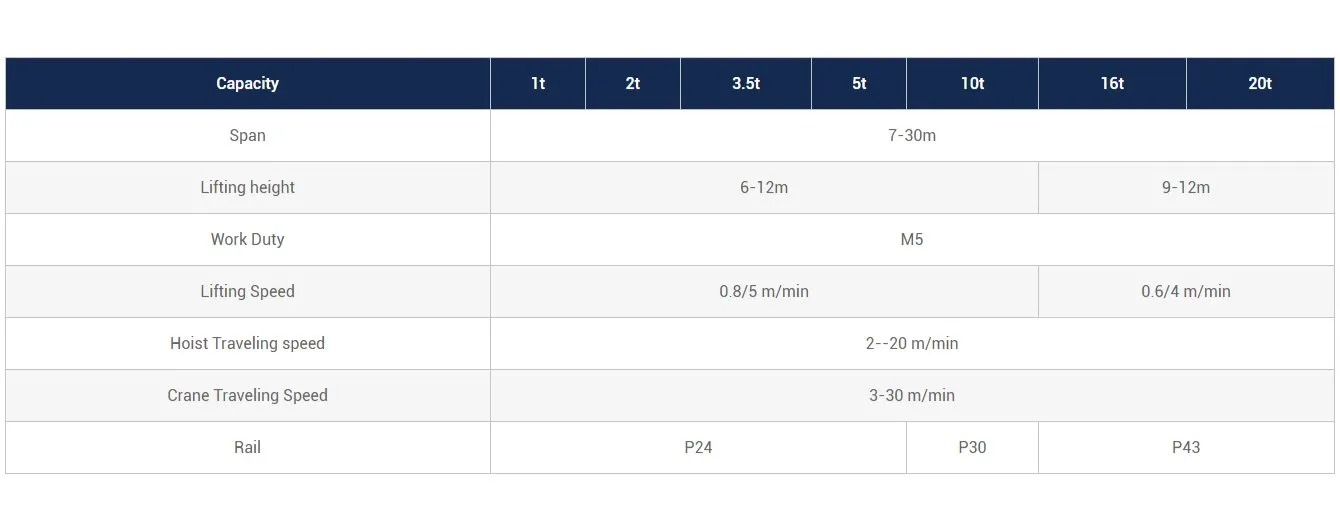

📊 Technical Specifications
Introduce:
• Crane Capacity: 3 ton to 20 ton
• Crane Span: 7.5 m to 28.5 m
• Lifting Height: 6m to 18m
• Working Class: A5, A6, A7
| Load (t) |
Altitude (m) |
Fly-past (m) |
Rail |
Power |
| 5-10 | 10 | 18-35 | p43 | 30-48 |
| 15-20 | 10 | 18-35 | p43 | 70-90 |
| 30-50 | 10 | 18-35 | Qu80 | 100-150 |
✅ Key Features
🔹Simple structure and easy installation process.
🔹Produced in accordance with strict international standards.
🔹Integrated overload protection with automatic warnings.
🔹Polyurethane buffers to prevent collision and derailment.
🔹Advanced gas protection or submerged arc welding with UT testing.
🔹Standard safety monitoring with infrared anti-collision systems.
🔹Versatile power options via cables or sliding contact lines.
❓ Frequently Asked Questions
Q1: What are the primary applications for this gantry crane?
A: It is primarily used for loading and unloading goods in outdoor cargo yards, material yards, and port operations due to its high land utilization and wide operating range.
Q2: What safety mechanisms are integrated into the crane?
A: The crane features overload protection devices, sound and light alarms, infrared anti-collision sensors, and polyurethane buffers to ensure maximum operational safety.
Q3: Can the crane's specifications be customized?
A: Yes, the lifting capacity, span, and height can be customized according to specific drawings and project requirements, with capacities ranging up to 500 tons.

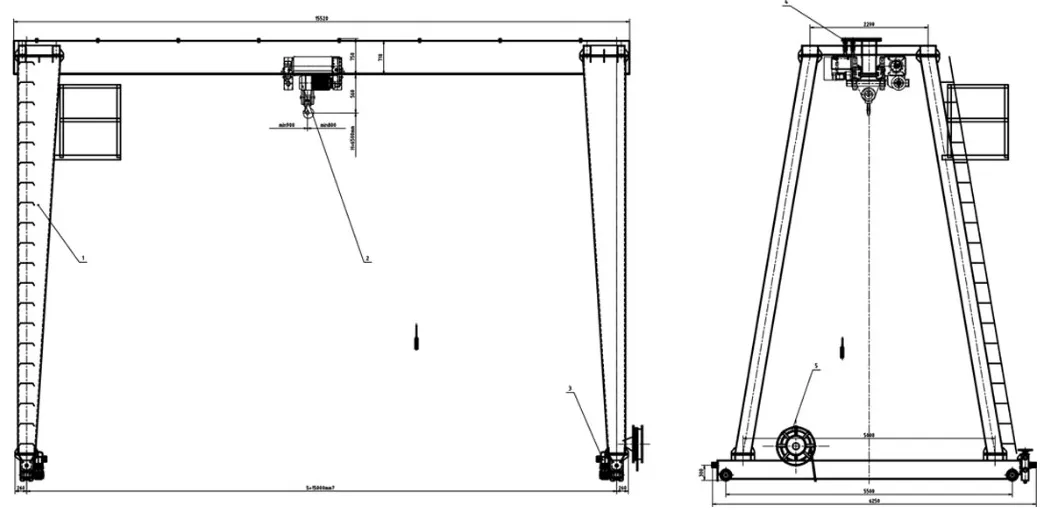

Q4: How is the metal structure of the crane designed?

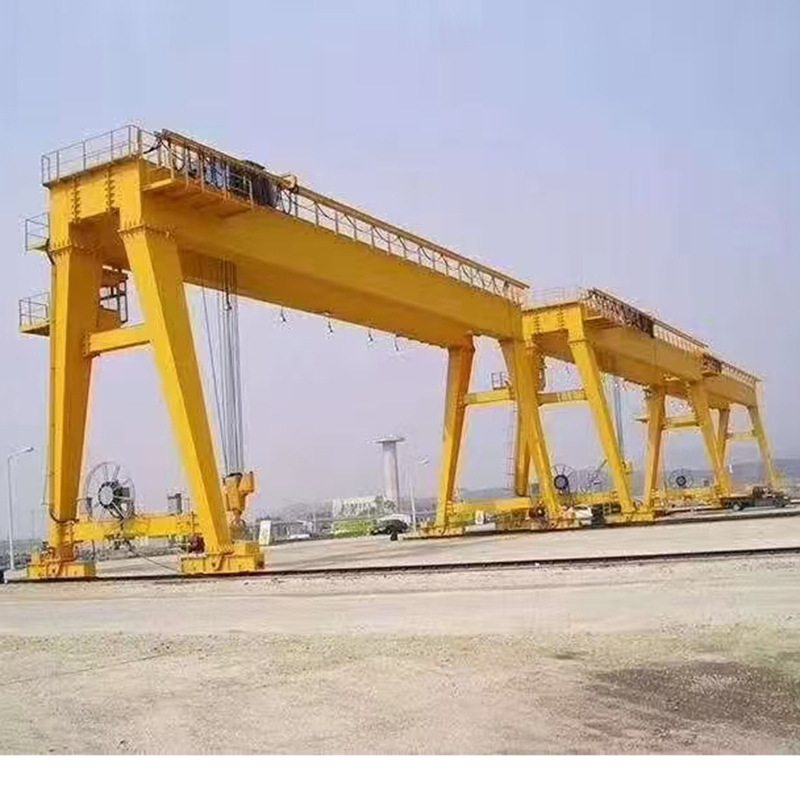

A: It features a door-shaped frame with two legs under the main beam, allowing it to move directly on ground tracks. Cantilever beams can also be added for extended range.
Q5: What are the power supply options available?
A: The gantry crane can be powered either by traditional cable systems or by sliding contact lines, depending on the site environment.
Q6: What is the "European" variant of the gantry crane?
A: It is a cost-effective alternative to overhead cranes, ideal for locations where a raised runway structure is impractical or as a supplement to heavy-duty overhead cranes.
