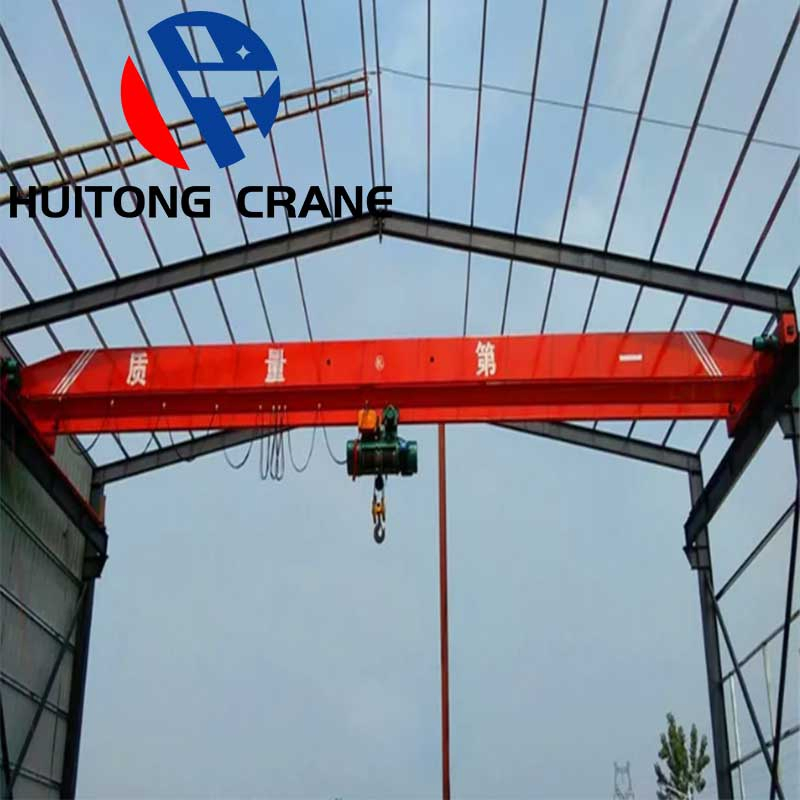

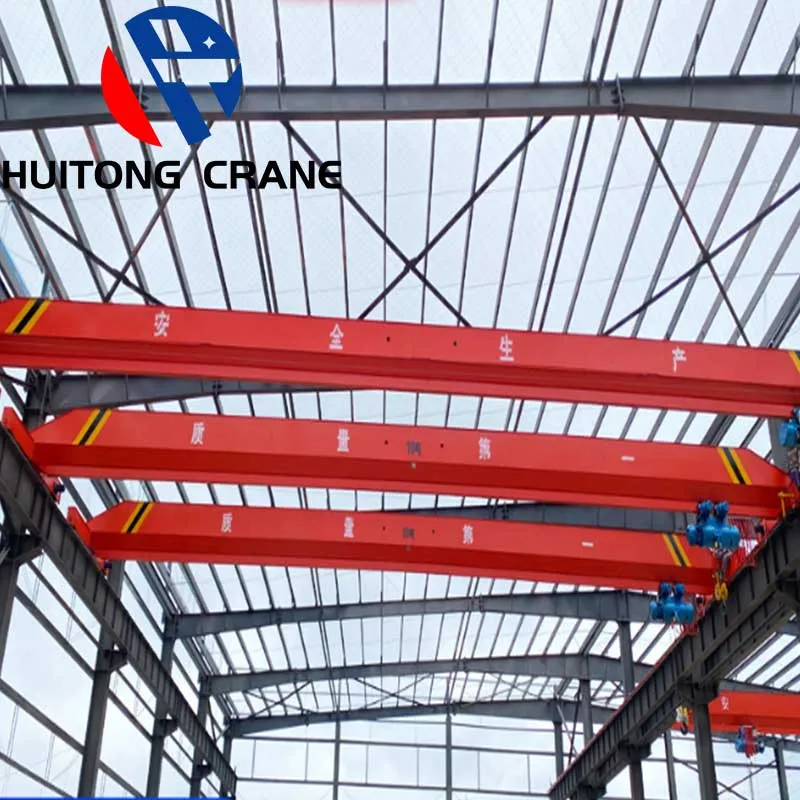

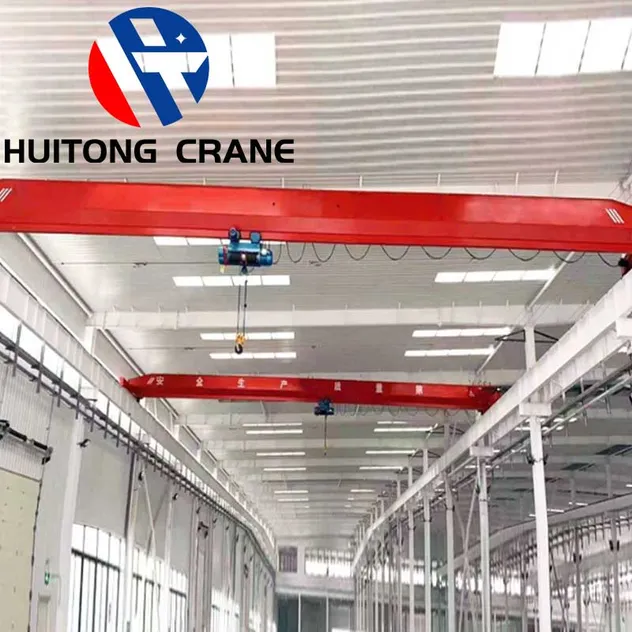

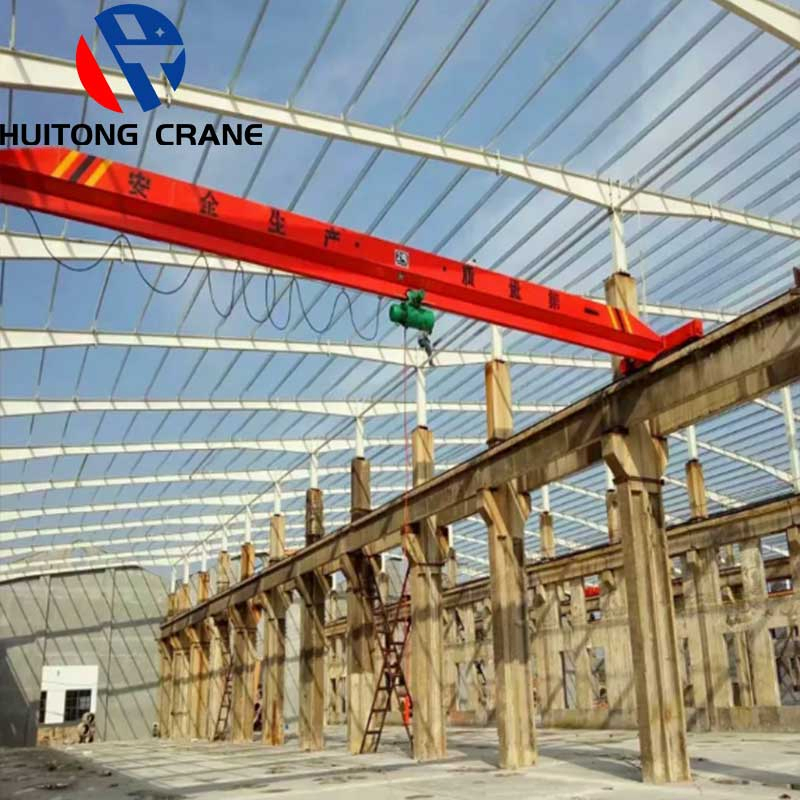

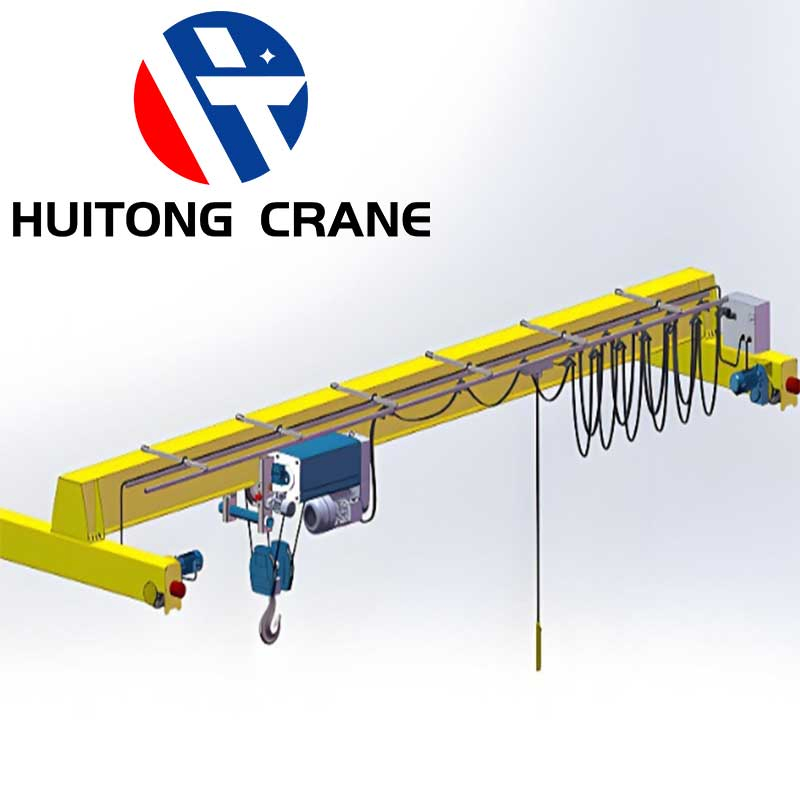

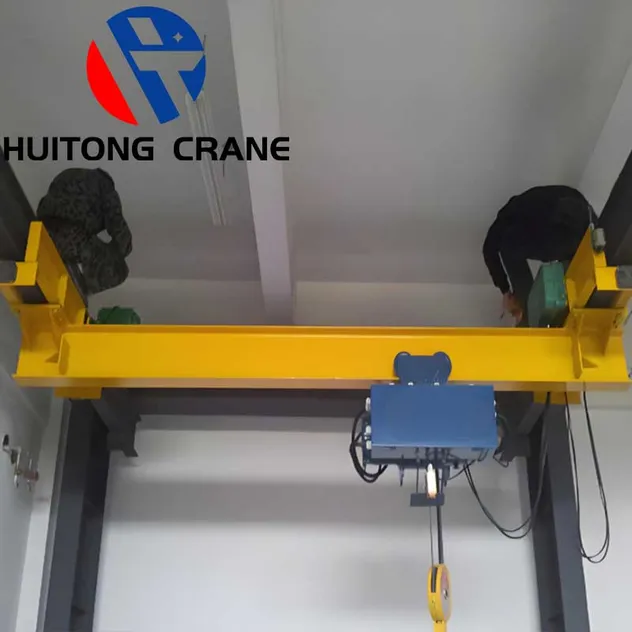

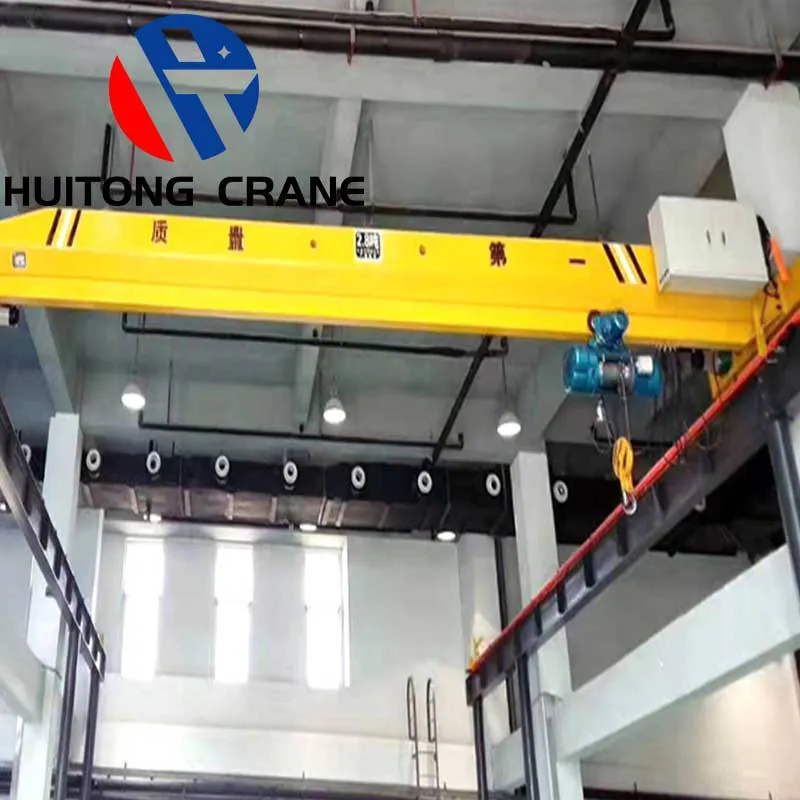

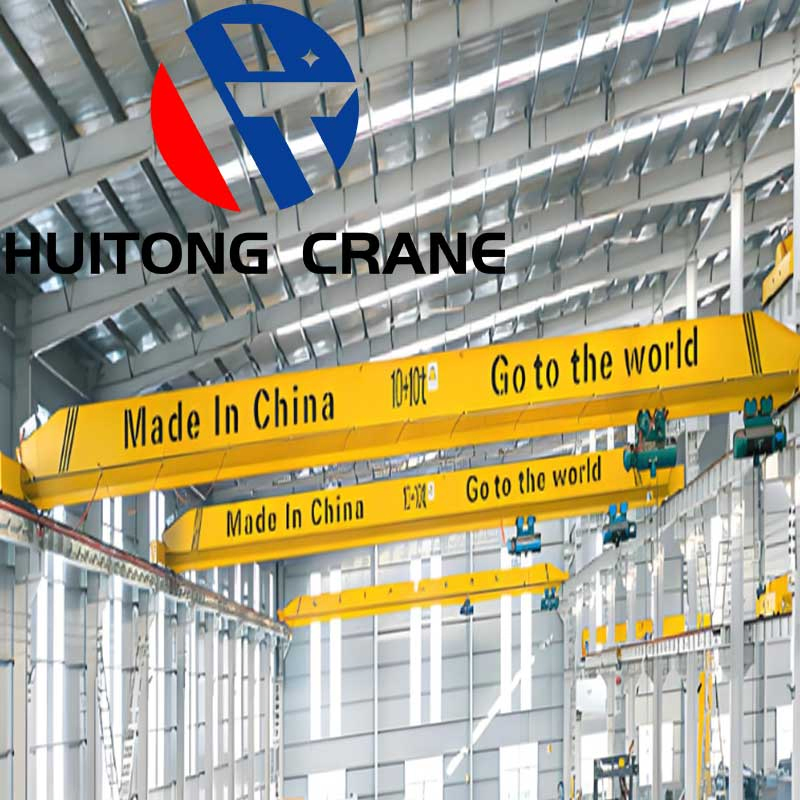

The LX-type electric single girder suspension crane is composed of a main girder welded with I-beam, end girder, electric hoist, and electric car. It is suspended from the upper part of the plant on the beam track, with a cantilever length of 0.5~1m. The electric hoist runs along the lower edge of the main girder I-beam to complete the lifting work. Characterized by its lightweight structure, it is easy to install and maintain, making it ideal for production workshops, warehouses, and yards.
Widely Used: Suitable for factories, warehouses, and yards. Note: Strictly prohibited in flammable, explosive, or corrosive media environments.
Key Advantages: Light structure, easy installation, and maintenance. It utilizes steel plates and I-beams welded into a robust main beam system.
| Rated Lifting Moment | 1 ton – 32 tons |
| Maximum Lifting Capacity | 1 ton – 32 tons |
| Span | 7.5m - 31.5m |
| Core Components | Engine, bearings, gearbox, motor, pressure vessel |
| Warranty | 1 Year |
| Weight (KG) | 10,000 kg |
| Power Supply | AC-3Phase-220/230/380/400/415/440V-50/60hz |
| Work Duty | A3 ~ A4 |
| Video Inspection | Available |

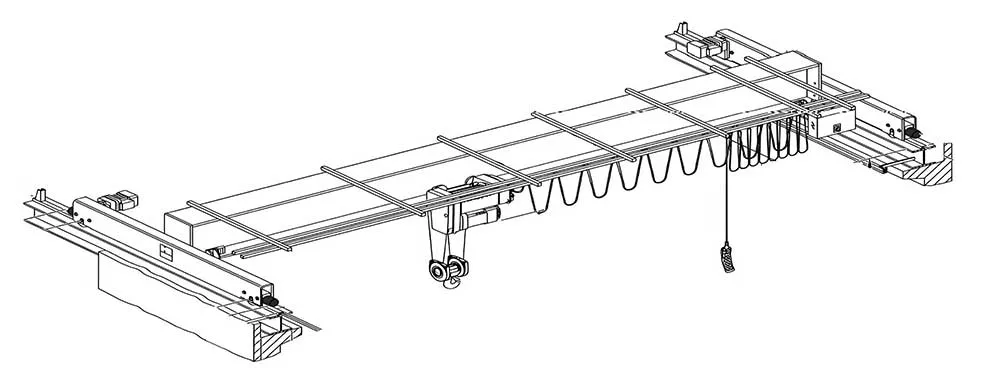

Detailed CAD drawings and dimensional diagrams are available upon inquiry. Our engineering team provides tailored designs to meet specific project requirements.

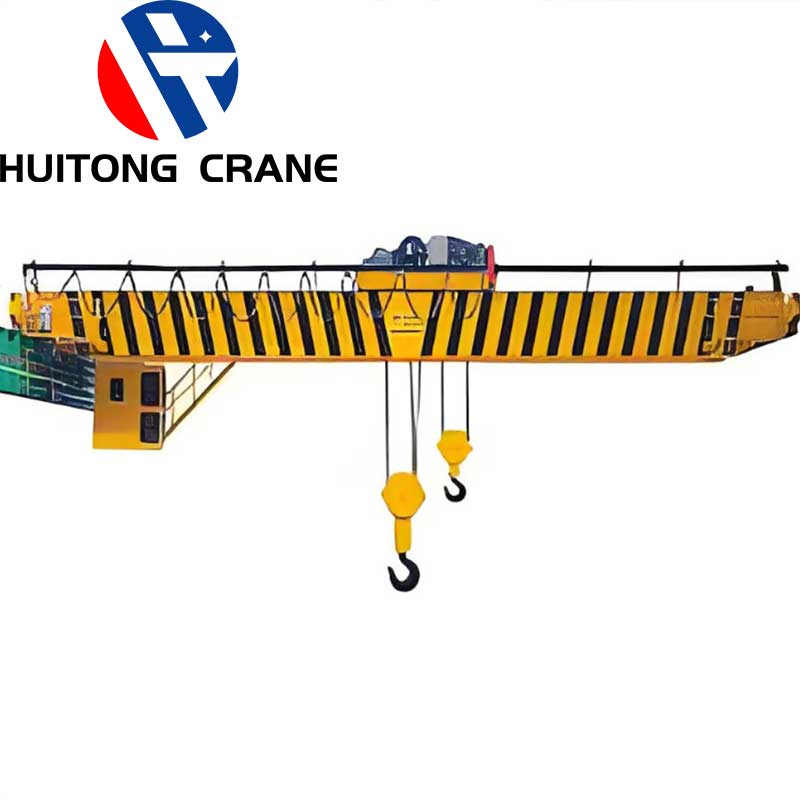

As a high-end crane manufacturer, our products include single girder, gantry, bridge, double girder, jib, and European cranes. We are committed to providing high-performance, intelligent lifting equipment solutions for global customers. By integrating advanced technology from international standards, we have successfully developed more than 20 crane products independently, helping industries worldwide improve efficiency.
