High Performance 90 Degree 180 Degree 360 Degree Floor Mounted Articulating Arm Folding Jib Crane Fixed Jib Crane with High Quality and Best Price for Factory

1 / 5

High Performance 90 Degree 180 Degree 360 Degree Floor Mounted Articulating Arm Folding Jib Crane Fixed Jib Crane with High Quality and Best Price for Factory

Customization:	Available
After-sales Service:	Online Support
Warranty:	12months

Send Inquiry

Product Description

ℹ️

Basic Info

Model NO.

JIB

Condition

New

Application

Workshop, Warehouse, Port, Construction Site

Anchor

Whole-Buried

Structure

Solid Web

Material

Steel

Type

Cantilever

Rated Loading Capacity

0.25-20 Ton

Span

0.5-10m

Turning Angle

90/180/270/360 Degree

Work Duty

A3-A5

Production Capacity

1000 sets Per Month

🏗️

Product Description

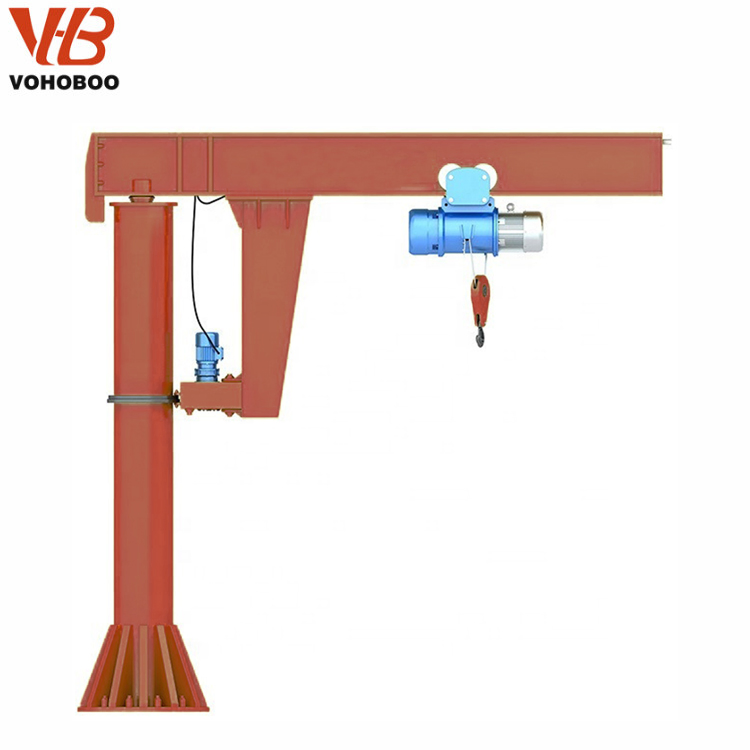

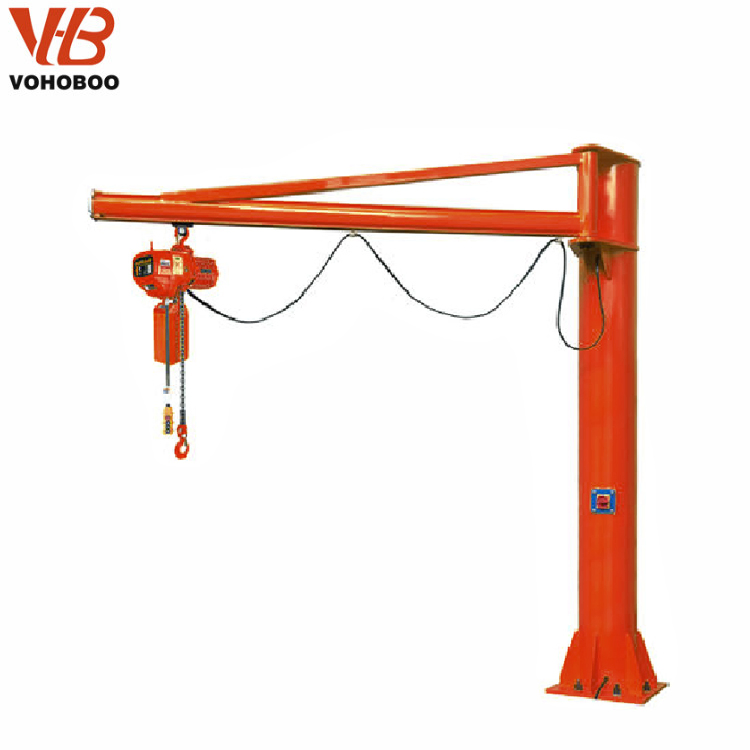

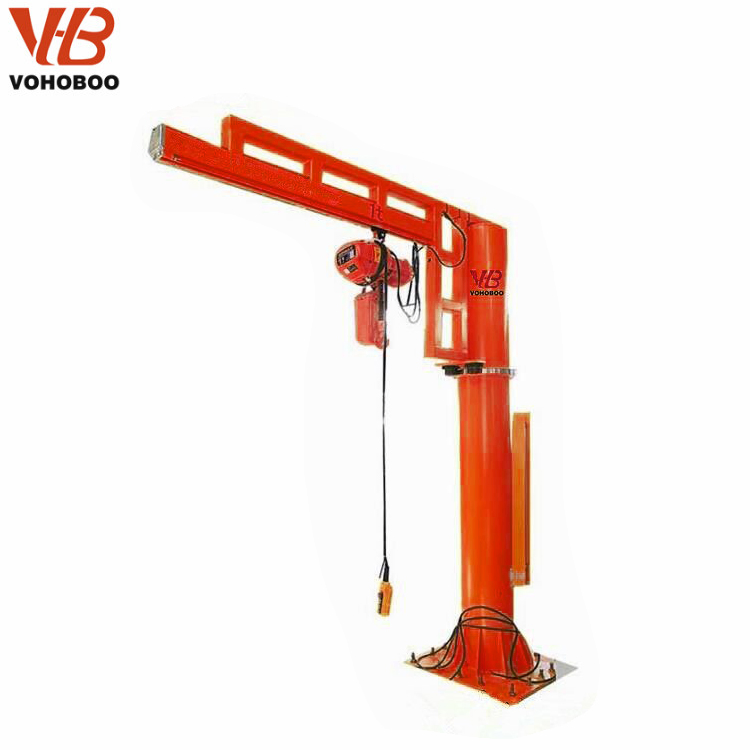

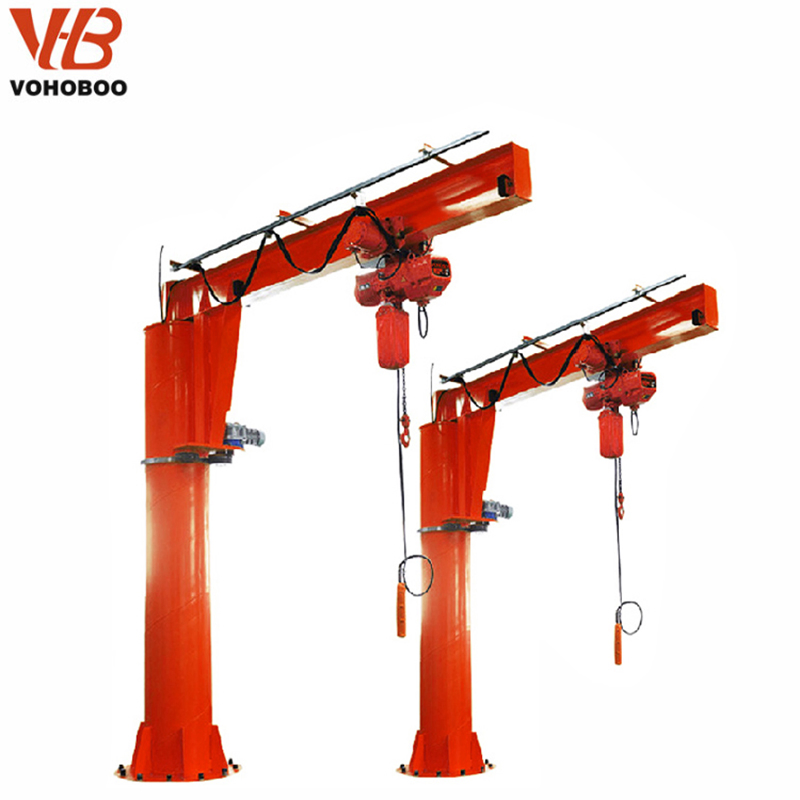

JIB crane description:

Column is made of seamless steel pipe, and the main girder is made of I-beam girder or light beam. The rotating way can be manual (< 1t) or electric. JIB cranes can be equipped with electric wire rope hoists, electric chain hoists, or manual hoists. It is suitable for work in short-range and intensive lifting occasions. It is widely used in workshops, warehouses, docks, and other fixed places.

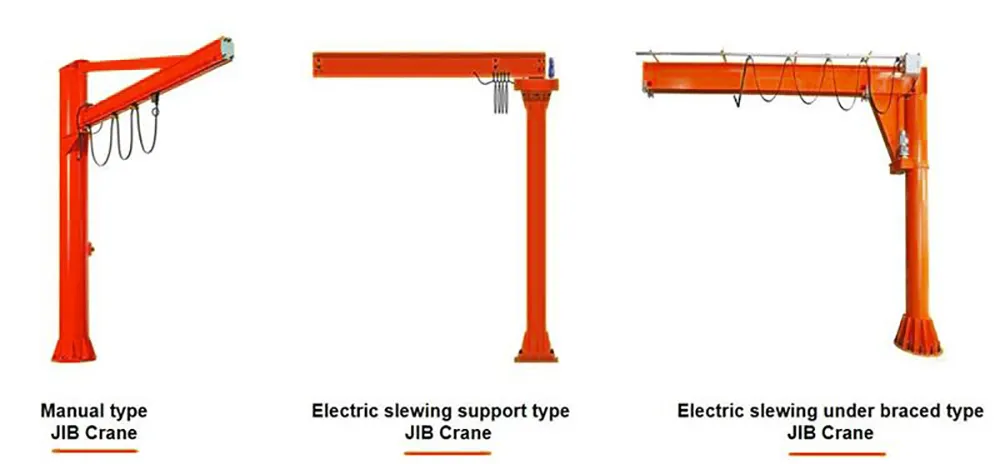

We can recommend different models of cranes according to various working requirements. This kind of machine has two types of manipulation: electric and manual operation. Rotary arm rotation angle can be chosen from 180°, 270°, 345°, or 360° according to usage.

✓Column using seamless pipe, main beam use I-beam or other beam.

✓Rotation can be manual or motorized.

✓Hoist can be equipped with electric wire rope hoists, electric chain hoists or manual hoists.

✓Unique structure, safe and reliable, high efficiency and flexible.

✓Can be customized according to requirements.

✓Easy installation.

🔍

Product Details

📊

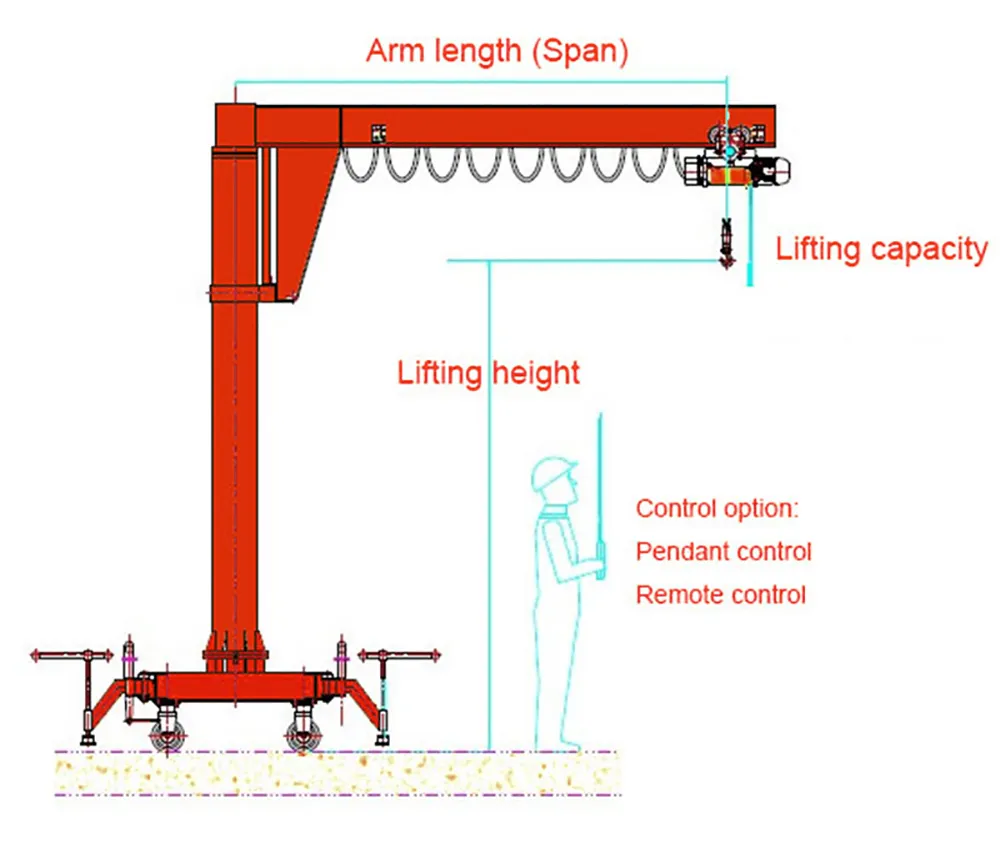

Product Parameters

ITEM		Specifications
Capacity	t	0.5	1	2	3	5	10	16	20
Arm length	m	1.2~20
Lifting height	m	1~15
Lifting speed	m/min	0.8/8 or customized
Rotate speed	r/min	0.7
Rotate angle	degree	360°
Wire rope	mm	4.7	7.7	11	13	15.5	15.5	17.5	22.5
Power source	220~480V, 50/60HZ, Three phase or customized

🌟

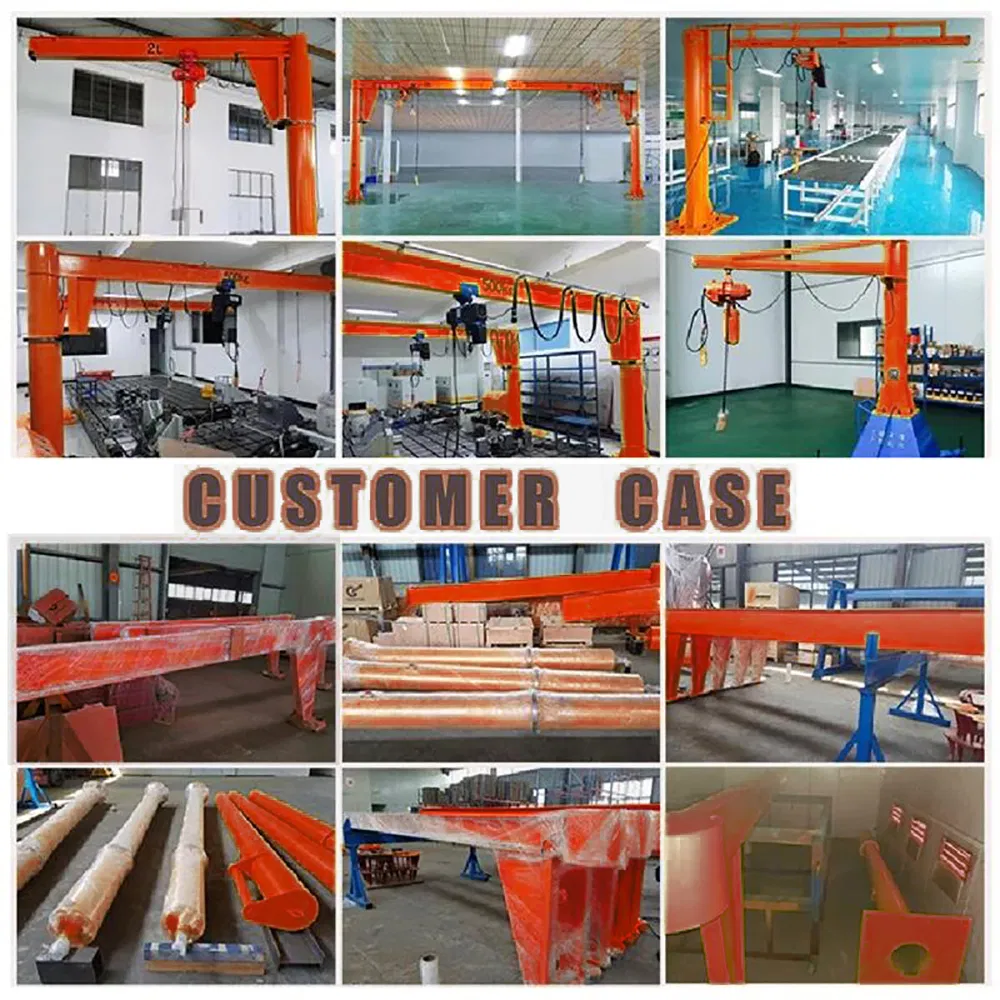

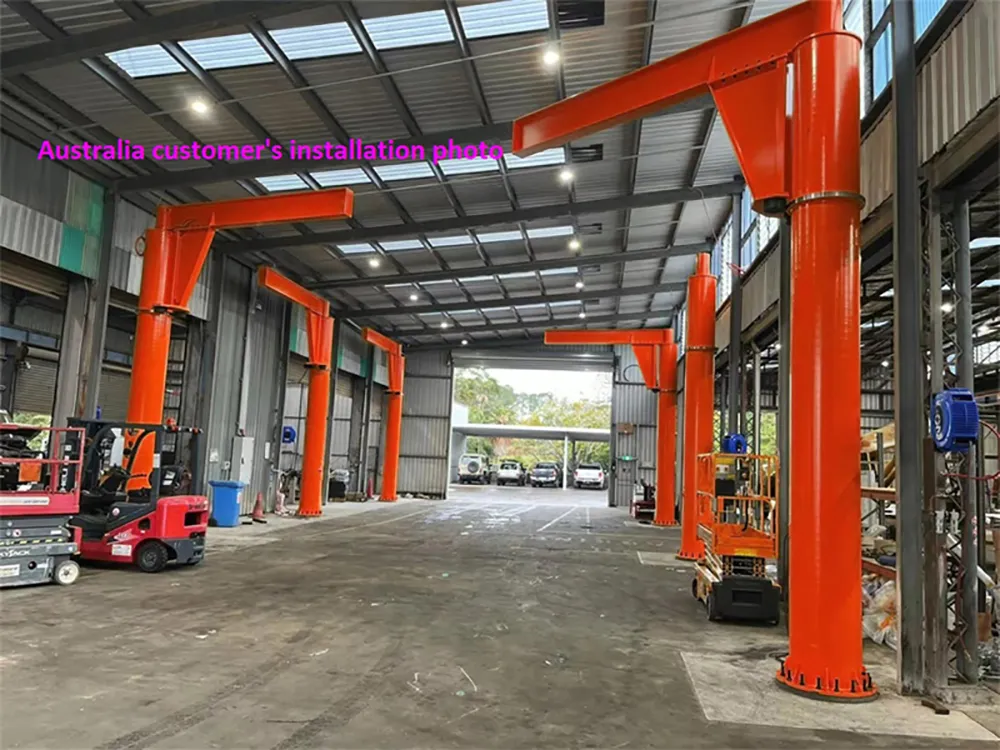

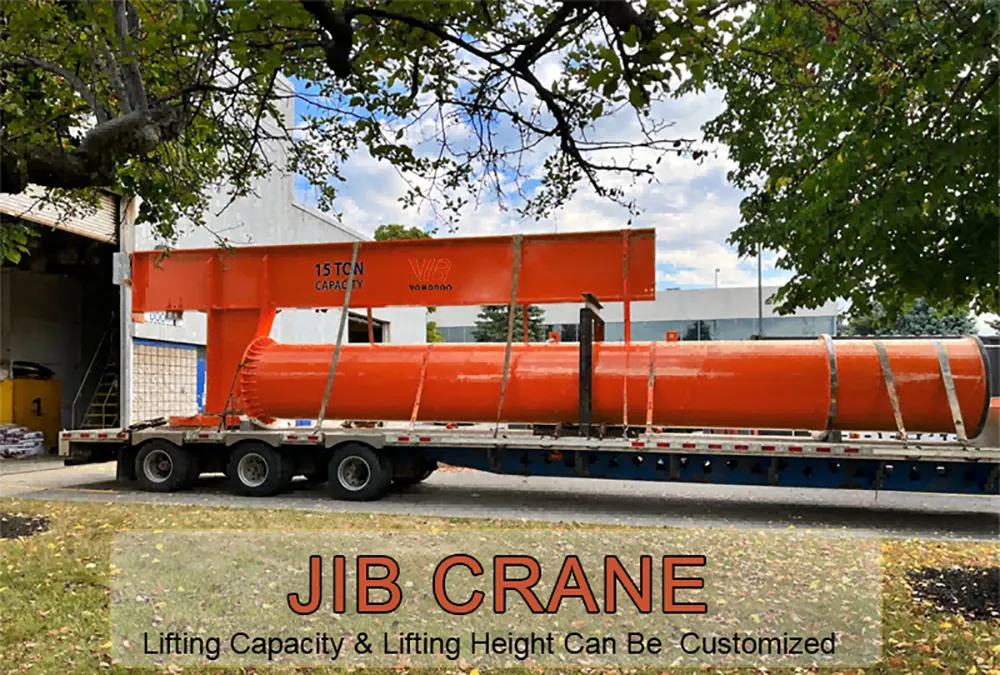

Customer Case

🏭

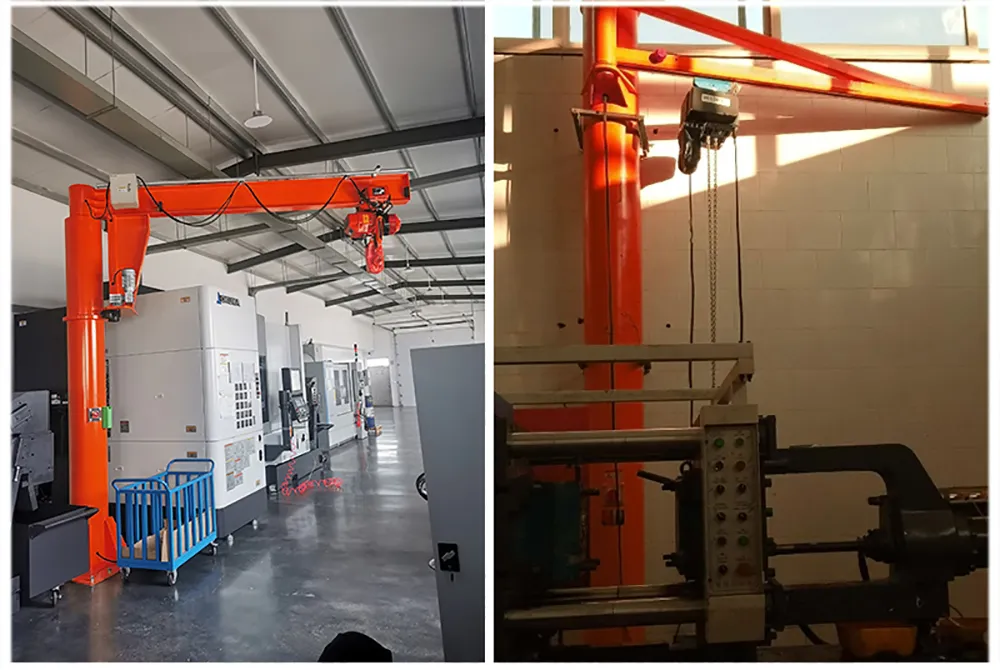

Production Environment

Frequently Asked Questions

What is the lifting capacity range of your jib cranes?

Our jib cranes offer a wide range of rated loading capacities, typically from 0.25 Ton up to 20 Tons, suitable for various industrial needs.

What rotation angles are available for the crane arm?

The rotation angle can be customized based on your specific requirements. Common options include 90, 180, 270, and a full 360 degrees.

Can the crane be used in outdoor environments?

Yes, our cranes are applicable for workshops, warehouses, ports, wharfs, and construction sites. Specialized coatings and protections can be added for outdoor use.

What types of hoisting mechanisms can be installed?

You can choose between electric wire rope hoists, electric chain hoists, or manual hoists depending on the weight of the load and your operational preferences.

Is the operation manual or motorized?

We provide both options. Rotation and lifting can be manual for smaller loads (usually under 1 ton) or fully motorized for higher efficiency and heavier capacities.

What power supply does the crane require?

The standard power source is 380V 50Hz, but we can customize the electrical system to follow your local requirements, such as 220V, 400V, or 415V.
