High-Performance Hydraulic Jack with Chain for Tank Engineering

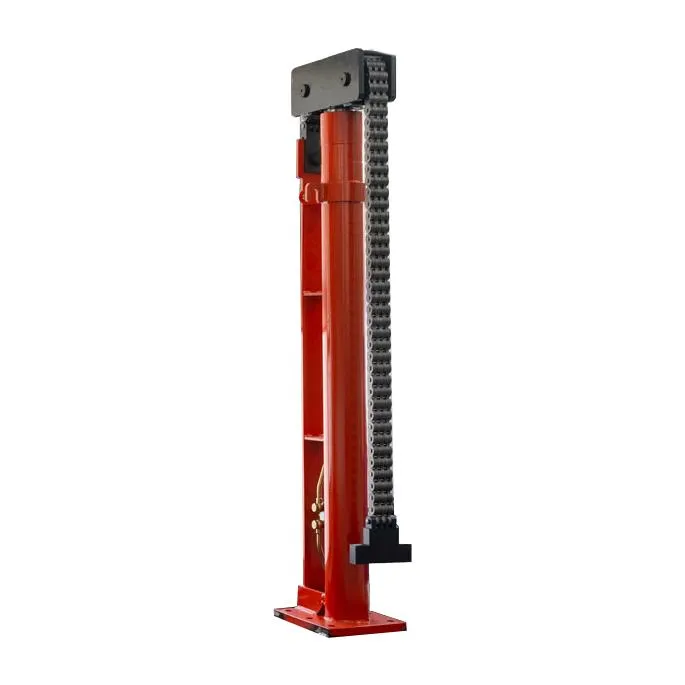

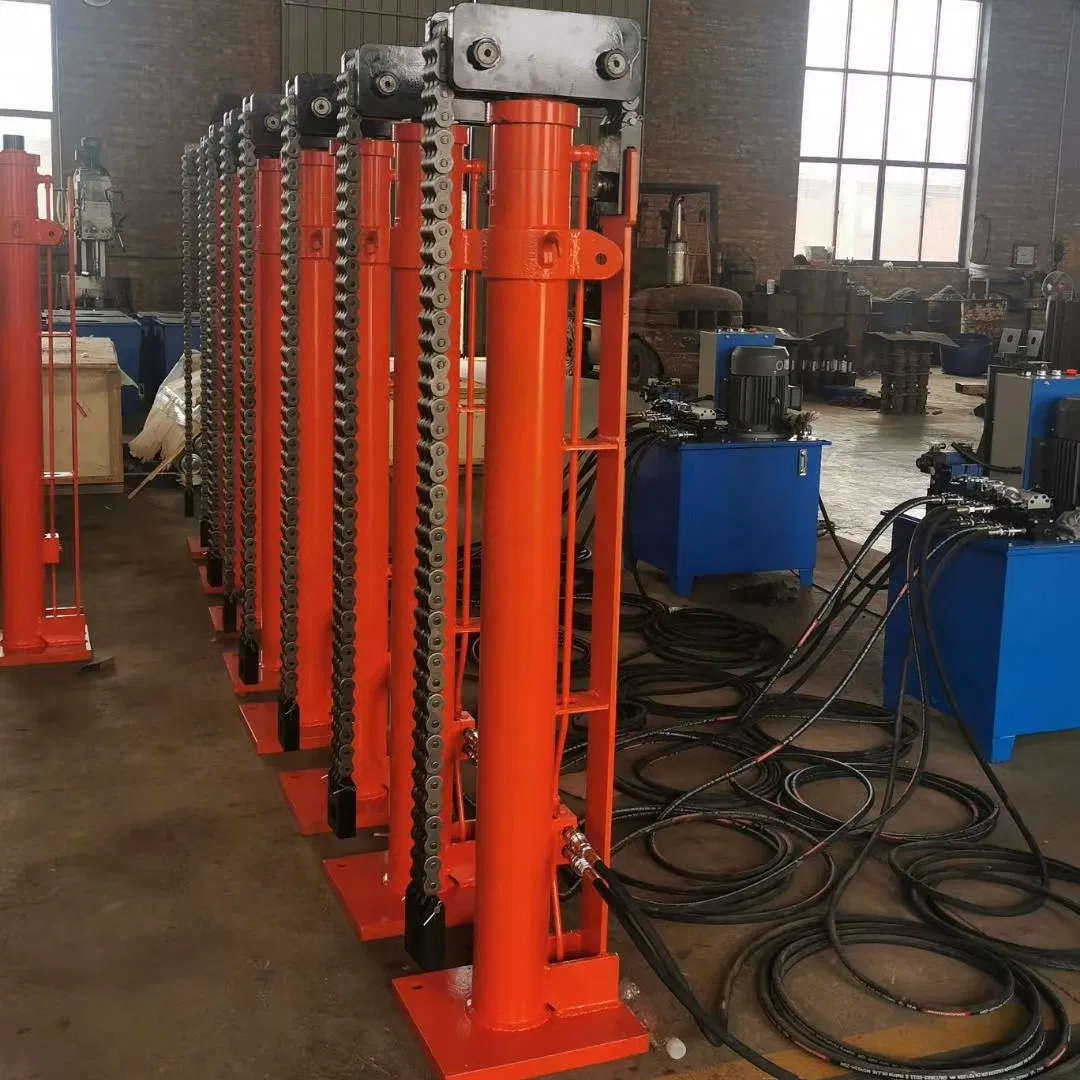

The LYT-type hoist is a professional-grade lifting solution composed of a one-stage double-acting hydraulic cylinder, pulley block, load-bearing chain, and sophisticated oil way system.

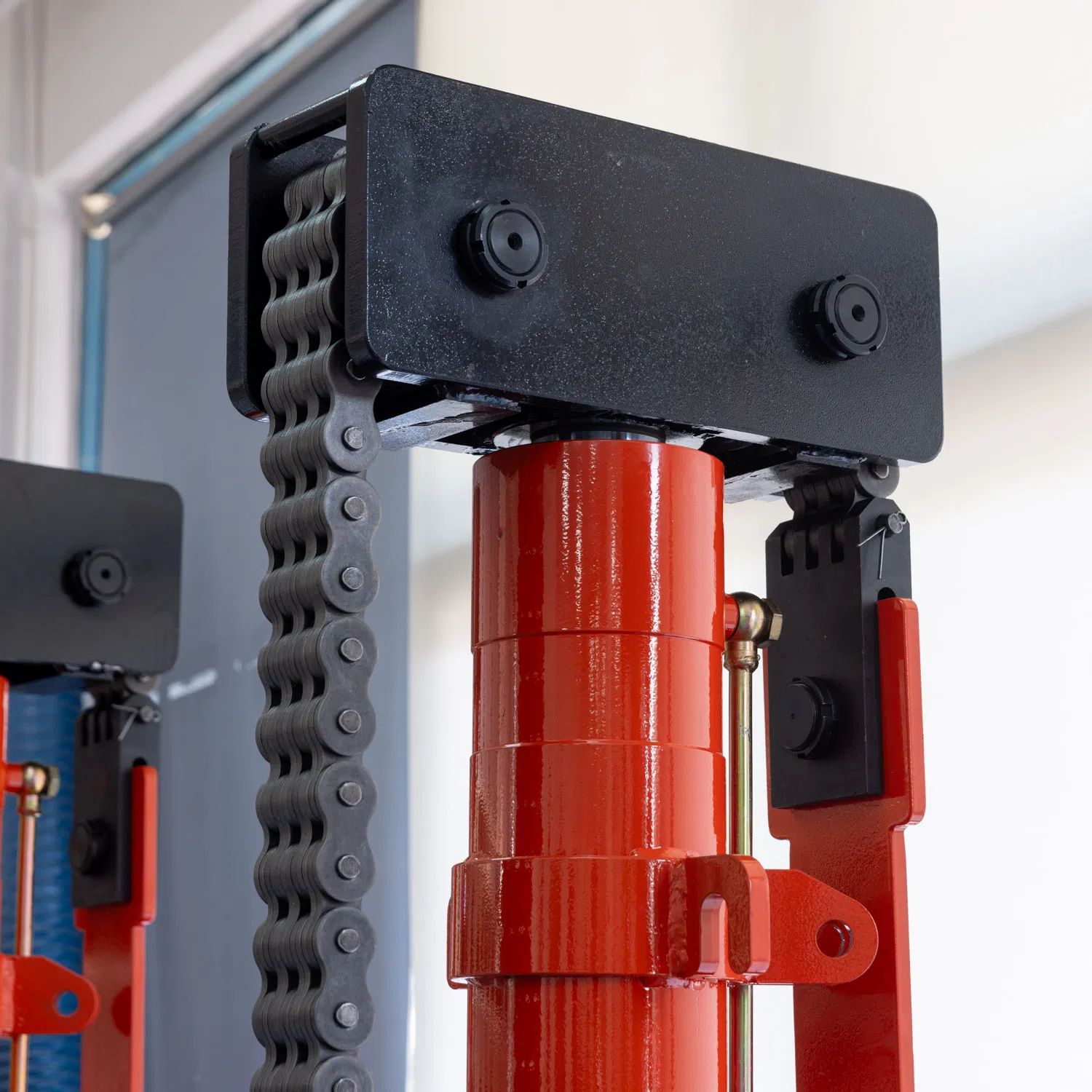

• Stroke Optimization: Moveable pulleys are utilized to enlarge the chain stroke, making the traveling distance of the cylinder 1/2 of the actual lifting distance of the chain.
• Versatile Application: Specifically designed for the inverted installation and construction of various large steel storage tanks.

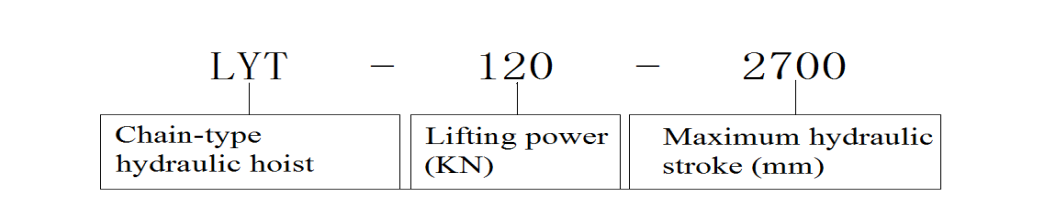

• Model Range: Standard models include LYT-120-2700, LYT-200-2700, and LYT-300-2700. Custom strokes are available upon request.

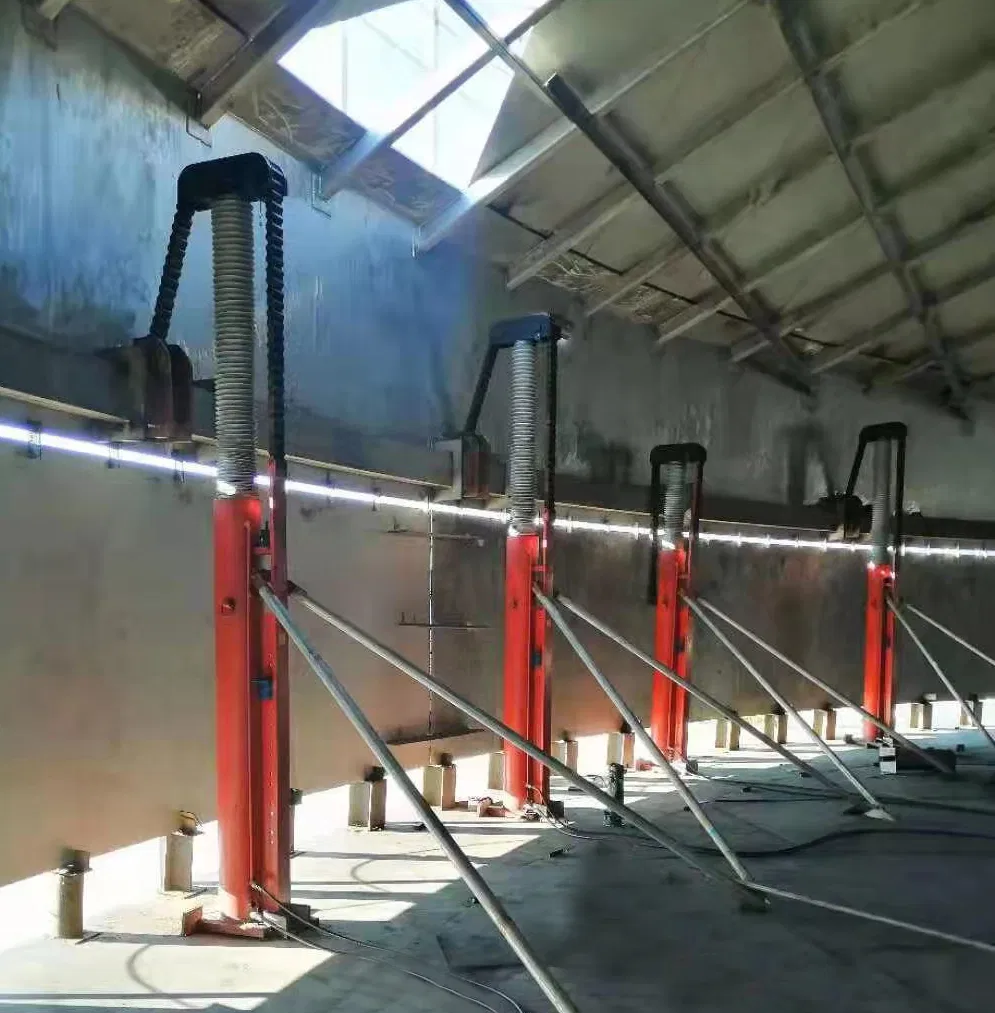

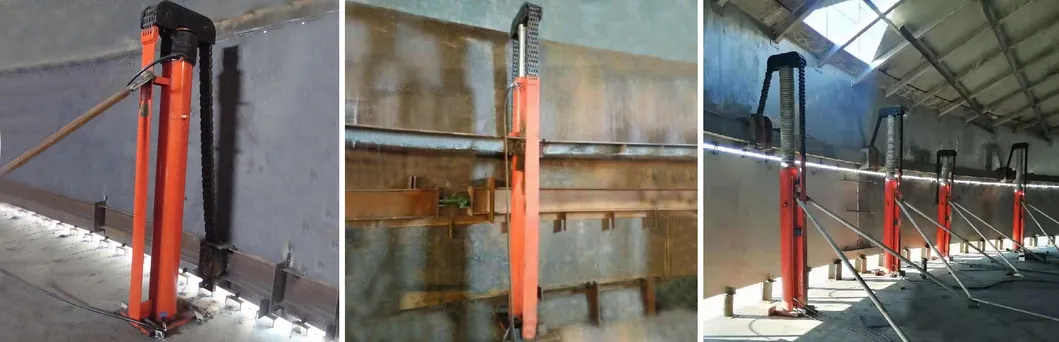

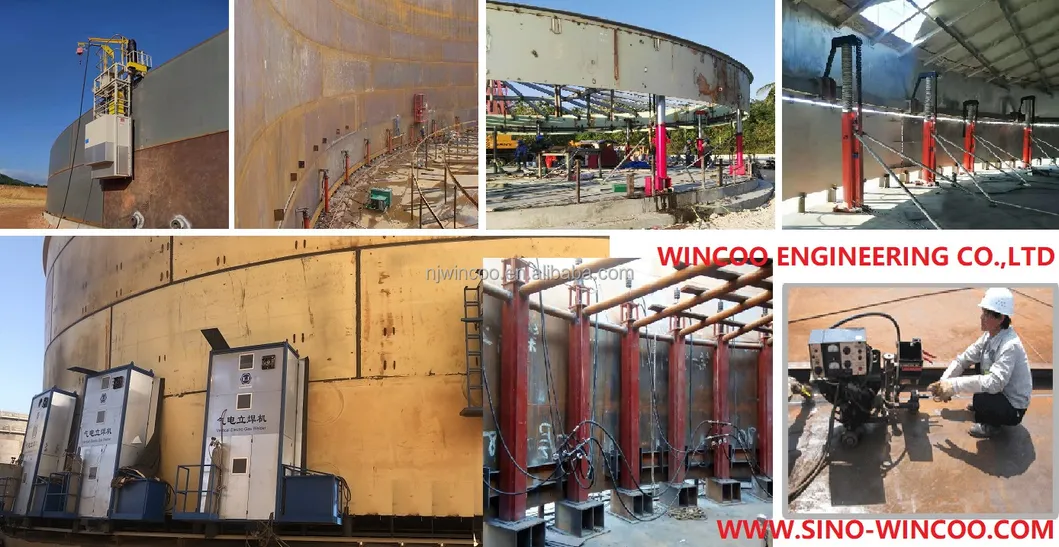

The LYT-type hydraulic hoist is used to firstly lift the tank roof and the top layer siding. When the lifting height exceeds the next layer by 30-50mm, weld grouping is performed. This process repeats layer by layer from top to bottom until the final layer of siding is installed.

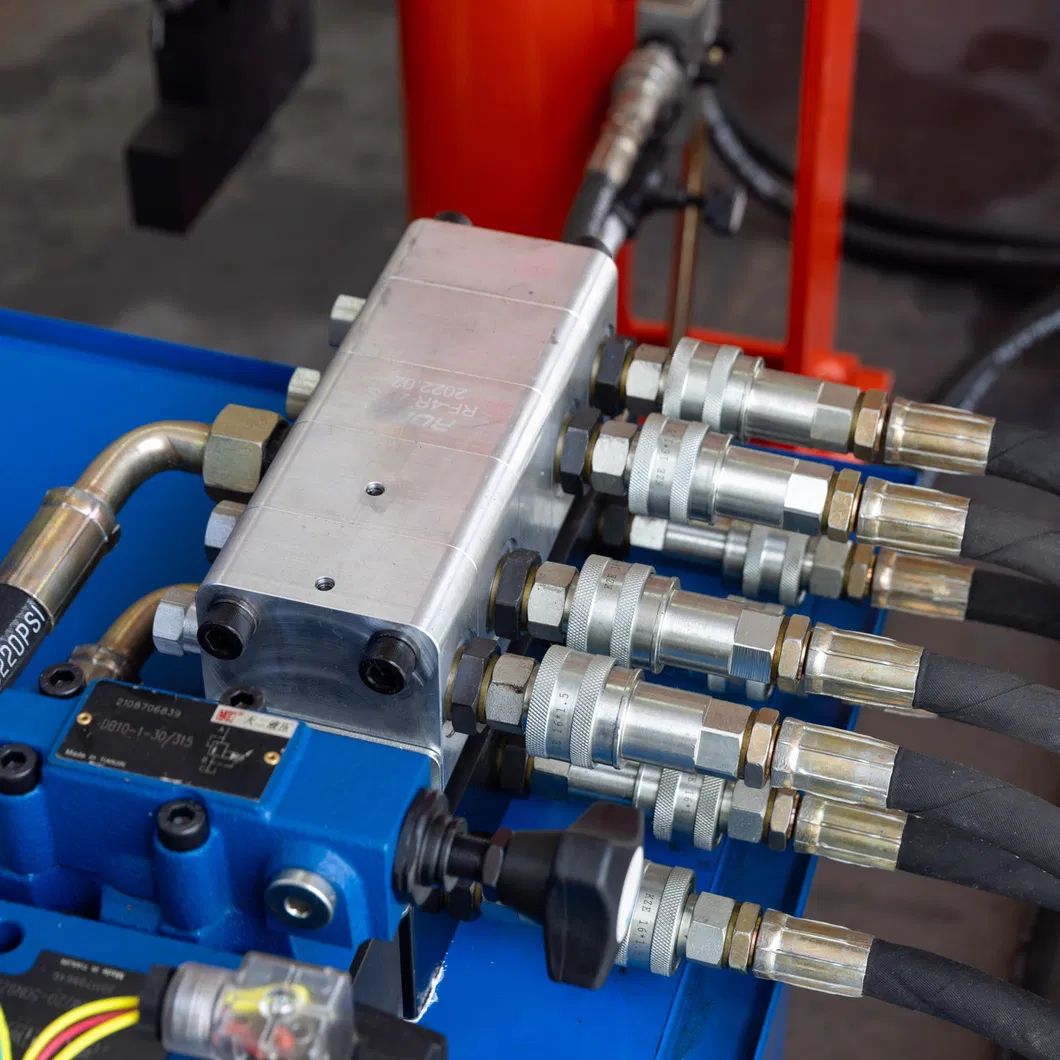

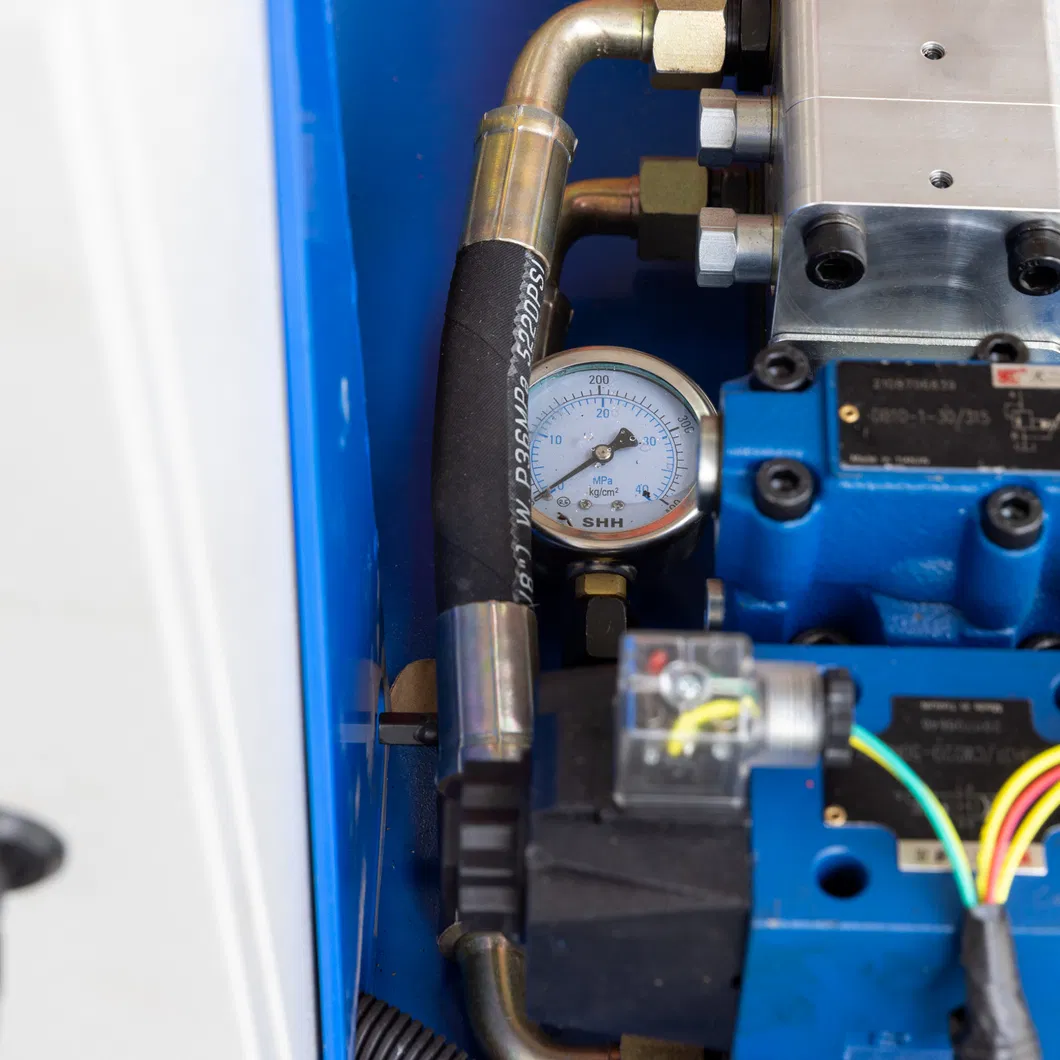

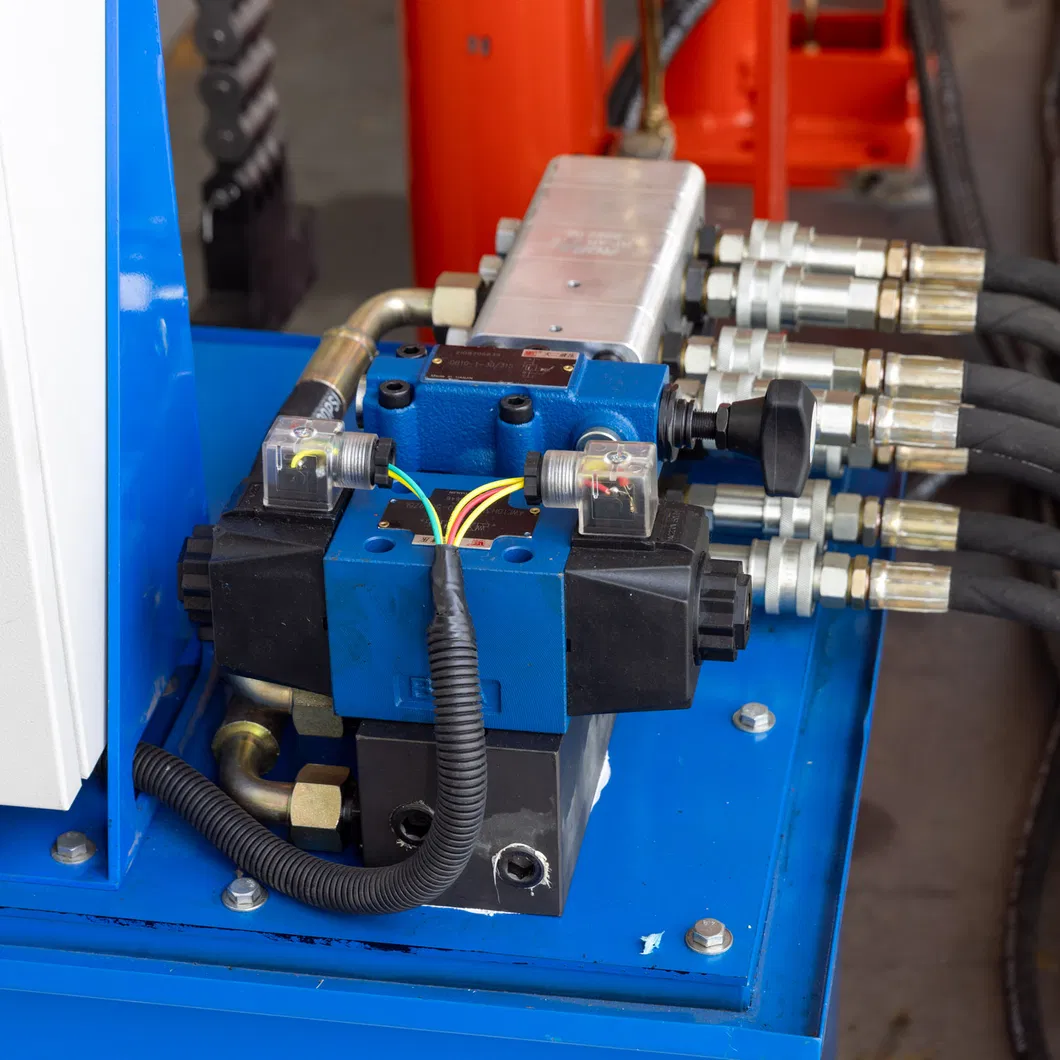

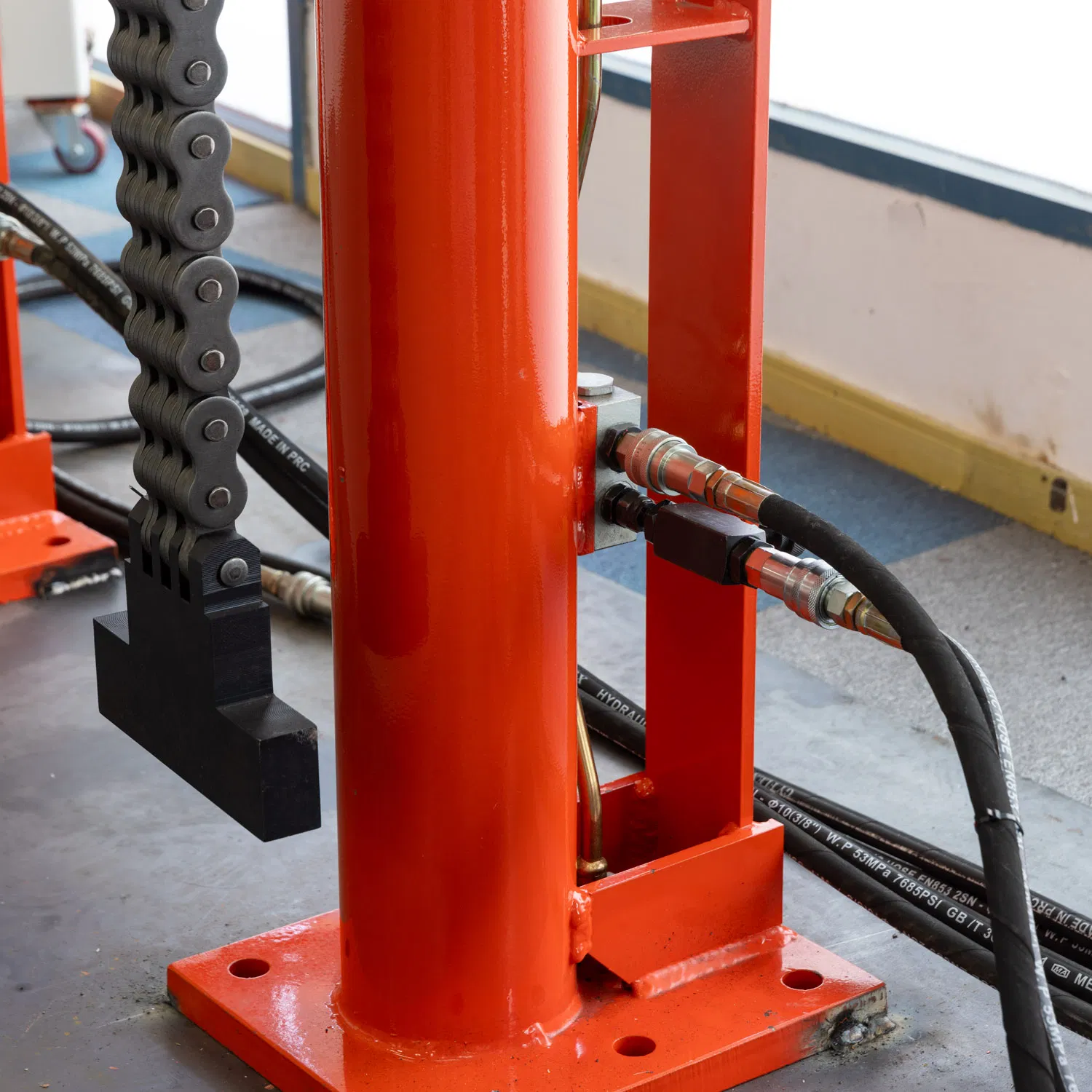

When oil enters the hydraulic jack, the movable pulley is pushed upward by the piston, driving the load-bearing chain to lift the expansion ring. The whole tank is lifted to the pre-set height to allow the next plate to be positioned and welded. Synchronizing valves and hydraulic locks ensure the structure remains secure even in the event of power failure or oil tube issues.

• Stability & Safety: Unified hydraulic control and synchronization valves prevent sliding or sudden falling of heavy loads.
• Precision Quality: Accurate control of lifting height ensures high-quality weld joints and structural integrity.
• High Efficiency: Simple operation and fast lifting speeds significantly reduce construction periods.

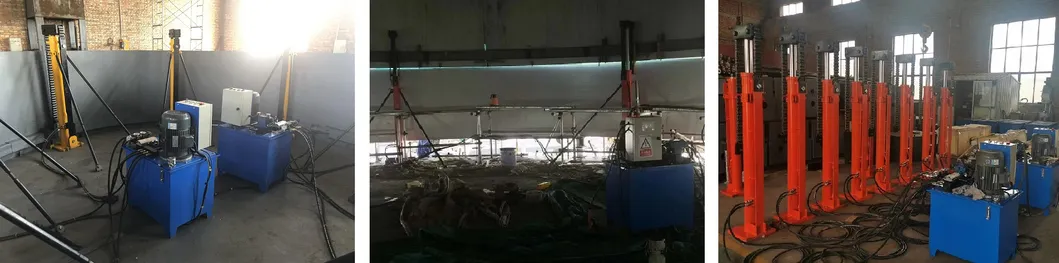

• Strong Adaptability: The system can be scaled by adding or removing hoists to fit tanks from thousands to tens of thousands of cubic meters.
• Cost Effective: Modernized equipment reduces labor costs and provides excellent economic benefits.

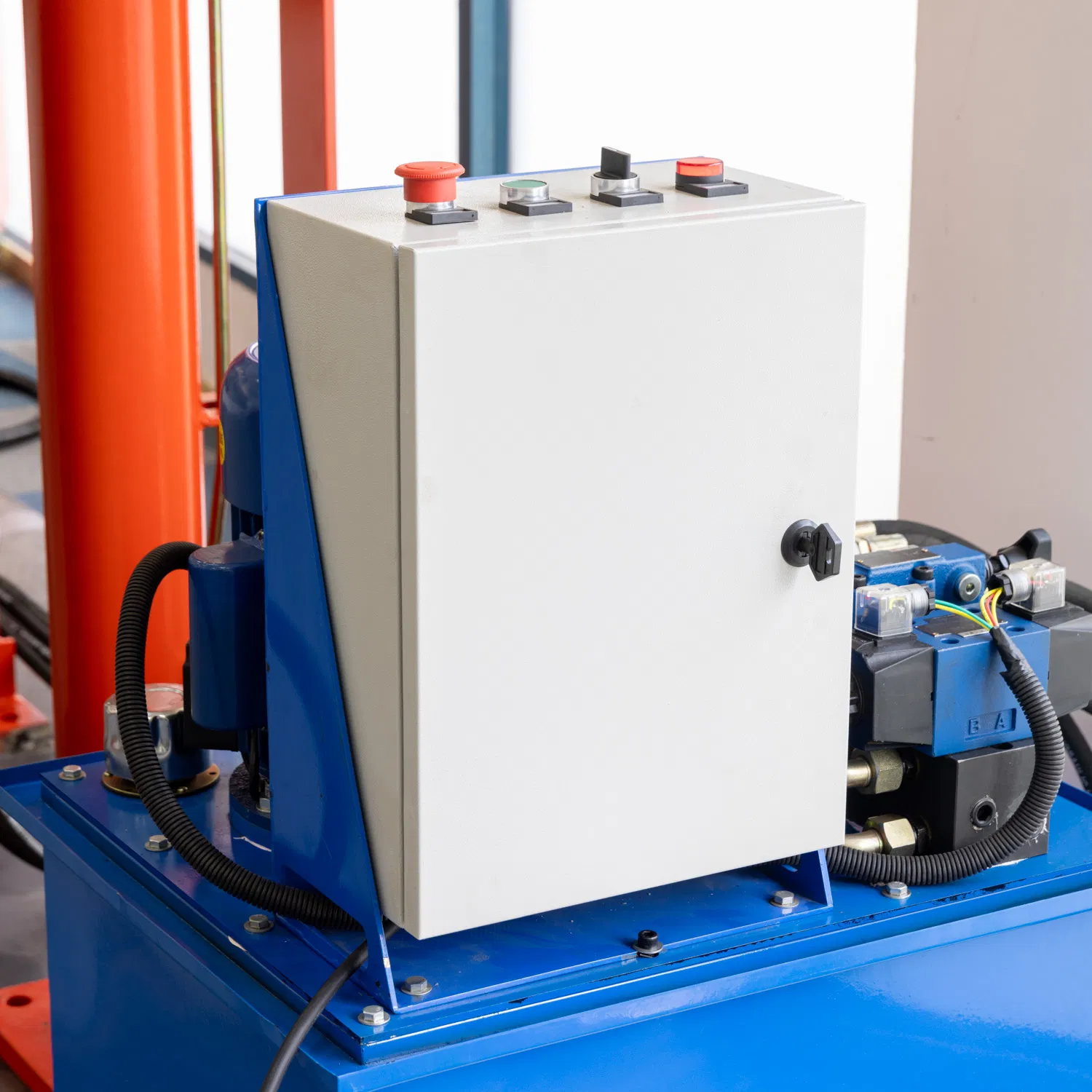

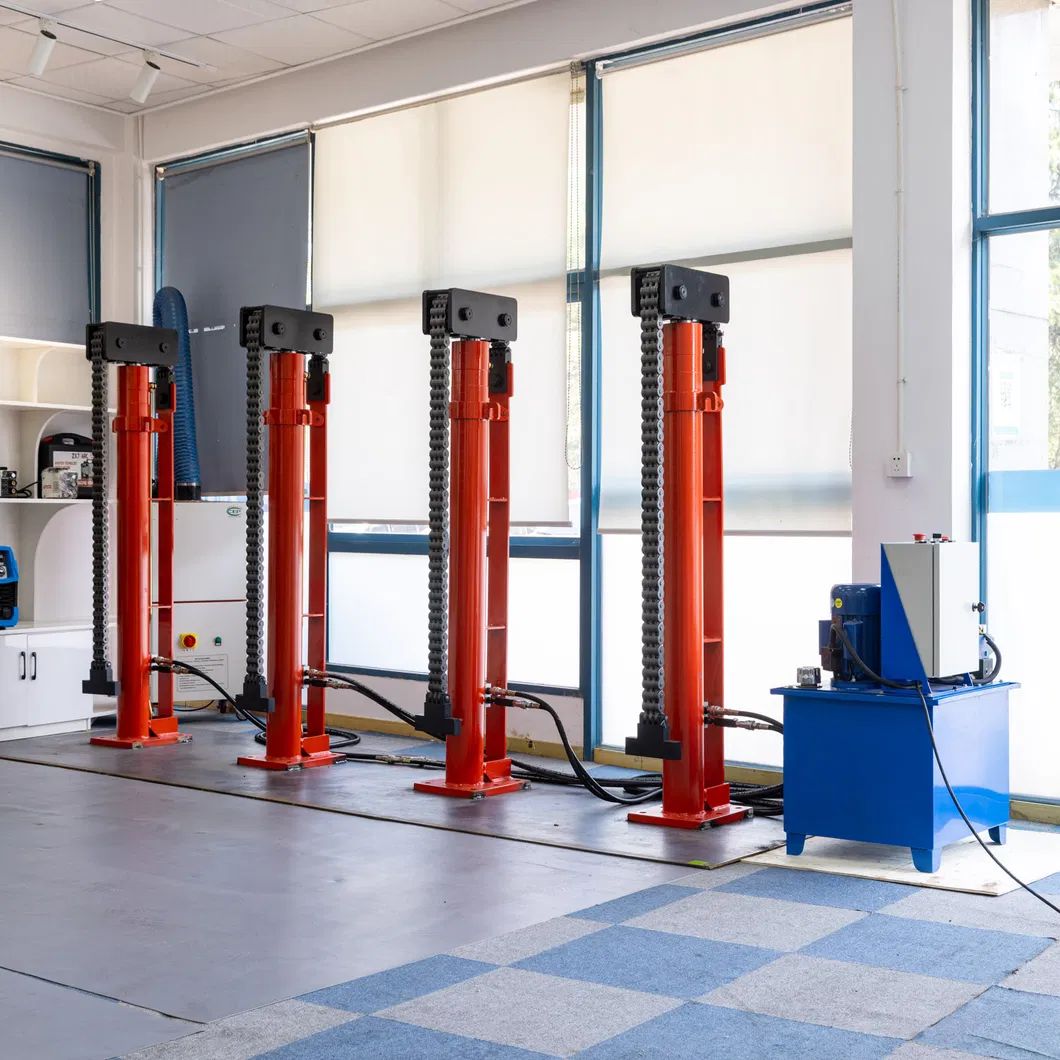

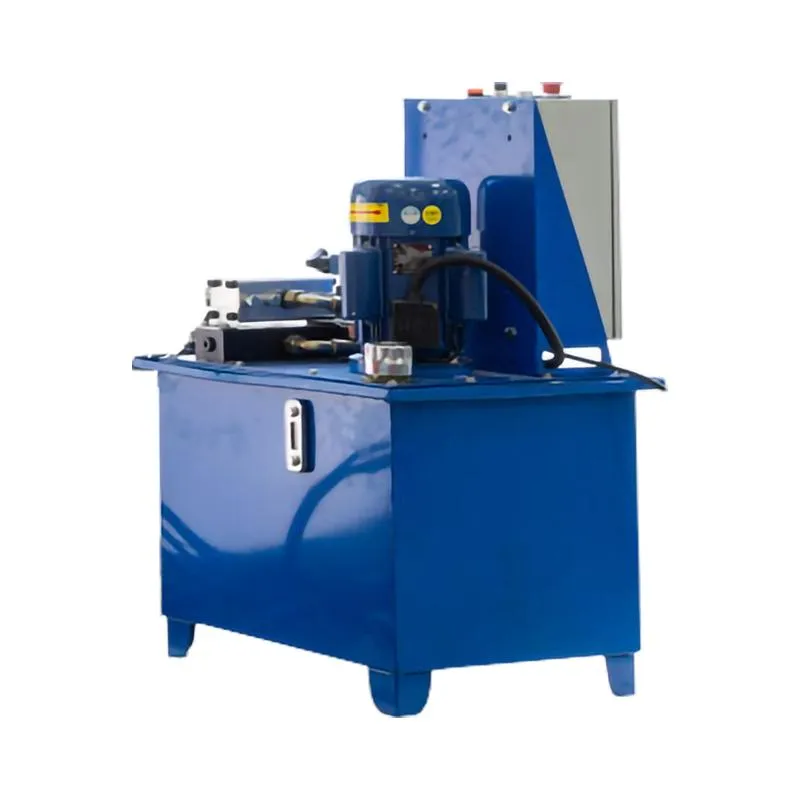

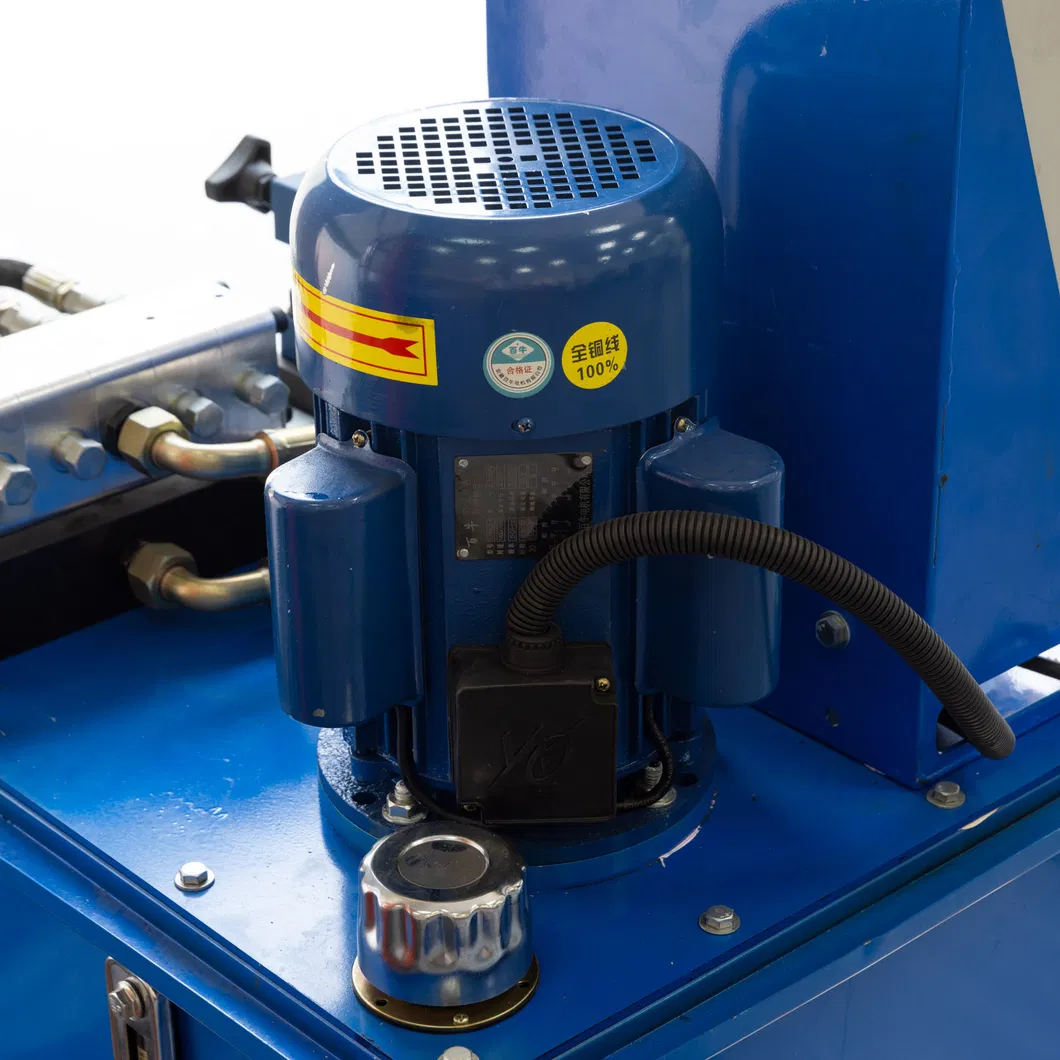

With years of specialized research and development, the hydraulic jacking technology presented here has become a standard in the industry. The equipment is designed to be all-inclusive, combining hydraulic pump stations and hoists into a perfectly synchronized lifting system. These solutions are widely used for inverted lifting, translation, jacking, and climbing in major installation projects globally.
