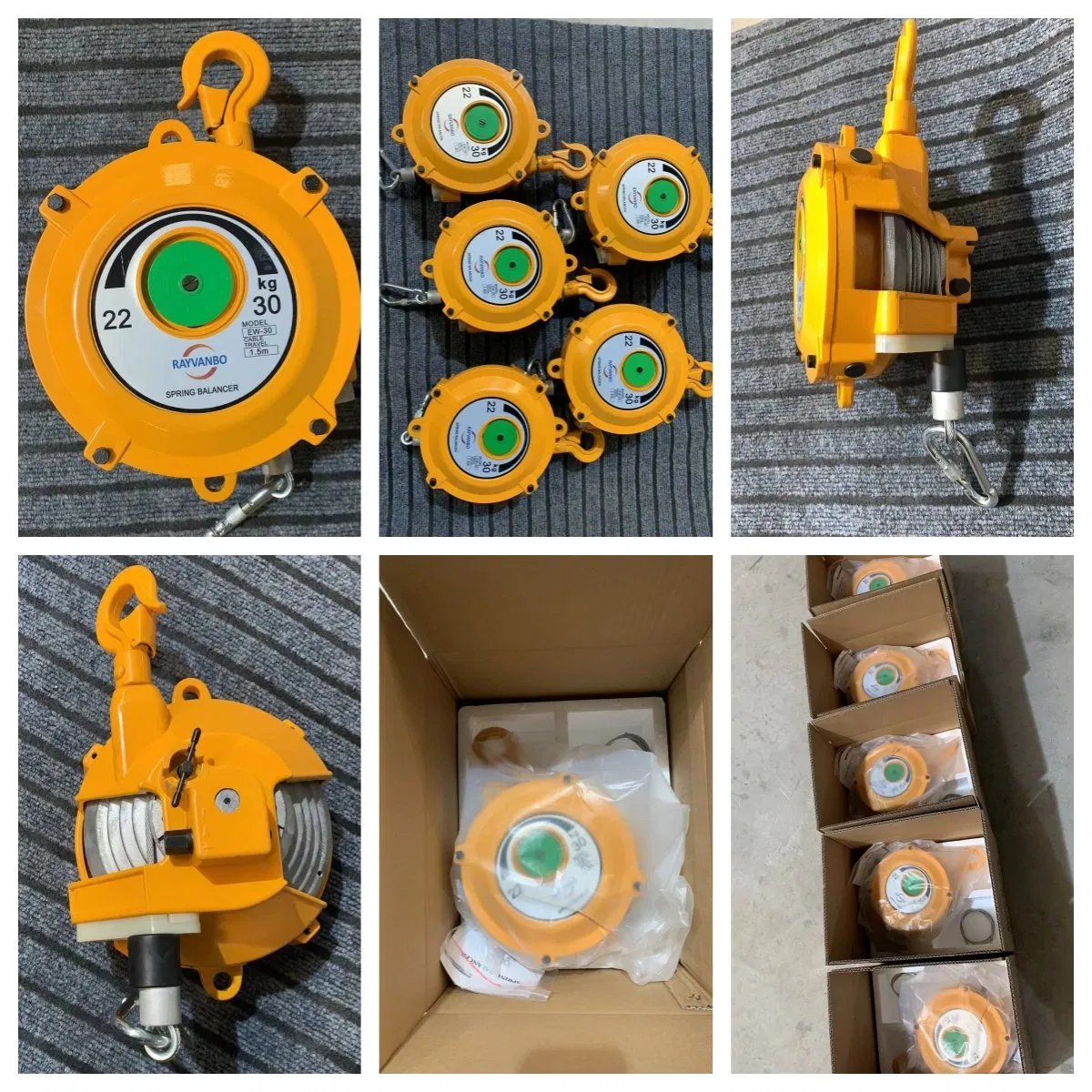

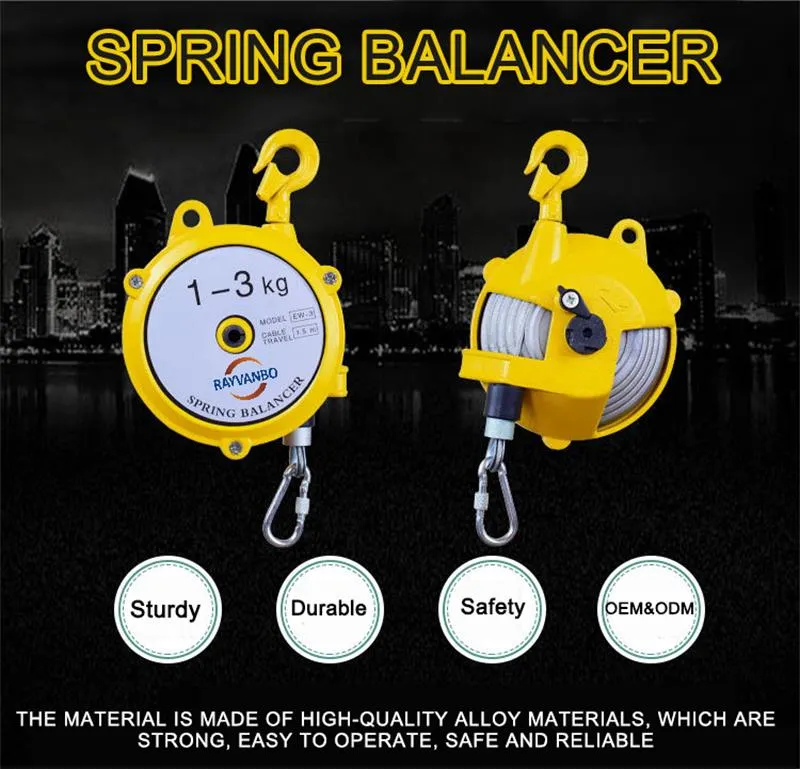

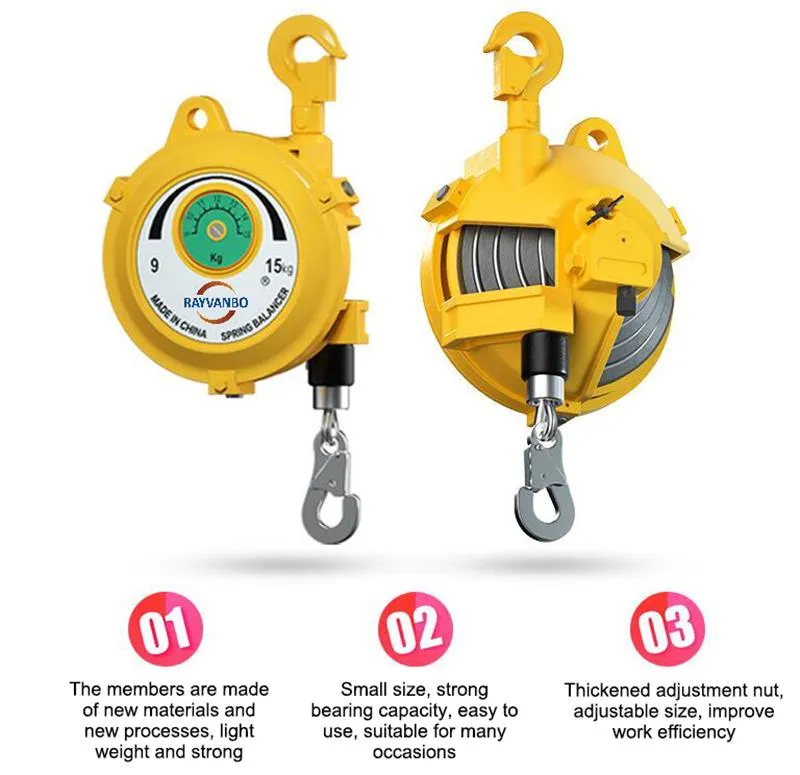

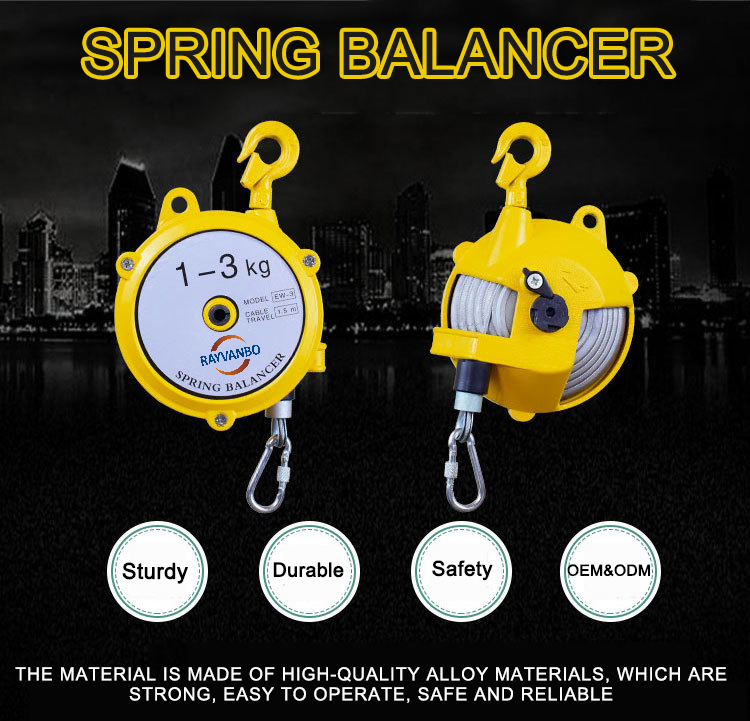

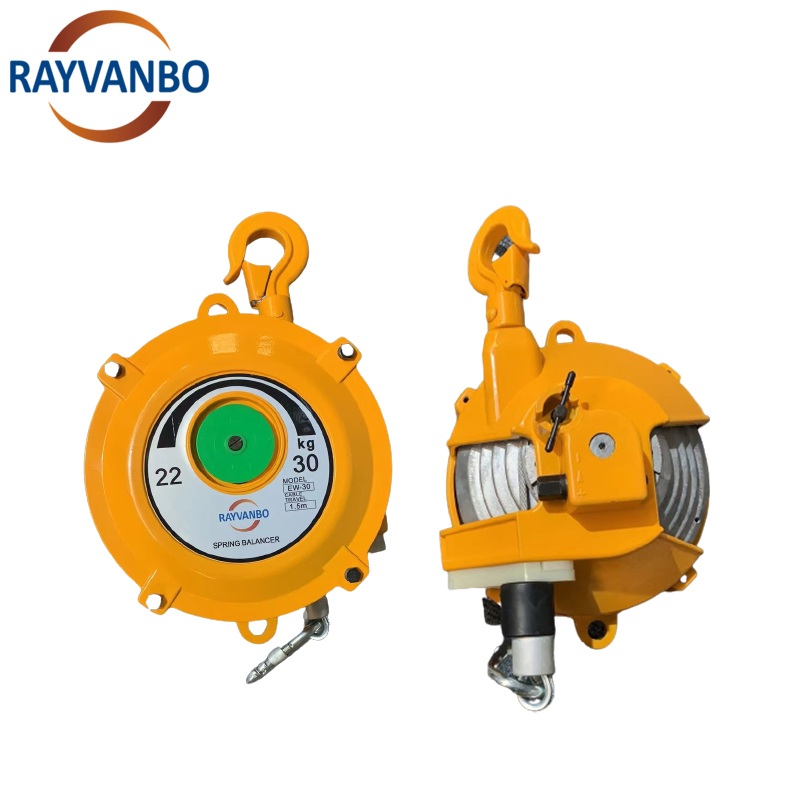

The EW series spring balancer is an advanced auxiliary tool designed to be used in conjunction with operating equipment. By utilizing the energy accumulated in its coil spring, this device allows suspended tools to remain in a "weightless" state. This significantly reduces operator fatigue and enhances overall production efficiency. It is an indispensable component for modern factory environments.
These balancers are ideally suited for assembly lines and fixed workstations where manual tools or lifting equipment are frequently used over long periods. Whether in automotive, household appliance, or machinery manufacturing, the spring balancer acts as a reliable support system, minimizing the physical effort required to move tools up and down.

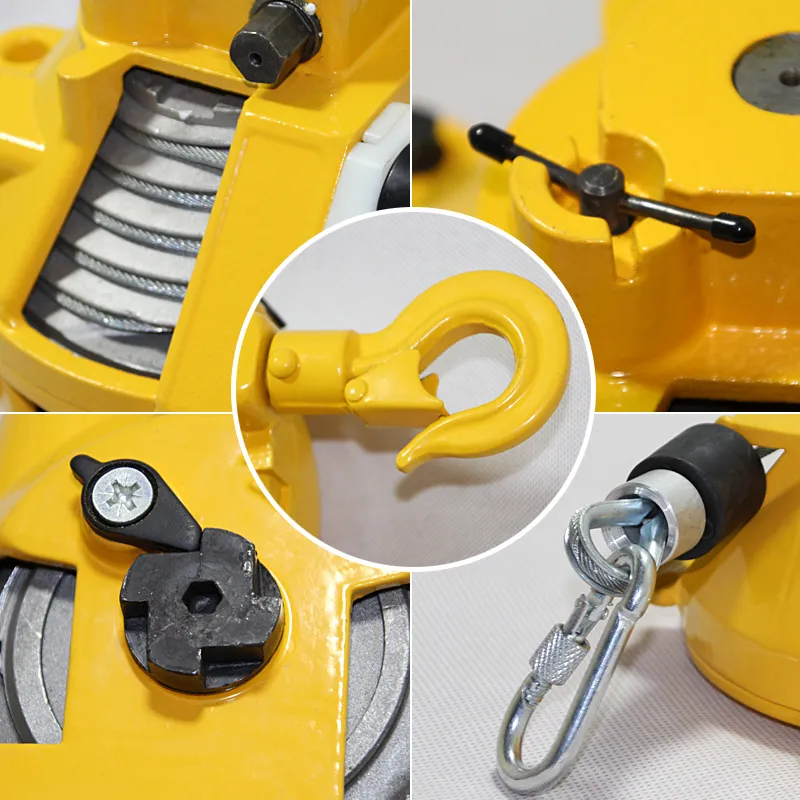

By neutralising the weight of the attached equipment through precise spring tensioning, the tool becomes virtually weightless. Adjusting the tension allows the operator to control the retraction speed, ensuring a customized and safe ergonomic experience.
| Model | Load (kg) | Working Stroke (m) | Net Weight (kg) | |
|---|---|---|---|---|
| Min Load | Max Load | |||
| EW-3.0 | 1.0 | 3.0 | 1.5 | 1.43 |
| EW-5.0 | 3.0 | 5.0 | 1.5 | 1.52 |
| EW-9.0 | 5.0 | 9.0 | 1.5 | 3.74 |
| EW-15 | 9.0 | 15 | 1.5 | 3.9 |
| EW-22 | 15 | 22 | 1.5 | 7.13 |
| EW-30 | 22 | 30 | 1.5 | 7.6 |
| EW-40 | 30 | 40 | 1.5 | 10 |
| EW-50 | 40 | 50 | 1.5 | 10.2 |
| EW-60 | 50 | 60 | 1.5 | 10.8 |
| EW-70 | 60 | 70 | 1.5 | 11.2 |
| EW-80 | 70 | 80 | 1.5 | 12 |
| EW-100 | 80 | 100 | 1.5 | 22 |
| EW-120 | 100 | 120 | 1.5 | 23 |
