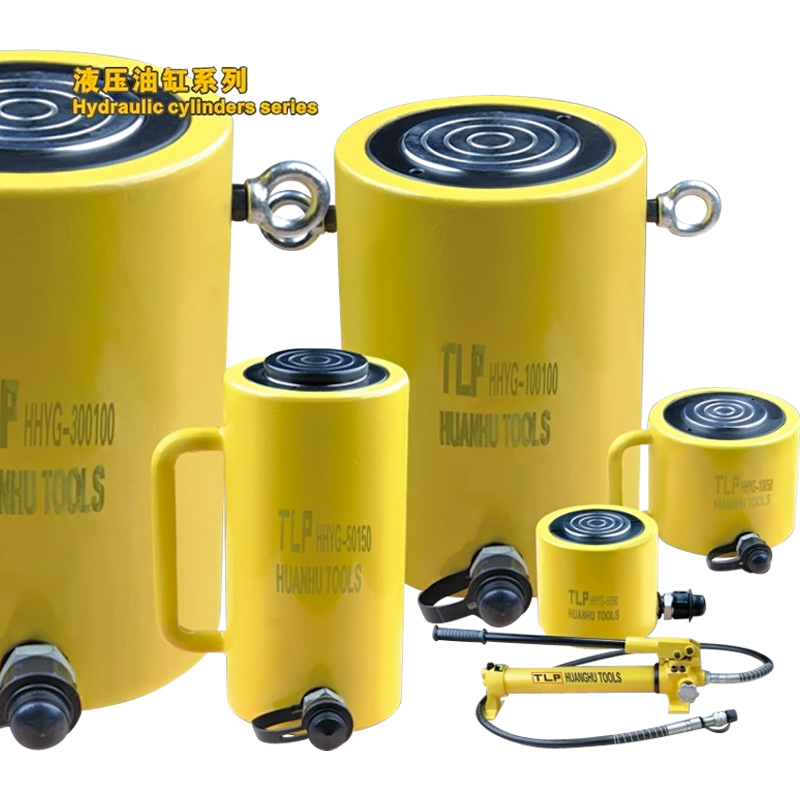

Hydraulic Cylinder Jack (HHYG series)

Customization:	Available
After-sales Service:	Technical Support
Warranty:	One Year

Send Inquiry

Product Description

Basic Information

Model NO.

HHYG Series

Type

Hydraulic Jack

Structure

Hydraulic Jack

Capacity (Load)

5ton ~1000ton

Power Source

Hydraulic

Certification

CE, ISO 9001:2000, ISO 9001:2008

Transport Package

Plywood Case

Origin

China

HS Code

84122100

Production Cap.

3000pcs/month

Product Description

Hydraulic Cylinder Lifting Jack (HHYG Series)

Light weight and easy to carry.
Baked enamel finish for increased corrosion resistance.
All raw materials specially heat-treated and processed by imported CNC lathes.
Imported high-quality seals to provide better protection and prevent wear.
Rated output from 10 metric tons to 600 metric tons.
Stroke length ranging from 50mm to 300mm.
Oil storage volume from 72CC to 25659CC.
Closed height from 97mm to 650mm.

Model	Tonnage	Stroke	Oil capacity	Matching pump	Closed height	Weight
Model	(T)	(mm)	(cc)	Matching pump	(mm)	(kg)
HHYG-1050	10	50	72	HHB-700C	97	2.5
HHYG-10100	10	100	145	HHB-700C	147	4.5
HHYG-10150	10	150	217	HHB-700C	226	7
HHYG-2050	20	50	141	HHB-700C	105	5
HHYG-20100	20	100	282	HHB-700	165	7.5
HHYG-20150	20	150	423	HHB-700	230	11

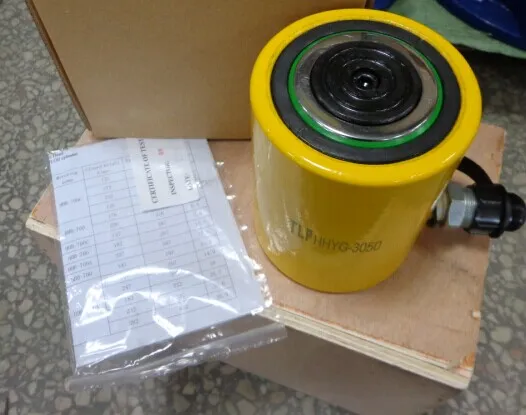

HHYG-3050	30	50	210	HHB-700C	108	5.5
HHYG-30100	30	100	418	HHB-700	167	9
HHYG-30150	30	150	627	HHB-700A	233	15
HHYG-5050	50	50	318	HHB-700	113	9
HHYG-50100	50	100	635	HHB-700A	173	13
HHYG-50150	50	150	953	HHB-700A	243	18
HHYG-10050	100	50	623	HHB-700	136	19
HHYG-100100	100	100	1246	HHB-700A	232	34
HHYG-100150	100	150	1869	HHB-700A	282	40.5
HHYG-20050	200	50	1280	HHB-700A	182	55
HHYG-200100	200	100	2543	HHB-630A	232	73
HHYG-200150	200	150	3810	HHB-630A	282	82
HHYG-25050	250	50	1820	-	234	88
HHYG-250150	250	150	5480	-	334	135
HHYG-250300	250	300	10970	-	440	206
HHYG-30050	300	50	2281	-	290	152
HHYG-300150	300	150	6843	-	390	200
HHYG-300300	300	300	13685	-	540	271
HHYG-40050	400	50	2800	-	360	223
HHYG-400150	400	150	8399	-	460	283
HHYG-400300	400	300	16797	-	610	374
HHYG-50050	500	50	3653	-	385	320
HHYG-500150	500	150	10959	-	485	399
HHYG-500300	500	300	21918	-	635	518
HHYG-60050	600	50	4276	-	400	384
HHYG-600150	600	150	12829	-	500	475
HHYG-600300	600	300	25659	-	650	611

Product Gallery

Frequently Asked Questions

What is the capacity range of the HHYG series hydraulic jacks?

The HHYG series offers a wide range of rated outputs, starting from 10 metric tons up to 1000 metric tons to suit various industrial lifting needs.

What are the available stroke lengths for these cylinders?

The stroke lengths range from 50mm to 300mm, depending on the specific model selected.

How does the baked enamel finish benefit the product?

The baked enamel finish provides increased corrosion resistance, ensuring the cylinder remains durable even in harsh working environments.

What kind of seals are used in the HHYG series?

We use high-quality imported seals designed to provide superior protection and minimize wear, extending the service life of the cylinder.

Are these hydraulic jacks certified for international use?

Yes, the HHYG series is manufactured under strict quality standards and holds certifications including CE, ISO 9001:2000, and ISO 9001:2008.

Can these jacks be easily transported?

Yes, the design focuses on being lightweight and portable, making them easy to carry and maneuver on job sites.
