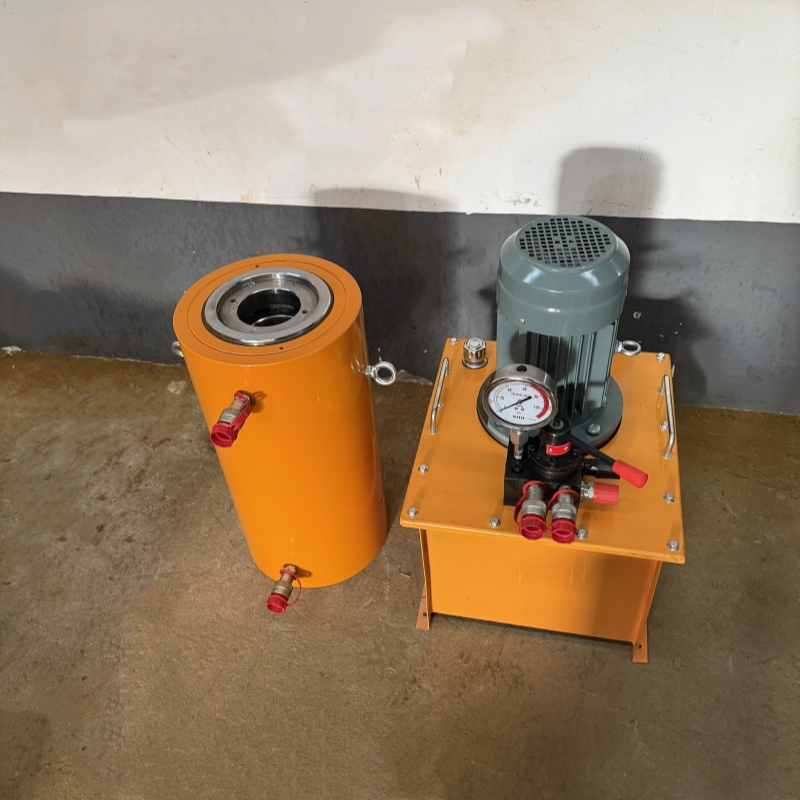

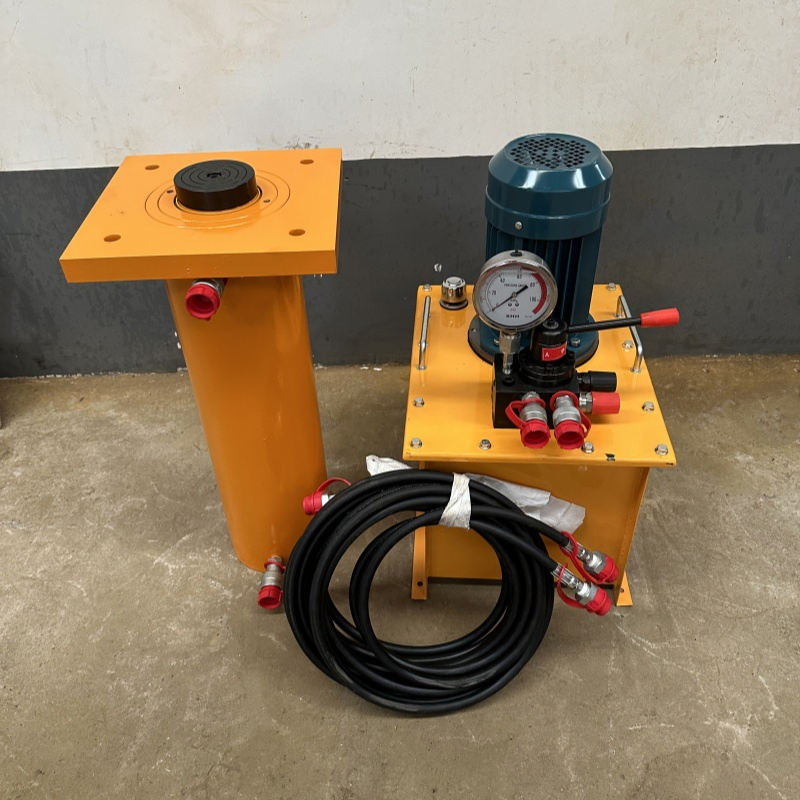

1000t Hydraulic Static Load Test Jack
Customization: The color can be customized!

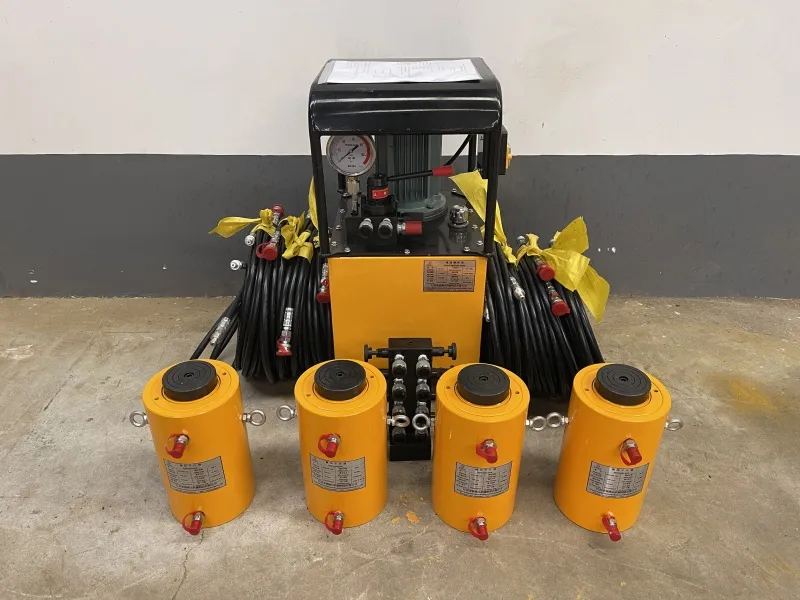

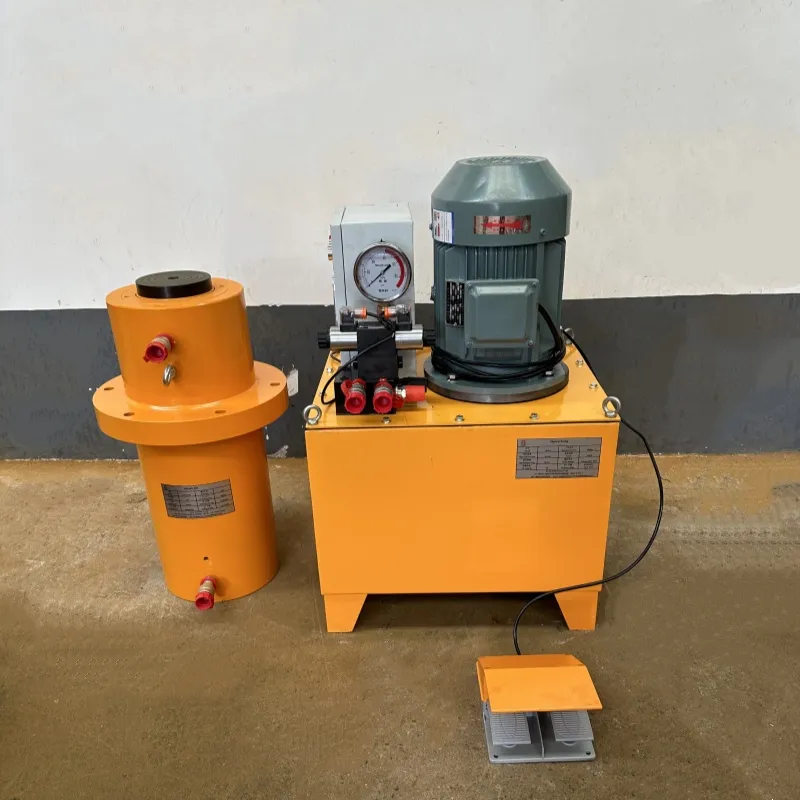

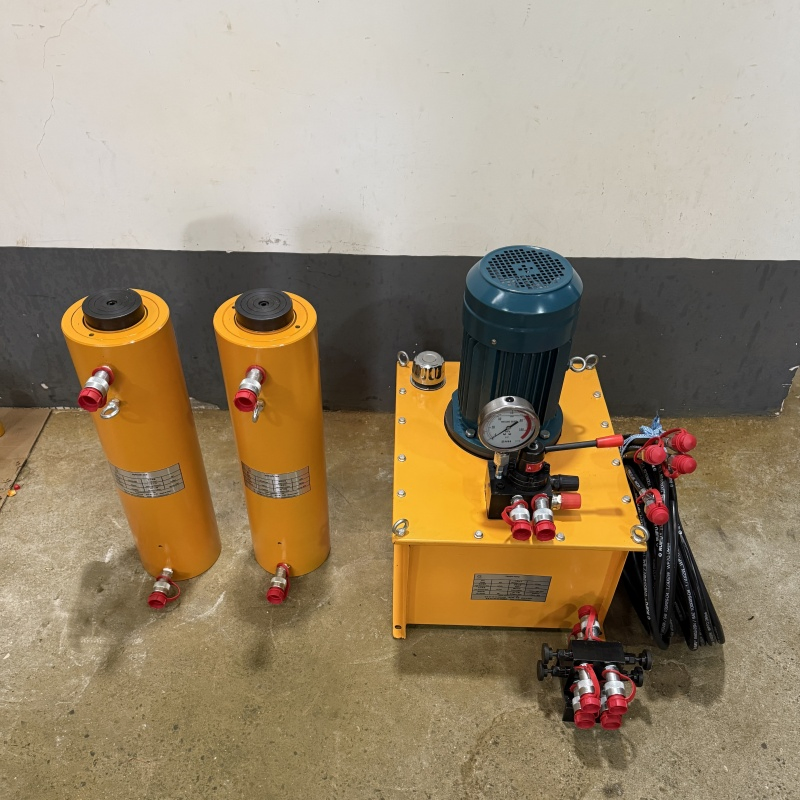

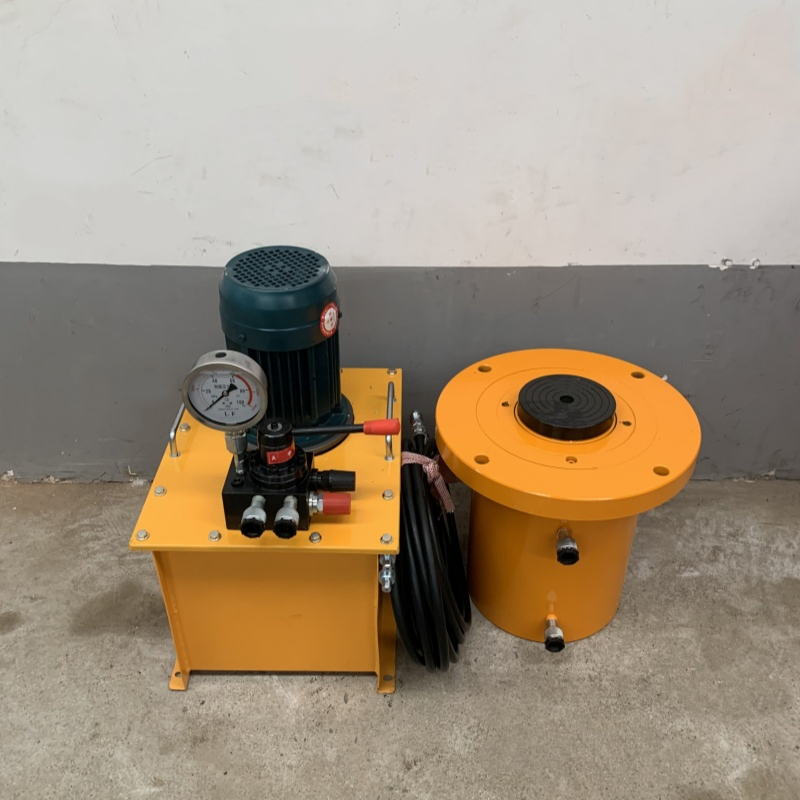

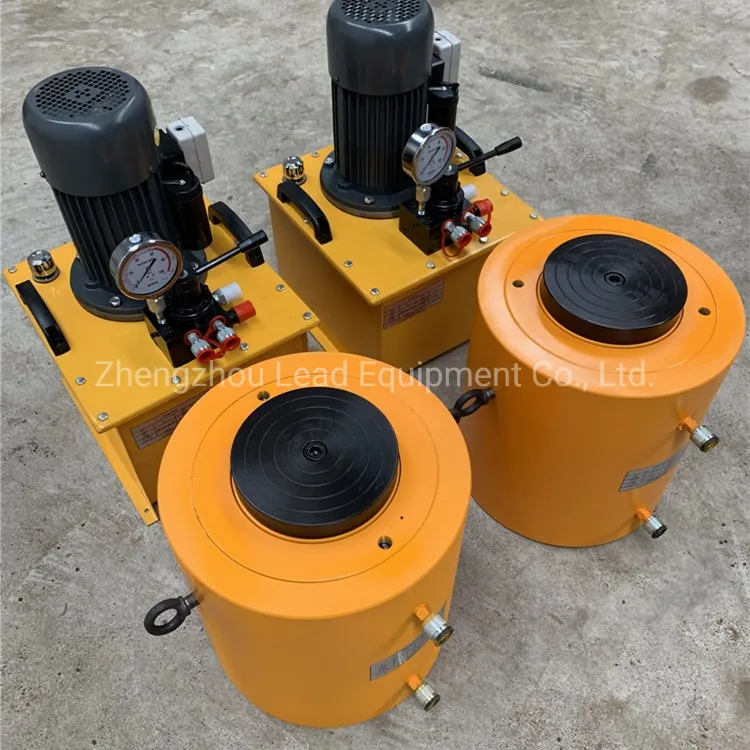

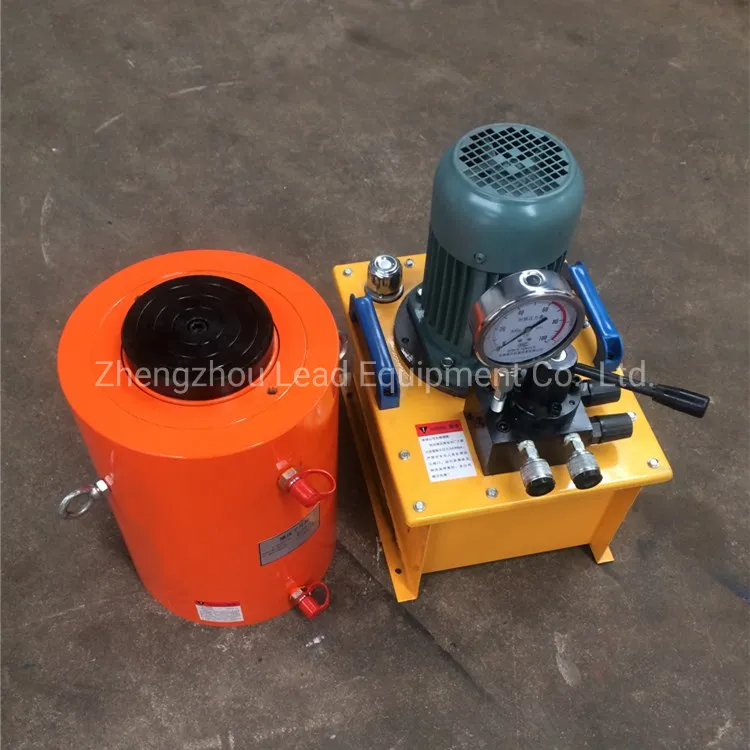

The electric hydraulic jack is powered by ZB series of high pressure electric oil pumps. Its function includes oil pressure rebound and overflow protection. It is designed as a safe protect pressurizer to prevent emergent overpressure, ensuring construction safety.
This hydraulic jack can bear partial loading at 5% of rated pressure. The high-pressure alloy cylinder is extremely durable, making it ideal for large-scale projects. It features large output, lightweight design, and remote control compatibility.
| Model | Tonnage (T) | Stroke (mm) | Closed Height (mm) | Extend Height (mm) | Outer Diameter (mm) | Weight (kg) | Pressure |
|---|---|---|---|---|---|---|---|
| STQ50-100 | 50 | 100 | 225 | 325 | 127 | 35 | 63MPa |
| STQ100-200 | 100 | 200 | 350 | 550 | 180 | 78 | 63MPa |
| STQ150-300 | 150 | 300 | 460 | 760 | 219 | 103 | 63MPa |
| STQ200-500 | 200 | 500 | 685 | 1185 | 240 | 221 | 63MPa |
| STQ320-300 | 320 | 300 | 510 | 810 | 330 | 311 | 63MPa |
| STQ500-500 | 500 | 500 | 760 | 1260 | 430 | 599 | 63MPa |
| STQ1000-300 | 1000 | 300 | 760 | 1060 | 600 | 1663 | 63MPa |
Note: If the model you need is not in the form, please contact us for customization according to your project requirements!

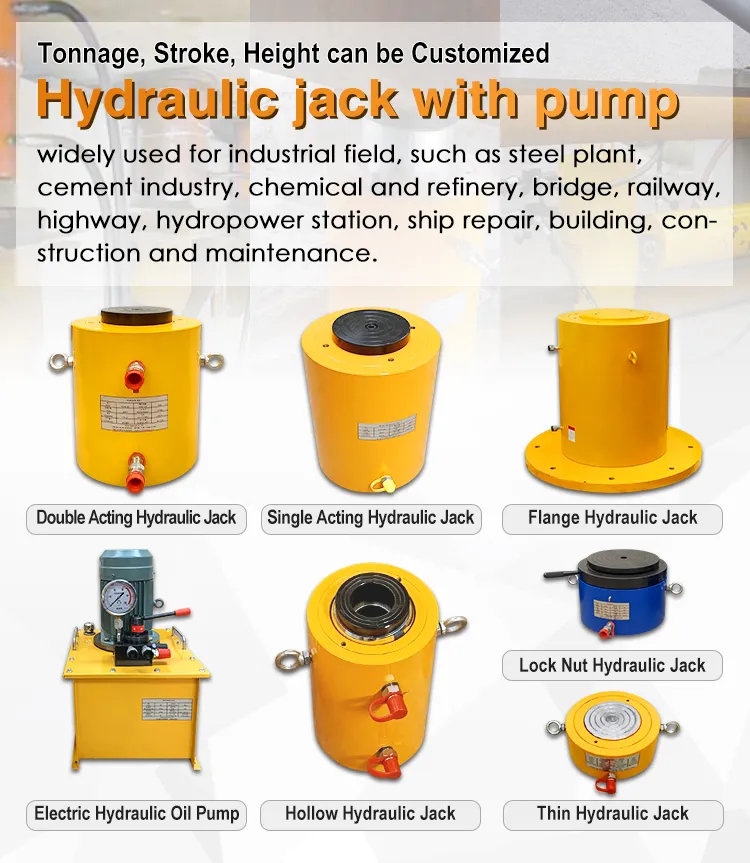

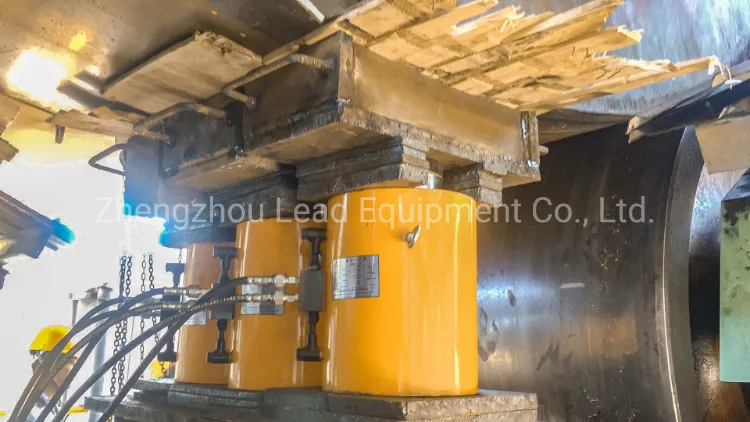

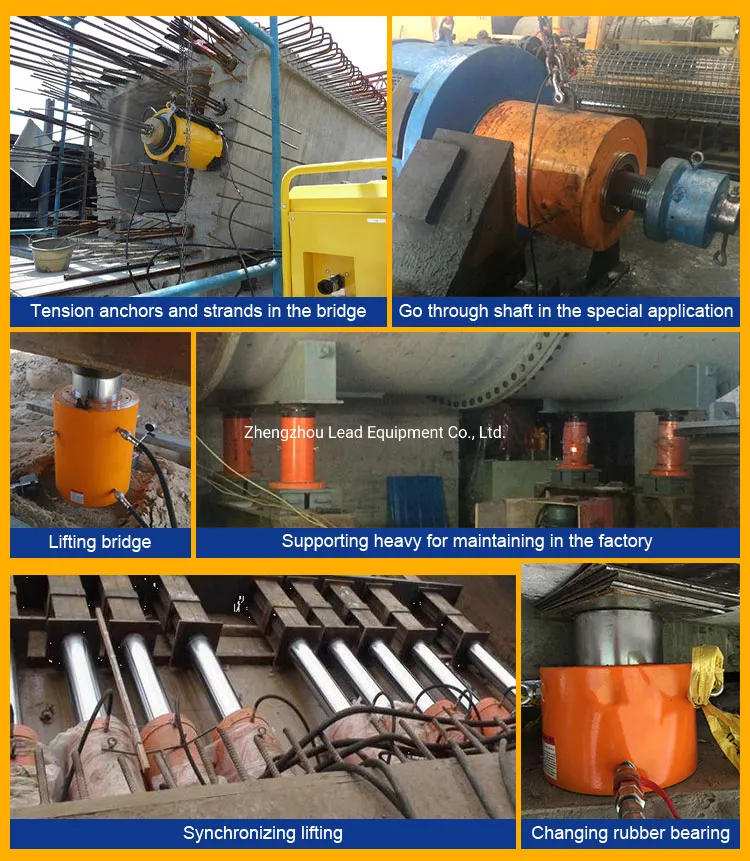

Our hydraulic jacks are widely utilized across various industrial fields, including steel plants, the cement industry, chemical refineries, bridges, railways, highways, hydropower stations, ship repair, and general building construction and maintenance.
We have been serving the hydraulic tools industry since 2009, providing a comprehensive range of high-quality solutions:
All tonnage, stroke, and height specifications can be customized. We provide a 2-year warranty on our products.
