Hydraulic Jacking System/ Tank Jacks/Tank Construction Equipment/ Hydraulic Jacks/ Lifting Equipment/ Lifting Device/ Tank Top to Bottom Construction Jacks

Customization:	Available
After-sales Service:	Remote Instruction
Warranty:	2 Year

📊

Basic Specifications

Model NO.

SQD-XXX-100S. F

Type

Hydraulic Jack

Structure

Hydraulic Jack

Capacity (Load)

12 Tons to 100 Tons

Power Source

Hydraulic

Max Height

>400mm

Certification

CE, ISO 9001:2000

Condition

New

Lifting Height

2.6m

Oil Pressure

18-25MPa

HS Code

8425421000

Origin

China

⚙️

Product Description

Hydraulic jacking equipment is a new and special lifting equipment powered by hydraulic oil. By pushing the reciprocating movement of the hydraulic cylinder piston, load conversion is carried out between the upper clamping mechanism connected with the upper end of the piston and the lower clamping mechanism connected with the lower part of the cylinder, so as to realize lifting. The hydraulic jacking equipment is a single-acting two-stage hydraulic cylinder, used for vertical take-off and landing work, return need external force or self-weight back. The equipment is compact, stable, easy to operate, adjustable load, fast installation, high synchronization accuracy.

💡 Reference Parameter

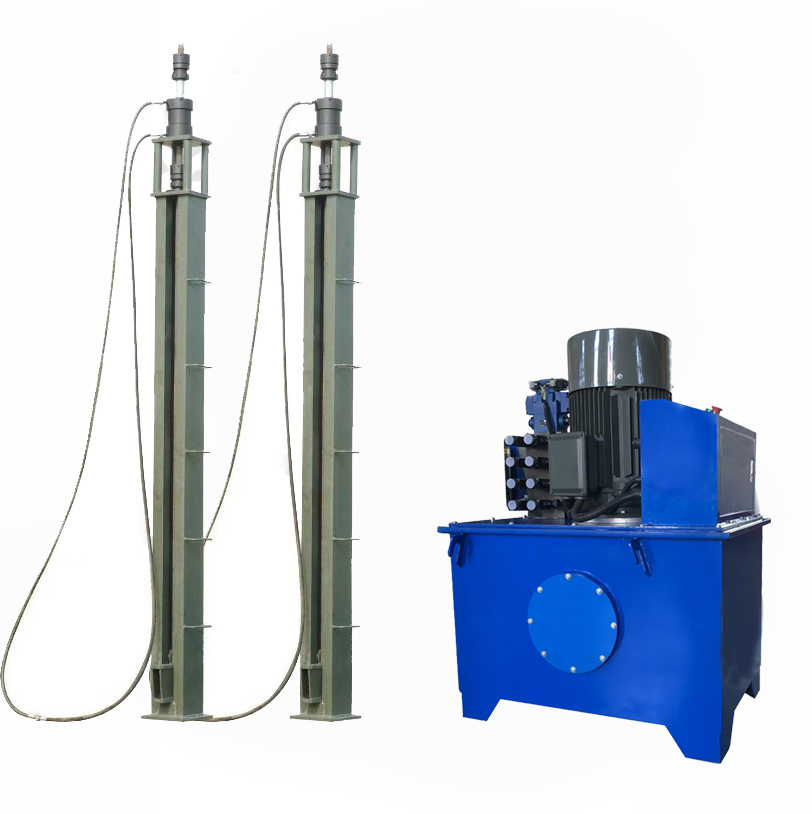

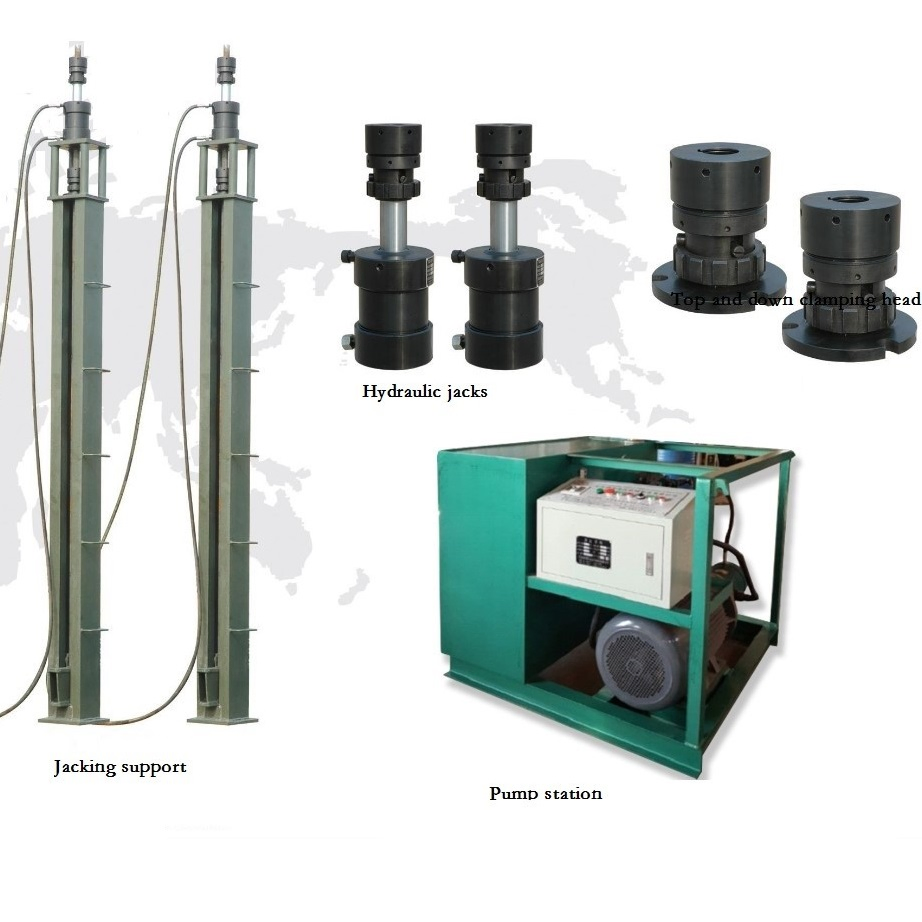

I. PUMP STATION (YB-40)

Maximum pressure	25MPa
Power	11KW
Rated oil flow	40L/min
Motor rotate speed	1470r/min
Oil tank capacity	240L
System temperature	20-60ºC
Oil filter precision	20υm
Voltage	Main power supply 220V, 3 phase
System oil type	L-HM46# antiwear hydraulic oil
Total weight	370Kg
Outsize(mm)	*950850820*

II. SQD-120-100S.F JACKS

Theory lifting capacity	123KN
Rated lift capacity	120KN
Rated oil pressure	18MPa
Hydraulic stroke	100±0.5mm
Glissade capacity	≤5mm
Weight	≤30Kg
Oil outlet	*M161.5**
Installation size for jack base	Settle 4-M16 on the circumference of a φ120 circle
Size(mm)	*138138500*
Suitable lifting rod	φ32round steel(45#)

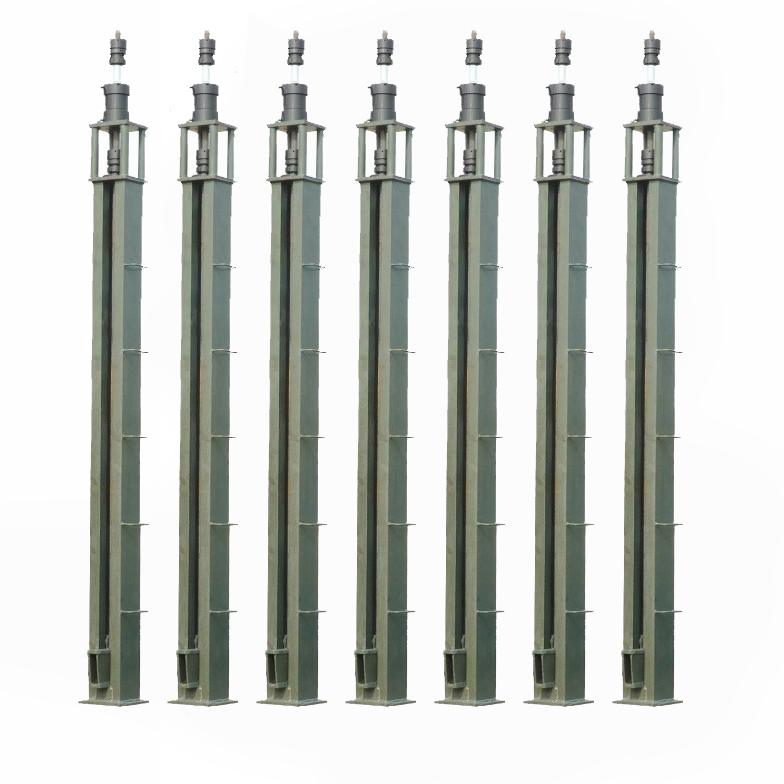

III. JACK SUPPORT (TSJ-120-2600L)

Total height	3460mm
Lifting rod height	3900mm
Slider stroke	2630mm
Sliding block guide wheel quantity	4 pcs
Lifting rod diameter	φ32mm
Size(mm)	*3900300300*

💎

What We Can Bring To You?

Support you to win the project during bidding phase with suitable configurations to shorten construction time.
Provide all technical documents and advice for construction procedure clarifications.
Calculate the most suitable number of hydraulic jacks according to the tank weight.
Provide suitable hydraulic jack accessories with competitive pricing.
Offer site personnel training, operation services, or manpower as a subcontractor.

Frequently Asked Questions

Q: What is the load capacity range of this hydraulic jacking system? A: Our hydraulic jacking system is designed to handle lifting capacities ranging from 12 Tons to 100 Tons.

Q: What type of hydraulic oil is required for the pump station? A: We recommend using L-HM46# antiwear hydraulic oil for optimal performance of the pump station.

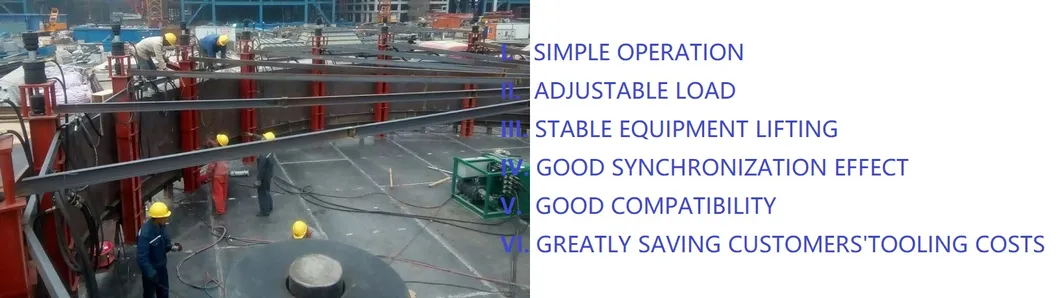

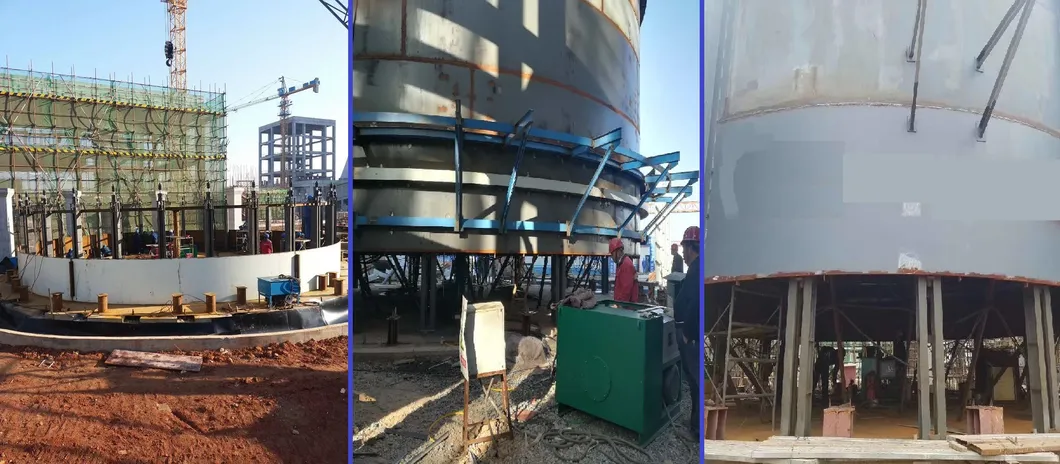

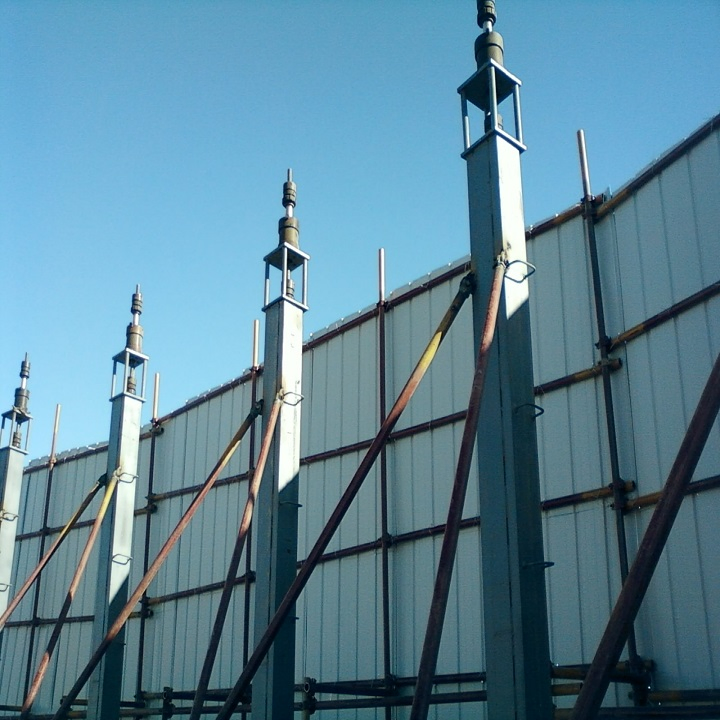

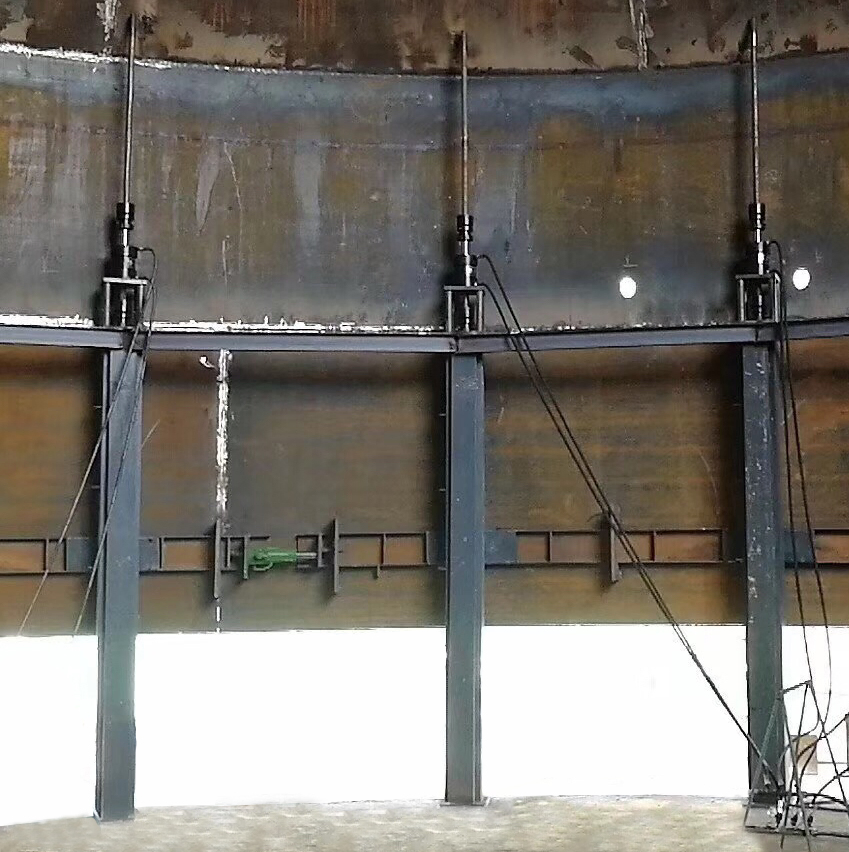

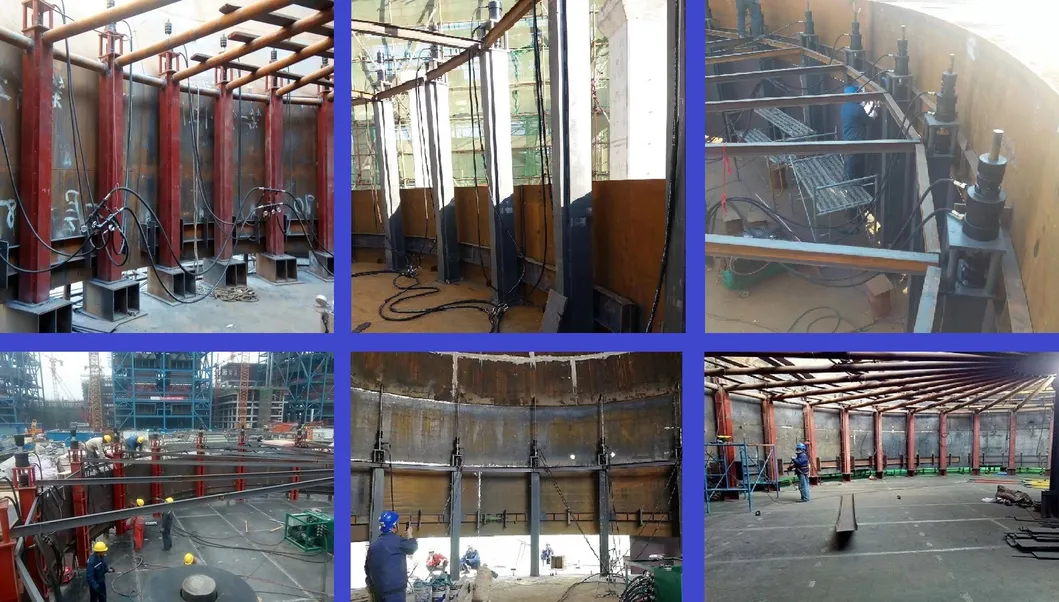

Q: What are the main applications of this equipment? A: It is primarily used for vertical take-off and landing work, specifically in tank construction and top-to-bottom lifting procedures.

Q: Does the system support synchronized lifting? A: Yes, the equipment is designed for high synchronization accuracy, ensuring a stable and balanced lifting process.

Q: What technical support is available for bidding projects? A: We provide full technical documentation, jack quantity calculations based on tank weight, and configuration advice to help shorten construction timelines.

Q: Is on-site training provided for operators? A: Yes, we offer site people training services, operation services, and can even provide manpower as a subcontractor.
