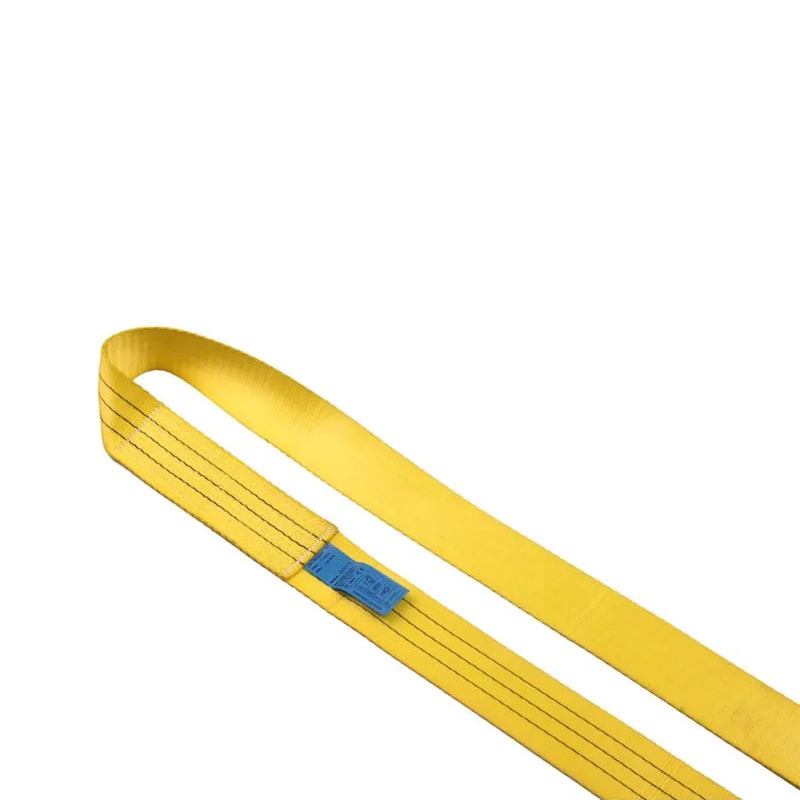

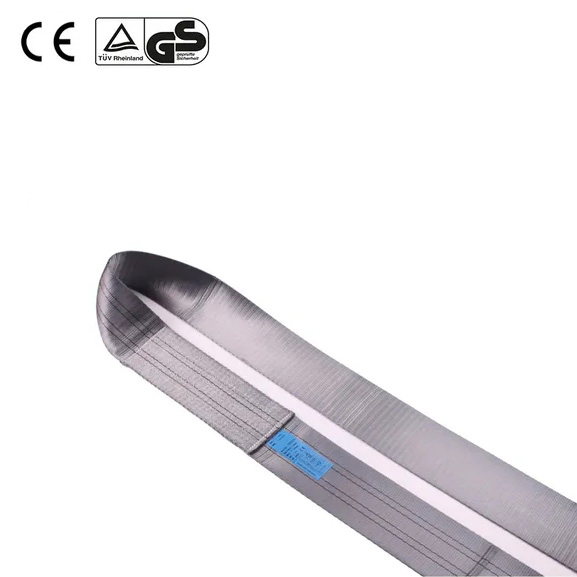

Webbing sling is produced from top quality synthetic fiber by advanced equipment. According to customer's requirement, the safety factor of sling ranges from 4:1 to 8:1. Load range is from 0.5t to 50t. We provide single ply, double ply, and four ply slings.
Standards: En1492-1, AS4497.1, ASME B30.9, JB-T 8521.2

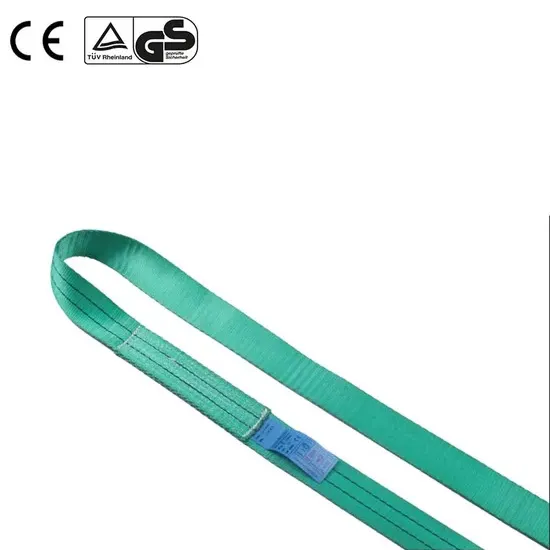

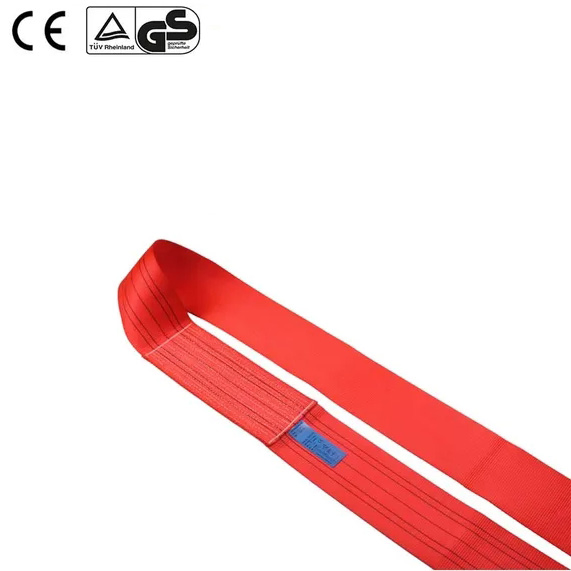

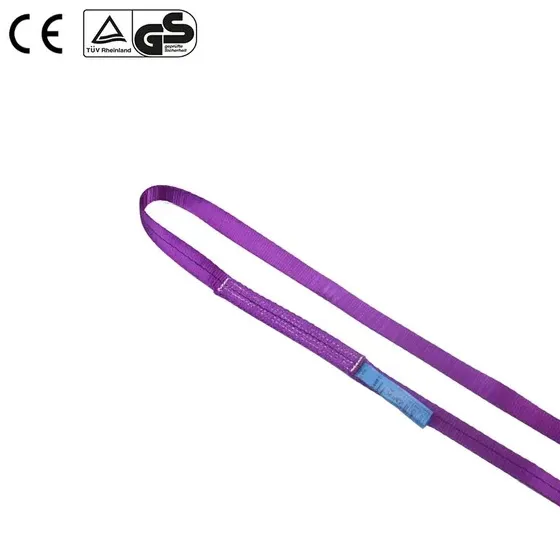

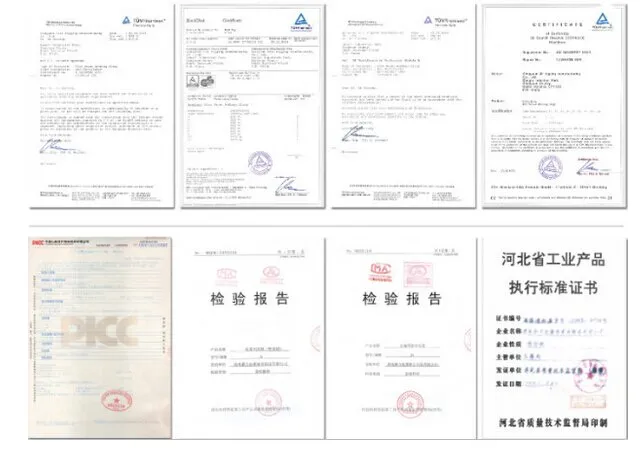

Certification: CE and TUV GS

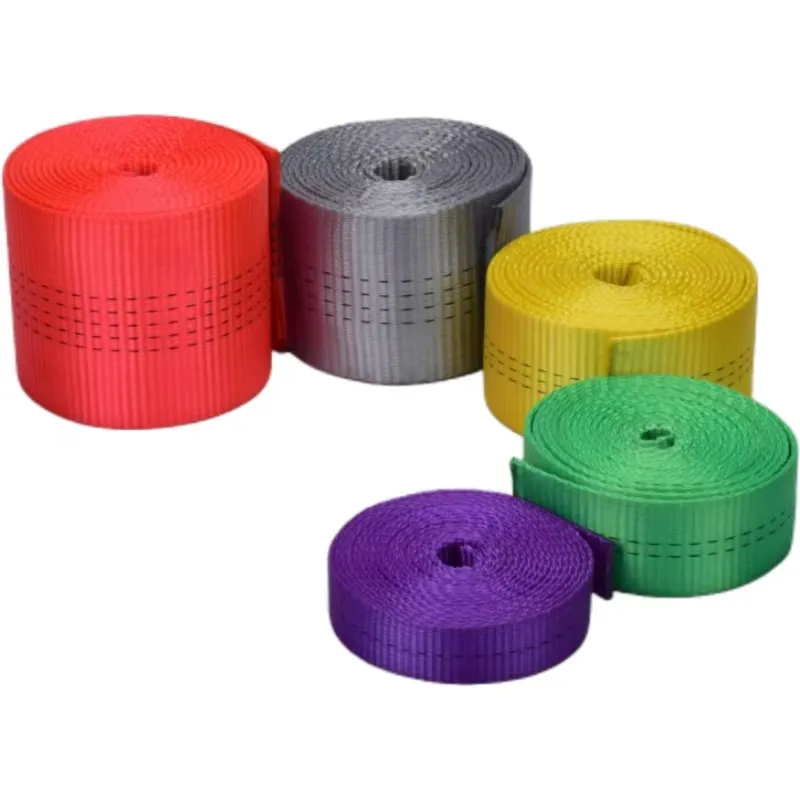

01 MATERIAL
High quality 100% high tension industrial polyester yarn.

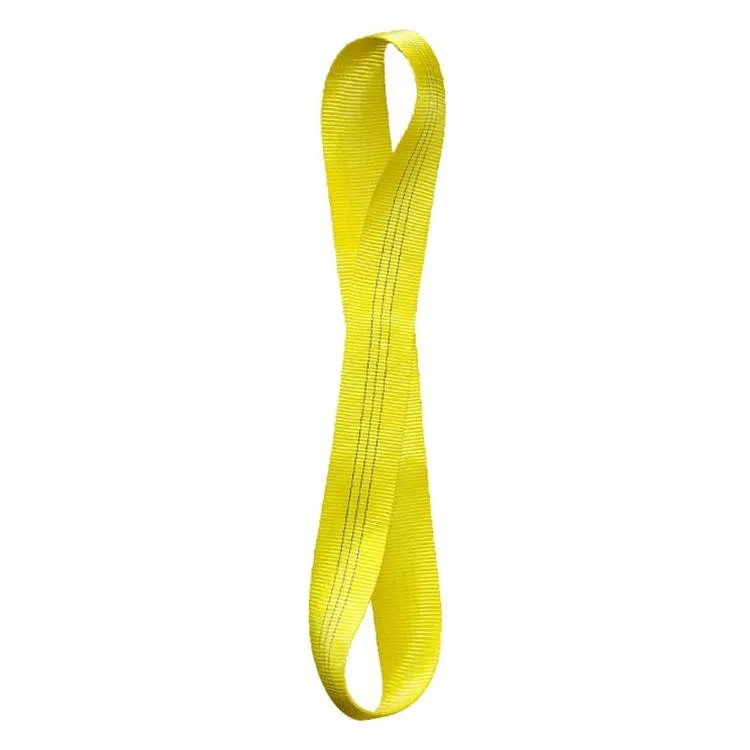

02 CLOSED STITCH
Uniform force when lifting, low elongation, soft and flexible.

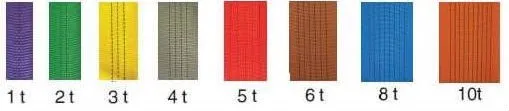

| CODE | SWL | Color | Straight Lift (1) | Choked Lift (0.8) | U-Lift (2) | 7-45° (1.4) | 45-60° (1) | Width (mm) | Length (M) |
|---|---|---|---|---|---|---|---|---|---|
| JB-01 | WLL 1T | Purple | 1000 | 800 | 2000 | 1400 | 1000 | 25-30 | 1m-12m |
| JB-02 | WLL 2T | Green | 2000 | 1600 | 4000 | 2800 | 2000 | 50-60 | 1m-12m |
| JB-03 | WLL 3T | Yellow | 3000 | 2400 | 6000 | 4200 | 3000 | 75-90 | 1m-12m |
| JB-04 | WLL 4T | Gray | 4000 | 3200 | 8000 | 5600 | 4000 | 100-120 | 1m-12m |
| JB-05 | WLL 5T | Red | 5000 | 4000 | 10000 | 7000 | 5000 | 125-150 | 1m-12m |
| JB-06 | WLL 6T | Brown | 6000 | 4800 | 12000 | 8400 | 6000 | 150-180 | 1m-12m |
| JB-08 | WLL 8T | Blue | 8000 | 6400 | 16000 | 11200 | 8000 | 200-240 | 1m-12m |
| JB-10 | WLL 10T | Orange | 10000 | 8000 | 20000 | 14000 | 10000 | 250-300 | 1m-12m |

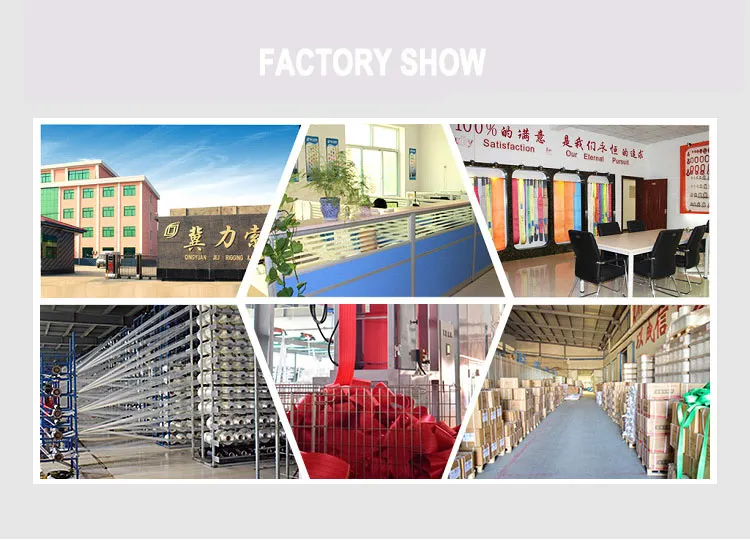

We are a professional manufacturer specializing in the design and production of slings, rigging, and related crane accessories. With years of experience, we are engaged in research, development, design, production, and after-sales service.
Utilizing the latest production lines for synthetic fiber slings, we produce a wide range of general and special hoisting rigging. Our facility handles the entire process including weaving, dyeing, heating, sewing, and core filling. Our products are widely used in metallurgy, power supply, petroleum, aviation, mining, and construction industries.
