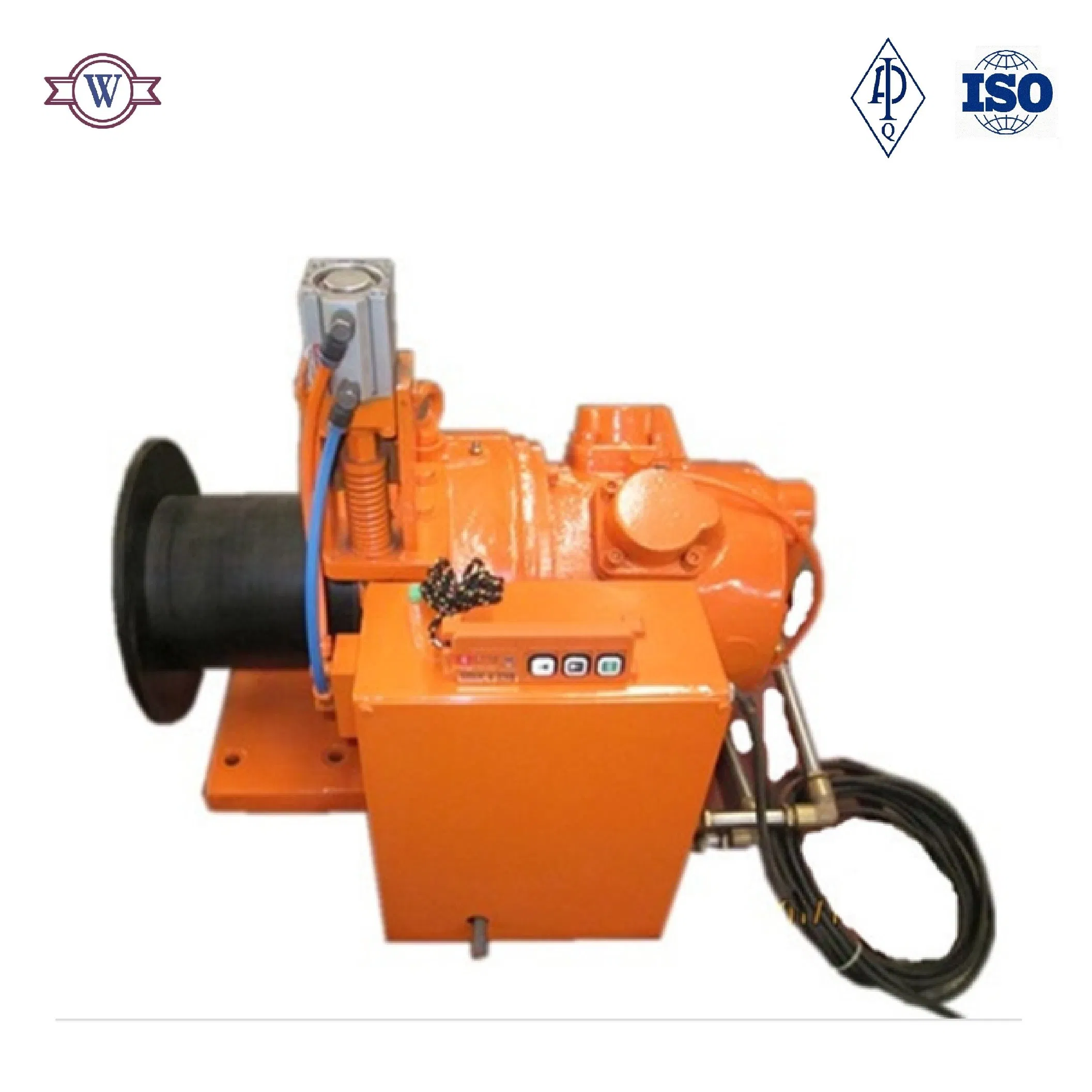

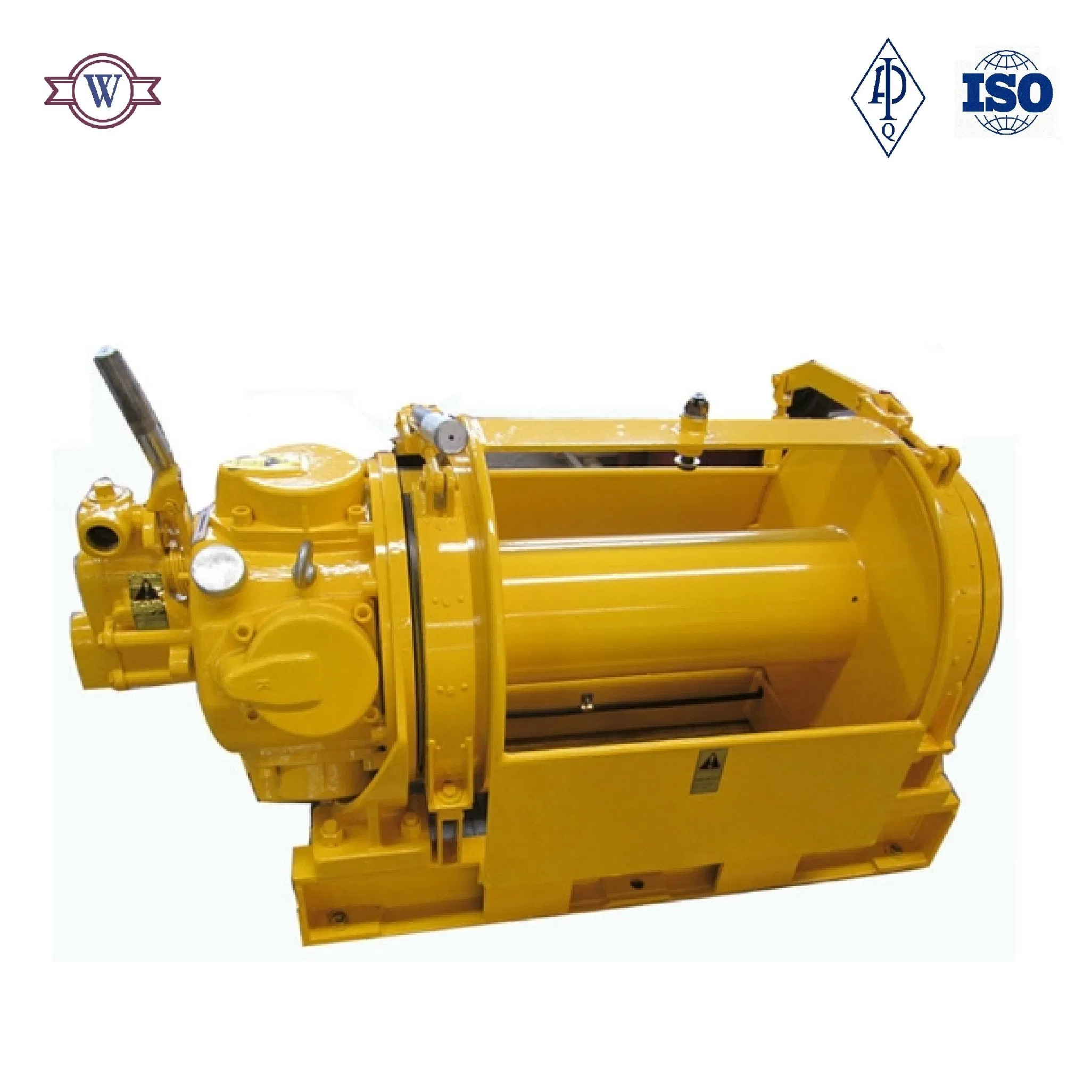

Jqh Series Pneumatic Man-Riding Winch for Drilling Rig System

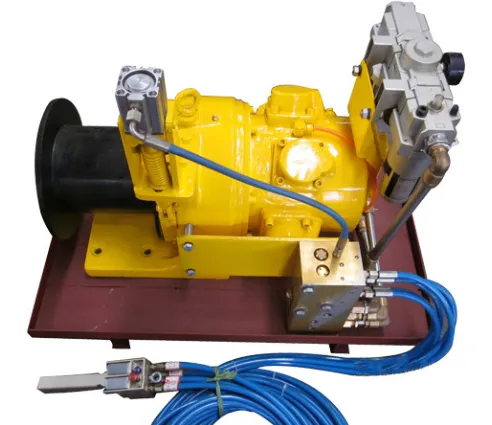

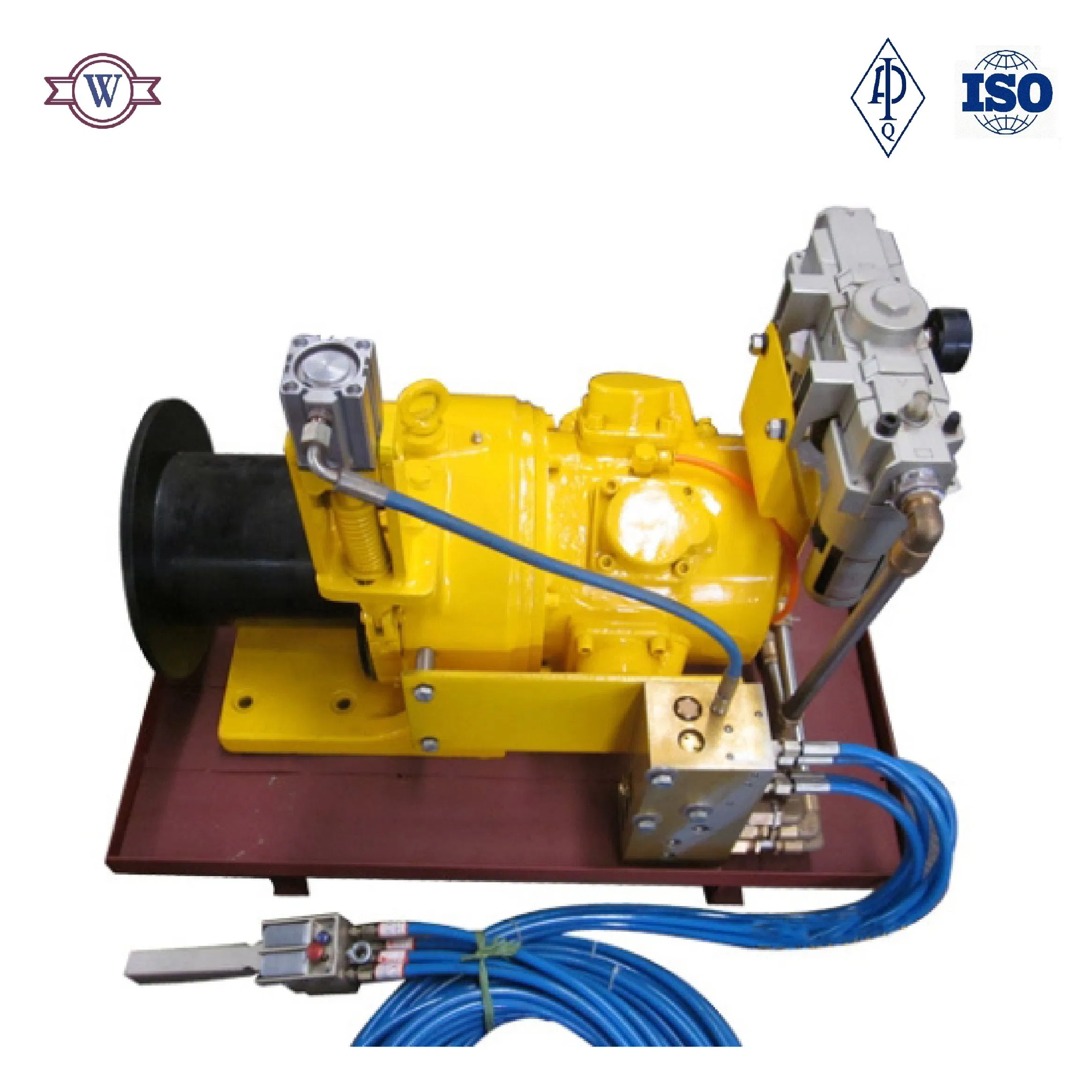

JQH-5×48QB Pneumatic Winch (Integrated Module)

The JQH-5×48QB pneumatic winch features an integrated design for its control system valves, resulting in a compact appearance and highly reliable operation. The module is compatible with ordinary remote control manual valves and safety remote valves equipped with emergency stop functions.

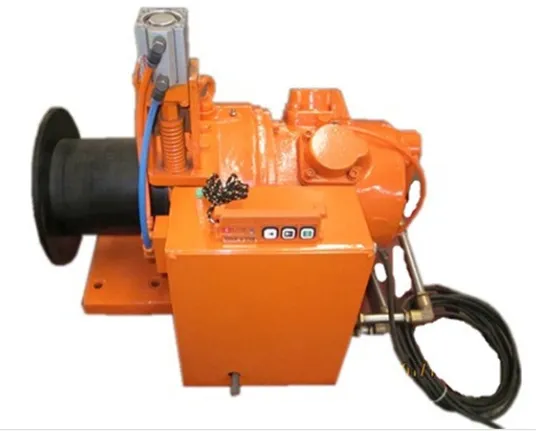

JQH-5×48Y Remote Control Pneumatic Winch

A specialized remote control product sharing basic parameters with the JQH-5×48. It utilizes wireless remote control with explosion-proof solenoid valves (DC24V or AC220V power supply), ensuring a precise single-match link between remote and receiver.

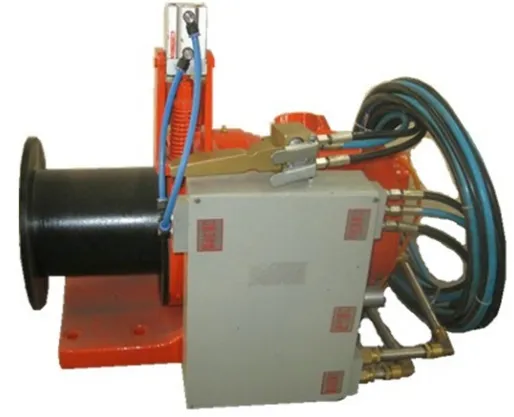

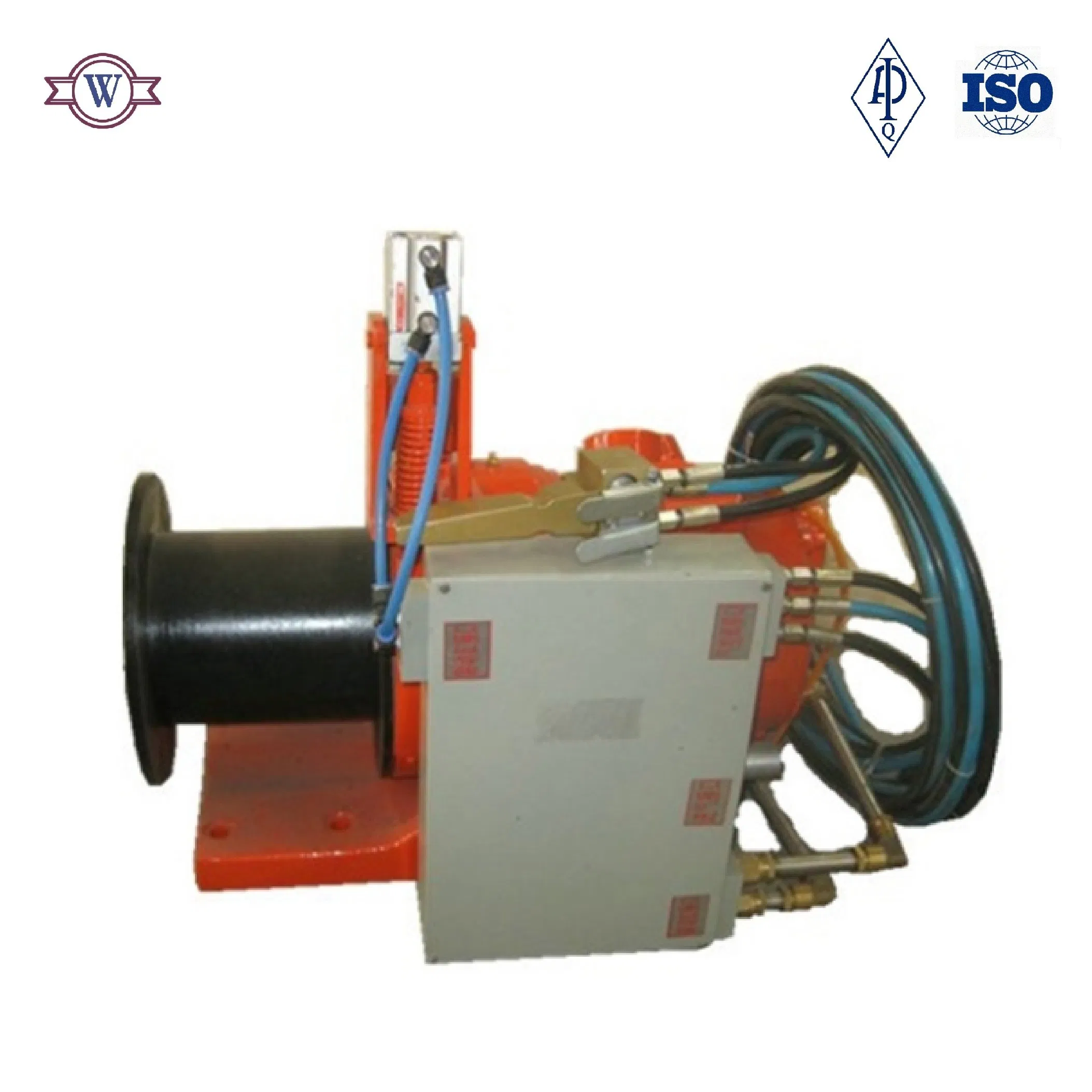

JQH-5×48Q I Remote Air-Controlled Pneumatic Winch

Powered by a piston-type pneumatic motor, this series is designed for lifting forces of 5kN and 10kN. It is explosion-proof, portable, and fast to install, making it ideal for oil fields, geological drilling, and mining operations involving flammable gases.

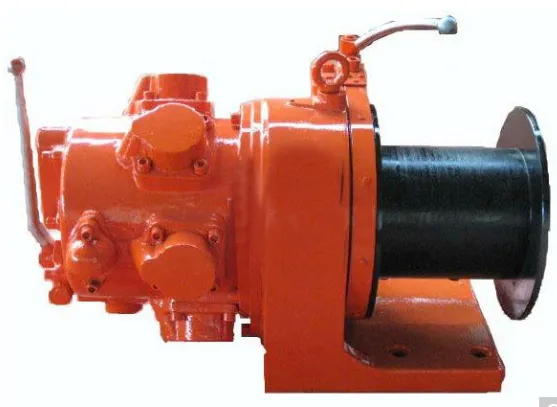

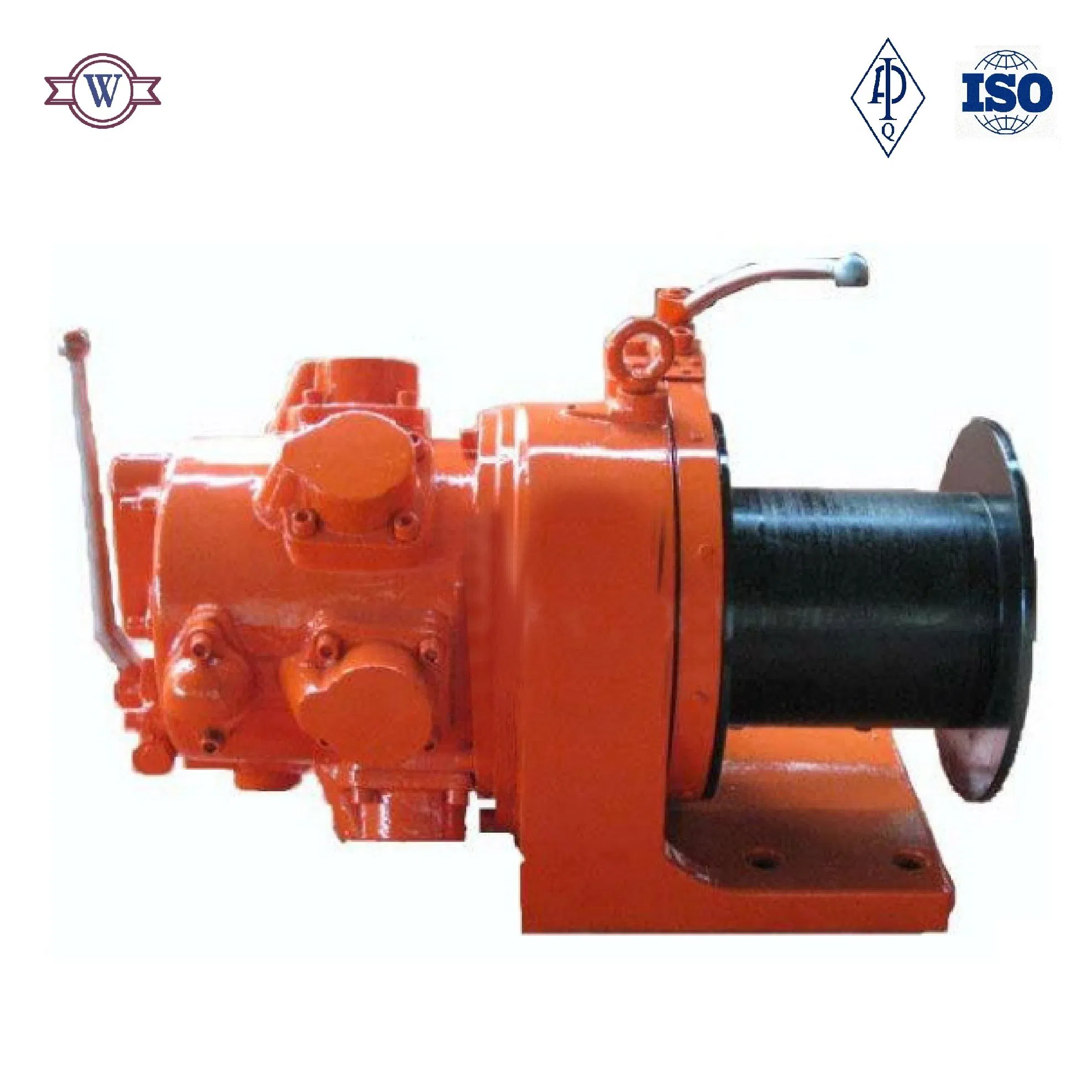

Standard JQH-5×48 Pneumatic Winch

The core model of the JQH series, providing stepless speed regulation via local operation or air-braking through remote control. It can be equipped with optional configurations such as buckle wire ropes, hooks, shackles, and pendant chains.
