Ltd-P Lightweight Wire Rope Building Hoist

Customization:	Available
After-sales Service:	Engineer Oversea Service, Online
Warranty:	12 Months

Basic Info.

Model NO.

LTD-P

Application

Man-Riding

Type

Electric Hoist

Sling Type

Wire Rope

Lift Speed

9/18m/Min

Max Lifting Height

Customer's Request

Certification

CE, TUV

Condition

New

Color

Customized

Voltage

380V (415V/220V)

Frequency

50Hz/60Hz

HS Code

8425110000

Capacity

1000 pieces/Month

Product Description

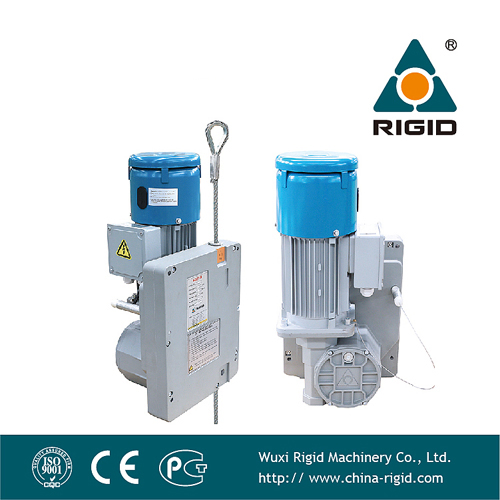

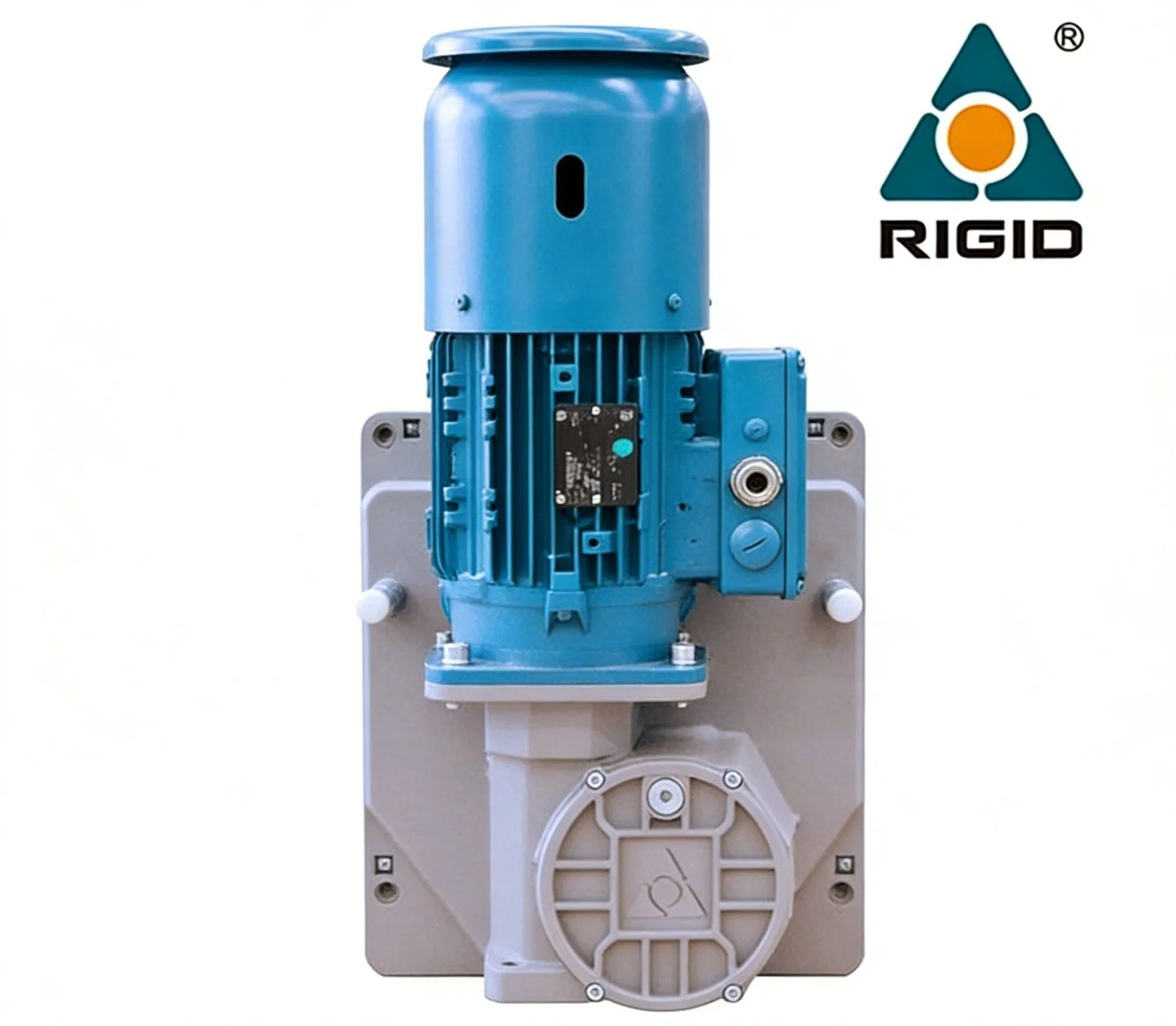

LTD-P Lightweight Wire Rope Building Hoist

Endless passenger elevation (man-riding) hoist designed for unlimited rope lengths for lifting and lowering personnel. Capacities range from 500kg to 1000kg at either 9 or 18 m/min.

The LTD-P Series unlimited cable passenger lifting hoist is a versatile and robust solution suitable for various man-riding applications. Its compact and lightweight design makes it very easy to handle, while the unrestricted wire rope capability allows for unlimited lifting heights and traction lengths.

Features and Benefits

Robust, precisely machined housing of die-cast aluminium for low weight and high rigidity.
Gearing and drive sheave fabricated from hardened steel.
Universal attachment via central 16mm load pin or two M10 screws.
Motor protection: IP55 standard.
Operating voltage: 380V, 3ph, 50Hz (Customizable).
Control Voltage: 24V (mobile) or 42V (stationary).
Thermal overload protection device fitted as standard.
Certified by TUV (Independent inspection institute).
Nitrided steel drive sheave (70 HRC) for low wear.
Fully-synthetic special oil for high efficiency in temperatures -40°C to 70°C.

Technical Parameters

Model	Capacity (kg)	Lifting speed (m/min)	Rope diameter (mm)	Motor (kW)	Weight (kg)
LTD50-8P9	500	9	8.3	1.1	46
LTD50-8P18	500	18	8.3	2.0	47
LTD63-8P9	600	9	8.3	1.5	48
LTD63-8P18	600	18	8.3	2.2	49
LTD80-9P9	800	9	9	1.8	50
LTD80-9P18	800	18	9	3.0	53
LTD100-10P9	1000	9	10.2	2.2	51
LTD100-10P18	1000	18	10.2	4.0	62

*Voltage and frequency are available upon request.

Safety for Passenger Elevation

In accordance with DIN EN1808 requirements, every hoist for passenger elevation must feature a safety system on an independent safety rope. These systems are approved and certified by TUV.

Flexible Attachment Points

Safety Lowering Mechanism

Overspeed safety (OSL)

Trips automatically when lowering speed exceeds 30m/min. Stops movement within centimeters.

Anti-tilting (LSF)

Trips automatically when the angle of the rope or platform exceeds 5°.

Dimensional Specifications

Frequently Asked Questions

What is the maximum load capacity of the LTD-P series hoist?

The LTD-P series offers a lifting capacity ranging from 500kg up to 1000kg, depending on the specific model selected.

Is this hoist suitable for personnel (man-riding) applications?

Yes, the LTD-P series is specifically designed for man-riding applications and complies with DIN EN 1808 safety requirements for suspended access equipment.

What certifications do these hoists hold?

All hoists in this series are certified by independent inspection institutes, including CE and TUV certifications.

How does the safety system work in a power failure?

The hoist features an electric-mechanical brake that can be released manually, allowing for a safe and controlled lowering of the load even without power.

What is the standard operating voltage?

The standard operating voltage is 380V, 3-phase, 50Hz, but other voltages like 220V or 415V and 60Hz frequencies are available upon request.

Can the lifting height be customized?

Because this is an endless wire rope hoist, it can be used with unlimited rope lengths, allowing for virtually any lifting height based on your requirements.
