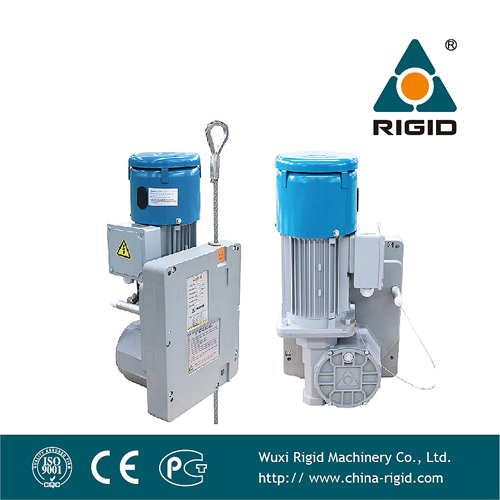

Ltd-P Lightweight Wire Rope Man-Riding Hoist

1 / 5

Ltd-P Lightweight Wire Rope Man-Riding Hoist

Customization:	Available
Application:	Man-Riding
Type:	Electric Hoist

Send Inquiry

Product Description

Basic Specifications

Model NO.

LTD-P

Sling Type

Wire Rope

Lift Speed

9/18m/Min

Max Lifting Height

Customer's Request

Certification

CE, TUV

Voltage

380V (415V/220V)

Frequency

50Hz/60Hz

HS Code

8425110000

Production Capacity

1000 pieces/Month

Package

Cardboard Box

Product Overview

LTD-P Lightweight Wire Rope Man-Riding Hoist

This endless passenger elevation (man-riding) hoist is designed for use with unlimited rope lengths for lifting and lowering personnel. With capacities ranging from 500kg to 1000kg at speeds of 9 or 18 m/min, it offers a versatile solution for high-altitude access.

The system is compact, lightweight, and easy to handle due to its unconnected rope design. This makes it possible to utilize unlimited lifting heights and traction lengths for various industrial applications.

Key Features & Benefits

⚙️Robust die-cast aluminium housing for low dead-weight and high rigidity.

⚙️Hardened steel gearing and drive sheave for long-term durability.

⚙️Universal attachment via 16mm load pin or M10 screws.

⚙️IP55 standard motor protection.

⚙️Thermal overload protection device fitted as standard.

⚙️Nitrided steel components (70 HRC) ensuring minimal wear.

⚙️Special synthetic oil for efficiency in temperatures from -40°C to 70°C.

Technical Parameters

Model	Capacity (kg)	Lifting Speed (m/min)	Rope Diameter (mm)	Motor (kW)	Weight (kg)
LTD50-8P9	500	9	8.3	1.1	46
LTD50-8P18	500	18	8.3	2.0	47
LTD63-8P9	600	9	8.3	1.5	48
LTD63-8P18	600	18	8.3	2.2	49
LTD80-9P9	800	9	9.0	1.8	50
LTD80-9P18	800	18	9.0	3.0	53
LTD100-10P9	1000	9	10.2	2.2	51
LTD100-10P18	1000	18	10.2	4.0	62

*Customized voltage and frequency are available upon request.

Safety for Passenger Elevation

In accordance with DIN EN1808 requirements, each hoist used for personnel must feature an independent safety rope system. Our systems comply with the highest safety standards and are TUV certified.

Flexible Attachment

Attachment points in the corners of the housing allow for flexible winch installation with screws or pins.

Emergency Lowering

In power failures, the electro-mechanical brake can be manually released for safe, controlled lowering.

Overload Protection

Integrated mechanisms ensure the hoist stops rising or only descends if the load exceeds the limit.

Safety Devices (Fall Arresters)

Overspeed Arrester (OSL)

Automatically trips when lowering speed exceeds 30m/min. Hardened steel jaws stop the rope within centimeters.

Anti-Tilting Arrester (LSF)

Automatically trips if the rope or platform angle exceeds 5°, immediately stopping all movement.

Dimensional Specifications

Optional Accessories

🔹 Radio remote control
🔹 Double control for multiple hoists
🔹 Limit switches for upward travel
🔹 Operating hour counters
🔹 Specialized ropes for endless lifting
🔹 Adaptors for shackle fitting

Frequently Asked Questions

What is the maximum weight capacity of the LTD-P series?

The LTD-P series offers a range of capacities from 500kg up to 1000kg, depending on the specific model selected.

Does this hoist comply with international safety standards?

Yes, the hoists are CE and TUV certified and comply with the DIN EN 1808 standard for safety requirements on suspended access equipment.

What happens if there is a power failure during operation?

The hoist is equipped with a safety lowering mechanism that allows the electric-mechanical brake to be released manually for a controlled descent.

Is the lifting height limited?

No, because it uses an endless traction system, the wire rope is not stored in the hoist, allowing for virtually unlimited lifting heights.

Can I use this hoist in extreme temperatures?

Yes, the hoist uses a fully-synthetic special oil that ensures high efficiency and quiet operation in temperatures ranging from -40°C to 70°C.

What safety devices are required for passenger elevation?

For personnel lifting, an independent safety rope with either an Overspeed Safety Fall Arrester (OSL) or an Anti-Tilting Safety Fall Arrester (LSF) is required.
