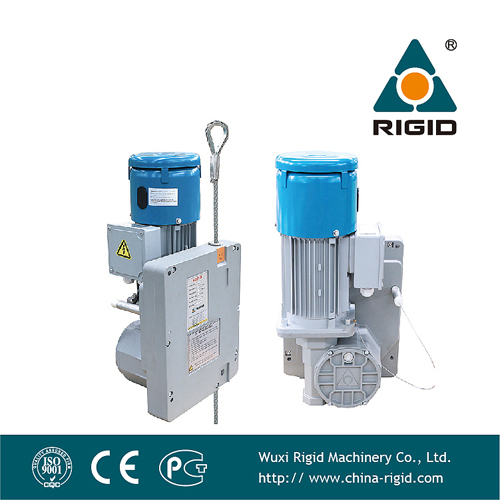

Ltd-P Hanging Wire Rope Traction Hoist

Customization:	Available
Application:	Man-Riding
Type:	Electric Hoist

Send Inquiry

Product Description

Basic Specifications

Model NO.:

LTD-P

Sling Type:

Wire Rope

Lift Speed:

9/18m/Min

Maximum Lifting Height:

Customer's Request

Certification:

CE, TUV

Condition:

New

Color:

Customized

Voltage:

380V(415V/220V)

Frequency:

50Hz/60Hz

HS Code:

8425110000

Production Capacity:

1000pieces/Month

Product Overview

LTD-P Hanging Wire Rope Traction Hoist

This endless passenger elevation (man-riding) hoist is designed for use with unlimited rope lengths for lifting and lowering personnel. Capacities range from 500kg to 1000kg at either 9 or 18 m/min. The LTD-P Series is versatile and suitable for unlimited applications.

The rope is not connected, making it compact, lightweight, and very easy to handle. The unrestricted wire rope length capability allows for unlimited lifting heights and traction lengths.

Key Features & Benefits

✓Robust precisely machined die-cast aluminium housing ensuring low dead-weight and rigidity.

✓Gearing and drive sheave fabricated from hardened steel.

✓Motor protection rated to IP55 as standard.

✓Hoist motor fitted with a thermal overload protection device.

✓Certified by an independent inspection institute (TUV).

✓Special nitrided steel drive sheave (70 HRC) guaranteeing low wear.

✓Fully-synthetic special oil for high efficiency in temperatures from -40°C to 70°C.

✓Standardized components for easy access to all wearing parts.

Main Technical Parameters

Model	Capacity (kg)	Lifting Speed (m/min)	Nominal Rope (mm)	Motor (kW)	Weight (kg)
LTD50-8P9	500	9	8.3	1.1	46
LTD50-8P18	500	18	8.3	2.0	47
LTD63-8P9	600	9	8.3	1.5	48
LTD63-8P18	600	18	8.3	2.2	49
LTD80-9P9	800	9	9	1.8	50
LTD80-9P18	800	18	9	3.0	53
LTD100-10P9	1000	9	10.2	2.2	51
LTD100-10P18	1000	18	10.2	4.0	62

*Voltage and frequency are available upon request.

Safety for Passenger Elevation

In accordance with DIN EN1808, each hoist used for passenger elevation must feature a safety system on an independent safety rope. These safety systems comply with standard DIN EN 1808 "Safety requirements on suspended access equipment" and are TUV certified.

Overspeed fall arrester (OSL)

Trips automatically when the lowering speed exceeds 30m/min (0.5m/s). Hardened steel clamping stops the rope within centimeters.

Anti-tilting fall arrester (LSF)

Trips automatically when the platform angle exceeds 5°. Clamping mechanism immediately stops all movement.

Mechanism Details

Optional Configurations

●Other operating voltages and Radio remote control.

●Double control for several hoists.

●Limit switch for upward travel.

●Adaptor for fitting with shackle.

Dimensional Specifications

Frequently Asked Questions

Q1: What is the load capacity of the LTD-P series hoist?

The LTD-P series offers capacities ranging from 500kg up to 1000kg depending on the specific model chosen.

Q2: Can this hoist be used for lifting people?

Yes, the LTD-P series is specifically designed for passenger elevation (man-riding) and complies with DIN EN 1808 safety requirements.

Q3: What safety devices are available for this system?

It includes overspeed safety fall arresters (OSL), anti-tilting safety fall arresters (LSF), thermal overload protection, and manual safety lowering mechanisms.

Q4: Does the hoist support unlimited lifting heights?

Yes, because it is an endless traction hoist, it is not limited by the capacity of a drum and can be used with unlimited wire rope lengths.

Q5: What are the standard power requirements?

The standard operating voltage is 380V (3-phase, 50Hz), but 415V, 220V, and 60Hz versions are available upon request.

Q6: What environment can this hoist operate in?

Thanks to fully-synthetic special oil, the hoist can operate efficiently in a temperature range of -40°C to 70°C.
