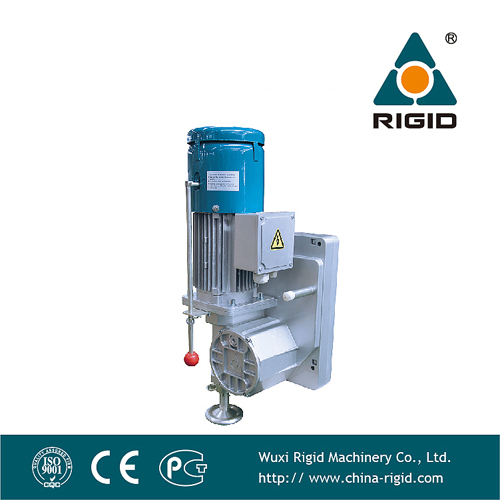

Ltd-P Lightweight Wire Rope Pulling Hoist

1 / 5

Ltd-P Lightweight Wire Rope Pulling Hoist

Customization:	Available
Application:	Man-Riding
Type:	Electric Hoist

Send Inquiry

Product Description

Basic Specifications

Model NO.LTD-P

Sling TypeWire Rope

Lift Speed9/18m/Min

Max Lifting HeightCustomer's Request

CertificationCE, TUV

ConditionNew

ColorCustomized

Voltage380V (415V/220V)

Frequency50Hz/60Hz

Transport PackageCardboard Box

TrademarkRigid

HS Code8425110000

Production Capacity1000 pieces/Month

Product Overview

LTD-P Lightweight Wire Rope Pulling Hoist

Rigid endless passenger elevation (man-riding) hoist designed to be used with unlimited rope lengths for lifting and lowering personnel. Capacities range from 500kg to 1000kg at either 9 or 18 m/min.

The LTD-P Series unlimited cable (wire rope) passenger lifting hoist is a versatile solution suitable for unlimited applications. The rope is not connected, making it compact, lightweight, and extremely easy to handle. The unrestricted wire rope capability makes it possible to utilize unlimited lifting heights and traction lengths.

Robust, precisely machined housing of die-cast aluminium for low dead-weight and rigidity.
Gearing and drive sheave fabricated from hardened steel.
Universal attachment via central 16mm load pin or two M10 screws.
Motor protection: IP55 standard.
Standard operating voltage: 380V, 3ph, 50Hz (Customizable).
Control Voltage: 24V (mobile units) or 42V (stationary models).
Phase monitoring included as standard on mobile models.
Fitted with thermal overload protection device.
Certified by TUV independent inspection institute.
Special nitrided steel drive sheave (70 HRC) for low wear.
Fully-synthetic oil for efficiency in temperatures from -40°C to 70°C.
Standardized components for easy access to wearing parts.

Technical Parameters

Model	Capacity (kg)	Lifting Speed (m/min)	Rope Diameter (mm)	Motor (kW)	Weight (kg)
LTD50-8P9	500	9	8.3	1.1	46
LTD50-8P18	500	18	8.3	2.0	47
LTD63-8P9	600	9	8.3	1.5	48
LTD63-8P18	600	18	8.3	2.2	49
LTD80-9P9	800	9	9	1.8	50
LTD80-9P18	800	18	9	3.0	53
LTD100-10P9	1000	9	10.2	2.2	51
LTD100-10P18	1000	18	10.2	4.0	62

*Voltage and frequency are available upon request.

Safety for Passenger Elevation

In accordance with DIN EN1808, each hoist used for passenger elevation must feature a safety system on an independent safety rope. We offer two different safety fall arresters approved for passenger elevation and certified by TUV.

Flexible Attachment

Attachment points in the corners of the housing are available for flexible attachment of the winch with screws or pins.

Lowering Mechanism

In power failure events, the electro-mechanical brake can be released manually for safe, controlled lowering.

Inner Overload

If the load exceeds the limit, the hoist will stop rising or only allow descending movement.

Counters

Records operating hours and the number of starts to track maintenance cycles.

Optional Safety Devices

Overspeed Fall Arrester (OSL)

Trips automatically when lowering speed exceeds 30m/min. Stops movement within centimeters.

Anti-tilting Fall Arrester (LSF)

Trips automatically when the angle of the rope or platform exceeds 5°.

Frequently Asked Questions (FAQ)

What is the maximum capacity of the LTD-P series hoist?

The LTD-P series offers lifting capacities ranging from 500kg to 1000kg, depending on the specific model selected.

Is this hoist suitable for carrying personnel?

Yes, the LTD-P is a man-riding hoist specifically designed for passenger elevation and complies with DIN EN 1808 safety requirements.

What safety features are included for power failures?

The hoist is equipped with a manual safety lowering mechanism that allows the electro-mechanical brake to be released manually for a controlled descent.

Can I use this hoist for unlimited heights?

Yes, because it is an "endless" wire rope hoist where the rope is not stored on a drum, it can be used for unlimited lifting heights.

What is the environmental protection rating of the motor?

The motor is protected to IP55 standards as standard, providing excellent resistance against dust and water ingress.

What happens if the platform tilts too much?

The anti-tilting safety fall arrester (LSF) will automatically trip if the platform angle exceeds 5°, immediately stopping the movement of the system.
