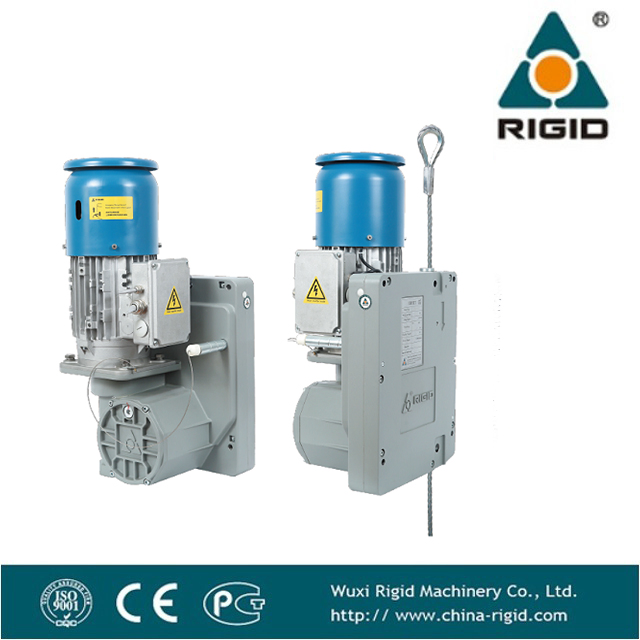

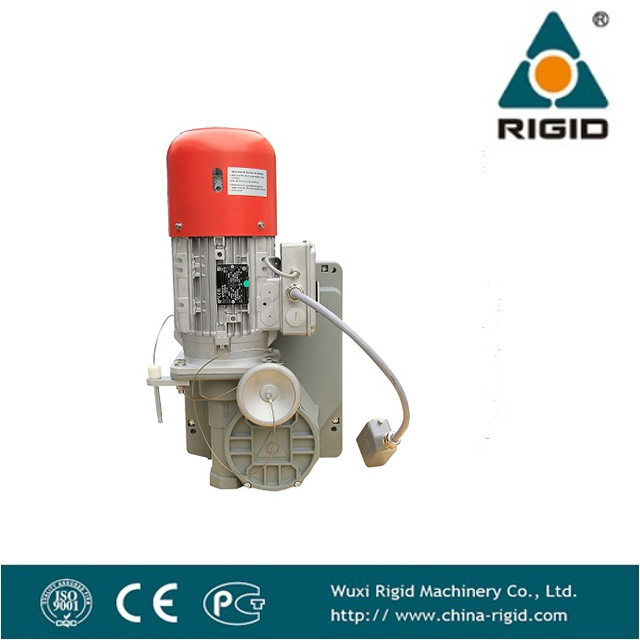

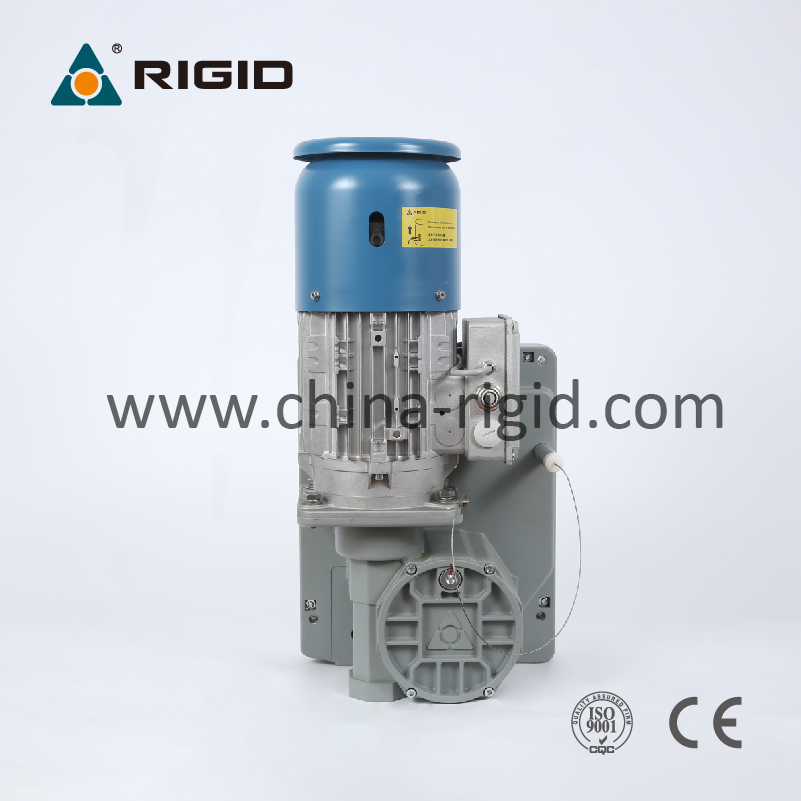

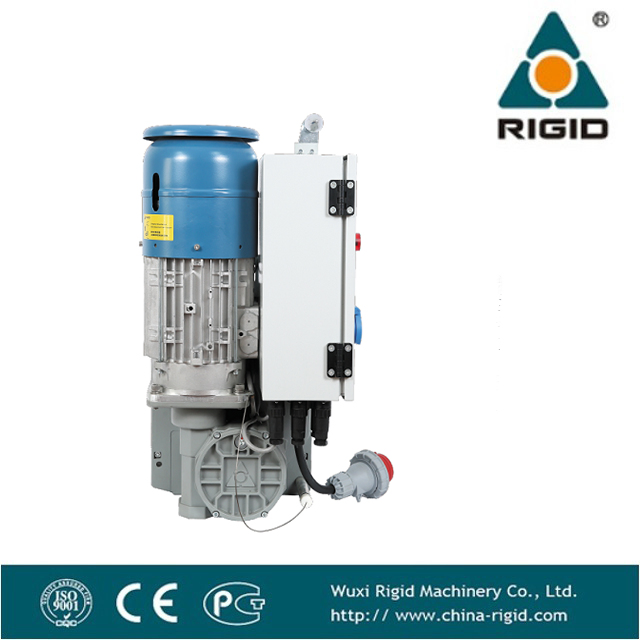

LTD-P Lightweight Wire Rope Suspended Platform Hoist

Endless passenger elevation (man-riding) hoist designed to be used with unlimited rope lengths for lifting and lowering personnel. Capacities range from 500kg to 1000kg at either 9 or 18 m/min.

The LTD-P Series unlimited cable (wire rope) passenger lifting hoist is a versatile solution suitable for unlimited applications. The rope is not connected which makes it compact, lightweight and very easy to handle. The unrestricted wire rope lengths capability makes it possible to utilise unlimited lifting heights and traction lengths.

Features and Benefits

Robust, precisely machined housing of die-cast aluminium for low dead-weight.

Gearing and drive sheave fabricated from hardened steel.

Universal attachment via central 16mm load pin or two M10 screws.

Motor protection: IP55 standard rating.

Standard operating voltage: 380V, 3ph, 50Hz (customizable).

Control Voltage: 24V (mobile) or 42V (stationary).

Phase monitoring available on mobile application models.

Thermal overload protection device fitted as standard.

TUV Certified by independent inspection institute.

Nitrided steel drive sheave (70 HRC) for low wear.

Fully-synthetic oil for efficiency from -40°C to 70°C.

Standardised components for easy maintenance.

Technical Parameters

Model	Capacity (kg)	Lifting Speed (m/min)	Rope Diameter (mm)	Motor (kW)	Weight (kg)
LTD50-8P9	500	9	8.3	1.1	46
LTD50-8P18	500	18	8.3	2.0	47
LTD63-8P9	600	9	8.3	1.5	48
LTD63-8P18	600	18	8.3	2.2	49
LTD80-9P9	800	9	9	1.8	50
LTD80-9P18	800	18	9	3.0	53
LTD100-10P9	1000	9	10.2	2.2	51
LTD100-10P18	1000	18	10.2	4.0	62

*Voltage and frequency are available upon request.

Safety for Passenger Elevation

In accordance with DIN EN1808, each hoist used for passenger elevation must feature a safety system on an independent safety rope. We offer two different safety fall arresters approved for passenger elevation.

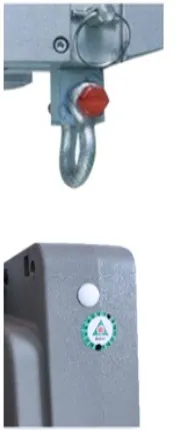

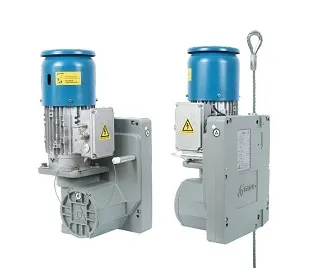

Flexible Attachment Points
Attachment via screws or pins in housing corners.

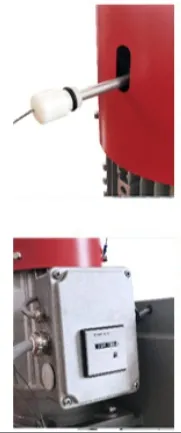

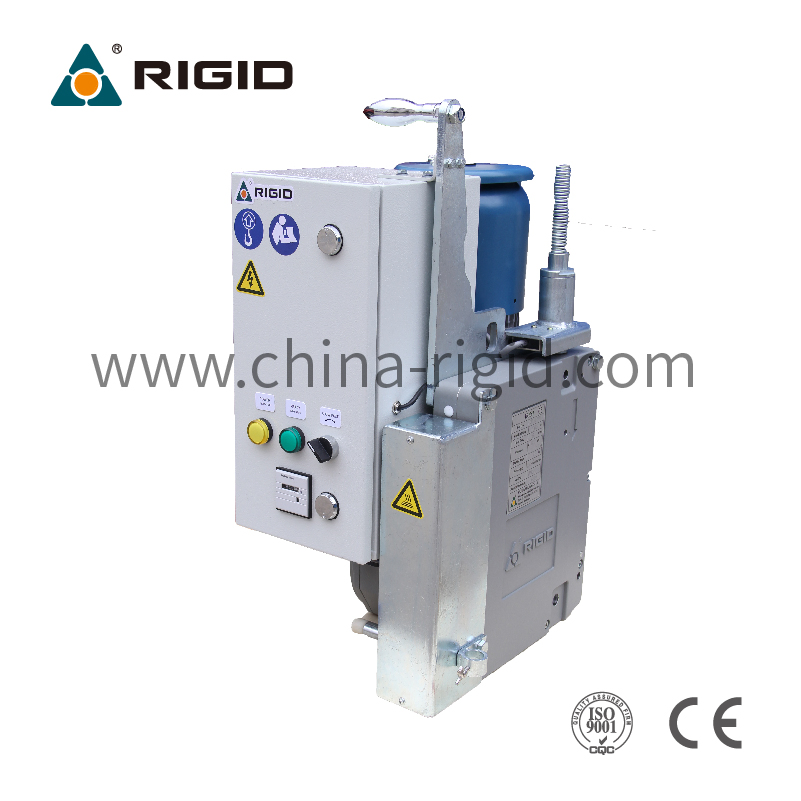

Safety Lowering Mechanism
Manual release for controlled lowering during power failure.

Overspeed Fall Arrester (OSL)

Automatically trips when lowering speed exceeds 30m/min. Hardened steel clamping jaws stop the rope within centimeters.

Anti-tilting Fall Arrester (LSF)

Automatically trips when the angle of the rope or platform exceeds 5°, immediately stopping movement.

Optional Configurations

Other operating voltages
Double control for multiple hoists
Radio remote control
Limit switch for upward travel
Operating hour and start counters
Adaptor for fitting with shackle
Ropes for endless hoist and fall arrester
Overload cut-out (included for passenger winches)

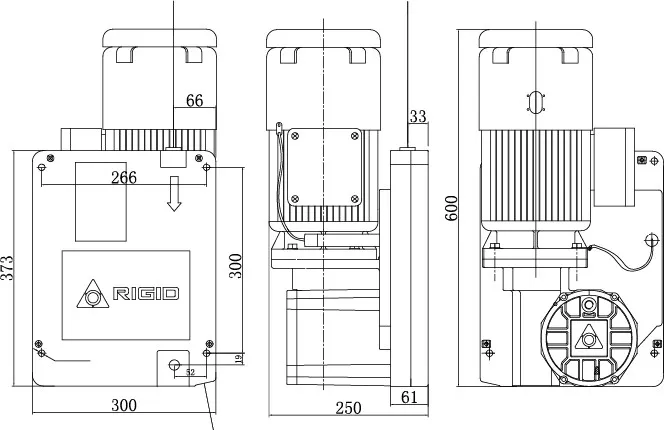

Dimensional Specifications

Frequently Asked Questions

What is the load capacity of the LTD-P series?

The LTD-P series offers a range of capacities from 500kg up to 1000kg, depending on the specific model selected.

Is this hoist suitable for man-riding applications?

Yes, it is specifically designed for passenger elevation and complies with DIN EN 1808 safety requirements for suspended access equipment.

What safety mechanisms are included for power failures?

The hoist features an electric-mechanical brake that can be released manually to ensure safe and controlled lowering of the load during a power outage.

Can the operating voltage be customized?

While the standard voltage is 380V/3ph/50Hz, other operating voltages and frequencies are available upon request to meet specific site requirements.

What is the difference between OSL and LSF fall arresters?

The OSL (Overspeed) trips when lowering speed exceeds 30m/min, while the LSF (Anti-tilting) trips when the platform or rope angle exceeds 5 degrees.

What environmental conditions can the hoist handle?

Thanks to fully-synthetic special oil, the hoist maintains high efficiency and quiet operation within a temperature range of -40°C to 70°C.
