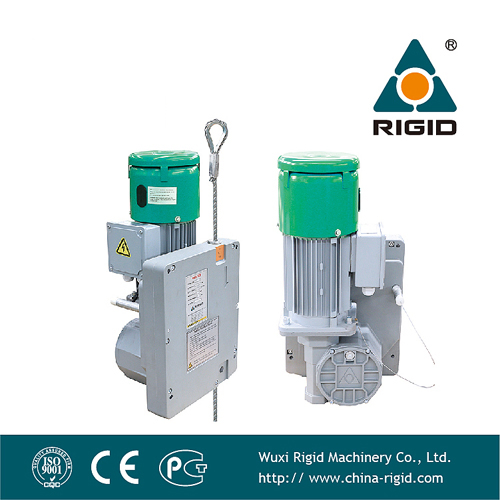

Ltd-P Mechanical Wire Rope Gondola Hoist

1 / 5

Ltd-P Mechanical Wire Rope Gondola Hoist

Customization:	Available
Application:	Man-Riding
Type:	Electric Hoist

Send Inquiry

Product Description

Basic Specifications

Model NO.:LTD-P

Sling Type:Wire Rope

Lift Speed:9/18m/Min

Lifting Height:Customized

Certification:CE, TUV

Condition:New

Voltage:380V (415V/220V)

Frequency:50Hz/60Hz

HS Code:8425110000

Capacity:1000 pieces/Month

Product Description

LTD-P Mechanical Wire Rope Gondola Hoist

The LTD-P Series endless passenger elevation (man-riding) hoist is designed for use with unlimited rope lengths for lifting and lowering personnel. Capacities range from 500kg to 1000kg at speeds of either 9 or 18 m/min.

This series is versatile and suitable for unlimited applications. The rope is not connected, making the unit compact, lightweight, and extremely easy to handle. The unrestricted wire rope length capability allows for unlimited lifting heights and traction lengths.

Features and Benefits

◈

Robust Housing: Precisely machined die-cast aluminium ensures low dead-weight and outstanding rigidity.

◈

Hardened Components: Gearing and drive sheave fabricated from hardened steel.

◈

Motor Protection: IP55 protection as standard with thermal overload protection devices.

◈

Universal Attachment: Capable via a central 16mm load pin or two M10 screws.

◈

Extreme Temperatures: Fully-synthetic special oil ensures efficiency from -40°C to 70°C.

◈

Low Wear: Drive sheave and pressure rollers made of nitrided steel (70 HRC).

Main Parameters of LTD Series

Model	Capacity (kg)	Lifting Speed (m/min)	Rope Diameter (mm)	Motor (kW)	Weight (kg)
LTD50-8P9	500	9	8.3	1.1	46
LTD50-8P18	500	18	8.3	2.0	47
LTD63-8P9	600	9	8.3	1.5	48
LTD63-8P18	600	18	8.3	2.2	49
LTD80-9P9	800	9	9	1.8	50
LTD80-9P18	800	18	9	3.0	53
LTD100-10P9	1000	9	10.2	2.2	51
LTD100-10P18	1000	18	10.2	4.0	62

*Voltage and frequency are available upon request.

Safety for Passenger Elevation

In accordance with DIN EN1808 requirements, each hoist used for passenger elevation must feature a safety system on an independent safety rope. These systems comply with "Safety requirements on suspended access equipment" and are TUV certified.

Flexible Attachment

Lowering Mechanism

Safety Devices

Overspeed Safety Fall Arrester (OSL)

Trips automatically when lowering speed exceeds 30m/min. Clamping jaws stop the rope within centimeters.

Anti-tilting Safety Fall Arrester (LSF)

Trips automatically when the angle of the rope or platform exceeds 5°, immediately stopping movement.

Dimensional Specifications

Frequently Asked Questions

● What is the maximum lifting capacity of the LTD-P hoist?

The LTD-P series offers a lifting capacity ranging from 500kg to 1000kg, depending on the specific model selected.

● Is this hoist suitable for man-riding applications?

Yes, the LTD-P is specifically designed for passenger elevation (man-riding) and complies with the DIN EN1808 safety standards.

● What happens in the event of a power failure?

The hoist features an electric-mechanical brake that can be released manually, ensuring a safe and controlled lowering of the load even without power.

● What are the available operating voltages?

The standard operating voltage is 380V, 3ph, 50Hz. However, other voltages such as 220V or 415V and 60Hz frequencies are available upon request.

● What safety devices are included with the hoist?

The hoist can be equipped with Overspeed Safety Fall Arresters (OSL) and Anti-tilting Safety Fall Arresters (LSF) to ensure maximum safety during operation.

● What is the protection rating of the motor?

The hoist motor is protected to IP55 standards and is fitted with a thermal overload protection device.
