Endless passenger elevation (man-riding) hoist designed to be used with unlimited rope lengths for lifting and lowering personnel. Capacities range from 500kg to 1000kg at either 9 or 18 m/min.

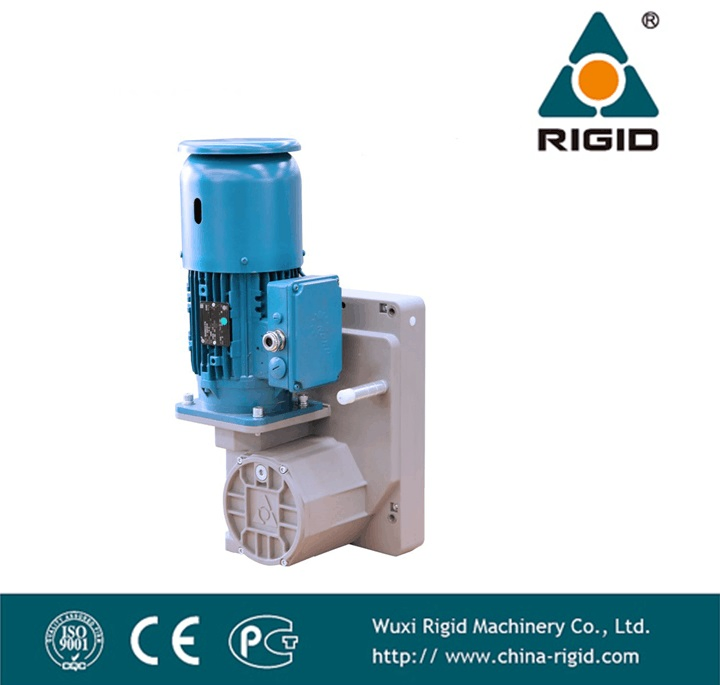

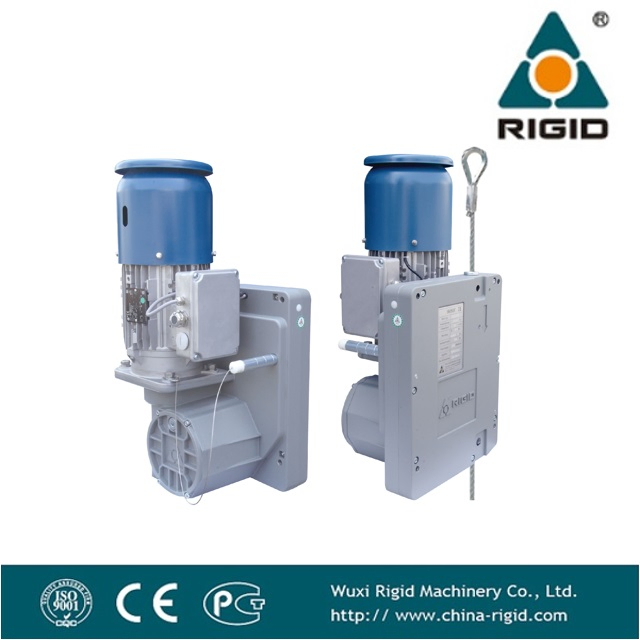

The LTD-P Series unlimited cable (wire rope) passenger lifting hoist is versatile and suitable for unlimited applications. The rope is not connected which makes it compact, lightweight and very easy to handle. The unrestricted wire rope lengths capability makes it possible to utilise unlimited lifting heights and traction lengths.
| Model | Capacity (kg) | Lifting Speed (m/min) | Rope Diameter (mm) | Motor (kW) | Weight (kg) |
|---|---|---|---|---|---|
| LTD50-8P9 | 500 | 9 | 8.3 | 1.1 | 46 |
| LTD50-8P18 | 500 | 18 | 8.3 | 2.0 | 47 |
| LTD63-8P9 | 600 | 9 | 8.3 | 1.5 | 48 |
| LTD63-8P18 | 600 | 18 | 8.3 | 2.2 | 49 |
| LTD80-9P9 | 800 | 9 | 9 | 1.8 | 50 |
| LTD80-9P18 | 800 | 18 | 9 | 3.0 | 53 |
| LTD100-10P9 | 1000 | 9 | 10.2 | 2.2 | 51 |
| LTD100-10P18 | 1000 | 18 | 10.2 | 4.0 | 62 |
*Voltage and frequency are available upon request.
In accordance with DIN EN1808 requirements, each hoist used for passenger elevation must feature a safety system on an independent safety rope. Both types below comply with DIN EN 1808 standards and are TUV certified.
Attachment points in the corners of the housing are available for flexible attachment of the winch with screws or pins.
In the event of power failure, the electric-mechanical brake can be released manually for safe, controlled lowering.
When the load exceeds the limit, the hoist will stop rising or only descend to ensure structural integrity.
Record operating hours and number of starts for maintenance scheduling.
Overspeed Safety Fall Arrester (OSL): Automatically tripped when lowering speed exceeds 30m/min. Stops movement within centimeters.
Anti-tilting Safety Fall Arrester (LSF): Automatically tripped when the platform angle exceeds 5°.
