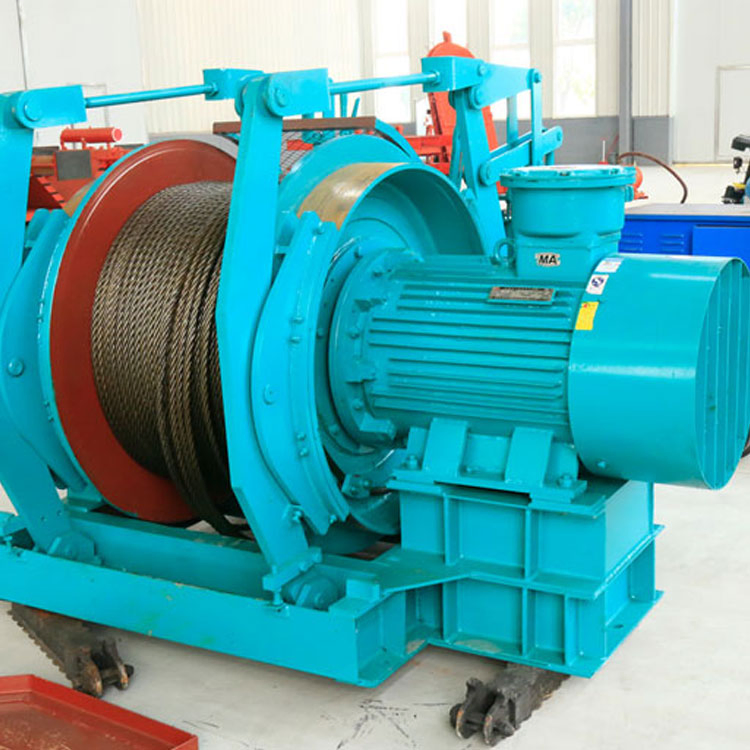

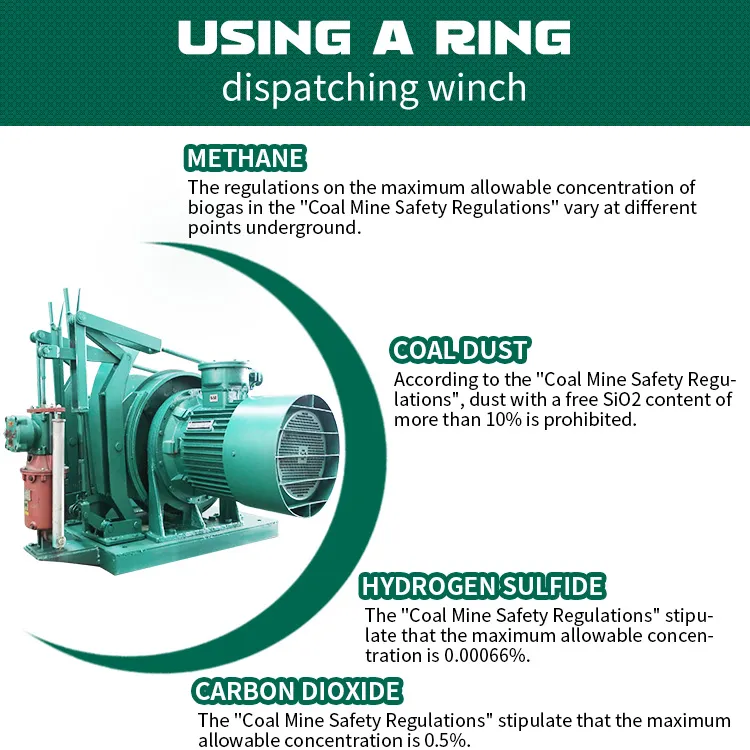

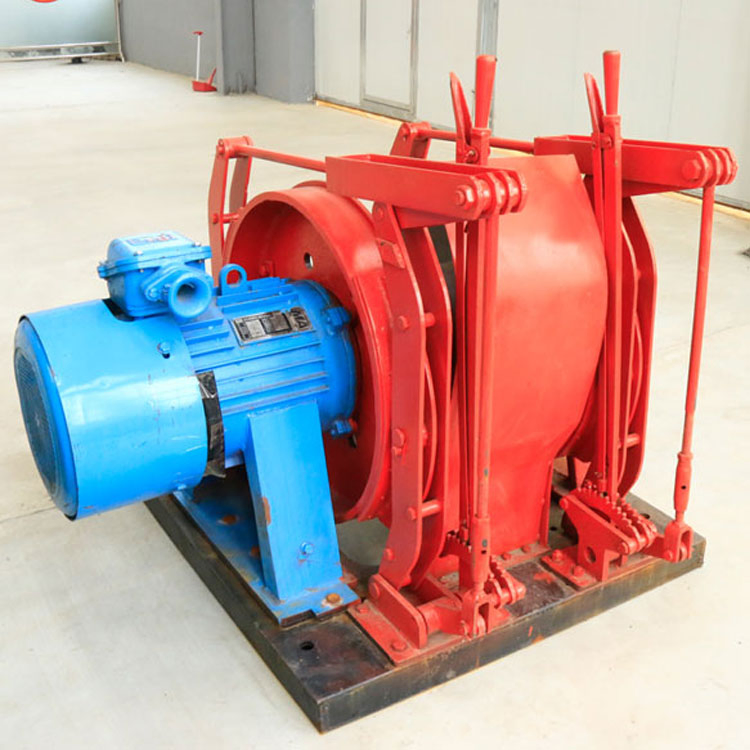

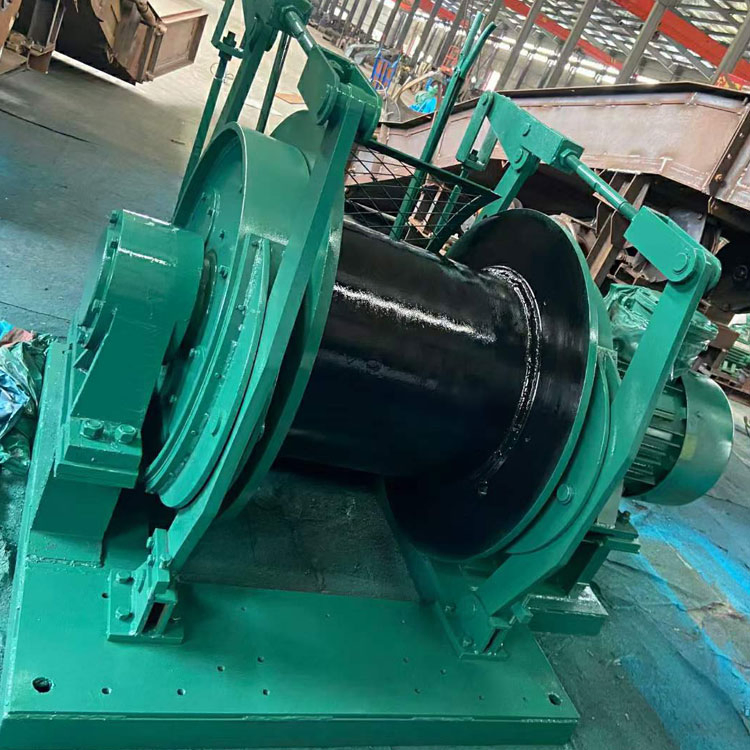

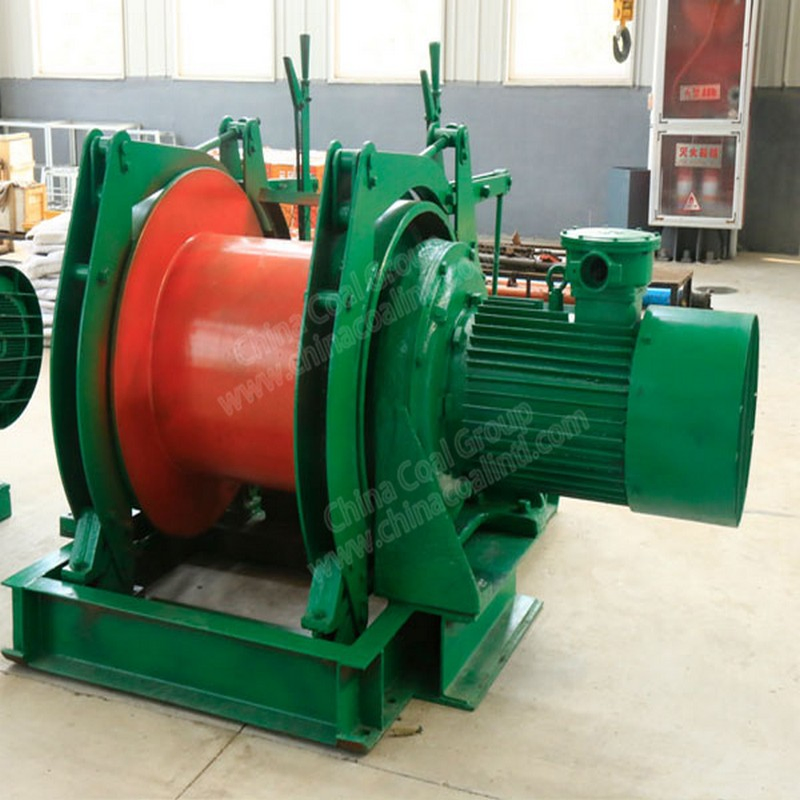

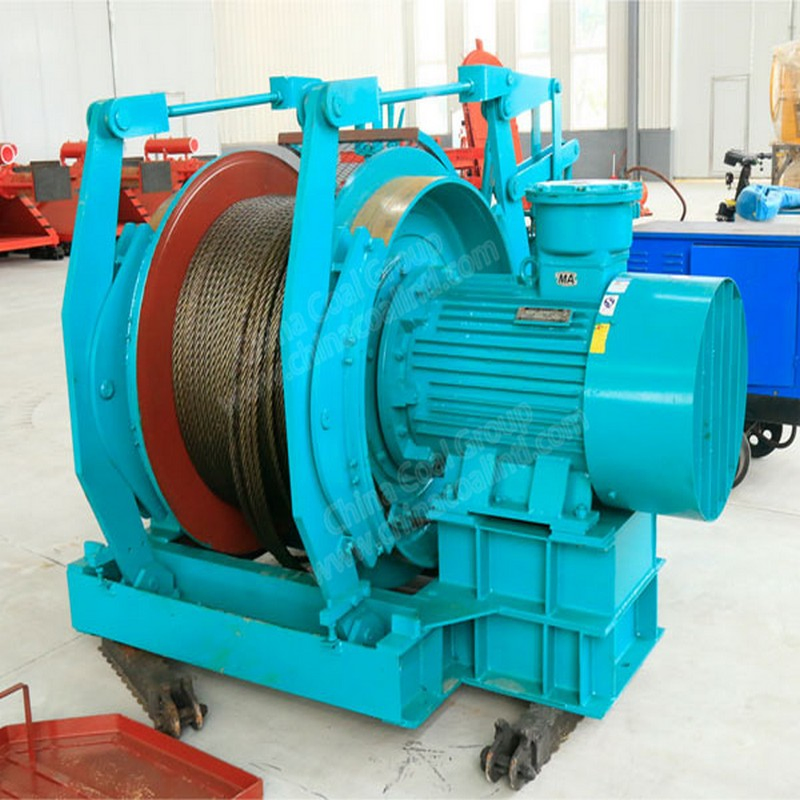

Coal Mining Explosion Proof Electric Lifting Hoist Underground Dispatching Winch is widely used to pull the tramcar underground. The explosion-proof electric device can be applicable for the colliery and other mine with gas danger.

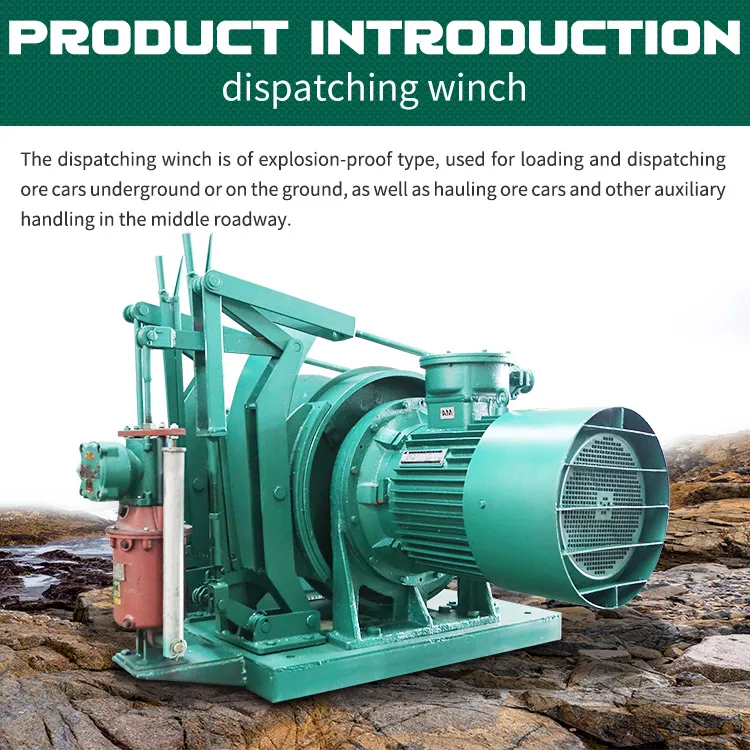

JD Dispatching Winch are all explosion-proof for mine or surface mine car loading operation grouping and hauling carts in the middle of roadways and other supporting transport purpose.

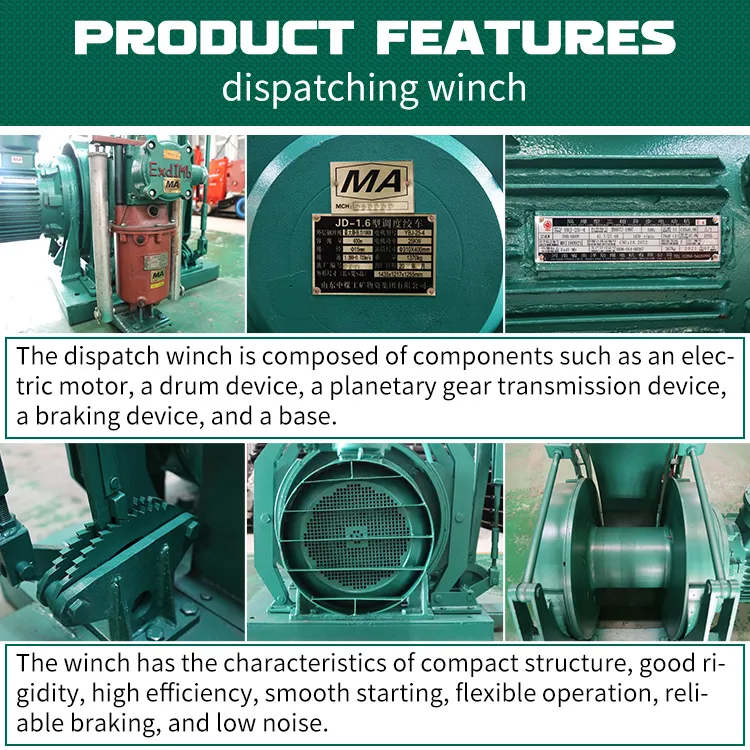

These winches utilize planetary gear drive systems, featuring a compact structure, good rigidity, high efficiency, and convenience for installing and moving. They offer flexible operation, smooth braking, and low noise levels.
| Model | JD-0.5 | JD-0.75 | JD-1 | JD-1.6 | JD-4 |
|---|---|---|---|---|---|
| Traction Force (KN) | 7.5 | 7.5 | 10 | 17.6 | 30 |
| Average Speed (m/s) | 0.71 | 0.71 | 0.78 | 1.4 | 1.44 |
| Wire Rope Dia (mm) | 9.3 | 9.3 | 12.5 | 15 | 20 |
| Drum Size (mm) | 200×300 | 200×300 | 224×304 | 310×400 | 620×580 |
| Rope Capacity (m) | 250 | 250 | 400 | 440 | 480 |
| Motor Power (KW) | 5.5 | 11.4 | 25 | 40 | 5.5 |
| Motor Voltage (V) | 380/660 | 380/660 | 380/660 | 380/660 | 380/660 |
| Weight (KG) | 400 | 400 | 578 | 1370 | 2800 |
