Product Description

Basic Specifications

Model NO.

IMPA CODE:590605

Air Wrench Type

Pulse pneumatic wrench

Degree of Automation

Automatic

Type

WINCH

Usage

Lifting / Tank Cleaning

Working Pressure

0.6-0.8 Mpa

Origin

China

Package

Wooden Carton

Product Features

Specially designed for professional tank cleaning purposes.

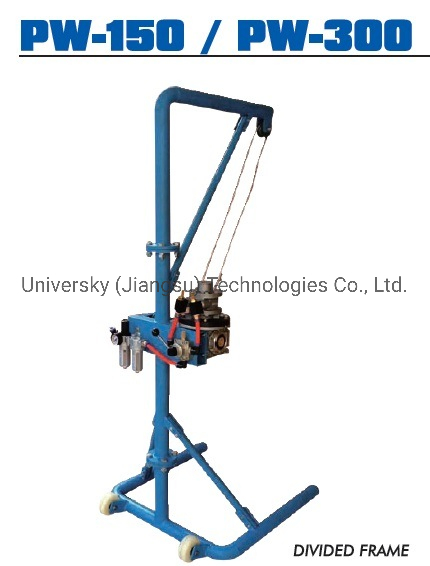

Equipped with a divided pipe frame and suspension available with wheels for easy mobility.
High-quality air motor ensures strong and stable lifting performance.
Built for durability in demanding marine and industrial environments.

Technical Data

Model	Unit	PW-100	PW-150	PW-250	PW-300	PW-400	PW-500
Max. Lifting Capacity	kg	100	150	250	300	400	500
Max. Lifting Speed	m/min	30	26	22	20	18	16
Wire Rope Diameter	mm	5	5	5	5	5	5
Wire Rope Length	mtr	42	42	35	35	30	30
Air Hose Diameter	mm	16	16	16	16	16	16
Weight	kg	46	48	57	59	65	68
IMPA Code	-	590603	590604	590606	590607	5906xx	5906xx

Quality Assurance & Service

Rigorous management and production processes to ensure zero-defect quality.
Comprehensive inspection including incoming material checks and flaw detection.
Advanced factory facilities for high-precision manufacturing.
Technical support response and efficient design solutions.
Professional customization services tailored to specific client requirements.
Strict adherence to production schedules for on-time delivery.

Product Gallery

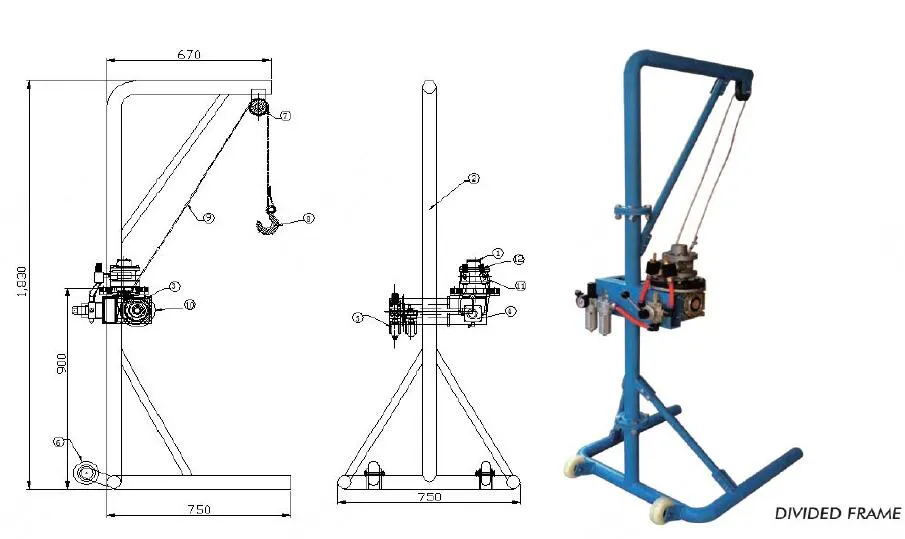

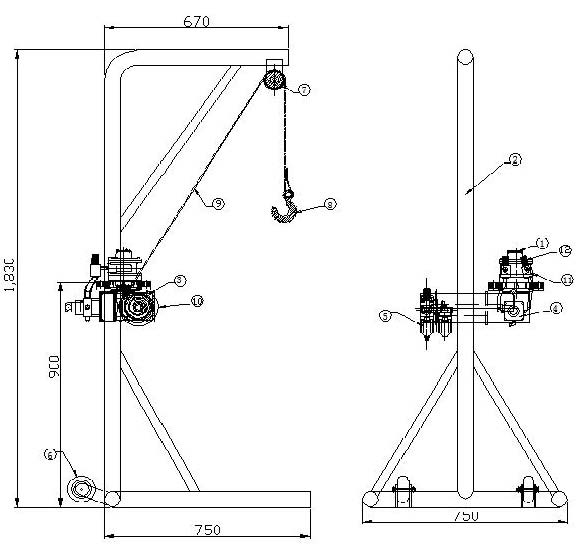

Pneumatic Driven Mucking Winch Main View

Frequently Asked Questions

What is the standard working pressure for these winches?

The recommended working pressure for the pneumatic driven mucking winches is between 0.6 and 0.8 Mpa.

What is the maximum lifting capacity available?

The series offers various models with maximum lifting capacities ranging from 100kg (PW-100) up to 500kg (PW-500).

Can the winch be easily moved around a site?

Yes, the design includes a divided pipe frame and suspension system that is available with wheels for enhanced mobility.

Is customization available for specific tank cleaning needs?

Absolutely. We provide professional customization services to adapt the equipment according to specific client requirements and technical solutions.

How is the product quality controlled?

We maintain a rigorous quality control system including incoming material inspection, flaw detection, and a double-check process before delivery.

What is the typical lead time for an inquiry?

We respond to all inquiries within 24 hours with a design or efficient technical solution from our engineering team.
