Ltd-P Material Lifting Wire Rope Building Hoist

Customization:	Available
Application:	Man-Riding
Type:	Electric Hoist

Send Inquiry

Product Description

📋 Basic Specifications

Model NO.

LTD-P

Sling Type

Wire Rope

Lift Speed

9/18m/Min

Lifting Height

Customer's Request

Certification

CE, TUV

Condition

New

Voltage

380V (415V/220V)

Frequency

50Hz/60Hz

Package

Cardboard Box

Capacity

1000 pieces/Month

HS Code

8425110000

🏗️ Product Overview

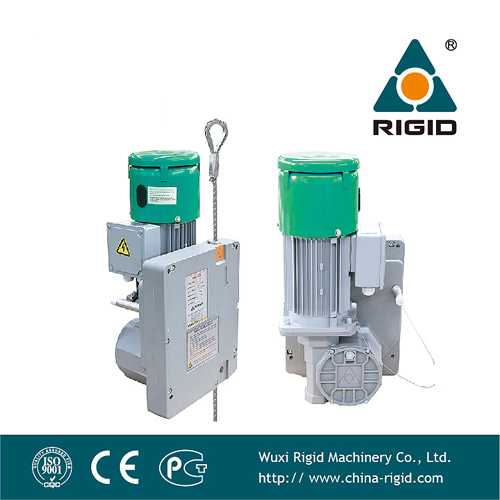

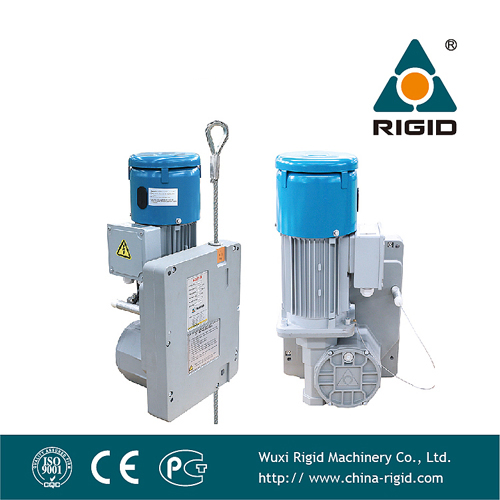

LTD-P Material Lifting Wire Rope Building Hoist

Endless passenger elevation (man-riding) hoist designed for unlimited rope lengths for lifting and lowering personnel. Capacities range from 500kg to 1000kg at either 9 or 18 m/min.

The LTD-P Series unlimited cable passenger lifting hoist is a versatile solution suitable for numerous applications. The rope is not connected, making it compact, lightweight, and very easy to handle. Its unrestricted wire rope length capability allows for unlimited lifting heights and traction lengths.

🌟 Features and Benefits

✔ Housing: Robust die-cast aluminium ensuring low dead-weight and rigidity.

✔ Gearing: Fabricated from hardened steel for durability.

✔ Attachment: Universal attachment via central 16mm load pin or M10 screws.

✔ Protection: Motor protected to IP55 as standard.

✔ Control: 24V for mobile units and 42V for stationary models.

✔ Safety: Thermal overload protection and phase monitoring included.

✔ Quality: Nitrided steel drive sheave (70 HRC) for low wear.

✔ Oil: Fully-synthetic special oil for quiet running (-40°C to 70°C).

📊 Main Parameters

Model	Capacity (kg)	Lifting Speed (m/min)	Rope Diameter (mm)	Motor (kW)	Weight (kg)
LTD50-8P9	500	9	8.3	1.1	46
LTD50-8P18	500	18	8.3	2.0	47
LTD63-8P9	600	9	8.3	1.5	48
LTD63-8P18	600	18	8.3	2.2	49
LTD80-9P9	800	9	9.0	1.8	50
LTD80-9P18	800	18	9.0	3.0	53
LTD100-10P9	1000	9	10.2	2.2	51
LTD100-10P18	1000	18	10.2	4.0	62

*Voltage and frequency are available upon request.

🛡️ Safety Systems

In accordance with DIN EN1808, each hoist used for passenger elevation must feature an independent safety rope system. Our fall arresters comply with standard DIN EN 1808 and are certified by TUV.

Manual Safety Lowering: In power failure, the electro-mechanical brake can be released manually for safe descent.

Overload Protection: Stops rising when load limit is exceeded.

Overspeed Fall Arrester (OSL): Trips automatically when speed exceeds 30m/min.

Anti-tilting Fall Arrester (LSF): Trips automatically when the platform angle exceeds 5°.

📏 Dimensional Specifications

❓ Frequently Asked Questions

What is the weight capacity of the LTD-P series hoist?

The LTD-P series hoists offer capacities ranging from 500kg up to 1000kg, depending on the specific model selected.

Is the LTD-P hoist suitable for passenger elevation?

Yes, it is specifically designed for man-riding applications and complies with DIN EN 1808 safety requirements for suspended access equipment.

Can the lifting speed be adjusted?

Models are available with fixed speeds of either 9 m/min or 18 m/min to suit different operational needs.

What safety devices are included for emergency situations?

The hoist includes an overspeed safety fall arrester (OSL), an anti-tilting fall arrester (LSF), and a manual lowering mechanism for power failures.

What power supply is required for the hoist?

The standard operating voltage is 380V, 3ph, 50Hz. However, 220V, 415V, and 60Hz options are available upon request.

How does the hoist handle unlimited lifting heights?

Because the wire rope is not stored on a drum (endless hoist design), it can travel along any length of rope, allowing for virtually unlimited lifting heights.
