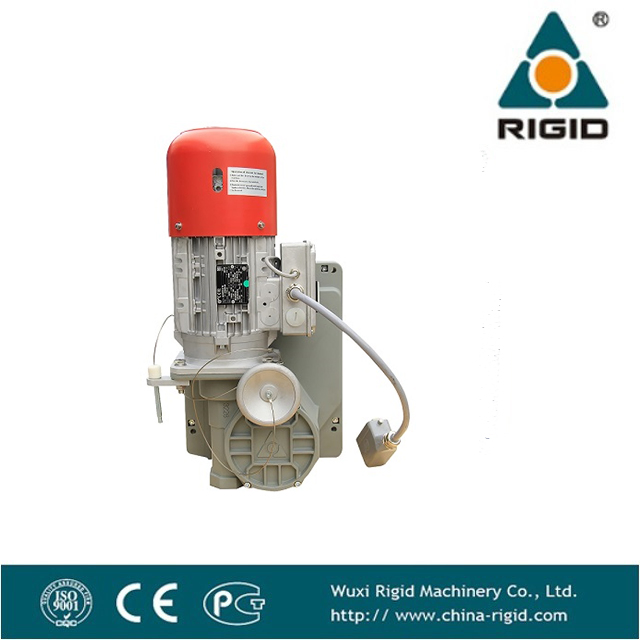

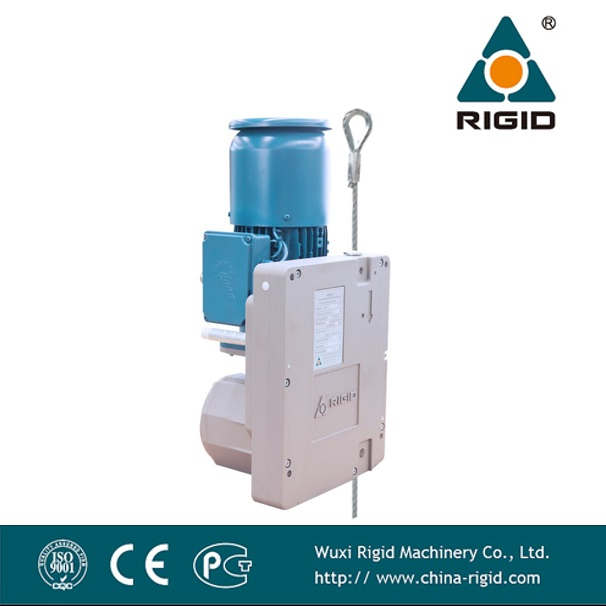

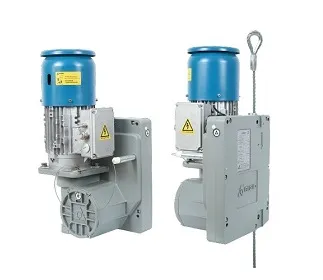

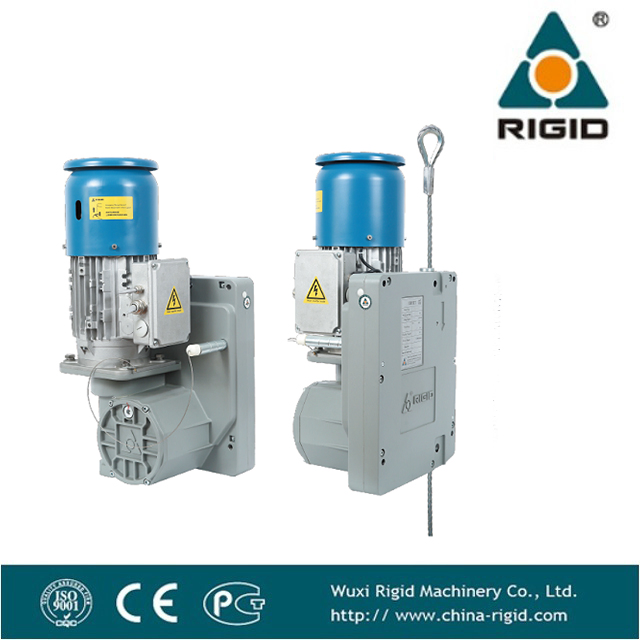

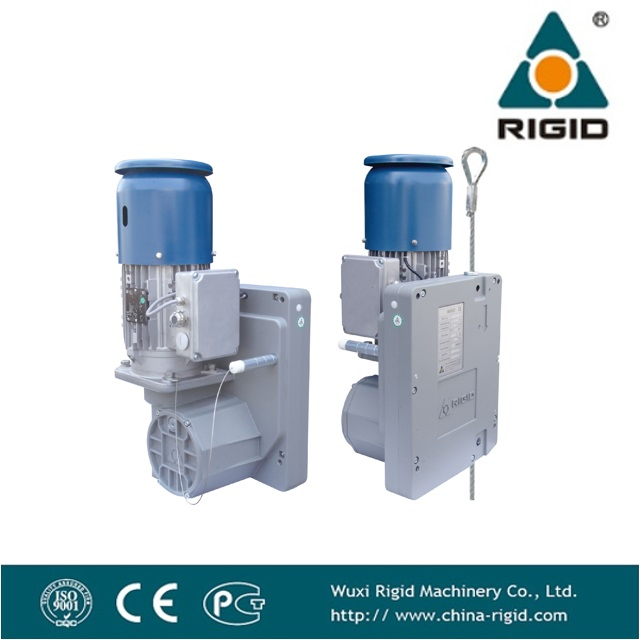

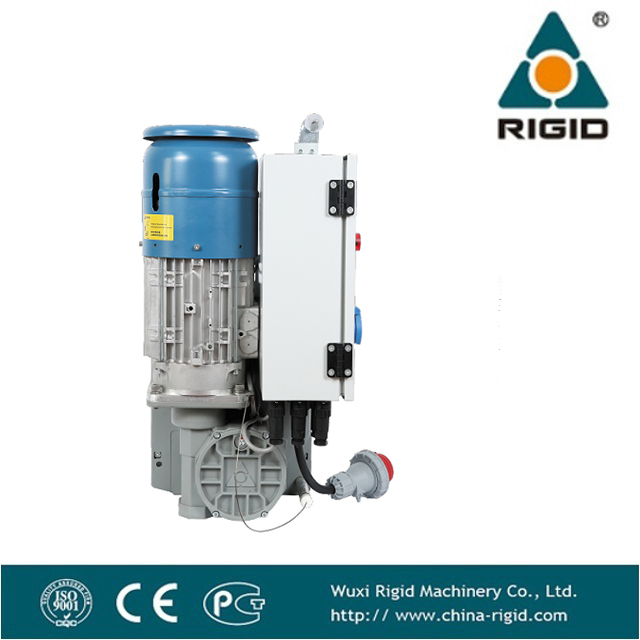

The LTD-P Series unlimited cable (wire rope) passenger lifting hoist is a high-quality alternative for man-riding applications. The endless hoist is versatile and suitable for unlimited applications. The rope is not connected which makes it compact, lightweight and very easy to handle. Unrestricted wire rope lengths capability makes it possible to utilise unlimited lifting heights and traction lengths.
| Model | Capacity (kg) | Lifting Speed (m/min) | Rope Diameter (mm) | Motor (kW) | Weight (kg) |
|---|---|---|---|---|---|
| LTD50-8P9 | 500 | 9 | 8.3 | 1.1 | 46 |
| LTD50-8P18 | 500 | 18 | 8.3 | 2.0 | 47 |
| LTD63-8P9 | 600 | 9 | 8.3 | 1.5 | 48 |
| LTD63-8P18 | 600 | 18 | 8.3 | 2.2 | 49 |
| LTD80-9P9 | 800 | 9 | 9 | 1.8 | 50 |
| LTD80-9P18 | 800 | 18 | 9 | 3.0 | 53 |
| LTD100-10P9 | 1000 | 9 | 10.2 | 2.2 | 51 |
| LTD100-10P18 | 1000 | 18 | 10.2 | 4.0 | 62 |
*Voltage and frequency are available upon request.
In accordance with DIN EN1808, every hoist for passenger elevation must feature an independent safety system. Our solutions are approved for passenger elevation and comply with standard DIN EN 1808 safety requirements, certified by TUV.
Flexible Attachment Points
Available in corners for screws or pins.

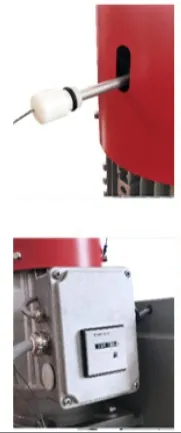

Safety Lowering Mechanism
Manual release for power failure situations.
Automatically trips when lowering speed exceeds 30m/min (0.5m/s). Clamping jaw stops the rope within centimeters.
Automatically trips when the angle of the rope or platform exceeds 5°, immediately stopping all movement.
