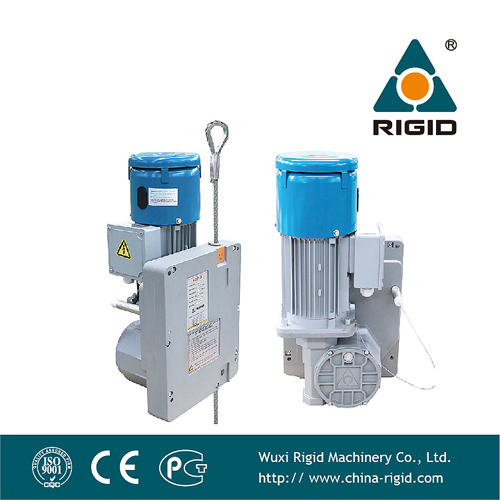

Ltd-P Mechanical Wire Rope Man-Riding Hoist

Customization:	Available
Application:	Man-Riding
Type:	Electric Hoist

Send Inquiry

Product Description

Basic Specifications

Model NO.LTD-P

Sling TypeWire Rope

Lift Speed9/18m/Min

Lifting HeightCustomized

CertificationCE, TUV

Voltage380V (415V/220V)

Frequency50Hz/60Hz

HS Code8425110000

Capacity1000pcs/Month

LTD-P Mechanical Wire Rope Man-Riding Hoist

This endless passenger elevation (man-riding) hoist is designed for use with unlimited rope lengths for lifting and lowering personnel. Capacities range from 500kg to 1000kg at speeds of either 9 or 18 m/min. It serves as a versatile alternative for various man-riding applications.

The rope is not connected, making the unit compact, lightweight, and easy to handle. The unrestricted wire rope length capability allows for unlimited lifting heights and traction lengths.

Key Features and Benefits

1Robust precisely machined die-cast aluminium housing for low dead-weight and rigidity.

2Gearing and drive sheave fabricated from high-grade hardened steel.

3Universal attachment via 16mm load pin or M10 screws.

4Motor protection rated to IP55 as standard.

5Standard operating voltage: 380V, 3ph, 50Hz (custom voltages available).

6Control Voltage: 24V for mobile units / 42V for stationary models.

7Integrated thermal overload protection device in the motor.

8TUV certified by independent inspection institutes.

9Nitrided steel drive sheave (70 HRC) ensuring minimal wear.

10Special fully-synthetic oil for efficiency in temperatures from -40°C to 70°C.

Technical Parameters

Model	Capacity (kg)	Lifting Speed (m/min)	Rope Diameter (mm)	Motor (kW)	Weight (kg)
LTD50-8P9	500	9	8.3	1.1	46
LTD50-8P18	500	18	8.3	2.0	47
LTD63-8P9	600	9	8.3	1.5	48
LTD63-8P18	600	18	8.3	2.2	49
LTD80-9P9	800	9	9.0	1.8	50
LTD80-9P18	800	18	9.0	3.0	53
LTD100-10P9	1000	9	10.2	2.2	51
LTD100-10P18	1000	18	10.2	4.0	62

Safety Systems for Passenger Elevation

In accordance with DIN EN1808, each hoist used for personnel must feature a safety system on an independent safety rope.

OSL System

Overspeed Safety Fall Arrester

Trips automatically when lowering speed exceeds 30m/min. Hardened steel clamping jaws stop movement within centimeters.

LSF System

Anti-tilting Safety Fall Arrester

Trips automatically when the rope or platform angle exceeds 5°, immediately locking the system.

Advanced Safety Features

Manual Lowering: Brake can be released manually during power failure for controlled descent.
Overload Protection: Hoist stops rising if the load exceeds the limit.
Operating Counters: Records operating hours and number of starts for maintenance.

Dimensional Specifications

Frequently Asked Questions

What is the primary application of the LTD-P hoist?

The LTD-P is specifically designed for passenger elevation (man-riding) applications where personnel need to be lifted or lowered safely using wire ropes.

Does this hoist support unlimited lifting heights?

Yes, because it is an "endless" hoist where the rope is not stored on a drum, it can be used for any height depending on the length of the wire rope provided.

What safety certifications does the LTD-P hold?

The hoist is TUV certified and complies with the DIN EN 1808 standard for safety requirements on suspended access equipment.

How does the manual lowering mechanism work?

In the event of a power outage, the electro-mechanical brake can be manually released, allowing the load or personnel to descend in a safe and controlled manner.

What happens if the hoist is overloaded?

The internal mechanism includes an overload cut-out. If the load exceeds the rated capacity, the hoist will stop rising and only allow for descent.

Can the hoist operate in extreme cold weather?

Yes, it uses a special fully-synthetic oil that maintains high efficiency and quiet operation in temperatures as low as -40°C.
